Changing a fuse
The extraction tweezer is fitted to the back of
the dashboard fusebox cover.
F
u
nclip the cover by pulling at the top right,
then left,
F

d
isengage the cover completely and turn it
ove r,
Access to the tools
F remove the tweezer.
Practical information

143
Changing a fuse
GoodFailedCITRoËn will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Before changing a fuse:
F

t

he cause of the failure must be identified
and rectified,
F
a
ll electrical consumers must be switched
of f,
F

t

he vehicle must be immobilised with the
ignition off,
F

i

dentify the failed fuse using the tables and
layout drawings in the following pages.
To replace a fuse, you must:
F

u

se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a

lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
Tw e e z e r
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop.
If the fuse fails again soon after
replacement, have the vehicle's electrical
system checked by a CITROËN dealer or
a qualified workshop.
9
Practical information

144

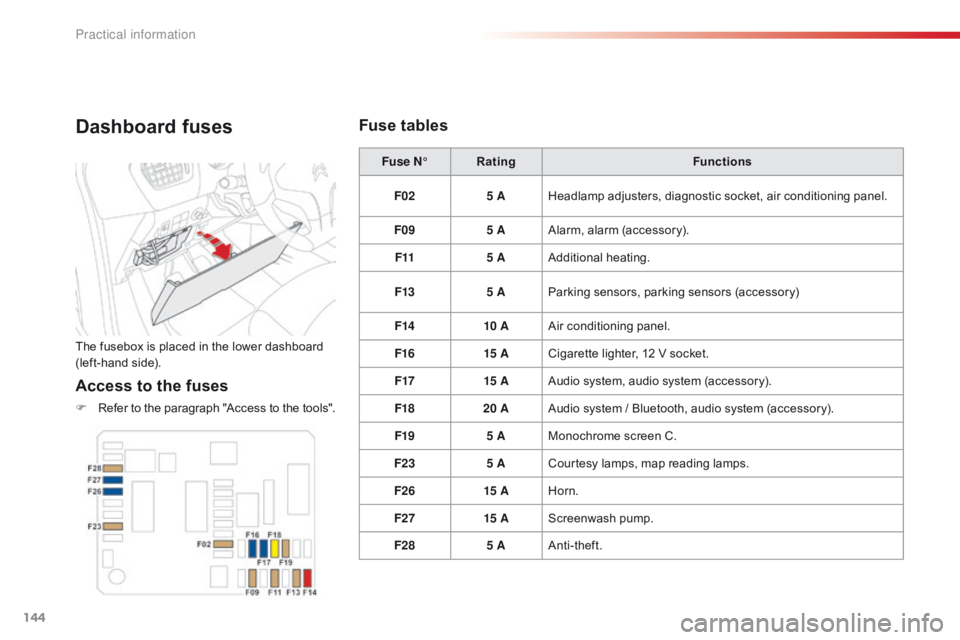

Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "Access to the tools".Fuse N°
Rating Functions
F02 5 AHeadlamp adjusters, diagnostic socket, air conditioning panel.
F09 5 AAlarm, alarm (accessory).
F11 5 AAdditional heating.
F13 5 AParking sensors, parking sensors (accessory)
F14 10 AAir conditioning panel.
F16 15 ACigarette lighter, 12 V socket.
F17 15 AAudio system, audio system (accessory).
F18 20 AAudio system / Bluetooth, audio system (accessory).
F19 5 AMonochrome screen C.
F23 5 ACourtesy lamps, map reading lamps.
F26 15 AHorn.
F27 15 AScreenwash pump.
F28 5 AAnti-theft.
Fuse tables
Practical information

145
Fuse N°Rating Functions
F29 -Not used.
F30 10 AHeated door mirrors.
F31 25 AHeated rear window.
F32 -Not used.
F33 30 AFront electric windows.
F34 30 ARear electric windows.
F35 30 AHeated front seats.
F36 -Not used.
F37 20 ATrailer inter face.
9
Practical information

146
Fuse N°Rating Functions
F14 15 AHeated lower windscreen.
F15 5 AAir conditioning compressor.
F16 15 AFront foglamps.
F18 10 ARight hand main beam headlamp.
F19 10 ALeft hand main beam headlamp.
F29 40 AFront wiper motor.
F30 80 APre-heater plugs (Diesel).
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse tableEngine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Practical information

158
