Instrument panel for petrol - Diesel
1. Rev counter (x 1 000 rpm).
2. Screen.
3.
S

peedometer (mph or km/h). A. E
lectronic or automatic gearbox
information.
G

ear shift indicator.
B.
T

ime.
C.
R

ange (miles or km)


or
T

rip distance recorder.
D.
F

uel gauge.
E.
S

ervice indicator (miles or km)


then,
t

otal distance recorder.
T

hese two functions are displayed
successively when switching on the ignition.
F.
S

peed limiter or cruise control settings.
4. R
eminder of service information R
eset the selected function to zero (trip
distance recorder or service indicator)
A

djust the time.
DialsScreen
Monitoring

15
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.Warning / indicator lamp StateCause Action / Observations
STOP fixed, associated with
another warning lamp. It is associated with the engine
oil pressure or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or qualified workshop.
Service on temporarily. Minor faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in
the
screen, such as, for example:
-

s
aturation of the particle emissions filter (Diesel).
-

t
he power steering,
-

a m
inor electrical fault.
-
...
F

or any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. Major faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in
the screen and then contact a CITROËN dealer or
qualified workshop.
1
Monitoring

16
Warning / indicator lampStateCause Action / Observations
Braking fixed. The brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Maximum
coolant
temperature fixed red.
The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Under-inflation fixed, accompanied by
an audible signal and
a message. The pressure in one or more wheels
is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information, refer to the "Under-inflation
detection" section.
+ flashing then fixed,
accompanied by the
Service warning lamp.The system has fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Monitoring

20
Service indicator
More than 1800 miles (3000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero reset. It
is determined by two parameters:
-

t

he distance travelled,
-

t

he time elapsed since the last service.
Between 600 miles (1 000 km)
and 1800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance recorder
display line indicates the distance remaining
before the next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched
on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
Monitoring

21
Service overdue
For a few seconds after the ignition is switched
on,the spanner flashes to indicate that the
service must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(300 km).
For a few seconds after the ignition is switched
on, the display indicates:
The distance remaining may be
weighted by the time factor, depending
on the driver's driving habits.
Therefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule. Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be taken into account.
Service indicator

zero reset
After each service, the service indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:
F

s
witch off the ignition,
F

p
ress and hold the trip distance recorder
zero reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates "=0" , release
the button; the spanner disappears.
Retrieving the service
information
You can access the service information at
any time.
F

P
ress the trip distance recorder zero reset
button.
T

he service information is displayed for a
few seconds, then disappears.
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on .
1
Monitoring

34
C-Elysee_en_Chap02_ouvertures_ed01-2014
System which protects and provides a deterrent
against theft and break-ins. It provides
perimeter protection as well as a self-protection
function.
Alarm
Perimeter protection
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Locking the vehicle with
alarm
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control.
The perimeter protection is activated 5 seconds
after pressing the locking button on the remote
control.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the alarm is
activated. F

P
ress the unlocking button on
the remote control.
Deactivation
The alarm is deactivated: the
indicator lamp goes off.
The alarm is activated: a indicator
lamp in the switch panel to the
left of the steering wheel flashes
once per second.
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
access

227
Door mirror adjustment 43 - 44
Deactivating the ESP/ASR
system
9
5
Opening the boot lid (depending on version)
3
7
Alarm warning lamp
3
4-35Instrument panels
1
0
Warning lamps
1
1-19
Service indicator
2
0 -21
Gear shift indicator
7
4
Distance recorders
2
2
Lighting controls
8
1- 85
Direction indicators
9
0
Horn
9
0

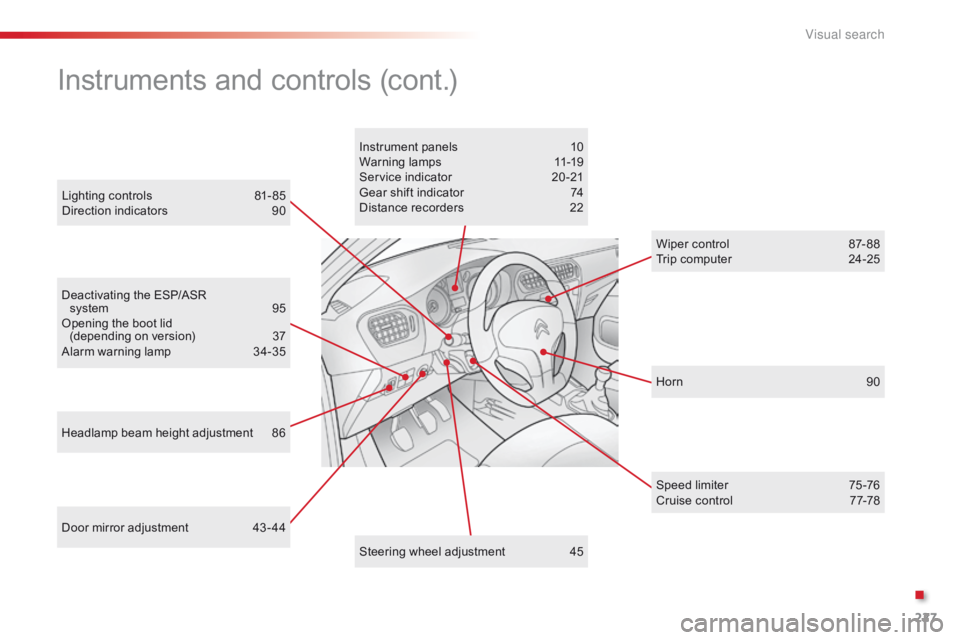

Instruments and controls (cont.)
