2015 Citroen BERLINGO RHD display

9
Heating, ventilation- heating 63-64
-

air conditioning

63-64
Digital air conditioning


65-66
Demisting/defrosting


67-68
Rear view mirror


83
Passenger's front airbag deactivation

97, 100
Courtesy lamps

76, 139
Gearbox


43
On-board technology


Chapter 10
-


eMyW

ay
-

Audio system
Controls -


central locking


27
-


load space locking


27
-


electric windows


84
-


hazard warning lamps


85 Cab fittings


74-75
-


glove box,
-


overhead storage,
-


console,
-


sun visor
,
-

bottle holder
,
-

bag holder
,
-

storage compartments under
seats,
-


storage compartment.
Screens,


display
28-29, Chapter 10
Setting the time

in the screen
Chapter 10
Emergency or assistance


call

Chapter 10
"Grip control"


90-91
1
oVERVIEW
Location

11
Heating-ventilation:- heating 63-64
-

air conditioning

63-64
Digital air conditioning


65-66
Demisting/defrosting


67-68
Rear view mirror


83
Controls:-


central locking

27
-


load space locking

27
-


electric windows

84
-


hazard warning lamps

85
"Grip control"


90-91
Cab fittings


74-75
-


glove box,
-


overhead storage,
-


console,
-


sun visor

,
-

bottle holder

,
-

bag holder

,
-

storage compartments under
seats,
-


storage compartment. Screens,


display
28-29, Chapter 10
Setting the time

in the screen
Chapter 10
Dashboard, passenger compartment fuses


142-144
Opening the bonnet


1

12
Technology on board

Chapter 10
-


eMyW

ay
-

Audio system
Emergency


or assistance call
Chapter 10
Manual gearbox
43
Courtesy lamps


76, 139
1
oVERVIEW
Location

16Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2
emissions.
ECO-DRIVING
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference
to automatic mode and avoid pressing the accelerator
pedal heavily or suddenly.
The gear shift indicator invites you engage the most
suitable gear: as soon as the indication is displayed in the
instrument panel, follow it straight away.
For vehicles fitted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the
accelerator progressively. These practices contribute
towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic
noise.
If your vehicle has cruise control, make use of the system
at speeds above 25 mph (40 km/h) when the traffic is
flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep
the temperature in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless it has automatic
regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not
automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the
level of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (film, music, video game...), you will contribute
towards limiting the consumption of electrical energy, and
so of fuel.
Disconnect your portable devices before leaving the vehicle.
Motoring & Environment

28
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2014
INSTRUMENT PANEL
Dials
1. Distance recorder in kilometres /
miles.
2.

Screen.
3.


Fuel level, coolant temperature.
4.


Rev counter
.
5.

T
rip distance recorder / service
indicator zero reset.
6.

Instrument panel lighting dimmer
.Level 1 display screen
Level 2 display screen
Displays
- Speed limiter / Cruise control.
-
Kilometres / Miles travelled.
-


Service indicator
, total kilometres /
miles.
-

Presence of water in the Diesel
filter

.
-

Diesel pre-heating.
Screens
The format of the information
presented in the screen depends on
the vehicle's equipment.
Instruments and controls

29
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2014
Centre console with screen
Instrument panel without screen-
turn to the right to increase the
hours (hold the button to the right
for rapid scrollin

g),
-

turn to the left: 24H or 12H is
displayed,
-


turn to the right to select 24H or
12H,
-


turn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display

.
ADJUSTING THE TIME
To adjust the time and date
indicated in the screen, refer to
the "Adjusting the date and time"
section of chapter 10.
Centre console without screen
To adjust the time of the
clock, use the left-hand
button on the instrument
panel then carry out the
operations in the following
order:
-

turn to the left: the minutes flash,
-


turn to the right to increase the
minutes (hold the button to the right
for rapid scrollin

g),
-

turn to the left: the hours flash, The display - time sequence
is linked according to model
(version).

The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
Instruments and controls
READY TO GO
3

31
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2014
Warning lamp isindicatesSolution - action
Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. a drop in the coolant level. Chapter 7, "Levels" section.
Contact a CITROËN
dealer or a qualified
workshop.
Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer
or a screen: refer to the "Audio equipment - Trip
computer" section of chapter 10.
Contact a CITROËN dealer or a qualified
workshop.
remaining on. major faults.
Seat belt not
fastened on then
flashing.
the driver and/or front
passenger has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.
ECO on.
The Stop & Start
system
has put the engine in STOP
mode following a vehicle
stop (red light, traffic jam,
etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
flashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode has been
invoked automatically.
Chapter 3, "Stop & Start" section.
Instruments and controls
READY TO GO
3

+
ABS
33
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2014

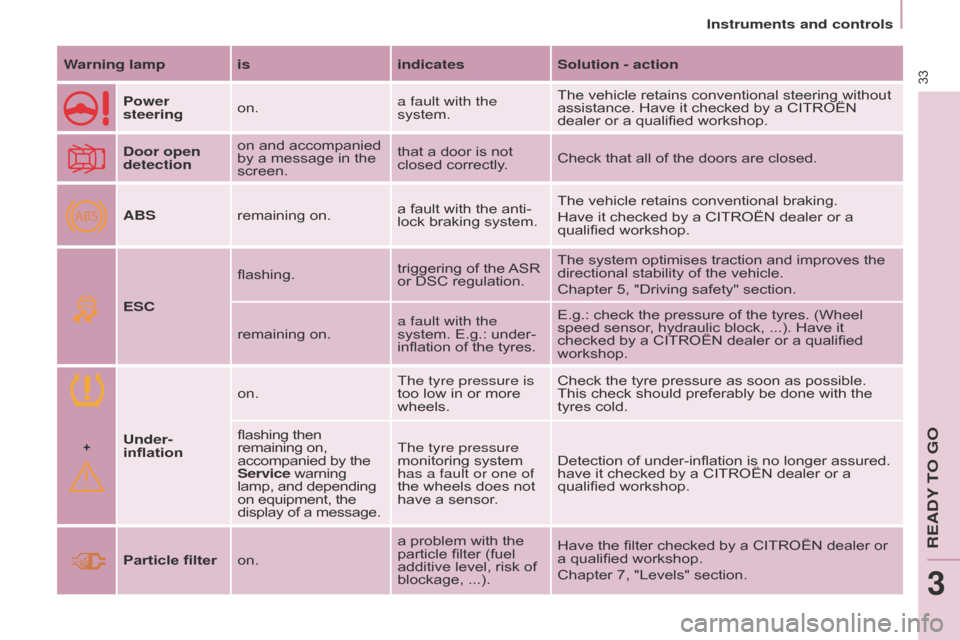

Warning lamp isindicatesSolution - action
Power
steering on. a fault with the
system.The vehicle retains conventional steering without
assistance. Have it checked by a CITROËN
dealer or a qualified workshop.
Door open
detection on and accompanied
by a message in the
screen. that a door is not
closed correctly.
Check that all of the doors are closed.
ABS remaining on. a fault with the anti-
lock braking system.The vehicle retains conventional braking.
Have it checked by a CITROËN dealer or a
qualified workshop.
ESC flashing.
triggering of the ASR
or DSC regulation.The system optimises traction and improves the
directional stability of the vehicle.
Chapter 5, "Driving safety" section.
remaining on. a fault with the
system. E.g.: under-
inflation of the tyres.E.g.: check the pressure of the tyres. (Wheel
speed sensor, hydraulic block, ...). Have it
checked by a CITROËN dealer or a qualified
workshop.
Under-
inflation on.
The tyre pressure is
too low in or more
wheels.Check the tyre pressure as soon as possible.
This check should preferably be done with the
tyres cold.
flashing then
remaining on,
accompanied by the
Service warning
lamp, and depending
on equipment, the
display of a message. The tyre pressure
monitoring system
has a fault or one of
the wheels does not
have a sensor.
Detection of under-inflation is no longer assured.
have it checked by a CITROËN dealer or a
qualified workshop.
Particle filter on. a problem with the
particle filter (fuel
additive level, risk of
blockage, ...).Have the filter checked by a CITROËN dealer or
a qualified workshop.
Chapter 7, "Levels" section.
Instruments and controls
READY TO GO
3

40
Berlingo-2-VU_en_Chap03_Pret-a-partir_ed02-2014
The alert is maintained until
the tyre or tyres concerned is
reinflated, repaired or replaced.
The spare wheel (space-saver type or
a steel rim) does not have a sensor.
Operating fault
Under-inflation alert
The loss of pressure detected
does not always lead to visible
deformation of the tyre. Do not rely
on just a visual check.The alert is given by the fixed
illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.The flashing and then
fixed illumination of the
under-inflation warning
lamp accompanied by the
illumination of the "Service" warning
lamp, and depending on equipment,
the display of a message indicates a
fault with the system.
In this case, monitoring of the tyre
pressures is not assured.
In the event of a problem on one of
the tyres, the symbol or the message
appears, according to equipment, to
identify it.
-

Reduce speed, avoid sudden
steering movements or harsh brake
applications.
-


Stop as soon as it is safe to do so.
-


In the event of a puncture, use
the temporary puncture repair kit
or the spare wheel (according to
equipment),
or
-


if you have a compressor

, the one
in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,
or
-


if it is not possible to check the
tyre pressures at the time, drive
carefully at reduced speed.
This alert is also displayed when
one or more wheels is not fitted
with a sensor (for example, a
space-saver or steel spare wheel).
Go to a CITROËN dealer or a qualified
workshop

to have the system checked
or, following the repair of a puncture, to
have the original wheel, equipped with
a sensor, refitted.
Instruments and controls
