Location

Berlingo_2_VP_en_Chap03_Pret-a-partir_ed02-2014
28
dials

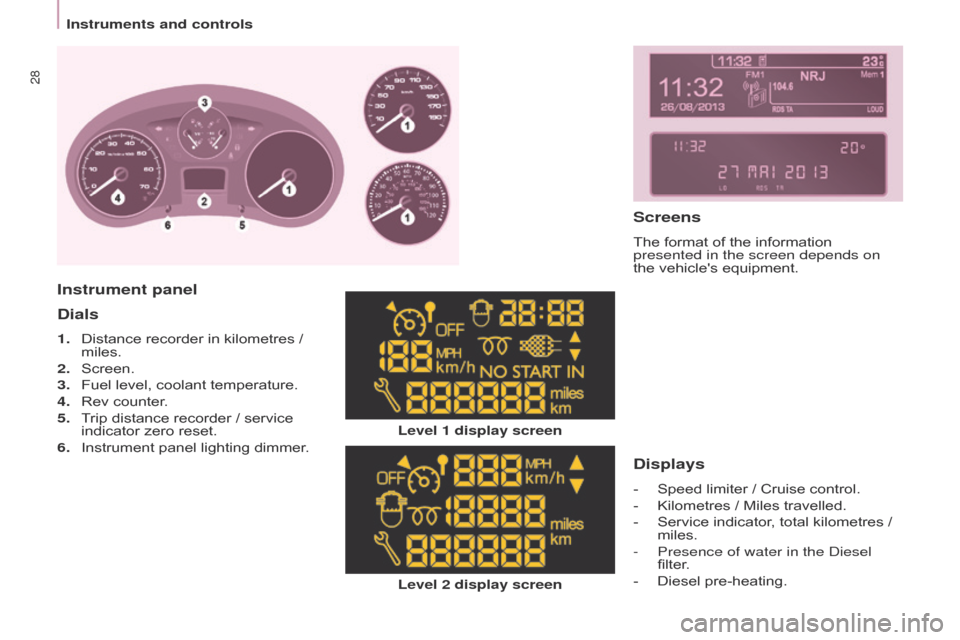

1. Distance  recorder   in   kilometres   /  miles.
2.

Screen.
3.


Fuel
  level,   coolant   temperature.
4.

Rev
  counter.
5.

T
rip   distance   recorder   /   service
indicator

  zero   reset.
6.

Instrument
  panel   lighting   dimmer.
Level 2 display screen
Instrument panel
Level 1 display screen
displays
- Speed  limiter   /   Cruise   control.
-
Kilometres
  /   Miles   travelled.
-

Service
  indicator,   total   kilometres   /
miles.
-


Presence of water in the
d iesel
filter.
-

Diesel
  pre-heating.
Screens
The format of the information presented in the screen depends on
the  vehicle's   equipment.
Instruments and controls

Berlingo_2_VP_en_Chap03_Pret-a-partir_ed02-2014
30
Warning lamps

Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They  go   off   almost   immediately.
When   the   engine   is   running:   the   warning   lamp   becomes   a   warning   if   it   remains   on   continuously   or   flashes.
This
  initial   warning
may

  be   accompanied   by   an   audible   signal   and   a   message   which   appears   in   the   screen.
Do
  not   ignore   these   warnings.
Warning lamp is indicatesSolution - action
S t
OP on, associated
with another
warning
lamp

  and
accompanied


by

  a   message
in

  the   screen.major
  faults   linked   with
the

  "Brake   fluid   level",
"Engine oil pressure and
temperature",

  "Coolant
temperature",

  "Electronic
brake

  force   distribution"   and
"Power steering" warning
lamps.Y

ou must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a
c I tr OË n dealer or a qualified
workshop.
Parking
brake / Brake
fluid level /
EBF
d
on.that the parking  brake  is  applied or
  has   not   been   released   fully.Releasing the parking brake switches off the warning  lamp.
on. low

brake

fluid

level. Top   up   using   a   fluid   recommended   by   CITROËN.
remaining on even though the level
is correct and
associated with the
ABS

warning

lamp.
a fault with the electronic
brake  force   distribution. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a CITROËN dealer or a qualified
workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park
  and   switch   off   the   ignition   then   allow   to   cool.
V

isually   check   the   level.
Chapter
  7,   "Levels"   section.
remaining on, even though the
level  is   correct.a major fault. Have   it   checked   by   a   CITROËN   dealer   or   a  qualified
  workshop.
Instruments and controls

Berlingo_2_VP_en_Chap03_Pret-a-partir_ed02-2014
31Warning lamp isindicatesSolution - action
c

oolant
temperature
and level on with needle
in the red
zone.
an
  abnormal   increase   in
temperature.Park

  and   switch   off   the   ignition   then   allow   to   cool.
V

isually   check   the   level.
flashing. a
  drop   in   the   coolant   level.Chapter
  7,   "Levels"   section.
Contact
  a   CITROËN dealer   or   a   qualified
workshop.
Service on

  temporarily. minor   faults   or   warnings.Consult
  the   alert   log   in   the   display   or   screen.
If
  your   vehicle   is   equipped   with   a   trip   computer
or

  a   screen:   refer   to   the   "Audio   equipment   -
T
rip
computer"

  section   of   chapter   10.
Contact
  a   CITROËN   dealer   or   a   qualified
workshop.
remaining

  on. major   faults.
Seat belt not
fastened on then
flashing.
the
  driver   and/or   front
passenger has not fastened
their

  seat   belt.Pull
  the   strap   then   insert   the   tongue   in   the   buckle.
accompanied

by an audible
signal then
remains

  on.the
  vehicle   is   moving   with
the

  driver's   and/or   front
passenger's seat belt not
fastened.Check

  that   the   seat   belt   is   fastened   by   pulling   the
strap.
Chapter

  5,   "Seat   belts"   section.
E
c O on.
The
  Stop   &   Start system
has put the engine in
ST

OP

mode   following   a
vehicle

  stop   (red   light,   traffic
jam, etc...).As

  soon   as   you   want   to   move   off,   the   warning
lamp

  goes   off   and   the   engine   restarts
automatically

  in   START

mode.
flashes
  for   a
few seconds,
then

  goes   off.STOP


mode   is   temporarily
unavailable.
or
ST

ART

mode   has   been
invoked

  automatically.Chapter
  3,   "Stop   &   Start"   section.
Instruments and controls
REadY To Go
3

Berlingo_2_VP_en_Chap03_Pret-a-partir_ed02-2014
38
FuEL GAuGEcOOLA nt t EMPE r Atur E
the needle is positioned before the
red zone:   normal   operation.
In arduous conditions of use or hot
climatic
  conditions,   the   needle   may
move

  close   to   the   red   graduations.What you should do if the needle
enters the red zone:
Reduce your speed or let the engine
run
  at   idle.
What you should do if the warning
lamp comes on:
-
stop
  immediately,   switch   off   the
ignition.


The
  fan   may   continue   to
operate

  for   a   certain   time,   up   to
approximately

  10   minutes,
-
wait for the engine to cool down in
order

  to   check   the   coolant   level   and
top

  it   up   if   necessary.
As   the   cooling   system   is   pressurised,
follow this advice in order to avoid any
risk

  of   scalding:
-
wait at least one hour after
switching of

f the engine before
carrying   out   any   work,
-
unscrew
  the   cap   by   1/4   turn   to
allow the pressure to drop,
-

when the pressure has dropped,
check

  the   level   on   the   expansion  bottle,
-

if necessary,  remove  the  cap  to  top  up.
If the needle remains in the red zone,
  have   the   system   checked   by
a

  CITROËN   dealer   or   a   qualified
workshop.
Refer

  to   chapter   7,   "Levels"
section.
Refer


to

chapter

7,

"Fuel"

section.
The

fuel

level

is

tested

each

time

the
 key

is

turned

to

the

"running"

position.
The

gauge

is

positioned

on:
-

1:


the

fuel

tank

is

full,

approximately


60

litres.
-

0:

the reserve is now being used,
the

warning

lamp

comes

on

continuously

.

The


reserve

when

the


warning

first

comes

on

is

approximately


8

litres.
Instruments and controls

135
Berlingo_2_VP_en_Chap06_Accessoire_ed02-2014
For more information about weights and towed loads, refer to
chapter  9,   "Weights"   section.
tOWIn G A tr AILE r , c A r AVA n , BOAt, E tc ...
distribution of loads
d

istribute the load in the trailer so
that
  the   heaviest   objects   are   as
close as possible to the axle and
the nose weight is close to the
maximum

  authorised   without,   however,
exceeding

  it.
c

ooling
Towing a trailer on a slope increases
the
  coolant   temperature.a s the fan is electrically controlled, its
cooling capacity is not dependent on
the
  engine   speed.
You should therefore use a high gear
to lower the engine speed and reduce
your
  speed.
In all cases, pay attention to the
coolant
  temperature.
driving advice
A towed   vehicle   must   free   wheel:  gearbox
  in   neutral.
Towing a trailer
aCCESSoRIES
6

136
Berlingo_2_VP_en_Chap06_Accessoire_ed02-2014
Good Practice
In certain cases of particularly arduous
use  (towing   the   maximum   load   up   a
steep

  slope   in   high   temperatures),   the
engine

  automatically   limits   its   power.
In this case,

the air conditioning is
automatically
  cut   off   to   save   engine
power

.
tyres
Check

  the   tyre   pressures   of   the   towing
vehicle and of the trailer

, observing the
recommended
  pressures.
Chapter
  7,   "Levels"   section.
If
  the   coolant   temperature
warning

  lamp   comes   on,   stop
the vehicle and switch of

f the
engine
  as   soon   as   possible.Brakes
Towing
  increases   the   braking   distance.  Drive
  at   a   moderate   speed,   change
down

  early   and   brake   gradually.
towbar
We recommend the use of genuine CITRo Ë n towbars and their
harnesses, which have been tested
and
  approved   from   the   design   stage   of
your vehicle, and that you entrust the
fitting

  of   this   equipment   to   a   CITROËN
dealer

.
If
  this   equipment   is   not   fitted   by   a
CITROËN

  dealer,   it   is   imperative   that
it

  is   fitted   using   the   electrical   pre-
equipment
  installed   at   the   rear   of   the
vehicle and in accordance with the
manufacturer's

  instructions.
In accordance with the general
instructions
  a   reminder   of   which   has
been given above, we draw your
attention

  to   the   risk   associated   with
fitting

  a   towbar   or   electrical   accessory
not

  recommended   by   CITROËN.
Fitting

  such   equipment   could   result   in
the failure of your vehicle's electronic
system.

  Please   obtain   information   from
the

  Manufacturer   before   fitting   this   type
of

  equipment.
Side wind
Sensitivity

to

side

wind

is

increased.

Drive


smoothly

and

at

a

moderate

speed.
ABS/

d
S
c
The


ABS


or

DSC

systems

only

control

the


vehicle,

not

the

trailer

or

caravan.
Parking sensors
The

rear

parking

sensors

system

does

not


function

while

the

vehicle

is

towing.
Chapter

9,

"Identification

markings"


section.
towing a trailer
