27
ANCILLARIES BATTERY

Charging the battery with a
battery charger
Do not charge the battery without
fi rst disconnecting the terminals
and removing the battery from the
front compartment.
Do not disconnect the
terminals when this indicator
warning lamp is on, nor when
the vehicle itself is on charge.

Before disconnection

Switch off the ignition and wait two
minutes before disconnecting the
battery.

After reconnection

After any reconnection of the battery,
switch on the ignition and wait
1 minute before starting, so as to
allow initialisation of the electronic
systems. However, if some minor
problems remain after carrying out this
operation, contact a franchised dealer
or a qualifi ed workshop. Remember
to enter the radio pre-sets yourself,
referring to the corresponding section
in the handbook.

- Remove the battery fi xing 1
,

- lift the protective cover on the ( -
)
terminal,
- disconnect the cable from the ( -
)
post

- lift the protective cover on the ( +
)
terminal 2
,

- slacken the nut 3
,

- disconnect the cable from the ( +
)
post,

- remove the battery,

- charge the battery following the
instructions on use provided by
the manufacturer of the battery
charger,

- reconnect the battery starting with
the cable on the ( +
) post.
Ensure that the battery posts and
terminals are clean. If they are
covered with sulphates (whitish or
greenish deposit), remove them and
clean them.

28
FUSES


The fusebox is located in the lower
dashboard on the left hand side.
The designations provided are for the
fuses that can be replaced by the user.
For any other work, go to a franchised
dealer or a qualifi ed workshop.
Fuse N°

Rating

Functions

1 15 A Rear wiper.
3 5 A Airbags.
4 10 A Diagnostic socket, mirror control, headlamp beams.
5 30 A Electric windows.
6 30 A Side-hinged door lock.
7 5 A Interior lamps: rear, roof, glove box.
8 20 A Audio system, screen, alarm and siren.
11 15 A Immobiliser.
12 15 A Air conditioning control panel, front and rear parking
sensors.
13 5 A Instrument panel.
14 15 A Rain and sunshine sensor, airbags.
15 5 A Other locks.
17 40 A Heated rear screen/mirrors.

29
SUPPLEMENT FOR ELECTRIC MODE
SERVICING


In addition to the maintenance and warranty guide, at one year or 12 500 miles (20 000 km), whichever comes fi rst, you
must have the service listed below carried out.
Following this initial service, subsequent services must be carried out every 2 years or 25 000 miles (40 000 km)
(whichever comes fi rst).
Electric vehicle


Initial service
only carried out on the vehicle
at 1 year or 12 500 miles (20 000 km).
Routine services
every 2 years or 25 000 miles
(40 000 km) (whichever comes fi rst).

Main systematic
operations
Checks in the vehicle (horn, parking brake, ...)
Check the use-by date of the temporary puncture repair kit
Checks under the vehicle, including:


- safety checks (braking, steering, ...)

- environmental checks (sealing of circuits, gear reduction unit, ...)
Checks around the vehicle (condition of tyres, lighting and signalling, ...)
Checks under the bonnet, including topping-up fl uids if necessary (screenwash, brakes, ...)
Checks required by national legislation (other than annual technical test)
Diagnosis on electronic control units
Check the traction battery
Update the service indicator

Operations


Additional operations
Replace the coolant at 10 years
Replace the brake fl uid Every 2 years
Replace the cabin fi lter Every 2 years or 25 000 miles (40 000 km)
It is essential to observe these servicing intervals. Failure to observe the servicing intervals may have an adverse effect on
the operation of your vehicle.

30

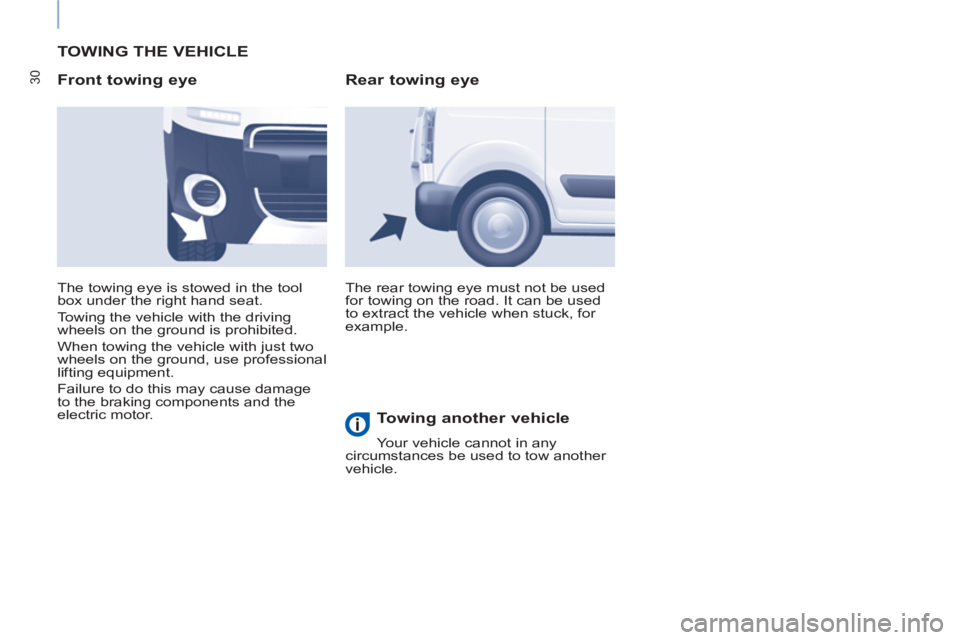

TOWING THE VEHICLE

Front towing eye

The rear towing eye must not be used
for towing on the road. It can be used
to extract the vehicle when stuck, for
example. The towing eye is stowed in the tool
box under the right hand seat.
Towing the vehicle with the driving
wheels on the ground is prohibited.
When towing the vehicle with just two
wheels on the ground, use professional
lifting equipment.
Failure to do this may cause damage
to the braking components and the
electric motor.


Rear towing eye

Towing another vehicle

Your vehicle cannot in any
circumstances be used to tow another
vehicle.

31
SUPPLEMENT FOR ELECTRIC MODE










MOTOR AND TRACTION BATTERY

The range of the vehicle, approved on the NEDC cycle, is 170 km (105 miles). This range can vary according to
various factors, the main ones being the use of the heating and air conditioning, the style of driving, the type of route
taken and ageing of the traction battery.
Ageing of the traction battery also depends on various factors, such as the ambient temperature, the mileage of the vehicle,
the frequency of fast charges…
Electric motor




Technology
Synchronous with permanent magnets
Max. power in kilowatts: EU standard (kW)
49
Max. power speed in revolutions per minute (rpm)
from 4 000 to 9 200
Max. torque in Newton metres: EU standard (Nm)
200
Max. torque speed in revolutions per minute (rpm)
0 to 1 500

Traction battery




Technology
Lithium-Ion

Normal charge

Alternating current power supply in volts: (V) AC
230
Time for a complete charge (from 0% to 100%) according to the power supply
rating in Amps:


- 16 A

- 14 A

- 10 A

- 8 A
Depending on the power supply in the country.
Minimum time measured for ambient temperatures between 0 and 40°C.
7 hours 30 minutes
8 hours 30 minutes
12 hours
15 hours

Fast charge

Charging time (80% charge) from the reserve level
< 30 minutes

32
IDENTIFICATION MARKINGS


A. Manufacturer's plate.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.
B. Serial number.
This is engraved on the front right
wheelarch.
C. Tyres and paint colour code.
The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre
pressures must be checked when
the tyres are cold, at least once a
month),

- the paint colour code.
