2015 CHRYSLER 200 Warranty Booklet

MAINTENANCE SCHEDULE
Scheduled maintenance must be completed to provide the best vehicle performance and reliability.
The limited warranties in the warranty booklet DO NOT COVER repairs required due to improper
maintenance. We strongly suggest you keep track of scheduled maintenance and keep receipts or other
documents. Use only recommended Mopar® Lubricants and genuine Mopar® Parts. In the event that
a condition arises between maintenance intervals, please contact your retailer.AVOID PRO-
LONGED PERIODS OF IDLING.
NOTE: WHERE TIME AND METRAGE ARE INDICATED, FOLLOW THE INTERVAL THAT OCCURS FIRST.
Your vehicle is equipped with an automatic oil change indicator system. The oil change indicator system
will remind you that it is time to take your vehicle in for scheduled maintenance. Based on engine
operation conditions, the oil change indicator message will illuminate. This means that service is required
for your vehicle. Operating conditions such as frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil message to illuminate as early as 5,600 kilometres
since last reset. Have your vehicle serviced as soon as possible, within the next 800 kilometres.
NOTE: UNDER NO CIRCUMSTANCES SHOULD OIL CHANGE INTERVALS EXCEED16,000 KILOMETRES OR TWELVE MONTHS, WHICHEVER COMES FIRST.
SEVERE DUTY ALL MODELS:
CHANGE ENGINE OIL AT 6,500 KILOMETRES IF THE VEHICLE IS OPERATED IN A
DUSTY AND OFF ROAD ENVIRONMENT. THIS TYPE OF VEHICLE USE IS CONSID-
ERED SEVERE DUTY
ONCE A MONTH OR BEFORE A LONG TRIP:
• Check engine oil level.
• Check windshield washer fluid level.
• Check and clean wiper blades. Replace if required.
• Check the tire inflation pressures and look for unusual wear or damage.
• Check the fluid levels of the coolant reservoir and brake master cylinder. Fill as needed.
• Check function of all interior and exterior lights.
REQUIRED MAINTENANCE
Refer to the Maintenance Schedules on the following pages for required maintenance.
AT EVERY OIL CHANGE INTERVAL AS INDICATED BY OIL CHANGE INDICATOR SYSTEM:• Change engine oil and filter. Oil changes prompted by the oil change indicator system can be
recorded in the oil change log section.
• Rotate the tires. Rotate at the first sign of irregular wear even if it occurs before the oil
indicator system turns on.
• Inspect battery and clean and tighten terminals as required.
• Inspect brake pads, shoes, rotors, drums, hoses and park brake.
• Inspect engine cooling system protection and hoses.
• Inspect exhaust system.
• Inspect engine air filter if using in dusty or off-road conditions.
WARNING!
• The performance of all scheduled service work is required to maintain your vehicle in good
operating condition. Chrysler Canada Inc. reserves the right to deny warranty coverage if
the vehicle has not been properly maintained. While we do not insist that such work be
performed by factory authorized retailers, we strongly recommend that an authorized
Chrysler, Jeep® or Dodge Retailer perform this work.
• You can be badly injured working on or around a motor vehicle. Do only service work for
which you have the knowledge and the right equipment. If you have any doubt about your
ability to perform a service job, take your vehicle to a competent mechanic.
• Failure to properly inspect and maintain your vehicle could result in a component
malfunction and effect vehicle handling and performance. This could cause an accident.
15

Perform Maintenance At 32,000 km or 24 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
Perform Maintenance At 48,000 km or 36 Months
❏Replace the engine air filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
16

Perform Maintenance At 64,000 km or 48 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
Perform Maintenance At 96,000 km or 72 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
❏ Replace the engine air filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
17

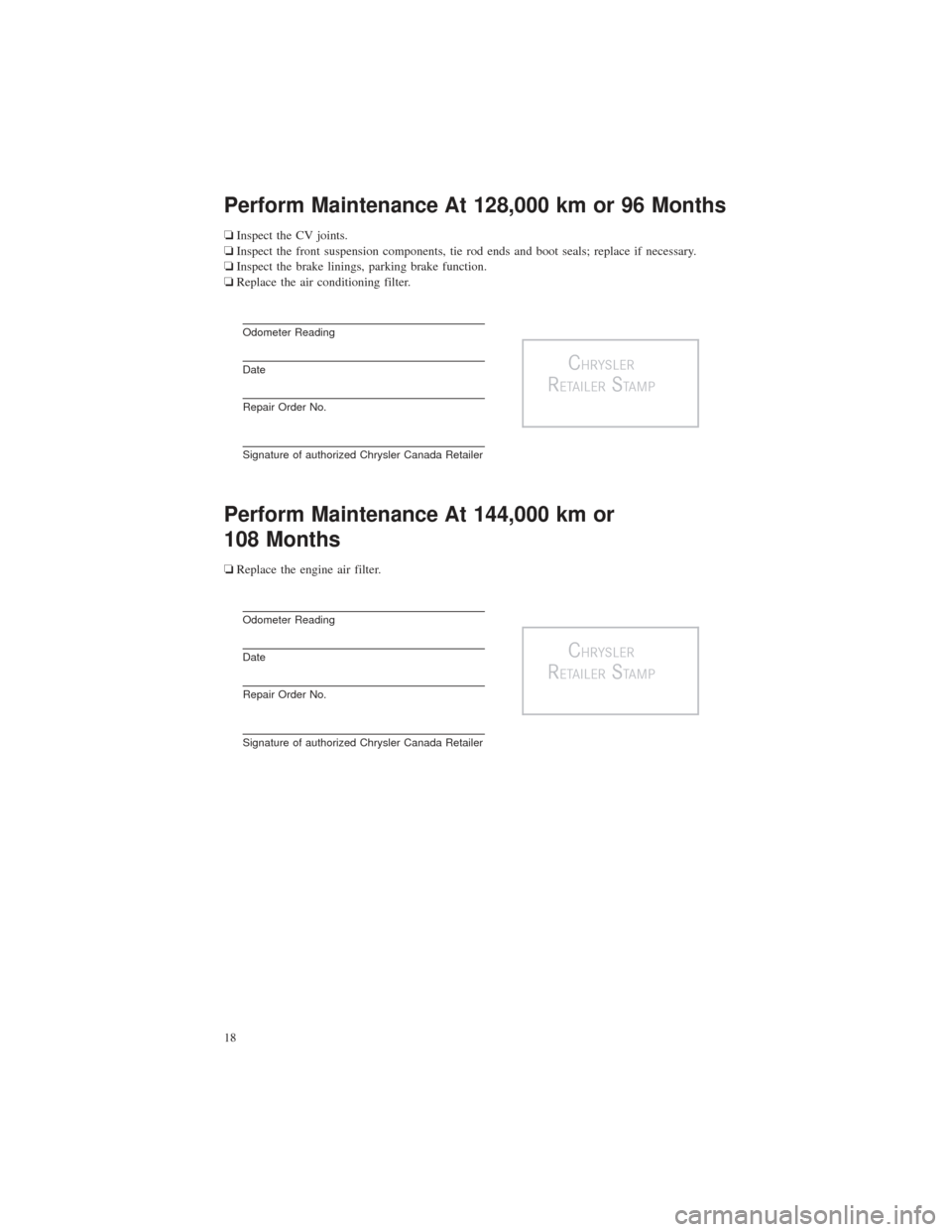

Perform Maintenance At 128,000 km or 96 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
Perform Maintenance At 144,000 km or
108 Months
❏Replace the engine air filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
18

Perform Maintenance At 160,000 km or
120 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
❏ Replace the spark plugs. (2.4L/3.6L Engine) **
❏ Flush and replace the engine coolant at 10 years or 240,000 kilometres, which ever comes first.
❏ Inspect the PCV valve; replace if necessary.
** The spark plug change interval is metrage based only, monthly intervals do not apply.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
Perform Maintenance At 192,000 km or
144 Months
❏ Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
❏ Replace the engine air filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
19

Perform Maintenance At 224,000 km or
168 Months
❏Inspect the CV joints.
❏ Inspect the front suspension components, tie rod ends and boot seals; replace if necessary.
❏ Inspect the brake linings, parking brake function.
❏ Replace the air conditioning filter.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
Perform Maintenance At 240,000 km or
180 Months
❏Replace the engine air filter.
❏ Flush and replace the engine coolant at 10 years or 240,000 kilometres, which ever comes first.
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler Canada Retailer
CHRYSLER
RETAILERSTAMP
20

OIL CHANGE LOG
SERVICE # 1
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 2
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 3
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 4
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 5
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 6
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 7
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 8
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 9
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 10
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 11
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 12
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer

OIL CHANGE LOG
SERVICE # 13
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 14
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 15
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 16
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 17
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 18
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 19
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 20
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 21
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 22
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 23
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
SERVICE # 24
Odometer Reading
Date
Repair Order No.
Signature of authorized Chrysler
Canada Retailer
