2015 CHRYSLER 200 display

Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:With the Uconnect® system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
WARNING!
• When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the transmission gear selec-
tor.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go™ in the ACC or ON/RUN
mode. A child could operate power windows, other
controls, or move the vehicle.
(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

WARNING!(Continued)
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Messages on Your Instrument
Cluster - 3.5 Electronic Vehicle Information
Cluster (EVIC) and 7 Driver Information Display
(DID)
The following messages will display in the instrument
cluster if the vehicle fails to remote start or exits remote
start prematurely:
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Trunk Open •
Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start To Reset
• Remote Start Aborted — Too Cold
• Remote Start Aborted — Time Expired
The instrument cluster message stays active until the
ignition is cycled to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The vehicle doors will lock, parking
lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the Remote Start mode for a 15-minute
cycle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

NOTE:
•If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
• The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition must be cycled to the RUN position before
you can repeat the start sequence for a third cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle. NOTE:
To avoid unintentional shutdowns, the system
will disable the one time push of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of 15-minute cycle, press and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
press and release the START/STOP button (vehicles
equipped with Keyless Enter-N-Go™).
NOTE: The message Remote Start Active Push Start
Button (vehicles equipped with Keyless Enter-N-Go™)
will display in the instrument cluster until you push the
START button.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the TRUNK RELEASE button located on the
instrument panel to the left of the steering wheel.NOTE:
The transmission must be in PARK before the
button will operate.
The trunk lid can be released from outside the vehicle by
pressing the TRUNK button on the Remote Keyless Entry
(RKE) transmitter twice within five seconds or by using
the external release switch located on the underside of
the decklid overhang. The release feature will function
only when the vehicle is in the unlock condition.
With the ignition in the ON/RUN position, the Trunk
Open symbol will display in the instrument cluster
indicating that the trunk is open. The EVIC/DID display
will reappear once the trunk is closed.
With the ignition in the OFF position, the Trunk Open
symbol will display until the trunk is closed.
Refer to “Keyless Enter-N-Go™” in this section for more
information on trunk operation with the Passive Entry
feature.
Trunk Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45

▫ToTurnOff......................... .189
▫ To Resume ......................... .189
▫ To Vary The Speed Setting ...............190
▫ Setting The Following Distance In ACC ......192
▫ Overtake Aid ....................... .196
▫ ACC Operation At Stop .................197
▫ Adaptive Cruise Control (ACC) Menu .......197
▫ Display Warnings And Maintenance ........199
▫ Precautions While Driving With ACC .......202
▫ General Information ....................206
▫ Normal (Fixed Speed) Electronic Speed Control
Mode ............................. .206
 FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED ............209▫
Forward Collision Warning (FCW) With
Mitigation Operation ...................209
▫ Turning FCW ON Or OFF ...............211
▫ Changing FCW And Active Braking Status. . . .213
▫ FCW Limited Warning ..................213
▫ Service FCW Warning ..................214
 LANESENSE — IF EQUIPPED .............214
▫ LaneSense Operation ...................214
▫ Turning LaneSense ON Or OFF ............215
▫ LaneSense Warning Message ..............216
▫ Changing LaneSense Status ..............220
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .221
▫ ParkSense® Sensors ....................222
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫ParkSense® Warning Display .............222
▫ ParkSense® Display ....................222
▫ Enabling And Disabling ParkSense® ........228
▫ Service The ParkSense® Rear Park Assist
System ............................ .229
▫ Cleaning The ParkSense® System ..........229
▫ ParkSense® System Usage Precautions .......230
 PARKSENSE® FRONT AND REAR PARK
ASSIST — IF EQUIPPED .................232
▫ ParkSense® Sensors ....................234
▫ ParkSense® Warning Display .............234
▫ ParkSense® Display ....................235
▫ Enabling And Disabling ParkSense® ........245
▫ Service The ParkSense® Park Assist System . . .246 ▫
Cleaning The ParkSense® System ..........247
▫ ParkSense® System Usage Precautions .......247
 PARKSENSE® ACTIVE PARK ASSIST SYSTEM —
IF EQUIPPED ........................ .250
▫ Enabling And Disabling The ParkSense® Active
Park Assist System .....................251
▫ Parallel Parking Space Assistance
Operation/Display .....................253
▫ Perpendicular Parking Space Assistance
Operation/Display .....................262
 PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .274
 OVERHEAD CONSOLE ..................277
▫ Front Map/Reading Lights ..............278
▫ Sunglass Bin Door ....................279
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

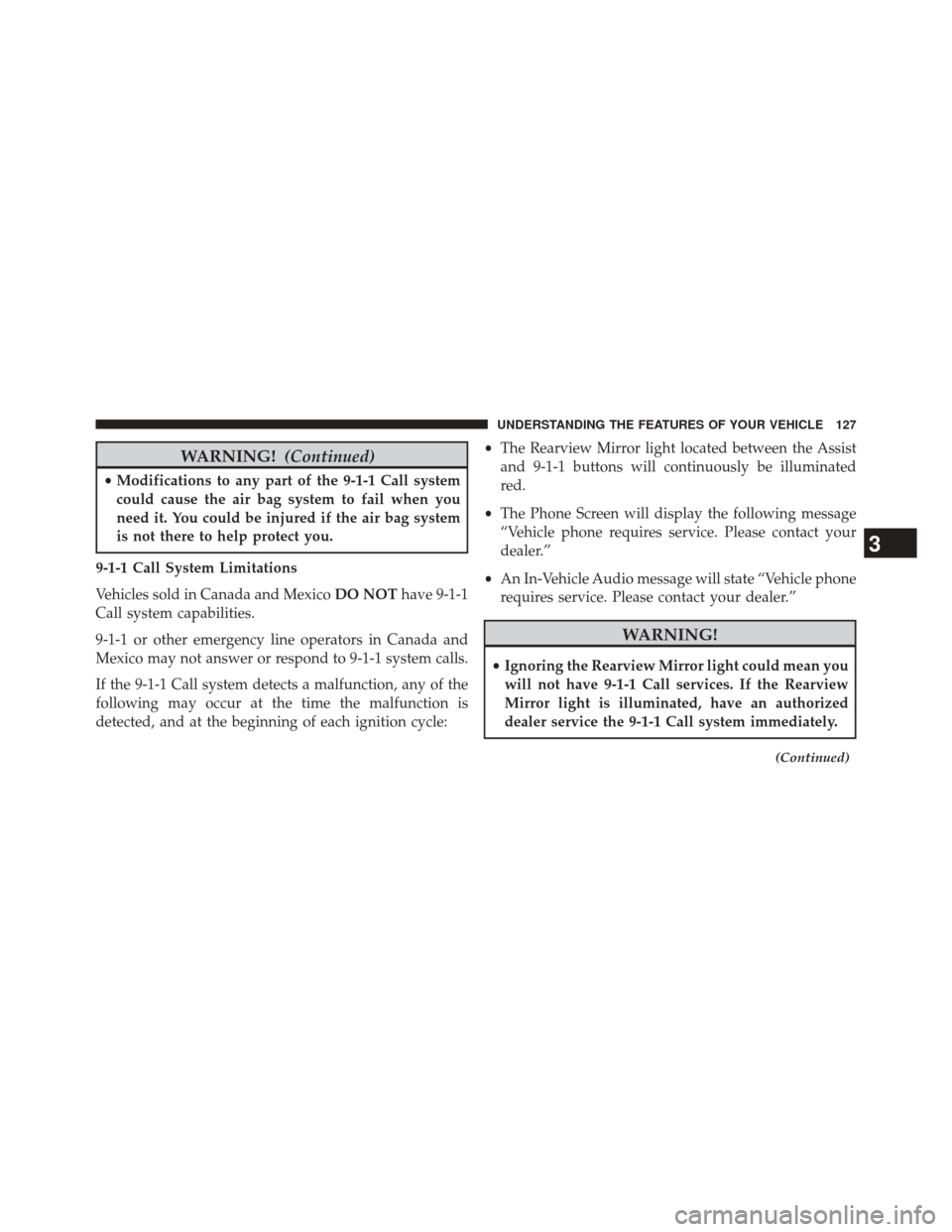

WARNING!(Continued)
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle: •
The Rearview Mirror light located between the Assist
and 9-1-1 buttons will continuously be illuminated
red.
• The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”
• An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
WARNING!
• Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

time, the display will change from HI to LO, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 45 minutes.
NOTE:The engine must be running for the heated seats
to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the
heated seats can be programed to come on during a
remote start.
This feature can be programmed through the Uconnect®
system. Refer to “Uconnect® Settings” in “Understand-
ing Your Instrument Panel” for further information.WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
