4. Pull the tether to rotate the lever up and rearward,until it locks vertically in place. Verify that the Manual
Park Release lever is locked in the released position. 5. The vehicle is now out of PARK and can be towed.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.
Manual Park Release TetherLocked Position6
WHAT TO DO IN EMERGENCIES 583

To reset the Manual Park Release:
1. Pull the tether upwards to unlock the lever.
2. Rotate the Manual Park Release lever forward anddown to its original position.
3. Re-install the access cover and the rubber storage bin liner.TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial wrecker service.
Towing Condition Wheel OFF the Ground FWD MODELS AWD MODELS
Flat Tow NONENOT ALLOWED NOT ALLOWED
Wheel Lift Or Dolly Tow RearNOT ALLOWED NOT ALLOWED
Front OKNOT ALLOWED
Flatbed ALLBEST METHOD OK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
584 WHAT TO DO IN EMERGENCIES

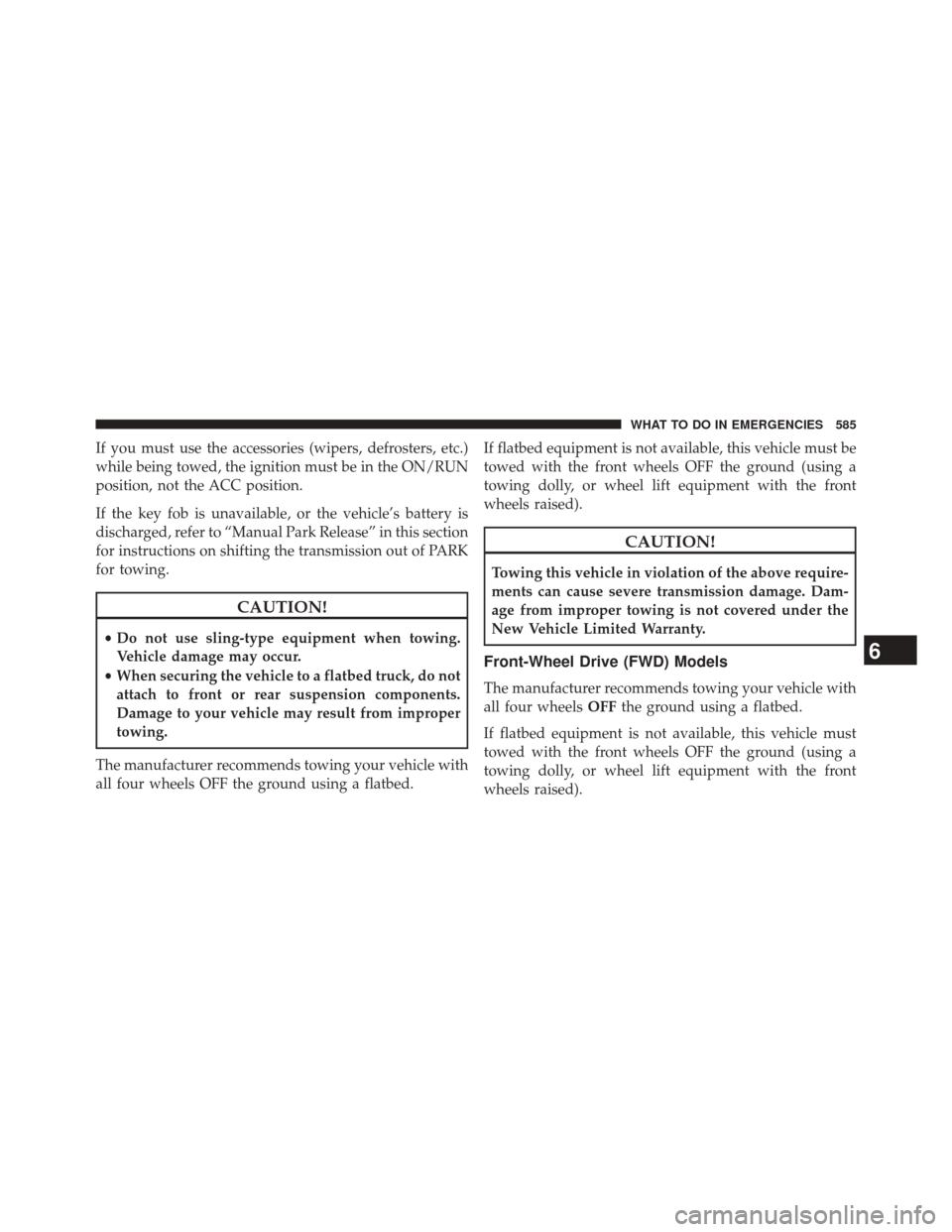

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing.
CAUTION!
•Do not use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed. If flatbed equipment is not available, this vehicle must be
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front
wheels raised).
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
Front-Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle with
all four wheels
OFFthe ground using a flatbed.
If flatbed equipment is not available, this vehicle must
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front
wheels raised).
6
WHAT TO DO IN EMERGENCIES 585

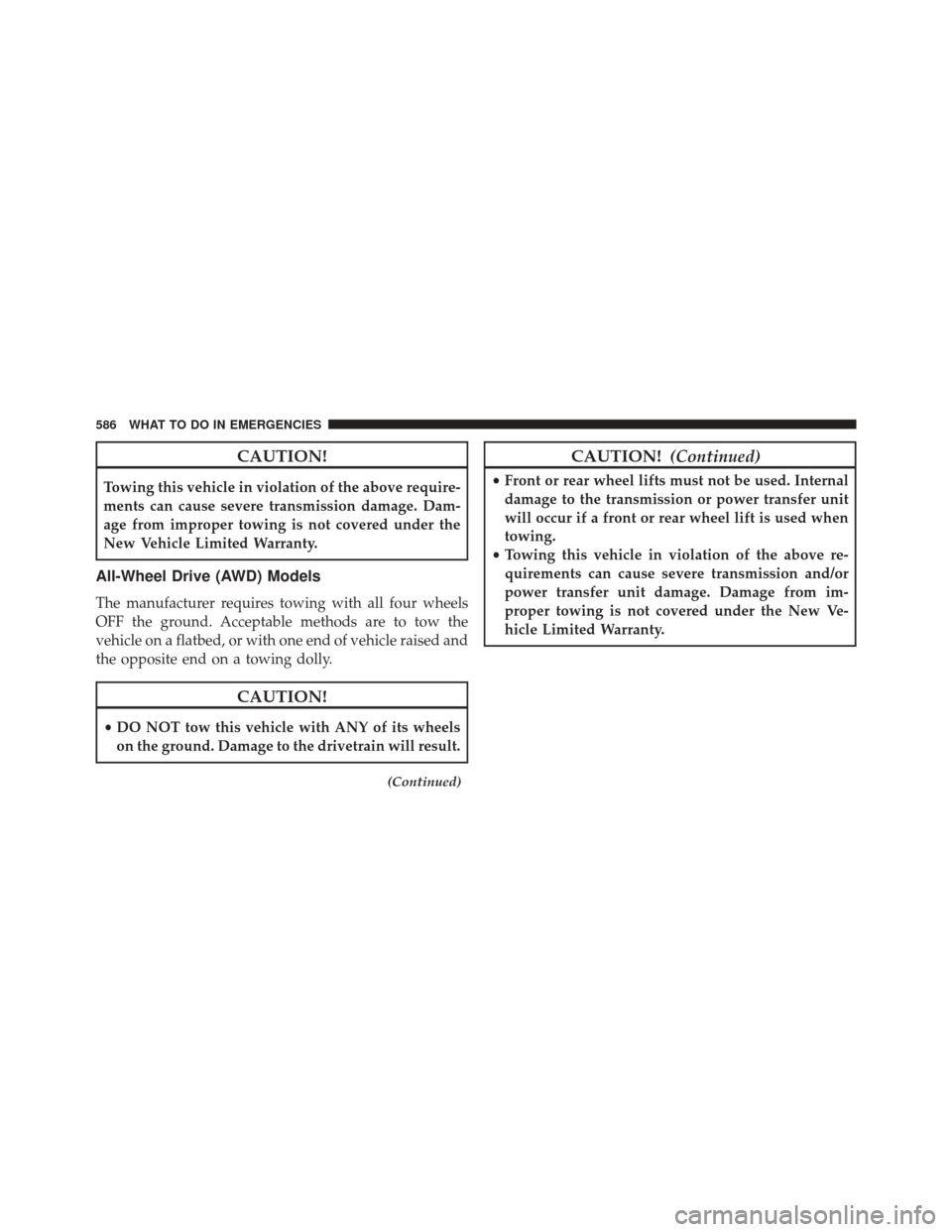

CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
All-Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the
vehicle on a flatbed, or with one end of vehicle raised and
the opposite end on a towing dolly.
CAUTION!
•DO NOT tow this vehicle with ANY of its wheels
on the ground. Damage to the drivetrain will result.
(Continued)
CAUTION! (Continued)
•Front or rear wheel lifts must not be used. Internal
damage to the transmission or power transfer unit
will occur if a front or rear wheel lift is used when
towing.
• Towing this vehicle in violation of the above re-
quirements can cause severe transmission and/or
power transfer unit damage. Damage from im-
proper towing is not covered under the New Ve-
hicle Limited Warranty.
586 WHAT TO DO IN EMERGENCIES

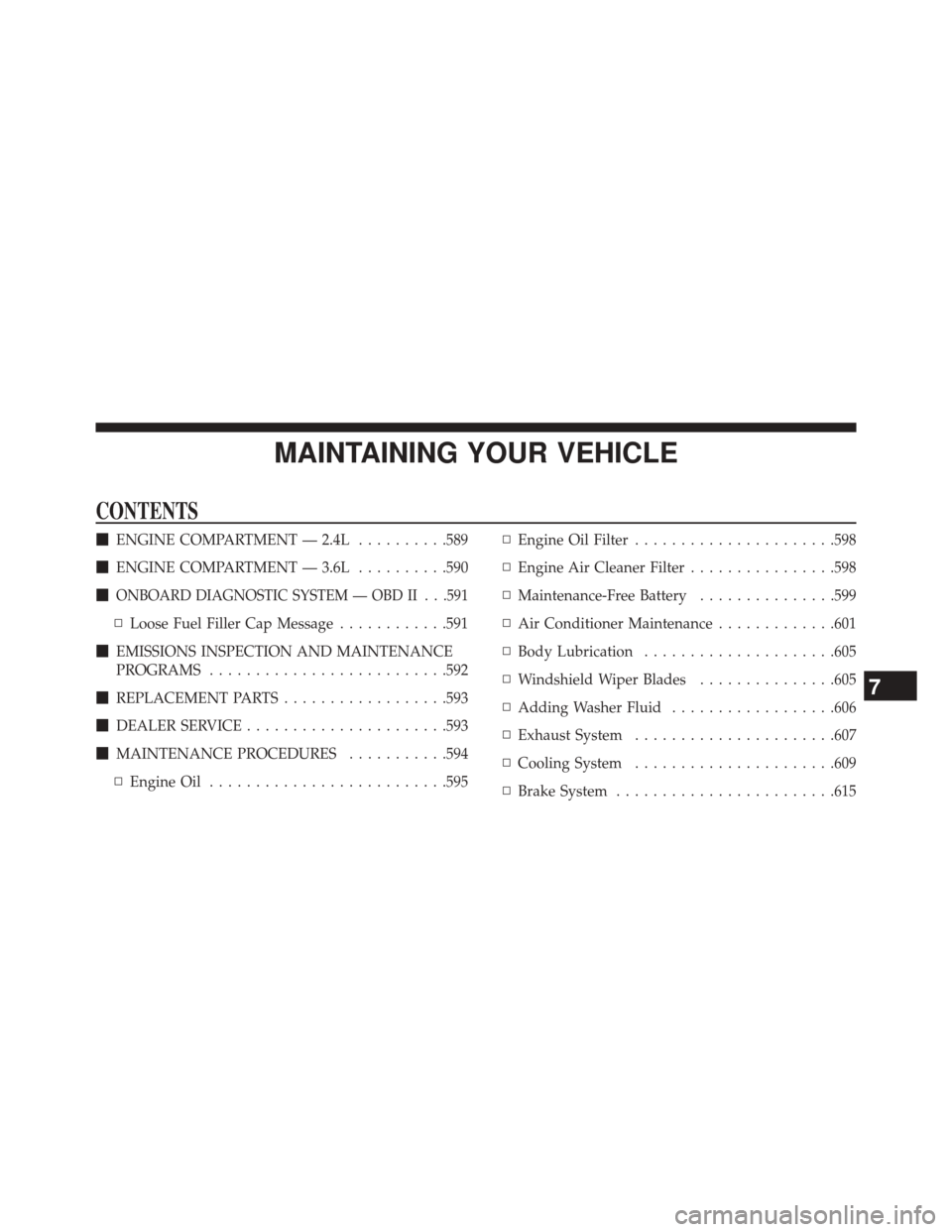

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 2.4L ..........589
 ENGINE COMPARTMENT — 3.6L ..........590

ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .591
▫ Loose Fuel Filler Cap Message ............591
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .592
 REPLACEMENT PARTS ..................593
 DEALER SERVICE ..................... .593
 MAINTENANCE PROCEDURES ...........594
▫ Engine Oil ......................... .595▫
Engine Oil Filter ..................... .598
▫ Engine Air Cleaner Filter ................598
▫ Maintenance-Free Battery ...............599
▫ Air Conditioner Maintenance .............601
▫ Body Lubrication .....................605
▫ Windshield Wiper Blades ...............605
▫ Adding Washer Fluid ..................606
▫ Exhaust System ..................... .607
▫ Cooling System ..................... .609
▫ Brake System ....................... .615
7

▫Automatic Transmission ................617
▫ Appearance Care And Protection From
Corrosion .......................... .619
 FUSES ............................. .625
▫ Power Distribution Center (Fuses) ..........626
▫ Interior Fuses ....................... .635
 VEHICLE STORAGE ....................636
 REPLACEMENT BULBS .................637
 BULB REPLACEMENT ..................639
▫ Low Beam And High Beam Headlamps .....639
▫ Front Turn Signal Lamp ................642 ▫
Front Side Marker Lamps ...............644
▫ Front Fog Lamp ..................... .645
▫ Backup Lamps (Passenger Side) ...........646
▫ Backup Lamps (Driver Side) ..............648
▫ Stop/Rear Turn Signal Lamp .............649
▫ License Plate Lamp ....................650
 FLUID CAPACITIES ....................651
 FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .652
▫ Engine ............................ .652
▫ Chassis ........................... .655
588 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Air Cleaner Filter5 — Power Distribution Center (Fuses)
2 — Engine Coolant Pressure Cap 6 — Battery
3 — Oil Fill Cap 7 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 8 — Engine Oil Dipstick
7
MAINTAINING YOUR VEHICLE 589

ENGINE COMPARTMENT — 3.6L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Filter Access Cover 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Fill
4 — Power Distribution Center (Fuses) 8 — Air Cleaner Filter
590 MAINTAINING YOUR VEHICLE
