2015 CHEVROLET ORLANDO Owners Manual

Page 257 of 372

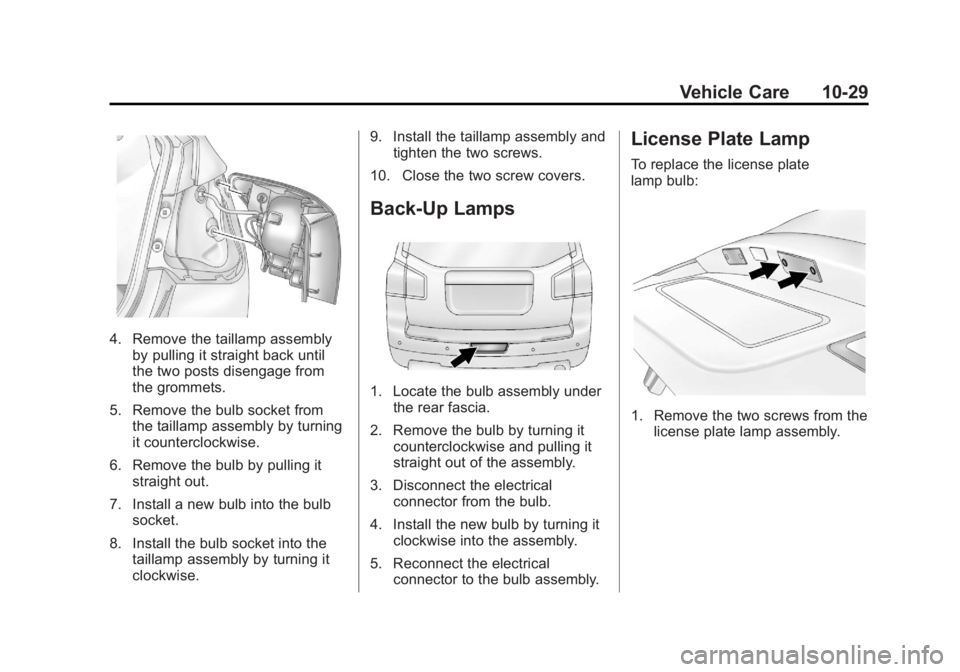

CHEVROLET ORLANDO 2015  Owners Manual Black plate (29,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
Vehicle Care 10-29
4. Remove the taillamp assemblyby pulling it straight back until
the two posts disengage from
the grommets.
5.

Page 258 of 372

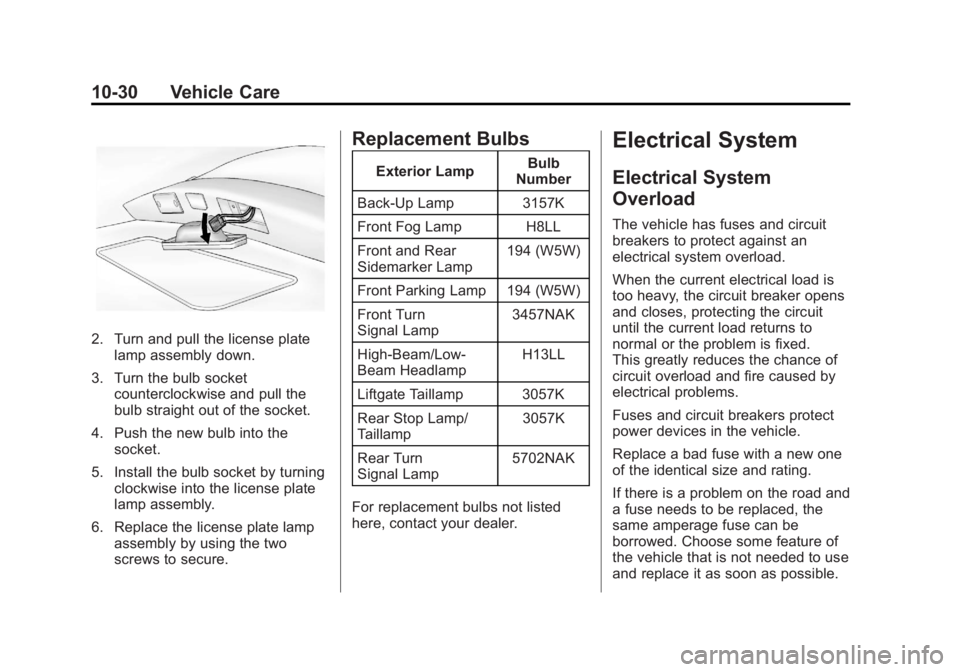

CHEVROLET ORLANDO 2015  Owners Manual Black plate (30,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
10-30 Vehicle Care
2. Turn and pull the license platelamp assembly down.
3. Turn the bulb socket counterclockwise and pull the
bu

Page 259 of 372

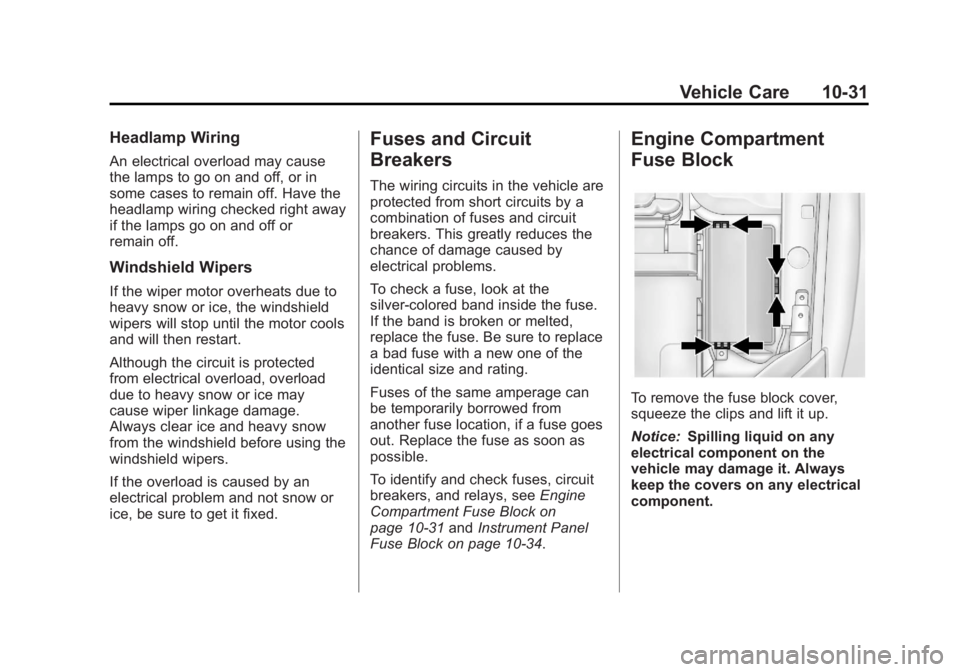

CHEVROLET ORLANDO 2015  Owners Manual Black plate (31,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
Vehicle Care 10-31
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. H

Page 260 of 372

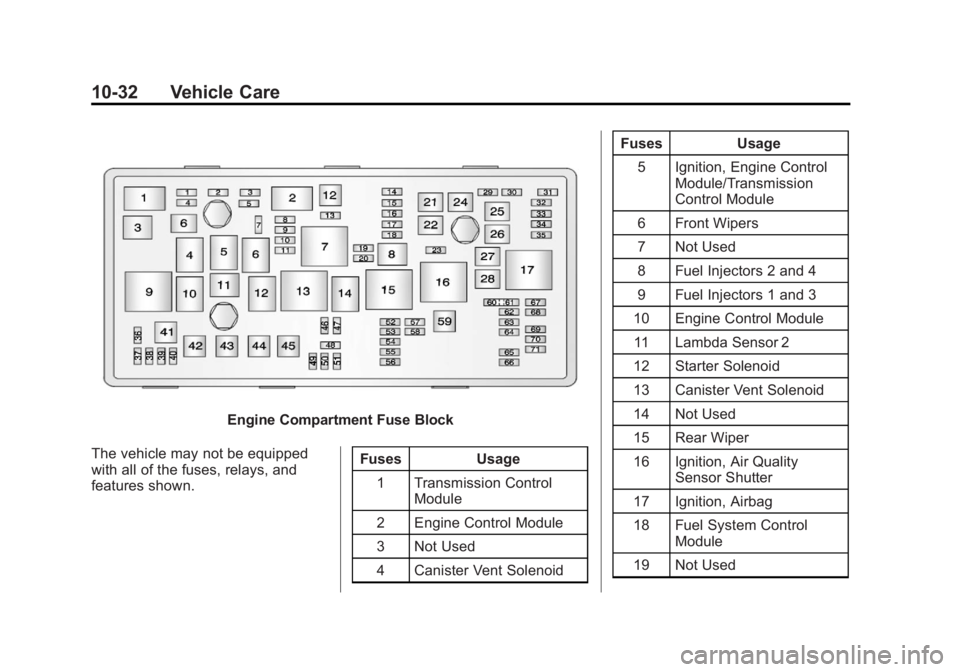

CHEVROLET ORLANDO 2015  Owners Manual Black plate (32,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
10-32 Vehicle Care
Engine Compartment Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features show

Page 261 of 372

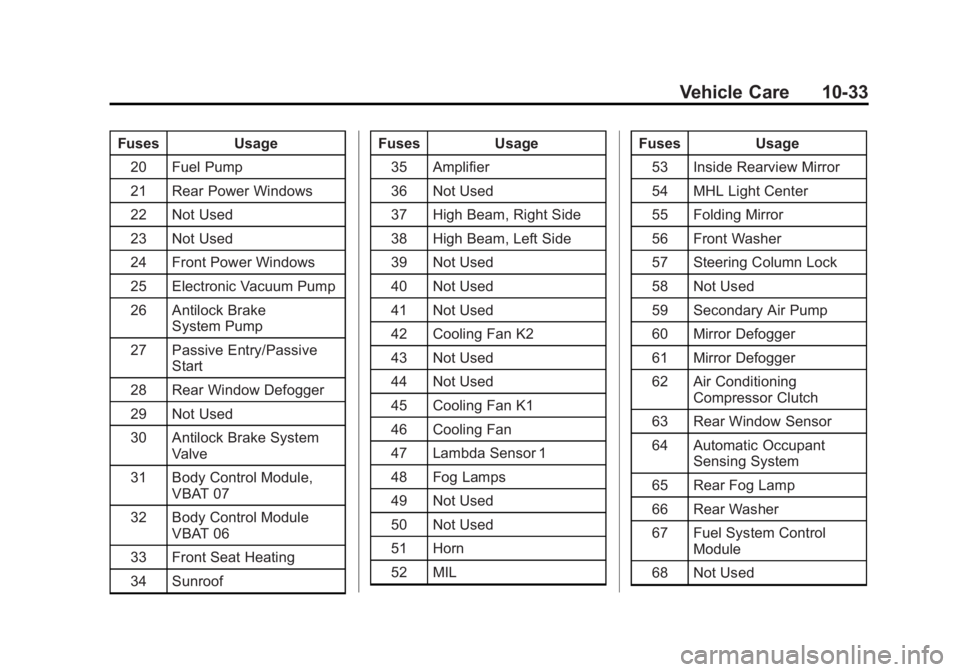

CHEVROLET ORLANDO 2015  Owners Manual Black plate (33,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
Vehicle Care 10-33
FusesUsage
20 Fuel Pump
21 Rear Power Windows
22 Not Used
23 Not Used
24 Front Power Windows
25 Electronic Vac

Page 262 of 372

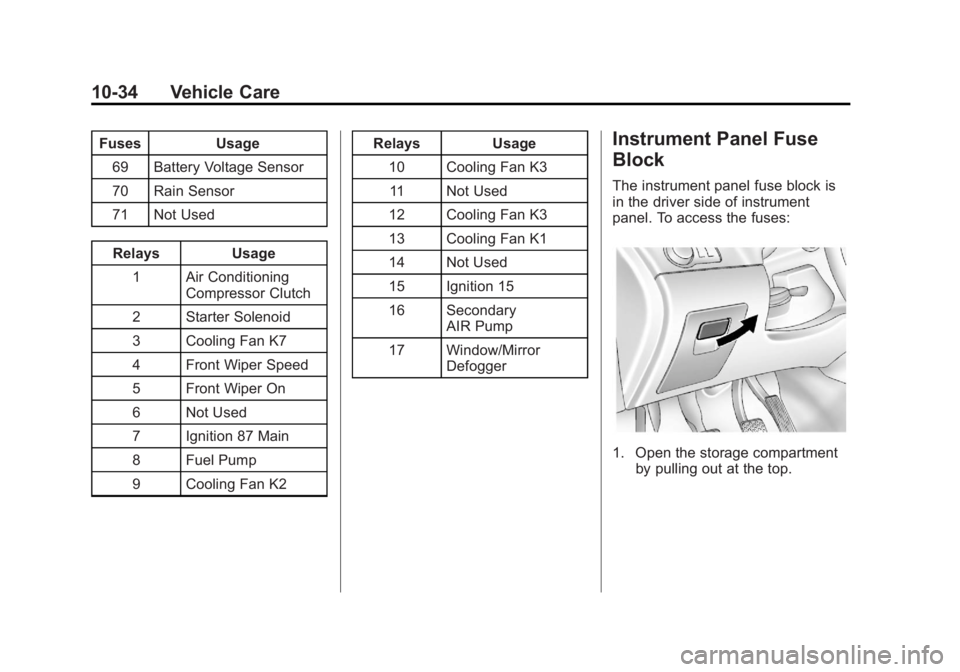

CHEVROLET ORLANDO 2015  Owners Manual Black plate (34,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
10-34 Vehicle Care
FusesUsage
69 Battery Voltage Sensor
70 Rain Sensor
71 Not Used
Relays Usage 1 Air Conditioning Compressor Clu

Page 263 of 372

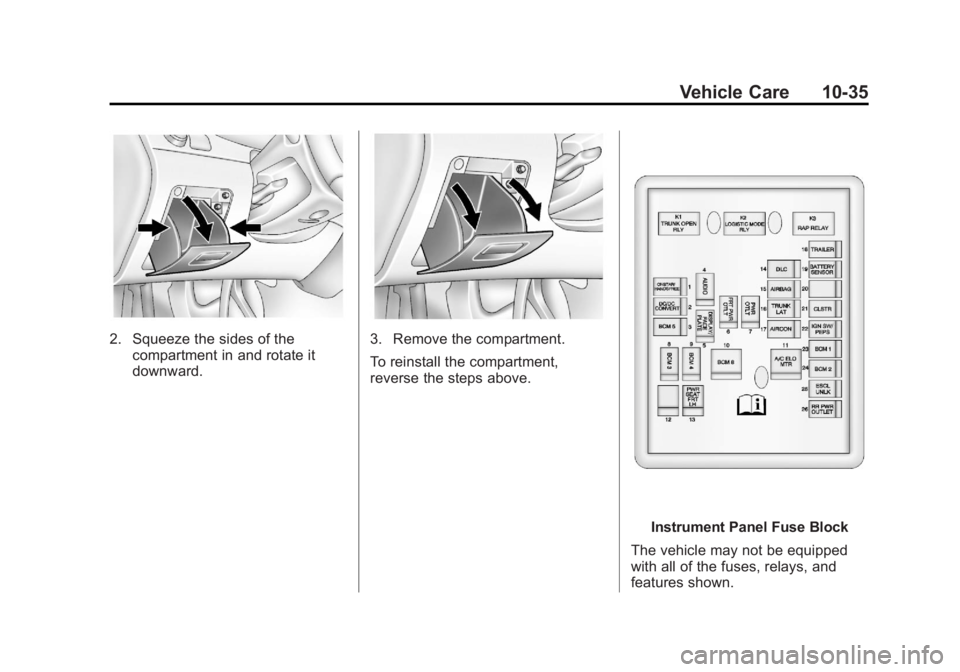

CHEVROLET ORLANDO 2015  Owners Manual Black plate (35,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
Vehicle Care 10-35
2. Squeeze the sides of thecompartment in and rotate it
downward.3. Remove the compartment.
To reinstall the c

Page 264 of 372

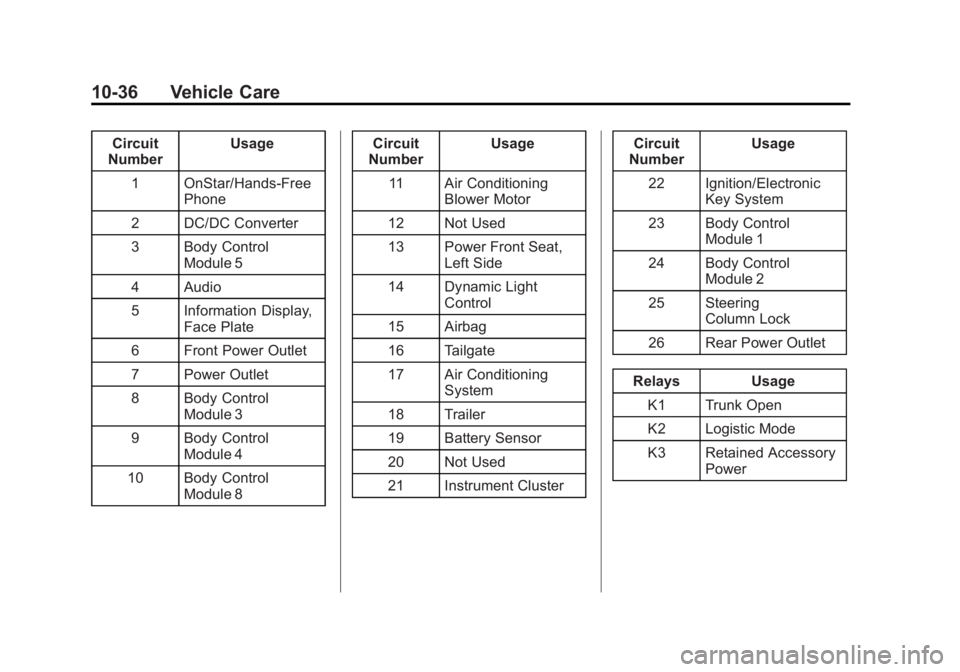

CHEVROLET ORLANDO 2015  Owners Manual Black plate (36,1)Chevrolet Orlando Owner Manual - 2013 - CRC - 6/5/12
10-36 Vehicle Care
Circuit
Number Usage
1 OnStar/Hands‐Free Phone
2 DC/DC Converter
3 Body Control Module 5
4 Audio
5 Informati
