2015 AUDI S3 SEDAN engine

Table of contents
Owner's Literature
About this Owner's Manual ... .. .
Cockpi t ... ...... ........... .. .. .. .
Cockpi t overview .......... .. .. .. .
Controls at a g lance . ..... ... .. .. .. .. .
Instrument s and indicator lights
Instruments .. .. ........... .. .. .. .. .
I ndicator ligh ts .... ..... ... .. .. .. .. .
On-Board Diagnostic system (OBD) ..... .
Driver inform ation system ..... .
Overview ..... .. ... .. ..... ... .. .. .. .
Operation . ..... .. . .. ..... ... .. .. .. .
Boost indicator .... ........... .. .. .. .
Efficiency program ............ .. .. .. .
Lap t imer a nd engine oil temperature
i n dicator . .. .... .......... ...... ... .
Start and drive .............. .. .. .
Opening and clo sing ...... .. .. .. .
Centra l locking .. .............. ... .. .
L uggage compa rtment lid .. .. .. .. .. .. .
Ch ild safety loc k ... ......... .. .. .. .. .
P ower windows . ............. .. .. .. .
P anorama s unroof .. ..... ... .. .. .. .. .
5
6
8
8
8
10
10
13
25
27
27
28
29
29
30
33
33
33
39
4 0
40
42
Light and Vi sion . . . . . . . . . . . . . . . . . . 43
Exterior lighting . . . . . . . . . . . . . . . . . . . . . 4 3
Interior lighting . . . . . . . . . . . . . . . . . . . . . 46
V1s1on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 7
W indshield wipers . . . . . . . . . . . . . . . . . . . 49
Dig ita l compass . . . . . . . . . . . . . . . . . . . . .
51
Seats and storage ....... .. .. ... . .
General information .......... .. .. .. .
53
53
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 54
H ead rest raints . . . . . . . . . . . . . . . . . . . . . 56
Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
S to rag e . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
L uggage compa rtmen t . . . . . . . . . . . . . . . 59
Roof rac k . . . . . . . . . . . . . . . . . . . . . . . . . .
6 2
Warm and cold . . . . . . . . . . . . . . . . . . . 64
Climate con trol sy stem . . . . . . . . . . . . . . . 6 4
2
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
General information . . . . . . . . . . . . . . . . . 70
Econom ica l and envi ronmentally-friendly
driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Starting and stopp ing the engine
(ve hicles w ith an ign ition lock) . . . . . . . . . 73
Start ing and stopp ing the engine
(ve hicl es w ith a convenience key) . . . . . . . 75
Drive r messages . . . . . . . . . . . . . . . . . . . . . 7 7
E lectromechanica l pa rking brake . . . . . . . 78
Hill ho ld . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Automatic tran smission . . . . . . . . . 82
S troni c . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2
Trailer mode . . . . . . . . . . . . . . . . . . . . . . 91
Driving with a trailer . . . . . . . . . . . . . . . . . 91
Trai ler mode notes . . . . . . . . . . . . . . . . . . . 92
Driver assi stance . . . . . . . . . . . . . . . . . 9 4
Assi st .. .. .. .... .. .. ... .. ..... ... .. 94
E lectronic speed limiter* . . . . . . . . . . . . . . 94
Speed warning system . . . . . . . . . . . . . . . . 94
Cruise contro l system . . . . . . . . . . . . . . . . 94
Audi adaptive cruise control . . . . . . . . . . .
96
Audi pre sense . . . . . . . . . . . . . . . . . . . . . . 103
General informa tion . . . . . . . . . . . . . . . . . 103
Audi pr e sense bas ic . . . . . . . . . . . . . . . . . . 103
Audi pre se nse front. . . . . . . . . . . . . . . . . . 10 4
Driver messages . . . . . . . . . . . . . . . . . . . . . 106
Audi active lane assist . . . . . . . . . . . . . . . . 106
Audi s ide ass ist . . . . . . . . . . . . . . . . . . . . . 109
A udi drive select (d rive settings) . . . . . . . . 112
Parking systems
General information
Rear par king system
115
115
116
Parking system pl us. .. ........... .. .. 116
Rearv iew camera . . . . . . . . . . . . . . . . . . . . 117

Table of contents
Technical Data . . . . . . . . . . . . . . . . . . . .
258
Technical data . . . . . . . . . . . . . . . . . . . . 258
Vehicle identificat ion . . . . . . . . . . . . . . . . . 258
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 259
Capac ities . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Gasoline engines . . . . . . . . . . . . . . . . . . . . 261
D iesel engine . . . . . . . . . . . . . . . . . . . . . . . 261
Consumer information . . . . . . . . . . 262
Warranty coverages . . . . . . . . . . . . . . . . . . 262
Operating your vehicle outside the U.S.A.
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Audi Service Repair Manuals and Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 262
M aintenance. . . . . . . . . . . . . . . . . . . . . . . . 262
Accessories and technical changes . . . . . . 264
Declaration of Compliance,
Te lecommunication and E lectronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Index ... .. .. ................. .. ... 266
4

M N
0 > co ,...., \!) 1.1'1
1.1'1
1.1'1
,....,

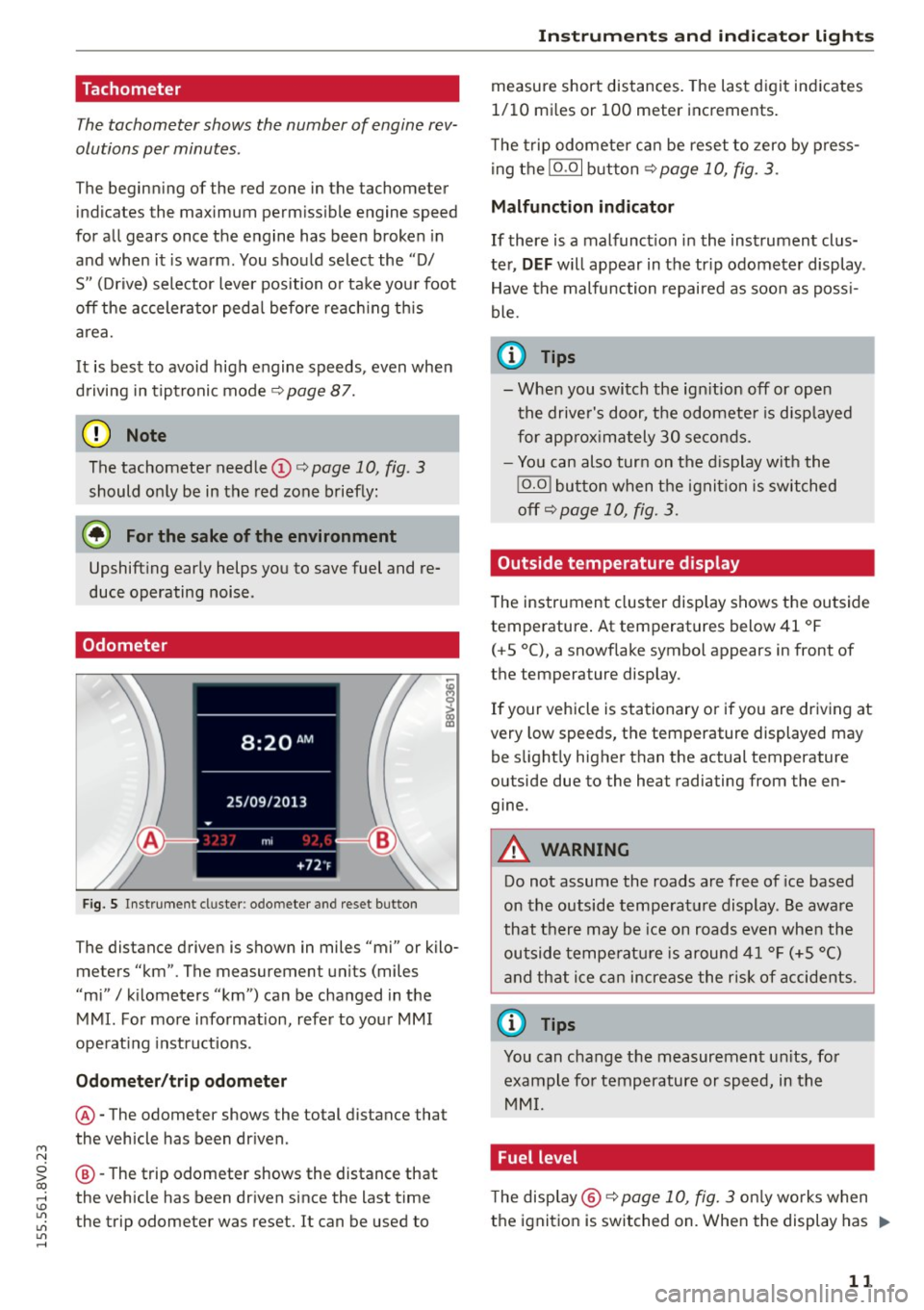

Tachometer
The tachometer shows the number of engine rev­
olutions per minutes .
The beginning of the red zone in the tachometer
indicates the maximum permissible engine speed
for all gears once the engine has been broken in
and when it is warm. You should select the "0/
S" (Drive) selector leve r position or take your foot
off the accelerator pedal before reach ing th is
area.
It is best to avoid high engine speeds, even when
driving in tiptronic mode
<=> page 87.
(D Note
The tachometer needle © c::> page 10, fig. 3
should only be in the red zone briefly:
@ For the sake of the environment
Upshifting early helps you to save fuel and re­
duce operating noise .
Odometer
Fig. S Instrument cluster : odo meter and reset button
The distance driven is shown in miles "mi" or kilo­
meters "km". The measuremen t units (miles
"mi"
I kilometers "km") can be changed in the
MMI. For more information, refer to your MMI
operat ing instructions .
Odometer/trip odometer
@-The odometer shows the total distance that
the vehicle has been driven .
@-The trip odometer shows the distance that
the vehicle has been driven since the last time
the trip odometer was reset. It can be used to
Instruments and indicator lights
measure short distances. The last digit indicates
1/10 mi les or 100 meter increments.
T he trip odometer can be reset to zero by press­
ing the
10.01 button <=> page 10, fig . 3.
Malfunction indicator
If there is a malfunct ion in the instrument clus­
ter,
DEF will appear in the tr ip odometer display .
Have the malfunction repaired as soon as poss i­
ble.
@ Tips
- When you switch the ign ition off or open
the driver's door, the odometer is disp layed
for approximately 30 seconds.
- You can also turn on the display with the
!O .O I button when the ignition is switched
off c::>
page 10, fig. 3.
Outside temperature display
The instrument cluster display shows the outside
temperature . At temperatures below 41 °F
(+ S °C), a snowflake symbol appears in front of
the temperature display .
If your vehicle is stationary or if you are driving at
very low speeds, the temperature displayed may
be slightly higher than the actual temperature
outside due to the heat radiating from the en­
gine.
A WARNING
-Do not assume the roads are free of ice based
on the outside temperature display. Be aware
that there may be ice on roads even when the
outside temperature is around 41 °F (+5 °()
and that ice can increase the risk of accidents.
@ Tips
You can change the measurement un its, for
example for temperature or speed, in the
MMI.
Fuel level
The display @ c::>page10, fig. 3 on ly works when
the ignition is switched on. When the display has .,.
11

Instruments and indicator lights
reached the reserve mark, the bottom LED will
turn red and the
ljJ indicator light turns on
¢
page 23. The bottom LED blinks red when
the fuel level is very low.
The on-board computer shows the range based
on the fuel level¢
page 28, On-board comput­
er display.
For the tank capacity in your vehicle, refer to the
Technical Data
¢ page 260.
(D Note
Never drive until the tank is completely emp­
ty. The irregular supply of fuel that results
from that can cause engine misfires. Uncom­
busted fuel will then enter the exhaust sys­
tem. This can cause overheating and damage
to the catalytic converter.
Coolant temperature indicator
In vehicles without a coolant temperature indica­
tor, an indicator light. will turn on when the
coolant temperature is too high ¢
page 19. Re­
fer to ¢(1) .
The coolant temperature indicator @c:>
page 10,
fig . 3 only works when the ignition is switched
on . To prevent engine damage, please observe
the following notes about the temperature rang­
es.
Cold range
If only the LEDs at the bottom of the gauge turn
on, the engine has not reached operating tem­ perature yet. Avoid high engine speeds, full accel­
erating and heavy engine loads.
Normal range
The engine has reached its operating tempera­
ture once the LEDs up to the center of the gauge
turn on under normal driving conditions . The
LEDs higher up may turn on if the engine is under
heavy load or the outside temperature is high.
This is no cause for concern as long as the. in­
dicator light in the instrument cluster does not
turn on.
12
Hot range
If the LEDs in the upper area of the display and
the . indicator light in the instrument cluster
display turn on, the coolant temperature is too
high
c:> page 19 .
A WARNING
-Never open the hood if you can see or hear
steam or coolant escaping from the engine
compartment. This increases the risk of
burns. Wait until you no longer see or hear
steam or coolant escaping.
- The engine compartment in any vehicle can
be a dangerous area . Stop the engine and al­
low it to cool before working in the engine
compartment. Always follow the informa­
tion found in ¢
page 198, Working in the
engine compartment.
(D Note
- In vehicles with a boost pressure indicator* ,
this indicator replaces the temperature dis­
play. To promote a long engine service life,
avoiding high engine speeds, full accelera­
tion and heavy engine loads during approxi­
mately the first 15 minutes when the en­
gine is cold is recommended . The amount of
time until the engine is warm depends on
the outside temperature . Check the engine
oil temperature* if necessary .
c:> page 30
-Auxiliary headlights and other accessories in
front of the cooling-air intake impair the
cooling effect of the coolant. This increases
the risk of the engine overheating during
high outside temperatures and heavy engine
load.
- The front spoiler also helps to distribute
cooling air correctly while driving. If the
spoiler is damaged, the cooling effect will
be impaired and the risk of the engine over­
heating will increase. See an authorized
Audi dealer or authorized Audi Service Fa­
cility for assistance.

....,
N
0 > co
rl I.O
"'
"'
"'
rl
@ Tips
Diesel engines: Due to the high efficiency of
these engines, the engine may not a lways
reach operating temperature in cold outside
temperatures. This is normal and not a cause
for concern.
Indicator lights
Description
Fig. 6 Instrument cl uster : example of a d isplay in vehicles
wit h a mo noc hro me display
@ Indicator light
® Message
© Status line:
-• ID Central indicator light or addition­
al d isplays for active systems such as
- - (USA models)
I. (Canada models)
electromechanical parking brake
- [ij;(i)~14 (USA models) / Iii (Canada models)
cruise control system*
- • I. Active lane assist*
The indicator lights in the instrument cluster
blink or turn on. They indicate functions or mal­
functions.
The
central indicator light@ • or a also
turns on with some indicator lights@.
I f the centra l indicator light @turns on, check
the additiona l information in the instrument
cluster display @ and @.
In addition to the indicator lights in the display,
there are add it ional ind icators in the tachometer .
They blink or turn on to ind icate functions or mal­
functions. Messages @ may also appear briefly
Instruments and indicator lights
with some indicato r lights. A warning tone a lso
sounds at the same time.
If t here are mult iple malfunctions, the indicator
lights will appear br iefly one after another in the
display.
T he ind icators and messages in the display can be
covered over by other displays . In cases where
the indicator light @is covered over, the centra l
indicator light@will remain visible until the
malfunction is repaired .
T he messages can be displayed again in the driv­
er information system
~ page 28, Operation.
Overview
Some indicator lights turn on briefly to check the
function of that system when you switch the igni­
tion on . These systems are marked with a./ in
the following tables. If one of these indicator lights does not turn on, there is a malfunction in
that system .
Your vehicle has either a monochrome display or a multicolored display, depending on vehicle
equipment . In a monochrome display, the indica­
tor lights @ only appear in white
Q page 13,
fig . 6. The central indicator light ©. / D also
appea rs to indicate the prio rity of these indicator
lights. Refer to the explanations for red or yellow
indicator lights.
Examples of indicator lights in a monochrome
display:
11 @ Priority 1 (high priority)
. © Refer to
red indicator lights
m@ Pr iority 2 (medium priority)
II ©
Refer to yellow indicator lights
D@ Pr iority 3 (low priority)
These are i nformative indicator
-- © lights
13

Instruments and indicator lights
Red indicator light s
or
or
or
14
Central indicator light (note addi-
tional informat ion in the instru-
ment cluster display) ©
<=>page 13, fig. 6
USA m odel s:
Brake system ../
<=>page 17
Cana da models :
Brake system ../
<=>page 17
USA models :
Electromechan ical parking brake
<=> page 18
Canada mod els :
Electromechanica l parking b rake
<=> page 18
Cooling system
<=>page 19
Eng ine oil pressure
<=>page 19
Al ternator
<=>page 19
Fr ont safety belt
<=>page20
S teer ing../
<=>page 126
or
or
or
or
or Steering lock
<=>
page20
Engine start system
<=> page20
Engine stop whi le driving
<=> page 20
Transmission malfunction
<=>page 88
Adaptive cruise control*./
<=>page 98
USA mod els: Speed warning sys ­
tem
<=> page 94
Canada mo del s: Speed warning
system
<=> page 94
Fill Ad Blue*
<=> page 195
AdB lue malfunct ion*
<=> page 195

M N
0 > co ,...., \!) ..,.,
..,.,
..,., ,....,

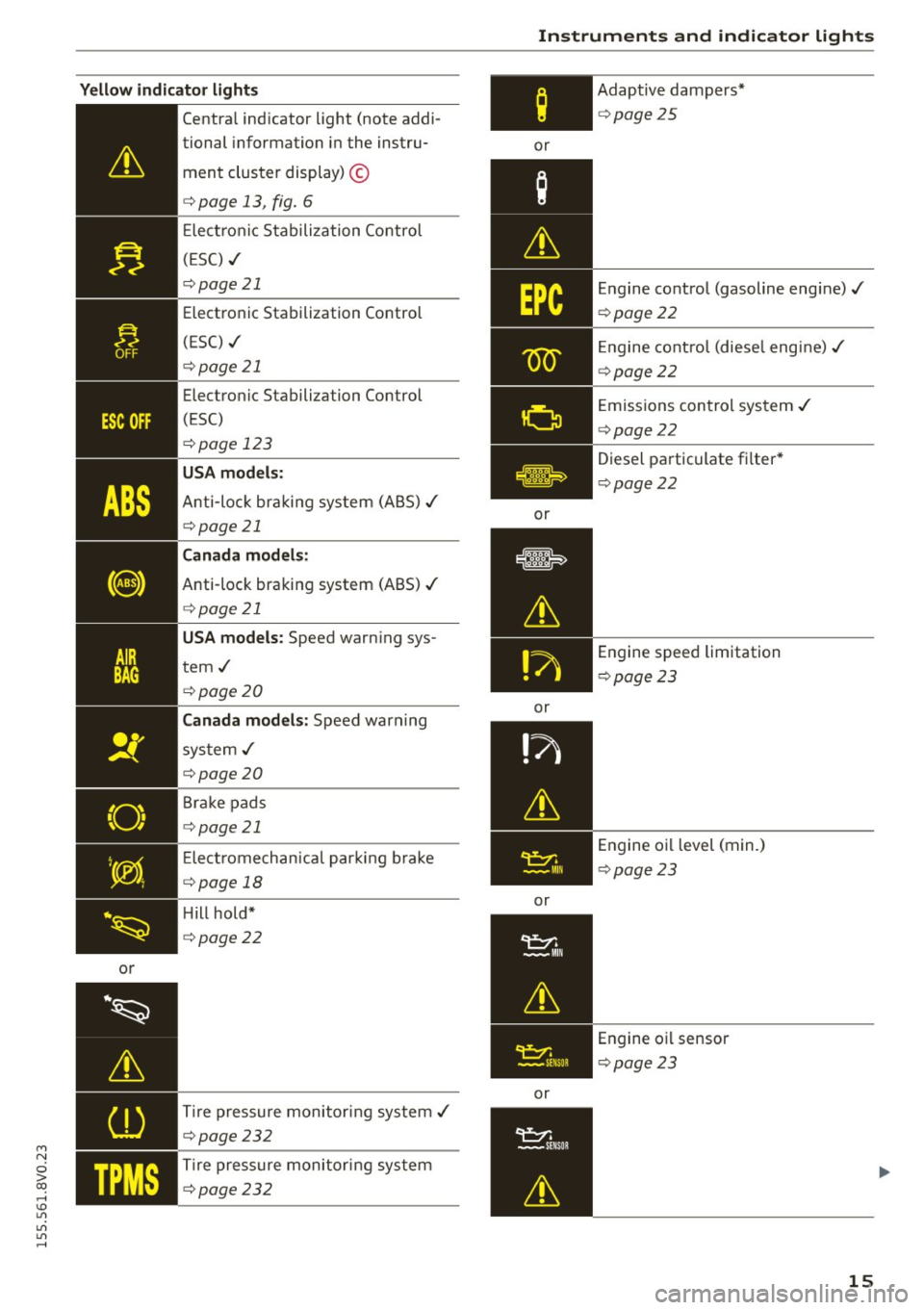

Yellow indicator light s
or
·~
&
(D
TPMS
Centra l ind icator light (note addi-
tional information in the instru-
ment cluste r display) ©
c> page 13 , fig . 6
Ele ctr onic Stabilization Control
(ESC) ./
c::>page 21
Electro nic Stabilization Control
(ESC) ./
c>page21
Electronic S tabili za tion Control
(ESC)
c::> page 123
USA models:
Anti-lo ck brak in g sys tem (ABS) ./
c::> page 21
Canada models:
Anti-loc k braki ng system (ABS) ./
c::> page 21
USA models: Speed warning sys-
tern./
c::> page 20
Canada models: Speed warn ing
sy stem./
c::> page 20
Bra ke pads
c::> page 21
Ele ct ro m echan ica l par kin g b rake
c::> page 18
H ill hold*
c::> page 22
Ti re pressure monitor ing sys tem ./
c::> page 232
Tire pressure monitor ing system
c::> page 232 Instruments and indicator lights
or
or
or
or
or
Adaptive dampers
*
c>page 25
En gine co ntrol (gasoline eng ine) ./
c> page 22
Engine co ntro l (diese l eng ine) ./
c>page 22
Emissions con trol sys tem ./
c>page 22
Diesel particulate fi lter *
c>page 22
Engine speed limitation
c>page 23
Engine o il level (min.)
c::> page 23
Engine o il sensor
c::> page 23
15

Instruments and indicator lights
or
or
or
or
or
16

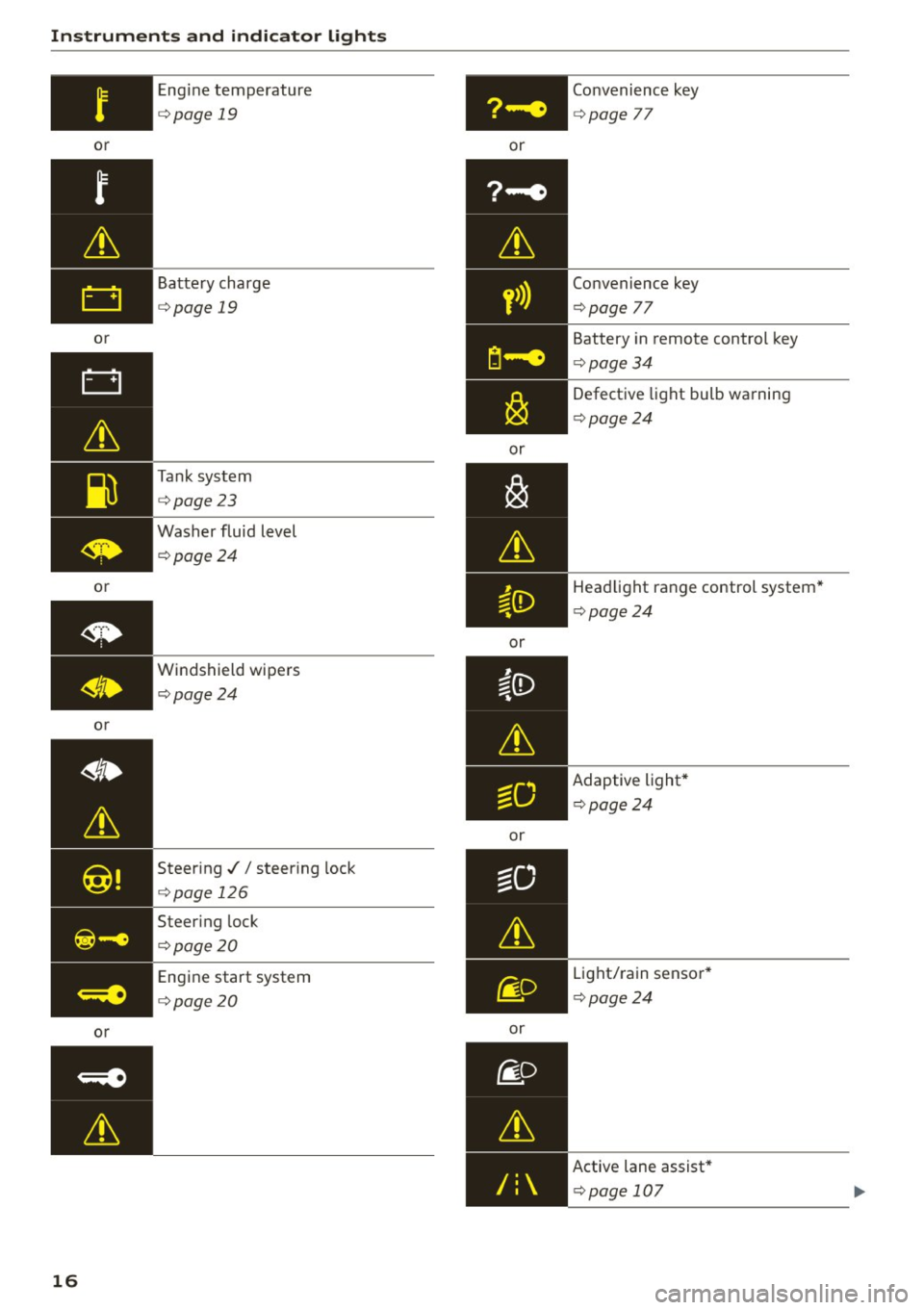

Engine temperature
¢page 19
Battery charge
¢page 19
Tank system
¢page23
Washer fluid level
¢page24
Windshield wipers
¢page24
Steer ing .// steer ing lock
¢ page 126
Steering lock
¢page20
Engine start system
¢ page20 or
y>)}
or
or
or
or Convenience key
¢
page
77
Convenience key
¢page
77
Battery in remote control key
¢page34
Defective light bulb warning
¢ page24
Headlight range control system *
¢ page24
Adaptive light* ¢ page24
Light/rain sensor *
¢ page24
Active lane assist *
¢ page 107
