2015 AUDI RS5 CABRIOLET child restraint

60 Seats and stor age
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
you r seat prope rly so that :
- you can easily and quickly reach all the
switches and controls in the instrument
panel
-your body is properly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and airbag system can offer
maximum protection
¢ page 131.
In the following sections, you will see exactly
how you can best adjust your seats .
There are special regulations and instructions
for installing a child safety seat on the front
passenger's seat. Always follow the informa­
tion regarding child safety provided in
¢ page 152, Child Safety.
WARNING
Refer to¢ page 112, Driving Safely for
important information, tips, suggestions
and warnings that you should read and fol­
low for your own safety and the safety of
your passengers.
A WARNING
, -
Incorrect seating position of the driver and
all other passengers can result in serious
personal injury .
- Always keep your feet on the floor when
the vehicle is in motion -never put your
feet on top of the instrument panel, out of the w indow or on top of the seat cush­
ion. This applies especially to the passen- gers
. If your seating position is incorrect,
you increase the risk of injury in the case
of sudden braking or an accident. If the
airbag inflates and the seating position is incorrect, this could result in personal
injury or even death.
- It is important for both the driver and front passenger to keep a distance of at
least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel.
If you're sitting any
closer than this, the airbag system can­
not protect you properly. In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you maximum protection.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel or instrument panel.
- Do not adjust the driver's or front pas­
senger 's seat while the vehicle is moving.
Your seat may move unexpectedly, caus­
ing sudden loss of veh icle control and
personal injury. If you adjust your seat
while the veh icle is moving, you are out
of posit ion.
Driver's seat
The correct seat position is important for safe
and relaxed driving .
We recommend that you adjust the driver's
seat in the following manner :
.. Adjust the seat in fore and aft direction so
that you can easily push the pedals to the
floor wh ile keeping your knees slightly bent
o &. in Why is your seat adjustment so im ­
portant? on page
60 .
.,. Adjust the seatback so that when you sit
w ith your back against the seatback , you can
still grasp the top of the steering wheel.
.. Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as .,.

112 Driving Saf ely
Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, a irbags, ch ild restra ints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the info rmat ion
and warn ings in th is sect ion -fo r yo ur own
safety as well as that of your passengers .
The information in this se ction app lies to all
model ve rsions of your veh icle . Some of the
feat ures described in this sec tions may be
standard equipment on some models, or may
be optional equipment on others . If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Always make sure that you follow the in­
struct ions and heed the WARNINGS in
this Manual. It is in your interest and in
the inte rest of you r passengers.
- Always keep the complete Owner's Liter­
ature in your Audi when you lend or sell
your vehicle so that this important info r­
mation will always be ava ilable to the
dr iver and passengers.
- Always keep the Owner's literature handy
so that you can find i t eas ily if you have
ques tions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
redu ce the risk of injury in a wide variety of
accident situations.
Your safety and the safety of your passenge rs
should not be left to chance. Advances in
technology have made a varie ty o f fea tures
avai la bl e to he lp re duce the risk of injury in an accident
. The following is a list of just a few of
the safety features in your Audi:
- sophis tic ated s afety be lts fo r drive r and a ll
passenger sea ting pos it ions,
- be lt fo rce limi ters fo r the front seats,
- belt p retensioners for the seats,
- head restra ints for each seating posit io n,
- front airbags,
- side airbags in the front seats,
- specia l LATCH anchorages for child re -
straints,
- adj ustab le steering column .
T hese ind iv idual safety features, can wo rk to­
ge ther as a system to he lp p rotect you and
yo ur passengers in a w ide r ange of acci dents .
T hese features canno t work as a system i f
they a re not always correct ly adjusted and co r­
rect ly used.
Safety i s everybody's responsibility!
Important things to do before driving
Sofety is everybody's job! Vehide ond occu­
pant safe ty alw ays depends on the informed
and careful driver.
F o r yo ur safe ty and the safety of your passen­
gers,
before driving alwa ys:
" Make su re t hat all lights and signa ls are op ­
erati ng correctly .
" Ma ke sur e that the t ire p ressu re is co rrect.
" Ma ke su re t hat all windows are clean and af­
ford good v isibili ty to the outs ide.
" Secure all luggage and other items caref ully
¢page 65.
"Ma ke su re that nothing can interfere with
the pedals.
" Adjust front seat, head restraint and mirrors
correctly fo r your height .
" Inst ruct passe ngers to adjust the head re­
straints according to the ir height .
" Ma ke sur e to use the r igh t chi ld res traint
correctly to p rotect children ¢
page 15 2,
Child Safety .
"Sit prope rly in your seat and ma ke sure t hat
your passengers do the same ¢
page 60,
Seats and storage. ..,

114 Driving Safely
• Always keep both feet in the footwell so
that you are in control of the vehicle at all
times.
For detailed information on how to adjust the
driver's seat, see
¢page 61.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be seriously
injured by an airbag as it unfolds. To help
reduce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always hold the steering wheel on the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock positions to help reduce the risk of per­
sonal injury if the driver's airbag inflates.
- Never hold the steering wheel at the
12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head if the driver's airbag de­
ploys.
- Pointing the steering wheel toward your
face decreases the ability of the supple­
mental driver's airbag to protect you in a
collision.
- Always sit in an upright position and nev­
er lean against or place any part of your
body too close to the area where the air­
bags are located.
- Before driving, always adjust the front
seats and head restraints properly and
make sure that all passengers are prop­
erly restrained.
- Never adjust the seats while the vehicle
is moving . Your seat may move unexpect­
edly and you could lose control of the ve­
hicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in- jury due to incorrect positioning of the
safety belt and improper seating posi­
tion.
- Children must always ride in child safety
seats ¢
page 152. Special precautions
apply when installing a child safety seat
on the front passenger seat¢
page 131.
Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving .
For your own safety and to reduce the risk of
injury in the event of an accident, we recom ­
mend that you adjust the seat for the front
passenger to the following position :
• Move the front passenger seat back as far as
possible . There must be a minimum of
10 inches (25 cm) between the breastbone
and the instrument panel¢,&. .
• Adjust the angle of the seatback so that it is
in an upright position and your back comes
in full contact with it whenever the vehicle is
moving.
• Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible.
• Keep both feet flat on the floor in front of
the front passenger seat.
• Fasten and wear safety belts correctly
¢page 126.
For detailed information on how to adjust the
front passenger's seat, see
¢ page 60.
A WARNING
-
Front seat passengers who are unbelted,
out of position or too close to the airbag
can be seriously injured or killed by the air­ bag as it unfolds. To help reduce the risk of
serious personal injury:

"' N
a: LL co
rl I.O
"' rl
"' rl
-Passengers must always sit in an upright
posit ion and never lean against or place
any part of their body too close to the
area where the airbags are located .
- Passengers who are unbelted, out of po­
sition or too close to the airbag can be
seriously injured by an airbag as it un­
folds with great force in the blink of an
eye .
- Always make sure that there are at least 10 inches (25 cm) between the front
passenge r's breastbone and the instru­
ment pane l.
- Ea ch passenger must always sit on a seat
of the ir own and properly fasten and
wear the safety bel t be long ing to that
seat .
- Before driv ing, a lways adj ust the front
passenger seat and head restra int prop­
er ly .
- Always keep your feet on the f loor in
front of the seat . Never rest them on the
seat, instrument panel, out of the win ­
dow, etc . The airbag system and safety
belt w ill not be ab le to protect you prop­
er ly and can even increase the risk of in­
jury in a crash .
- Never drive with the backrest reclined or tilted far back! The farther the backrests
are ti lted back, the greater the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
t io n.
- Children must always ride in child safety
seats
c::> page 152 . Special precautions
apply when installing a child safety seat
o n t he front pas senge r sea t
c::> page 131.
Proper seating positions for passengers
in rear seats
Rear seat passengers must sit upright with
both feet on the floor consistent with their
physical size and be properly restrained whenever the vehicle is in use.
To reduce the risk of injury caused by an incor­
rect seat ing pos ition in the event of a sudden
braking maneuver or an accident, your pas-
Dr ivin g Sa fely 115
sengers on the rear bench seat must always
observe the following:
'" Make su re that the seatba ck is secure ly
la tched in the up right position
c::> page 66.
'" Keep both feet flat in the footwell in front of
the rear seat.
'" Fasten and wear safety belts proper ly
c::> page 126 .
'"Make sure that children are always properly
restrai ned in a child restraint that is appro ­
pr iate for the ir s ize and age
c::> page 152.
.&, WARNING
Passengers who are imp roperly seated on
the rea r seat can be seriously i njured in a
crash.
- Each passenge r must always si t on a seat
of their own and properly fasten and
wear the safety belt belonging to that
seat.
- Safety belts only offer maximum protec­
tion when the sea tback is sec urely latch ­
ed in the upright position and the safety
be lts are properly positioned on the
body. By not sitting upright, a rear seat
passenger increases the risk of personal
inj ury from improperly positioned safety
be lts!
Proper adjustment of head restraints
App lies to vehicles: with adjustable head restraints
Correctly adjusted head restraints are an im­
portant part of your vehicle's occupant re­
straint system and can help to reduce the risk
of injuries in accident situations .
Fig . 1 32 Head restra int: vi ewed from the front

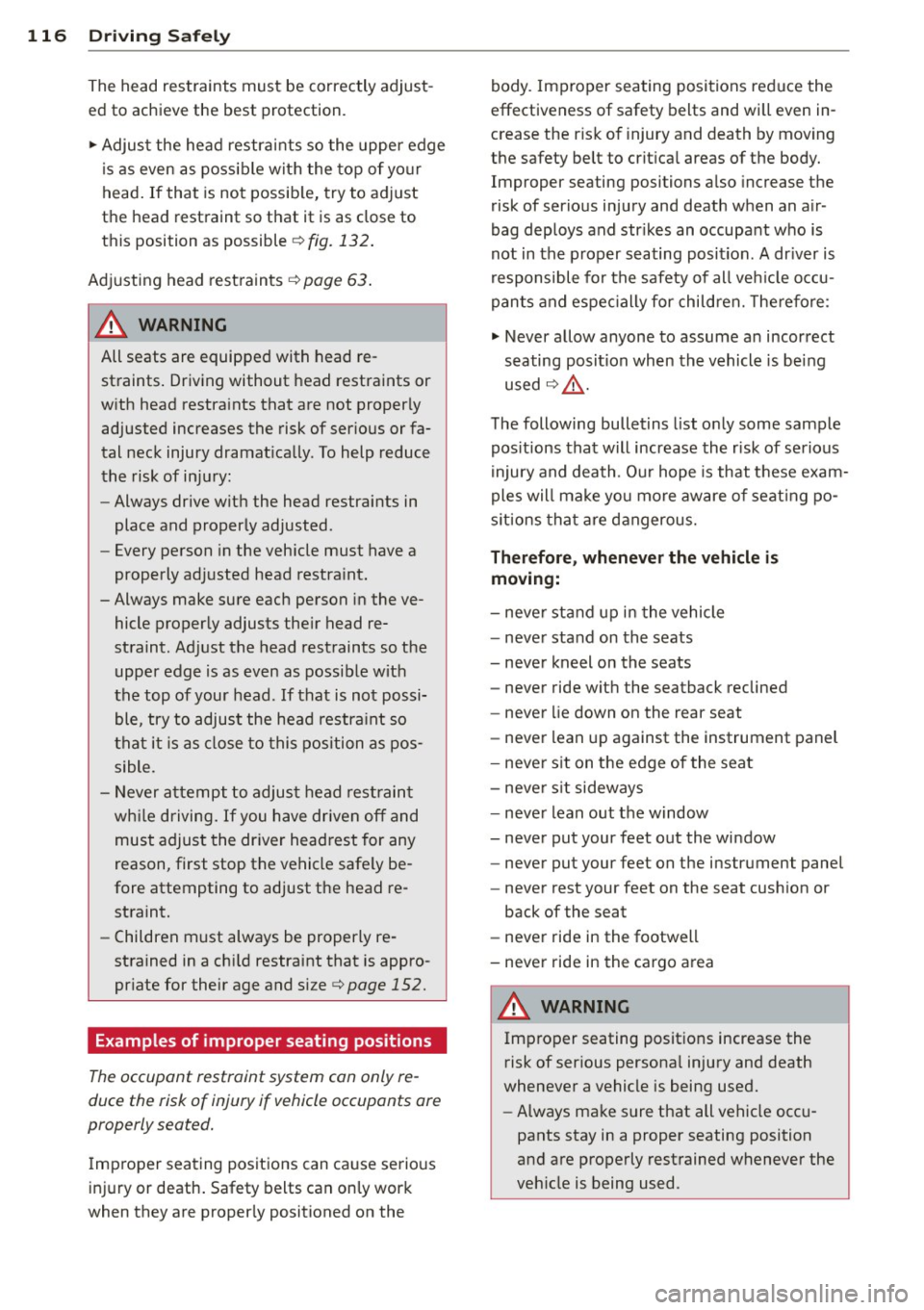

116 Driving Saf ely
The head res traints must be correct ly a djust­
ed to achieve the best protection.
... Adjust the head restraints so the upper edge
is as even as poss ible w ith the top of yo ur
head.
If that is not possib le, try to ad just
the head restraint so that it is as close to
t h is position as possible¢
fig. 132.
Adjusting head restraints ¢ page 63 .
.&, WARNING
All seats are equipped with head re­
straints . Driving without head restraints or
w ith head restra ints that are not proper ly
adjusted increases the risk of ser ious or fa­
tal neck injury dramat ically . To help reduce
the risk of in ju ry:
- Always drive with the head restraints in
place and proper ly adjusted .
- Every person in the veh icle must have a
properly adjusted head restra int.
- Always make sure each person in the ve­
hicle properly adjusts the ir head re­
straint. Adj ust the head restraints so the
upper edge is as even as possible with
the top of your head . If that is not possi­
ble, try to adju st the head restra int so
that it is as close to this position as pos ­
sible.
- Never attempt to adjust head rest raint
wh ile driving. If you have driven off and
must adjust the dr iver head rest for any
reason, first stop the ve hicle safe ly be­
fore attempting to adjust the head re­ straint.
- Children must always be properly re­
strained in a ch ild restraint that is appro­
pr iate for their age and size ¢
page 152.
Examples of improper seating positions
The occupant restraint system can only re­
duce the risk of injury if vehicle occupants are
properly seated.
I mproper seating positions can ca use serio us
in ju ry or death . Safety belts can on ly work
when they are properly positioned on the body. Improper seating positions reduce the
effectiven
ess of safety belts and wi ll even in­
c rease the r isk o f injury and death by moving
the safety belt to crit ica l areas of the body.
Imprope r sea ting positions a lso increase the
risk of serious inju ry and death when an a ir ­
bag deploys and str ikes an occupa nt w ho is
not in the proper s eating posit ion . A dr iver is
responsible for the safety of all veh icle o ccu­
pants and espe cially for child ren. The re fo re :
... Never allow anyone to assume an incor rect
seating position when the vehicle is being
used ¢& .
T he following bulletins list o nly some sample
pos itions tha t w ill increase the r isk of serious
i njury and dea th . O ur hope is that t hese exam­
ples will ma ke yo u more aware o f seat ing po­
s itions tha t a re dangerous.
Therefore , whenever the vehicle is
moving:
- neve r sta nd up i n the vehicle
- neve r stand on the seats
- never kneel on the seats
- never ride wit h the seatback reclined
- never lie down on the rear seat
- never lean up against the instrument panel
- neve r sit on the e dge of the seat
- neve r sit s ideways
- neve r lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cush ion or
back of the seat
- neve r ride in the footwell
- never ride in the cargo a rea
.&, WARNING
Imp roper seating posit ions increase the
risk of ser ious persona l injury and death
whenever a vehicle is being used.
- Always make sure that all vehicle occ u-
pants stay in a proper seating position
and are properly restrained whenever the
veh icle is being used.

M N
er
u..
co ,...., \!) ..,.,
,...., ..,., ,....,
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter exp lains why safety be lts a re nec ­
essary, how they work and how to adjust and
wear them correctly.
~ Read a ll the informat ion that fo llows and
heed all of the inst ruct ions and WARNINGS.
A WARNING
Not wearing safety belts or wearing them
improperly increases the risk of ser ious
personal in jury and death .
- Safety belts are the sing le most effective
means availab le to red uce the r isk of se­
rious injury and death in a utomob ile acci­
de nts . For your prot ecti on and that of
yo ur passenge rs, always co rrec tly wear
sa fe ty bel ts when the ve hicle is mov ing.
- P re g nant women, injured, or physically
imp aired perso ns must also use safe ty
belts. L ike a ll vehicle occup ants, they are
more like ly to be ser ious ly injure d if they
do not wea r safety be lts . The best way to
protect a fet us is to protect the mother -
thro ughout the entire pregnancy.
Number of seats
Your Audi has a total of four seating positions:
two in the front and two in the rear. Each seat­
i n g position has a safety belt.
A WARNING
N ot wea ring safety belts or wea ring the m
im properly increases the risk of ser ious
perso nal i njur y an d deat h.
- Never st rap more than one pe rson, in­
cl ud ing small ch ild ren, into a ny belt . It is
e speci ally dangerous t o pl ac e a safety
bel t over a child s itting on yo ur la p.
- N ever le t mo re peo ple ride in t he ve hicle
th an there are s afety be lts availab le.
Safety belts 12 3
- Be s ure everyone riding in the vehicle is
properly restrained w ith a separate sa fe­
ty belt or child restra int.
Safety belt warning light
Your vehicle has a warning system for the
driver and (on USA models only) front seat
passenger to remind you about the impor­
tance of buckling-up.
Fig . 138 Safety belt warni ng light in the instr ument
cl uster -enla rged
Before driving off, alway s:
~ Fasten your safety be lt and ma ke su re you
are wearing it properly .
~ Make sure that yo ur passengers a lso buck le
up and properly wear their safety be lts.
~ Protect your children w it h a child restraint
sys tem app ropriate fo r the size a nd age of
t h e children.
The . war ning light i n the instrument clus­
te r li ghts up when the ig nition is switched on
as a reminder to fasten the safety belts . In ad­
dition, you will hear a warning tone fo r a cer­
ta in period o f time.
Fasten your safety belt now and make sure
that your passengers al so properly put on
their safety belt s.
•
•

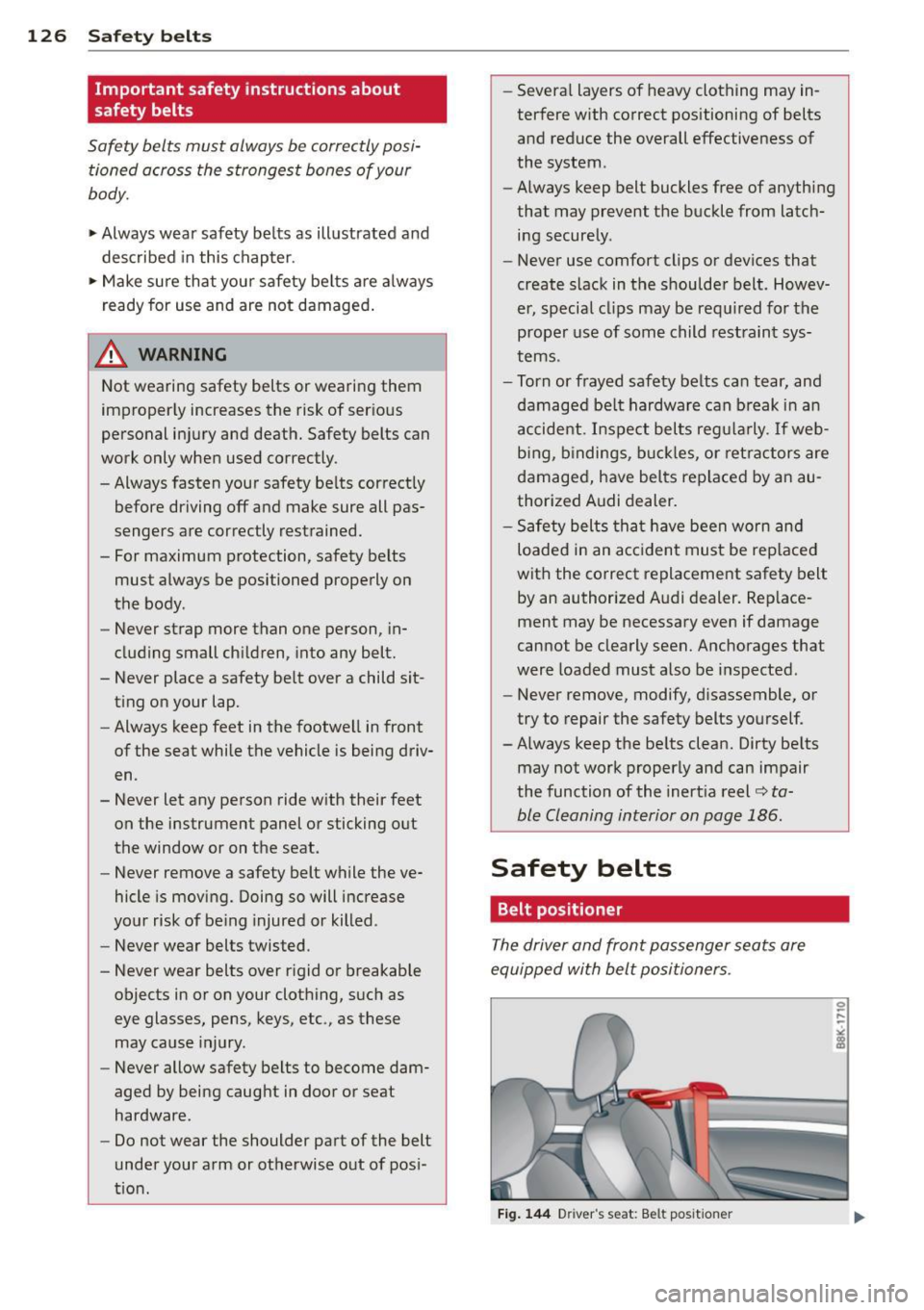

126 Safety belts
Important safety instructions about
safety belts
Safety belts must always be correctly posi­
tioned across the strongest bones of your
body.
,.. Always wear safety belts as illustrated and
described in this chapter.
,.. Make sure that your safety belts are always
ready for use and are not damaged.
,&. WARNING
Not wearing safety belts or wearing them
improperly increases the risk of serious
personal injury and death. Safety belts can
work only when used correctly .
- Always fasten your safety belts correctly
before driving
off and make sure all pas­
sengers are correctly restrained.
- For maximum protection, safety belts must always be positioned properly on
the body .
- Never strap more than one person , in­
cluding small children, into any belt.
- Never place a safety belt over a child sit­ ting on your lap.
- Always keep feet in the footwell in front
of the seat while the vehicle is being driv­
en .
- Never let any person ride with their feet on the instrument panel or sticking out
the window or on the seat.
- Never remove a safety belt while the ve­
hicle is moving. Doing so will increase
your risk of be ing injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable
objects in or on your clothing, such as
eye glasses, pens, keys, etc., as these
may cause injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat
hardware .
- Do not wear the shoulder pa rt of the belt
under your arm or otherwise out of pos i­
tion . -
Several layers of heavy clothing may in­
terfere with correct positioning of belts
and reduce the overall effectiveness of
the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latch­
ing securely .
- Never use comfort clips or devices that
create slack in the shoulder belt . Howev­
er, special clips may be required for the
proper use of some child restraint sys­
tems .
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an
accident. Inspect belts regularly .
If web­
bing, bindings, buck les, or retractors are
damaged, have belts replaced by an au ­
thorized Audi dealer.
- Safety belts that have been worn and
loaded in an accident must be replaced
with the correct replacement safety belt
by an authorized Audi dealer. Replace­
ment may be necessary even if damage
cannot be clearly seen. Anchorages that
were loaded must also be inspected .
- Never remove, modify, disassemble, or
try to repair the safety belts yourself.
- Always keep the belts clean. Dirty belts
may not work properly and can impair
the function of the inertia reel~
ta­
ble Cleaning interior on page 186 .
Safety belts
Belt positioner
The driver and front passenger seats are
equipped with belt positioners .
Fig. 144 Driver 's seat: Be lt positio ner

128 Safet y belt s
belt itself when it moves from the stron­
ger parts of the body into critical areas
like the abdomen.
- Always lock the convertible locking re­
tractor when you are secur ing a child
safety seat in the vehicle
c::> page 164.
Safety belt position
Correct belt position is th e key to getting
maximum protection from safety belts .
Fig. 14 6 Safety belt pos it io n
;;; r-0 ± .., CD
Standard features on your vehicle help you ad­
just the position of the safety belt to match your body size .
- height -adjustable front seats .
A WARNING
Improperly positioned safety belts can
cause se rious personal injury in an acci­
de nt.
- T he shoulder belt sho uld lie as close to
the cente r of the collar bone as poss ible
and should fit we ll on the body. Ho ld the
bel t above the latch tongue and pull it
even ly across the chest so that it sits as
low as possible on the pelvis and there is
no p ress ure on the abdomen. The be lt
should a lways fit snugly
c:> fig . 146. Pull
on the be lt to tighten if necessary.
- The lap belt portion of the safety be lt
must be positioned as low as possible
across pe lvis and never over the abdo­
men . Make s ure the be lt lies flat and
snug
c::> fig . 146. Pull o n the belt to tight­
en if necessary. -
A loose-fitting safety belt can cause seri­
ous injuries by shift ing its posit ion on
your body from the strong bones to more
vulnerable, soft tissue and cause ser ious
in ju ry.
- Always read and heed all WARNINGS a nd
other important information
c::> page 126 .
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make
sure that expe ctan t mothers always wear
safety belts corre ctly -throughout the preg­
nan cy.
Fi g. 147 Saf ety belt pos it ion dur ing p re gnan cy
To prov ide max imum protect ion, safety belts
must a lway s be positioned correctly on the
wearer's body
<=:>page 128.
.,. Adjust the front seat and head restraint cor­
rectly
c::> page 60 , Seats and storage .
.,. Make sure the seatback of the rear seat
benc h is in an upright position and secure ly
latched in place before using the belt .
"' Ho ld the belt by the tongue and pull it even­
ly ac ross the chest and pelvis
c:> fig . 147,
c::> &_ .
"' In sert the tong ue i nto the correct buckl e of
your seat unt il yo u hear i t latch secu re ly
c;, page 12 7, fig . 145 .
.,. Pull on the belt to make sure t hat it is se­
curely latched in the buck le.
