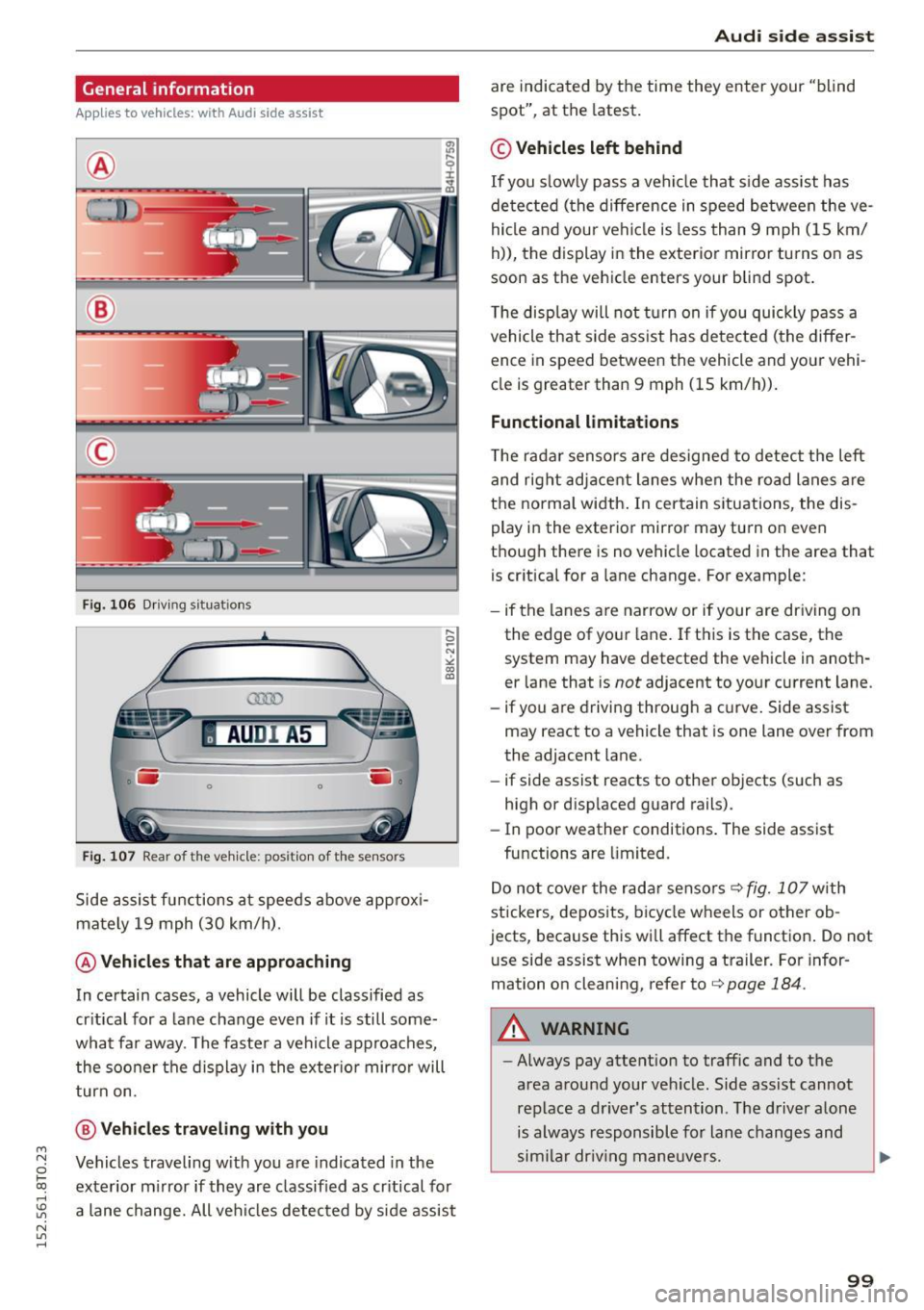

General information
Applies to vehicles: with Audi side assist
®
®
©
Fig. 106 Driving situat ions
AU DI A5
. .-0 0 iii .
Fig. 107 Rear of the vehicle: positio n of the sensors
Side assist functions at speeds above approxi­
mately 19 mph (30 km/h).
@ Vehicles that are approaching
In certain cases, a vehicle will be classified as
critical for a lane change even if it is still some­
what far away. The faster a vehicle approaches, the sooner the display in the exterior mirror will
turn on.
@ Vehicles traveling with you
Vehicles traveling with you are indicated in the
exterior mirror if they are classified as critical for
a lane change. All vehicles detected by side assist
Audi side assist
are indicated by the time they enter your "blind
spot", at the latest.
© Vehicles left behind
If you slowly pass a vehicle that side assist has
detected (the difference in speed between the ve­
hicle and your vehicle is less than 9 mph (15 km/
h)), the display in the exterior mirror turns on as
soon as the vehicle enters your blind spot.
The display will not turn on if you quickly pass a
vehicle that side assist has detected (the differ­
ence in speed between the vehicle and your vehi­
cle is greater than 9 mph (15 km/h)).
Functional limitations
The radar sensors are designed to detect the left
and right adjacent lanes when the road lanes are
the normal width. In certain situations, the dis­
play in the exterior mirror may turn on even
though there is no vehicle located in the area that is critical for a lane change. For example:
- if the lanes are narrow or if your are driving on
the edge of your lane. If this is the case, the
system may have detected the vehicle in anoth­
er lane that is
not adjacent to your current lane.
- if you are driving through a curve. Side assist
may react to a vehicle that is one lane over from
the adjacent lane.
- if side assist reacts to other objects (such as
high or displaced guard rails).
- In poor weather conditions. The side assist
functions are limited.
Do not cover the rada r senso rs¢
fig. 107 with
stickers, deposits, bicycle wheels or other ob­
jects, because this will affect the function. Do not
u se side assist when towing a trailer. For infor­
mation on cleaning, refer to¢
page 184.
A WARNING
-Always pay attention to traffic and to the
area around your vehicle . Side assist cannot
replace a driver's attention. The driver alone
is always responsible for lane changes and
similar driving maneuvers.
99

Wheels
(D Tires for passenger vehicles
(if applicable)
P indicates a tire for a passenger
vehicle. T indicates a tire desig­
nated for temporary use .
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters . In general: the larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches .
@ Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the
maximum permitted speed
¢ & in
W inter tires on page 220 .
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
is an Extra Load tire.
Speed rat- Maximum permitted speed
ing
p
up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
206
Speed rat- Maximum permitted speed
Ing
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)a>
z above 149 mph (240 km/h)a)
w up to 168 mph (270 km/h)a)
y up to 186 mph (300 km/h)a)
a) For tires above 149 mph (240 km/h),
tire manufacturers sometimes use the
code "ZR".
(J) US DOT number (TIN) and
manufacture date
The manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire) :
DOT ... 4514 ...
means , for example, that the tire
was produced in the 45th week of
the year 2014.
@ Audi Original equipment
tires
Audi Original equipment tires
with the designation "AO" or "RO"
have been specially matched to
your Audi. When used correctly,
these tires meet the highest standards of safety and handling.
Your authorized Audi dealer will
be happy to provide more infor­
mation.

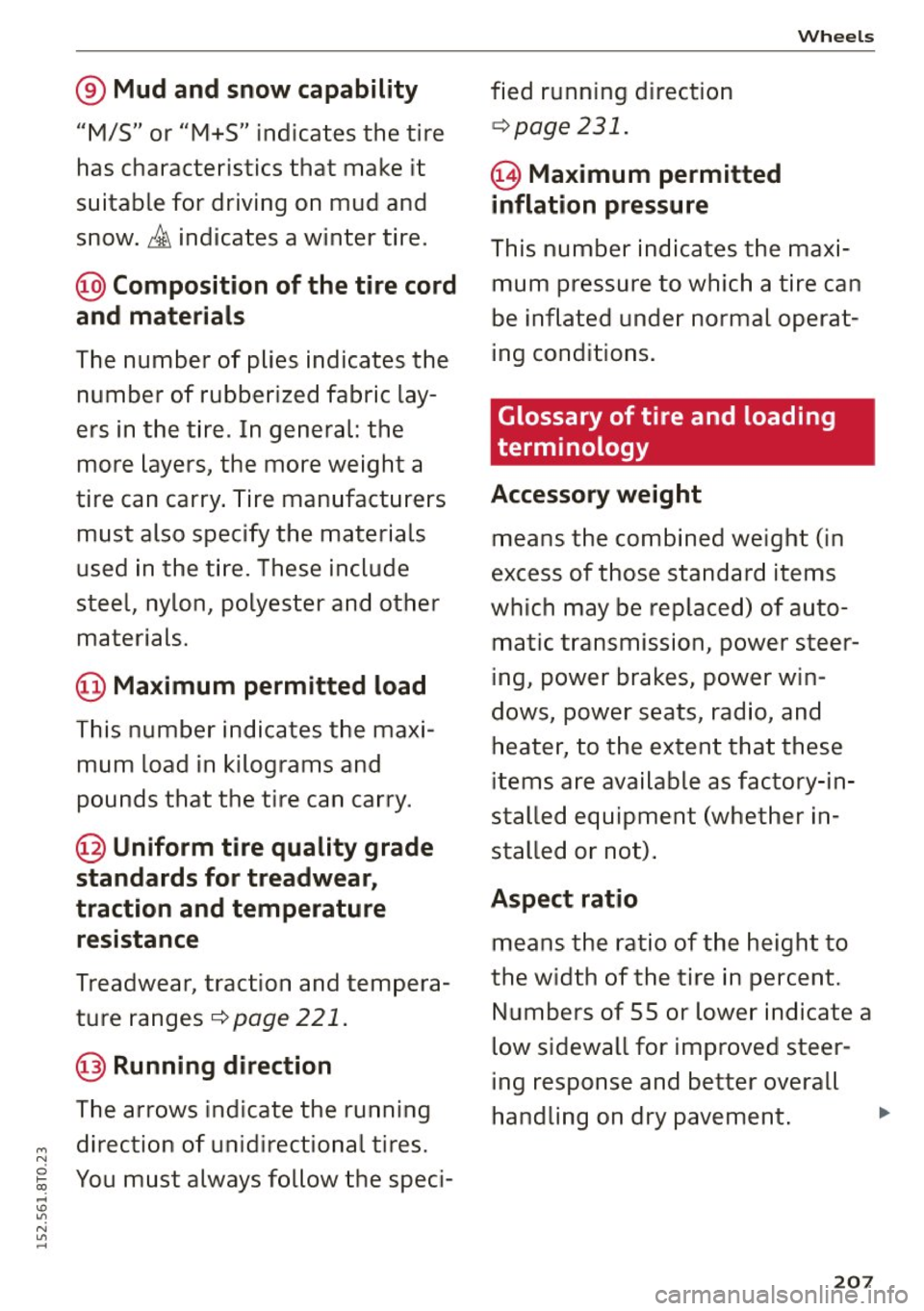

® Mud and snow capability
"M/S" or "M+S" indicates the tire
has characte ris tics that make it
suitable for driving on mud and snow .
& indica tes a winter tire.
@ Composition of the tire cord
and materials
T he number of plies indicates the
number of rubber ized fabric lay­
ers in the tire . In general: the
more layers, the more weight a
tire can carry. Tire manufacturers
must also specify the mater ials
used in the ti re. These include
stee l, nylon, polyester and other
materials.
@ Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry .
@ Uniform tire quality grade
standards for treadwear,
traction and temperature resistance
Treadwear , traction and tempera­
ture ranges¢
page 221.
@Running direction
The arrows ind icate the running
direction of unidirect ional tires.
You must always follow the speci- fied running direction
¢
page 231.
€3) Ma ximum permitted
inflation pressure
Whe els
This number indicates the maxi­
mum pressure to which a tire can
be inflated unde r normal operat­
ing conditions .
Glossary of tire and loading
terminology
Accessory weight
means the combined weight (in
excess of those standard items
which may be replaced) of auto­ matic transmission, power steer­
ing, power brakes, power win­
dows, power seats, radio, and
heater, to the extent that these
items are available as factory-in ­
stalled equipment (whether in­
stalled or not).
Aspect ratio
means the ratio of the height to
the width of the tire in percent. Numbers of 55 or lower indicate a
low s idewall for improved steer­
ing response and better overall
handling on dry pavement . .,.
207

(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Product ion options weight
Maximum (permissible)
inflation pressure
means the max im um cold infla­
tion pressu re to which a tire may
be inflated . Also called "ma xi­
mum inflation pressure ."
Normal occupant weight
means 150 lbs . (68 kilog rams)
times the number of occupants
seated in the veh ic le up to the to­
tal seating capacity of yo ur vehi­
c le.
Occupant distribution
means d istr ibution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire .
Overall width
means the linear dis tance be­
tween the exter iors of the side­
walls of an inflated tire , including
elevations d ue to labe ling, deco­
rations , or protective bands or
ribs .
Whee ls
Ply
means a layer of rubbe r-coated
parallel cords .
Production options weight
means the comb ined weight o f
those installed regular production
options weighing over 5 lbs . (2 .3
kg) in excess o f those s tandard
items which they re place , not pre ­
viously conside red in c urb weight
or accessory weight, including heavy duty brakes, ride levelers,
roof rac k, heavy d uty batte ry, and
specia l trim .
Radial ply tire
means a pneumat ic t ire in which
the ply cords that ex tend to the
beads are la id at substantially 90
degrees to the centerli ne of the
tread .
Recommended inflation
pressure
see ~ page 208, Cold tire infla­
tion pressure .
Reinforced tire
means a tire designed to operate
at higher loads and at h igher in­
flat ion pressures than the corre­
spon ding standard tire . Rein­
f orced tires may be identified as
2 0 9

Wheels
"XL" "xl" "EXTRA LOAD" or "RF" I I I
on the sidewal l.
Rim
means a metal support for a tire
or a tire and tube assembly upon
which the tire beads are seated .
Rim diameter
means nominal diameter of the
bead seat. If you change yo ur
wheel size , you w ill have to pur­
chase new tires to match the new rim diameter .
Rim size designation
means rim diameter and width.
Rim width
means nomina l distance between
rim flanges .
Sidewall
means that port ion o f a t ire be­
tween the tread and bead .
Speed rating (letter code)
means the speed at which a tire is
designed to be driven for extend ­
ed periods of t ime. The rat ings
range from 93 mph (150 km/h)
to 186 mph (298 km/h)
¢ table
on page 206 .
You may not find
this information on all tires be­
cause it is not required by la w.
2 10
The speed rating letter code ,
where applicable , is mo lded on
the tire sidewall and indicates the maximum permiss ible road
speeds
¢ .&. in Winter tires on
page 220.
Tire pressure monitoring
system*
means a system that detects
when one or mo re of a ve hic le's
tires are under inflated and illumi ­
na tes a low tire p ressu re warning
tellta le .
Tread
means that portion of a tire that
comes into contact w ith the road.
Tread separation
means pu lling away of the tread
from the t ire carcass.
Treadwear indicators (TWI)
means the projections wi thin the
principal grooves designed to give
a visua l indication of the deg rees
of wear of the tread . See
¢ page 214 , Treadwear indicator
for mo re information on measur­
ing t ire wear.

Wheels
A WARNING
Wheel bolts that are tightened or repaired in­correctly can become loose and result in loss
of vehicle control , which increases the risk of
an accident. For the correct tightening specifi­
cation, refer to
c:> page 22 7, After changing a
wheel.
- Always keep the wheel bolts and the threads
in the wheel hub clean and free of grease.
- Only use wheel bolts that fit the rim .
- Always have damaged rims repaired by an
authorized Audi dealer or authorized repair
facility. Never repair or disassemble rims
yourself, because this increases the risk of an accident.
Winter tires
Winter tires significantly improve the vehicle's handling when driving in winter conditions . Be­
cause of their construction (width, compound,
tread pattern), summer tires provide less traction
on ice and snow.
.., Use winter tires on all four wheels .
.., Only use winter tires that are approved for your
vehicle.
.., Please note that the maximum permitted
speed may be lower with winter tires
c:> .&,.
Your authorized Audi dealer or authorized re­
pai r facility can inform you about the maximum
permitted speed for your tires .
.., Check the tire pressure after installing wheels
c:> page 215.
The effectiveness of winter tires is reduced great­
ly when the tread is worn down to a depth of
0 .1S7 inch (4 mm). The characteristics of winter
tires also decrease greatly as the tire ages, re ­
gardless of the remaining tread.
A WARNING
-Never drive faster than the maximum per­
mitted speed for your t ires. This could cause
the tires to heat up too much . This increases
the risk of an accident because it can cause
the tire to burst.
220
- Always adapt your driving to the road and
traffic conditions. Drive carefully and reduce
your speed on icy or slippery roads. Even
winter tires can lose traction on black ice.
@ For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear and fuel
consumpt ion.
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only win­
ter tires w ith the
& symbol may be permit­
ted.
· Snow chains
Snow chains improve traction in the snow .
.., Only install snow chains on the front wheels.
This applies also to vehicles with all wheel drive* .
.., Check and correct the seating of the snow
chains if necessary after driving a few feet. Fol­
low the instructions from the manufacturer .
.., Note the maximum permitted speed when driv­
ing with snow chains . Do not exceed 30 mph
(SO km/h) .
Snow chains not only improve the
driving in win­
ter road conditions, but also the
braking.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authorized Audi dealer or author­
ized repair facility to see if you may use snow
chains .
Use
fine-mesh snow chains. They must not add
more than 0.53 inch (13.S mm) in height, includ­
ing the chain lock.
You must remove the chains when driving on
roads that are
free of snow. When roads are free
of snow, snow chains can impair handling and .,.

M N
i? co ,...., \!) ..,.,
N ..,., ,....,
damage the t ires, and the c hains will quickly be
destroye d.
A WARNING
Using inco rrect snow cha ins or installing snow
chains incorrectly can resu lt i n loss of vehicle
cont ro l, whic h increases the r isk of an acci ­
de nt.
(D Note
Snow chains can dama ge the r ims/whee l cov­
ers * if th e cha ins come into d irect contact
w it h them. Remove the whee l cov ers* f irst .
Use coat ed snow c hains.
Low aspect ratio tires
Your Au di is factory -equip ped wi th low as pect ra ­
tio ti res. T hese ti res have bee n thoroughly teste d
a nd been se le cted specific ally fo r your model fo r
t he ir su perb pe rformance, road feel and handling
u nd er a variety o f driving conditions . Ask yo ur au­
thor ized A udi dealer for mo re deta ils.
The low aspe ct r atio of these ti res i s indic ated by
a numer al of
55 or les s in th e tire's si ze des igna ­
tion. The nu mera l represen ts the ra ti o of the
tire's sidewall he ight in relation to its trea d width
e x pressed in percentage. Convent io na l tires have
a he ight/w idth ratio of 60 or mo re.
The performance of low-aspect-ratio tires is par­
ticularly sensitive to improper inflation pres­
sure . It is therefore important that low aspect
ratio tires are inflated to the specified pressure
and that the inflation pressure is regularly
checked and maintained . Tire pressures should
be checked at least once a month and always
before a long trip
¢ pag e 215.
What you can do to avoid tire and rim
damage
L ow aspec t rat io t ires ca n be damaged more easi­
l y by impact wi th pot ho les, curbs, gulli es or
r idges on the road, par ticularly if the tire is un­
de rin fla ted.
In o rder to m inim ize the occu rrence o f impact
damage to the t ires of your v ehicl e, we recom-
Wheels
me nd that yo u observe the follow ing p recau ­
t ions:
- Alw ays m aintain r eco m me nded infl ation pre s­
sures. C heck your tire pressure every 2,000
m iles (3,00 0 km) an d ad d air if necessary .
- Dr ive c arefully on road s wi th pot holes, deep
gu llies o r ridges. The impac t from dr iv ing
through or over s uch obstacles can damage
your tires . Impact with a curb may a lso ca use
damage to your tires .
- After a ny impact, imme diate ly inspect yo ur
tires o r have them inspected by the nearest au­
thorized A udi dealer. Rep lace a damaged t ire as
soon as possible.
- Inspect your tires every 2,000 m iles (3,000 km)
for damage and wear . Damage is not always
easy to see. Damage can lead to loss of air and
unde rinflation, w hich could even tually cause
t ire failure .
If you beli eve that a t ire may have
been damaged, re place the t ire as soon as pos­
s ible.
- These ti res may wear more quickly tha n oth ers .
- Please also remember that, wh ile these tires
delive r responsiv e han dling, they may r ide less
comfortably and make mo re no ise than other
c h o ic e s.
Reduced performance in winter/cold season
conditions
All t ir e s ar e designed for certa in purpos es. T he
l ow asp ect ra tio, ultr a hig h perfor man ce tire s
o rigi nall y insta lled on y our veh icle are in tende d
f or m aximum dry an d we t road pe rformance and
handli ng. They are not suitab le for co ld , snowy or
icy weather conditions . If you dr ive under those
c ircumstances , you sho uld eq uip your vehicle
with all-season or winter tires, which offer better
t raction unde r those co ndit io ns. We suggest you
u se the recommended snow or all-seaso n tires
spec ified for your veh icle, o r the ir equiva le nt.
Refer to¢
page 220 for more detailed informa ­
t ion regarding w inte r tir es.
Uniform tire quality grading
- Tread wea r
- Traction AA AB C
- Temperature AB C
221

Technical data
Gross Axle Weight Rating
The Gross Axle Weight Rating is the maximum load that can be appli ed at each axle of the vehi ­
cle ¢& .
Vehicle capacity weight The vehicle capacity we ight (max. load) is listed
on the driver's side 8 -p ill ar.
_& WARNING
- T he actual Gross Axle Weight Rating at the
front and rear axles should not exceed the
permissible weights, and their combination
must not exceed the Gross Vehicle Weight
Rating .
Dimensions
Length in (mm)
Width in (mm)
Width (across mirrors) in (mm)
Height (unloaded) al in (mm) -
Exceeding permissible weight ratings can
result in veh icle damage, acc idents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possible so that the vehicle 's
hand ling is not impaired .
- Do not exceed the maximum permissible
axle loads or the maximum gross vehicle
we ight. Always remember that the vehicle's
hand ling will be affected by the extra load.
T herefore, adjust your speed accordingly.
- Always observe local regulations .
AS Coupe 55 Coupe
182.1 (4626) 182 .7 (4640)
73.0 (1854) 73 .0 (1854)
7 9.5 (2020) 79 .5 (2020)
54.0 (1372) 53 .9 (1369)
al T h e he igh t of th e vehicle depend s on the tir es and t he s usp en sion .
When driving up steep ramps, on rough roads,
over curbs, etc. it is important to remember that
some parts of your vehicle, such as spo ilers or ex-
Capacities
Fuel tank: tota l capacity
Windshield and headlight* washer fluid conta iner
242
haust system components, may be close to the
ground . Be careful not to damage them.
gal (liters) 16.1 (61.0)
quarts (liters) 4
.8 (4.5)
