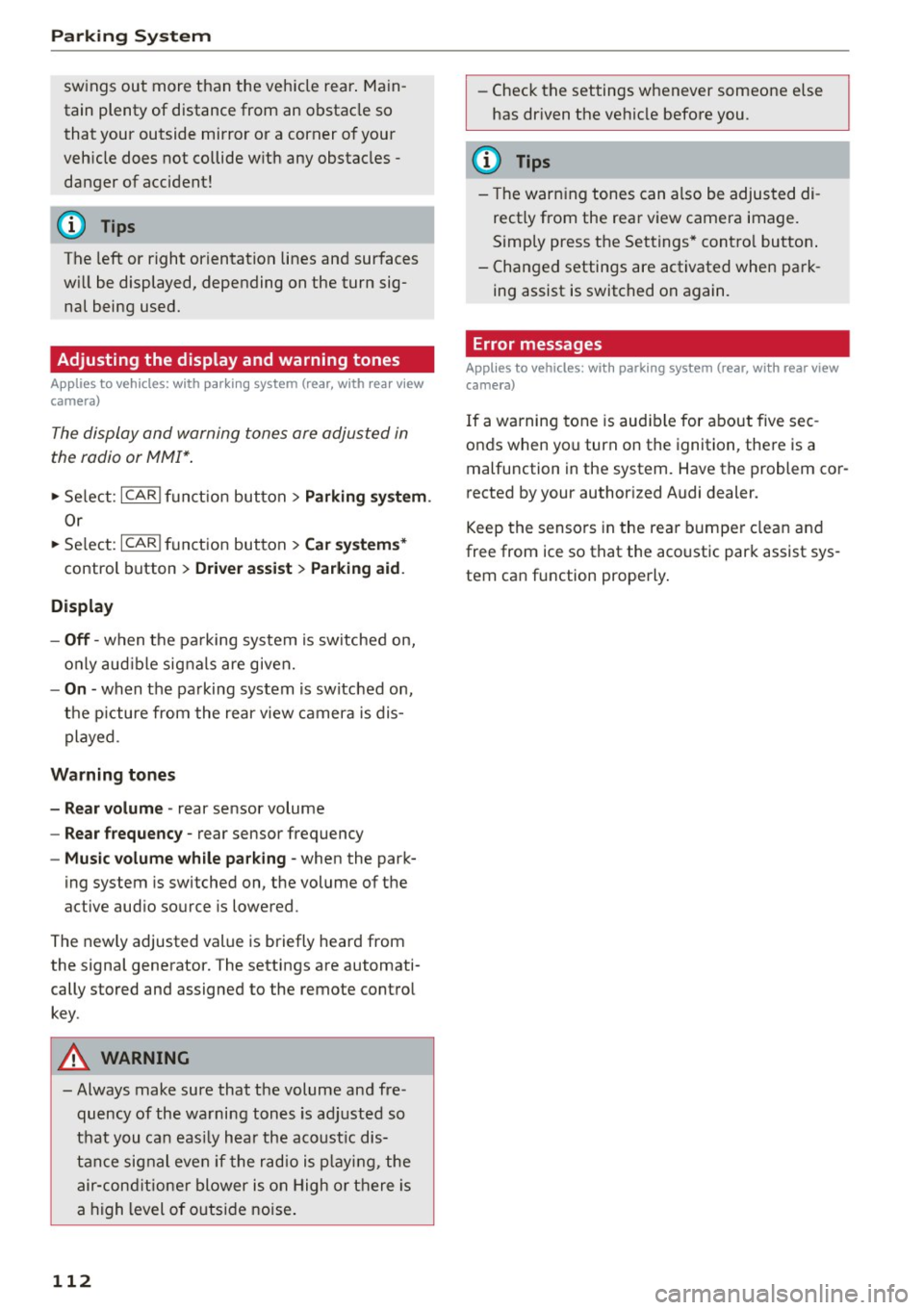

2015 AUDI A5 CABRIOLET sensor

Parkin g Sys tem
sw ings out more than the vehicle rear . Main ­
tain plenty of distance from an obstacle so
that your outside mirror or a corner of your
veh icle does not collide w ith any obstacles -
danger of accident!
(D Tips
The left or right orientation lines and surfaces
w ill be displayed, depending on the turn sig­
nal being used.
Adjusting the display and warning tones
Applies to vehicles: w ith parking system (rear, with rear view
camera)
The display and warning tones ore adjusted in
the radio or MMI*.
.. Se lect: ICARlfunct ion button> Parking sy stem .
Or
.. Se lect: ICAR I function button> Car system s*
control button > D riv er a ss is t> Par king aid .
D isplay
- Off -when the pa rking system is switched on,
o nl y aud ible signals are given.
- On -when the pa rking system is switched on,
the p icture from the rear view camera is dis­
played.
Warning tones
- Rea r volume -
rear sensor volume
-Rear frequenc y -rear sensor frequency
- Music volume wh ile pa rking -when the pa rk-
ing system is switched on, the volume of the
active aud io source is lowered .
The newly adjusted value is briefly heard from
the signal generator. The settings are automati­
cally stored and assigned to the remote control key .
A WARNING
- Always make sure that the volume and fre ­
quency of the wa rning tones is adj usted so
that you can eas ily hear the acoust ic dis­
tan ce signal even if the radio is p laying, the
air-con ditione r blower is on High or t here is
a high level of outside noise .
112
-Check the settings whenever someone else
has dr iven the vehicle before you .
@ Tips
-The warn ing tones can also be adjusted di ­
rectly from the rear view camera image.
Simply press the Settings * cont ro l button .
- Changed settings are activated when park ­
ing assist is switched on again.
Error messages
Applies to vehicles: with parking system (rear, with rear view
camera)
If a warning tone is aud ible for about five sec­
onds when you turn on the ignition, there is a malfunction in the system. Have the problem cor ­
rected by your author ized Audi dealer .
Keep the sensors in the rea r bumper clean and
free from ice so that the aco ustic park assist sys ­
tem can function properly .

Driving safet y
-the safety belts wit h be lt te nsioners
- the wind shie ld frame
- the rollover sensors
The active rollover protection system provides
addit ional safety in the event of a rollover. W ith in
m ill iseconds, sensors deploy two rollbars located
behind the headrests in the rear seats ¢
fig. 133.
The rollbars, reinforced windshield frame and
belt tens ioners help protect front and rear pas­
sengers in the event of a rollover .
The rollover protection system functions when
the power top is both open and closed.
A WARNING
-
Do not use the area beh ind the rear seat
headrests
9fig . 132 as a storage a rea . Th is is
t he a rea whe re the rollbars dep loy. If the ro ll­
over pro tect ion system is triggered, objects
placed there can be pro pelled th roug h the
ve­
hicle and make it more difficult for the roll ­
bars to deploy . This increases the risk for seri­
ous or life-threaten ing injur ies.
When is rollover protection deployed?
Rollover protection deploys in a collision or roll­
over.
Depending on the coll is ion, sensors throughou t
the vehicle and the control mod ule tr igger the
rollover system to deploy.
For safety reasons, ro llover protect ion a lso de­
p loys during front, side and rear coll is ions above
a certa in leve l of severi ty .
Retracting rollover protection
F ig . 13 4 Dep loyed roltba r wit h re lease loop .
122
Fig . 13 5 Deployed rollbar w it h power top frame facing up­
ward.
If the rollover p rotection has tr iggered but the
vehicle was not involved in an accident, you can
retract the rollover protection yourself in an
emergency. Drive to your authorized Audi dealer
or qualified repair facility immed iate ly to have
the malfunct ion corrected.
With the power top open
.. Pull the loop upward in the direction of the ar­
row and hold it in place
9 fig. 134.
.. Slide the rollbar down .
.,.. Release the loop just before the ro llbar reaches
its end position by approximately 1-2 in . (3-5
cm).
.,.. Press t he rollbar down unt il i t stops.
.. Ma ke s ure the rollbar is secure be fore releasing
it .
.. Close the cover @¢
fig. 135.
.. Repeat t he proced ure on the other ro llbar.
With the power top closed
.,.. Sw itch the ignit io n on.
.. Press the conver tible switch to adjus t the co n­
ver tible frame until it is vertical ¢
fig. 135 .
.. Pull the loop upward in the direction of the ar­
row and hold it in place
9 fig. 134.
.,. Slide the rollbar down .
.. Release the loop ju st before the rollbar reaches
its end position (3-5 cm) .
.,.. Press the rollbar down unt il it stops .
.. Ma ke su re the rollbar is secu re before releasing
i t .
.,.. Clo se the cover @¢
fig. 135 .
.. Repeat the procedure on the other ro llba r .
.. Yo u can now close the power top again .

Safety belts
Unfastening safety belts
Unbuckle the safety belt with the red relea se
button only after the vehicle has stopped .


Fig. 146 Re le as ing th e to ngu e fr om th e buck le
.. Push the red re lease button on the b uck le
Q fig. 146 . The belt tongue wi ll spring out of
the buckle
Q ,& .
.. Let the belt wind up on the retr actor as you
guide the bel t tongue to its stowed position.
A WARNING
Never unfasten safety belt while the veh icle is
moving . Doing so will increase your risk of be­
ing injured or killed.
Improperly worn safety belts
a
~ 0 :i: .. 0J
Incorrectly positioned safety belts can cause se­
vere injuries .
Wearing safety belts improperly can cause seri­
ous injury or death. Safe ty belts can only work
when they are correctly posit ioned on the body .
Improper seating pos it ions reduce the effective­
ness of safety belts and will even inc rease the risk
of injury and death by moving the safety be lt to
cr itica l areas of the body . Improper seati ng posi­
tions a lso increase the risk of serious injury and
death when an airbag deploys and strikes an oc­
cupant who is not in the correct seating position.
A driver is responsible for the safety of all vehicle
occupants and espec ially for children. Therefore :
.. Never perm it anyone to ass ume an incorrect sit -
ting position in the vehicle while traveling
Q A .
130
A WARNING
Improperly worn safety belts increase the r isk
of ser ious personal injury and death whenever
a veh icle is being used .
- Always make sure that all vehicle occupants
are correctly restrained and stay in a correct
seating position whenever the vehicle is be­ing used.
- Always read and heed all WARNINGS and
other important information
Q page 126 .
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular sev erity, saf ety belts are tensioned au­
tomatically .
The safety belts are equipped with safety belt
pre tensioners. The system is act ivated by sensors
in front, side and rear-end collisions o f great se ­
verity. This tightens the belt and takes up belt
s lack
¢ .&. in Service and disposal of safety belt
pretensioner on page 131.
Taking up the slack
helps to reduce forward occupan t movement dur­
i ng a collision .
@ Note
Never let the belt remain over a rear seatback
that has been folded forward.
@ Tips
The safety belt pretensioner can only be acti­
vated once.
- In minor frontal and side collisions, in rear­
end co llisions and in accidents involving
very little impact force, the safety belt pre­
tensioner are not activated.
- When the safety belt pretensioners are acti­ vated, a fine dust is released . This is normal
and is not caused by a fire in the vehicle .
- The re levant safety requirements must be
observed when the vehicle or components
of the system are scrapped. An authorized
Audi dealer or qua lified workshop is familiar
with these regulations a nd will be pleased
to pass on the information to yo u. ...

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,
detail below . Because the front passenger seat
contains important parts of the Advanced Airbag
System, yo u must take care to prevent it from be­
ing damaged. Damage to the seat may prevent
the Advanced Airbag for the front passenger seat
from do ing its job in a crash .
The front Ad vanced Airb ag S ystem con sis ts
of the following :
-Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electronic control unit, with integrated
crash sensors for front and side impacts . The
control unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors . T he control un it also "de­
cides" whether the safety be lt pretensioners
sho uld be activated.
- An Advanced Airbag with gas generator and
control valve for the driver inside the steering
whee l hub.
- An Advanced Airbag with gas generator and
control valve inside the instrument panel for
t h e front passenger.
- A weig ht-sensing mat under the upholstery
padding of the front passenger seat cushion
that meas ures the tota l weight on the seat. The
information registered is sent cont in uous ly to
the e lectronic control unit to regulate dep loy­
ment of the front Advanced Airbag on the pas­
senger side.
- An airbag monitoring system and indicator
light in the instrument cluster
¢ page 142.
-A sensor in each front seat registers the dis­
tance between the respect ive seat and the
steering wheel or instrument panel. The infor­
mation registered is sent cont inuously to the
elect ron ic cont ro l unit to regulate deployment
of the front Advanced Airbags.
- T he
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the i nstrument
pane l¢
page 142, fig . 150 and tells you when
the front Advanced Ai rbag on the passenger
side has been turned
off .
-A sensor below the safety belt la tch fo r the
front seat passenge r to measure the tension on
Airbag syste m
the sa fe ty belt. The tens ion on the safety be lt
and the weight registe red by the weight -sens­
ing mat help the control unit "decide" whether
the front a irbag for the front passenger seat
should be turned
off or not¢ page 133, Child
restraints on the front seat- some important things to know.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transm its this informat ion to the elect ro nic
cont ro l unit.
A WARNING
D amage to the fron t passenger seat can pre­
vent the fron t air bag from working prope rly.
- Imp roper repai r or d isassembly of the front
passenger and driver sea t will prevent the
Advanced Airbag System from functioning properly .
- Repairs to the front passenge r seat must be
performed by qualified and p roperly trained
workshop personne l.
- Never remove the front passenger or driver seat from the vehicle .
- Never remove the upho lstery from the front
passenger seat.
- Never d isassemble o r remove par ts from the
seat or disconnect w ires from it.
- Never carry sh arp objects in yo ur po ckets or
p la ce them on t he seat.
If the weight-sens­
ing mat in the passenger seat is punctu red
it cannot work properly .
- Never carry things on yo ur lap or carry ob ­
jects on the passenger seat. S uch items can
increase the we ight registe red by the
weight-sensing mat and send the wrong in­
formation to the a irbag control unit.
- Never store items under the front passenger
seat . Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, p reventing them and the airbag sys­
tem from wo rking prope rly.
- Never p lace seat covers or rep lacement up­
holstery that have not been specifically ap­
p roved by Aud i on the front seats.
- Seat cove rs can prevent the Advanced Air­
bag Sys tem from recogniz ing child
1 39

Airbag system
restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
weight-sensing mat in the seat from accu­ rately registering the child restraint or per­
son on the seat and prevent the Advanced
Airbag System from functioning properly.
- If you must use a child restraint on the front
passenger seat and the child restraint man­
ufacturer's instructions require the use of a
towel, foam cushion or something else to
properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position
and have the airbag system inspected by
your authorized Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-point safety belts with pretensioners and load limiters and the adjustable head re­
straints to help reduce the risk of injury in a wide
range of accident and crash situations. Be sure to
read the important information about safety and
heed the WARNINGS in this chapter.
Deployment of the Advanced Airbag System and
the activation of the safety belt pretensioners de­
pend on the deceleration measured by the crash
sensors and registered by the electronic control
unit . Crash severity depends on speed and decel­
eration as well as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger side, regardless of safety belt
use, the airbag will be turned off if the weight on
the passenger seat is less than the amount pro­
grammed in the electronic control unit . The front
140
airbag on the passenger side will also be turned
off if one of the child safety seats that has been
certified under Federal Motor Vehicle Safety
Standard 208 has been recognized on the seat.
The
PASSENGER AIR BAG OFF light comes on
and stays on to tell you when the front Advanced
Airbag on the passenger side has been turned off
¢ page 133, Child restraints on the front seat ­
some important things to know .
.&_ WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­
ting sideways or out of position in any way,
your risk of injury is much higher.
- You
will also receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag
r::!;> page 132.
More important things to know about front
airbags
Fig. 149 Inflated front airbags
-,... N 0 :i: ;;i;
Safety belts are important to help keep front seat
occupants in the proper seated position so that
airbags can unfold properly and provide supple­
mental protection in a frontal collision.
The front airbags are designed to provide addi­
tiona l protection for the chest and face of the
driver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the oc-
cupant is properly seated as far as possible
from the airbag, .,._

Airb ag syst em
-Never place or attach accessories or other
objects (such as cupholders, telephone
brackets, large, heavy or bulky objects) on
the doors, over or near the area marked "AIRBAG" on the steer ing wheel, instru­
ment pane l, seat backrests or between
those areas and yourself. These obje cts
could cause injury in a crash, e specially
when the airbags inflate.
- Never recline the front passenger's seat to
transport objec ts . Items can also move into
t h e area of the side airbag or the front air ­
bag dur ing braking or in a sudden maneu·
ver. Objects near the airbags can become
projectiles and cause injury, part icularly
when the seat is reclined.
A WARNING
The f ine dust created when a irbags dep loy can
cause breathing problems for people with a
history of asthma or other breathing condi­
tions .
- To reduce the r isk of breathing problems,
those w ith asthma or other resp iratory con­
ditions should g et fr esh air r ight away by
get ting out of the vehicle o r opening w in ­
dows or door s.
- If you are in a col lision in w hich a irbags de­
p loy, wash your hand s and fa ce wi th mild
soap and water before eating.
- Be caref ul not to get the dus t into you r eyes,
or into any cuts or s cratches.
- If the residue should get into you r eyes,
flush them with water.
Monitoring the
Advanced Airbag System
Airbag monitoring indicator light
Two separa te indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced Airbag System (including the elec· tronic control unit, sensor circuits and system
w iri ng) is monitored cont inuous ly to make sure
that it is funct ion ing properly whenever the ign i·
142
tion is on . Each time you t urn on the ignit ion, the
fl airbag monitoring indicator light wi ll come on
for a few seconds (self diagnostics).
The sy stem must be inspected when th e II
indicator light :
-does not come on when the ignition is sw itched
on,
- does not go out a few seconds after you have
switched on t he ignit ion, or
- comes on wh ile driving.
If an airbag system malfunction is detected, t he
i ndic ator light will fi rst s tart flashing to catch the
dr ive r's at ten tion and the n stay on con tinuou sly
to serve as a constant reminder to have the sys ­
tem inspected immediately .
If a malfu nction occurs that turns the front air ­
bag on the passenge r side off, the
PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignit ion is on .
A WARNING
An airbag system that is not functioning prop­
erly cannot provide supp lemental protection
in a frontal crash.
- If the airbag ind icator light
c> page 19
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer .
It is possible that
the airbag will inflate when it is not sup·
posed to, or will not inflate when it should.
PASSENGER AIR BAG OFF light
Fig. 15 0 Section fro m t he in strument panel: PASSENGER
AIR BAG O FF ligh t
The PASSENGER AIR BAG OFF light is loca ted in
the center of the inst rument panel
c> fig . 150. ..,.

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,
The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been t urned
off
by the electron ic control unit. Each time you turn
on the ignition, the
P A SSEN GER AIR BAG OFF
light will flash for a few seconds and:
- wi ll stay on if the front passenger seat is not
occupied,
- will stay on if there is a small child or child re­
straint on the front passenger seat,
- wi ll go out if the front passenger seat is occ u­
pied by an adult as registered by the weight ­
sensing mat .
The
PASSENGER AIR BAG OFF light mu st co me
on and st a y on
if the ignition is on and
- a ca r bed has been insta lled on the front seat ,
o r
- a rearward-fac ing c hild restraint has been in­
stalled on the front passenger seat, or
- a fo rward-facing child restraint has been insta l­
led on the front passenger seat, or
- the weight registered on the front passenger
seat is equal to o r less than the comb ined
weight of a typica l 1 yea r-old restrained in one
of the rear -facing or forwa rd-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your vehicle was certified .
I f the front passenger seat is not occupied, the
fro nt airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-facing chi ld restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
¢ page 133, Child re ­
straints on the front seat -some important
things to know
and ¢ page 152, Child safety.
If the PA SSENGER AI R BAG OFF light comes on
when one of the condit ions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on cont inuous ly whenever the ignition is
on.
If the PA SSENGER AIR BAG OFF light does
not appea r and not stay on a ll the time , stop as
soon as it is safe to do so and
Airbag syste m
- reactivate the system by t urning the ignition off
and then turning it on again;
- remove and reins tall the child restra int . Make
sure that the child restraint is properly installed
and that the safety belt for the front passenger
seat has been correct ly routed around the chi ld
restraint as described in the c hild restraint
manufacturer's instruct ions;
- make sure that the convertible locking retractor on the safety belt for the front passenger seat has been activated and that the safety belt has
been pulled tight . T he belt must not be loose or
have loops of s lack so that the sensor below the
safety belt lat ch on the seat can do its job
~ page 161.
-make sure that things that may increase the
weight of the ch ild and c hild safety seat a re not
be ing transpo rted on the fro nt passenge r seat;
- make sure t hat the safety belt tension sensor is
not b locked. Shake the safety belt lat ch on the
front passenge r seat back and forth;
- I f a strap or tet he r is be ing used to tie the child
safety sea t to the front passenge r seat, make
sure that it is not so t ight that it causes the
weight -sensing mat to measure more weight
than is actually on the seat .
If the PASSENGER AIR BAG OFF light still d oes
not come on
and does not stay on continuously
(when the ignition is switched on),
- t ake the child rest raint
off the front passenge r
seat and instal l it properly at one of the rea r
seat pos itions. Have the a irbag system inspec t­
ed by your authorized Audi dealer immediately .
- move the child to a rear seat posi tion and make
sure that the child is properly rest ra ined in a
child restraint that is appropr iate for its size
and age .
T he
PASSENGER AIR BAG OFF light sho uld NO T
come on when the ignit ion is on and an adult is
s itting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
li ght comes on and stays on or flashes for about
5 seconds while dr iv ing, under these circumstan­
ces, make sure that :
- the adult on t he front passenger seat is proper-
ly seated on the center of the seat cushion w ith ..,_
143

Airb ag syst em
@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers m ight be classified as Perchlorate Mater ia l
-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including a irbag modules safe­
ty belts with pretensioners are scrapped, all
app licab le laws and regu lations must be ob­
served. Your authori zed A udi dealer is fami lia r
w ith these requirements and we recommend
that you have yo ur dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle 's suspension system can
change the way that the Advanced A irbag System
pe rforms in a crash. For example, using t ire-rim
comb inat ions not approved by Audi, lowering the
ve hicl e, chang ing the stiffness of the suspension,
including the spr ings, suspension s truts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
electronic control un it. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in c rashes in which it wo uld not deploy if
the changes had not been made. Other ki nds of
changes may reduce the force levels measured by
the sensors and preve nt the airbag from deploy­
i n g when i t should .
A WARNING
Changing the vehicle's s uspension including
use of unapproved ti re -rim comb inations can
change Advanced A irbag pe rformance and in ­
crease t he risk of serious persona l injury in a
crash.
- Never install suspension components that do not have the same performance charac­
teristics as the components or iginally insta l­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
146
A WARNING
Items stored between t he safety be lt b uckle
and the center console can cause the sensors i n the buckle to send the wrong informat ion
to the electronic control module a nd prevent
the Adva nced Airbag System from wor king
properly.
- Always ma ke sure that nothing can interfere
w it h the safe ty belt bu ckles an d that they
are no t obstr ucted.
Knee airbags
Description of knee airbags
Applies to vehicles: with knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
F ig. 151 Driver"s kn ee airbag
The driver knee airbag is i n the instrument panel
u nderneath the steer ing whee l~
fig. 151, the
k nee a irbag for the passenger is at abou t the
same height in the instrument pane l unde rneath
the g love compartment.
The knee air bag offers addi tional protec tion to
t h e d river 's and passenge r's knees and uppe r and
l ower thigh areas and supplements the protec ­
tion provided by the safety belts.
If t he front airbags dep loy, the knee a irbags also
deploy in fro ntal c ollisions when the dep loyment
th reshold stored in the control un it is me t
~ page 140, More important things to know
about front airbags.
In add it ion to their normal sa fe ty f unct io n, safe-
ty be lts he lp keep the driver or front passenger in ..,.
