2015 Alfa Romeo Giulietta window

.
REAR LIGHTS
❒Bulb types ..........................................176
❒Bulb replacement ................................178
LUGGAGE COMPARTMENT
❒Opening/closing .................................. 56
REAR WINDOW WIPER
❒Blade replacement ..............................214.
2A0K0621
6
GRAPHICAL INDEX

AIR VENTS
❒Climate control system ....................... 22
LEFT STALK
❒External lights
INSTRUMENT PANEL
❒Control panel and on-board
instruments ......................................... 94
❒Warning lights ..................................... 99
RIGHT STALK
❒Window cleaning ................................ 39
UConnect Radio/UConnect Radio
Nav (for versions/markets, where
provided)
PASSENGER SIDE AIRBAG
❒Operation ...........................................140
GLOVE COMPARTMENT
❒Opening .............................................. 46
HEATER/CLIMATE CONTROL
SYSTEM
❒Climate comfort .................................. 23
❒Manual climate control system ............ 24
❒Automatic dual-zone climate control
system................................................ 28
CONTROL BUTTONS
❒Door locking ....................................... 45
❒Fog lights ............................................ 44
❒Rear fog lights .................................... 44
❒iTPMS system (for versions/markets
whereprovided).................................. 72
STEERING WHEEL
❒Adjustment ......................................... 19
❒Driver side front airbag ........................140
126
7111089
3A0K0661
7
CRUISE CONTROL LEVER (for
versions/markets, where provided)
❒Operation ........................................... 40

GETTING TO KNOW YOUR CAR
In-depth knowledge of your new car
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.SYMBOLS ...................................... 10
ALFA ROMEO CODE SYSTEM ....... 10
THE KEYS....................................... 11
ALARM ........................................... 14
IGNITION DEVICE ........................... 15
SEATS ............................................ 17
HEAD RESTRAINTS ........................ 18
STEERING WHEEL ......................... 19
REAR VIEW MIRRORS .................... 20
CLIMATE CONTROL ....................... 22
CLIMATIC COMFORT ..................... 23
MANUAL CLIMATE CONTROL........ 24
AUTOMATIC DUAL ZONE
CLIMATE CONTROL ....................... 28
EXTERNAL LIGHTS......................... 35
WINDOW CLEANING ...................... 38
CRUISE CONTROL ......................... 40
ROOF LIGHTS ................................ 42
CONTROLS .................................... 44
INTERIOR FITTINGS ....................... 46
ELECTRIC SUN ROOF .................... 49
DOORS ........................................... 51
ELECTRIC WINDOWS .................... 53
LUGGAGE COMPARTMENT ........... 56
BONNET ......................................... 59
ROOF RACK/SKI RACK .................. 60
HEADLIGHTS.................................. 61ESC SYSTEM ................................. 62
“ALFA DNA” SYSTEM (CAR
DYNAMIC CONTROL SYSTEM) ...... 66
START&STOP SYSTEM .................. 69
ITPMS (INDIRECT TYRE
PRESSURE MONITORING
SYSTEM) ........................................ 72
EOBD SYSTEM (EUROPEAN ON
BOARD DIAGNOSIS) ...................... 74
DUAL PINION ACTIVE STEERING... 74
WIRING FOR RADIO SYSTEM ........ 75
ACCESSORIES PURCHASED BY
THE OWNER .................................. 76
PARKING SENSORS....................... 77
REFUELLING THE CAR .................. 80
PROTECTING THE
ENVIRONMENT .............................. 81
9

SWITCHING OFF THE
ALARM
Press the
button. The following
operations are performed (excluding
some markets):
❒the direction indicators flash briefly
twice;
❒there are two brief acoustic signals;
❒unlocking of the doors.
IMPORTANT The alarm does not switch
off when the central opening is
activated using the metal insert in the
key.
VOLUMETRIC/ANTI-LIFT
PROTECTION
To guarantee the correct operation of
the protection, close the side windows
and any sun roof completely (for
versions/markets, where provided).
To disable the function, press button A
fig. 10 before activating the alarm.
When the function is disabled, this is
indicated by the LED on the button
flashing for several seconds.
Any disabling of the volumetric/anti-lift
protection must be repeated each
time the instrument panel is switched
off.DISABLING THE ALARM
To completely deactivate the alarm (e.g.
during a lengthy period of car
inactivity), close the doors by turning
the metal insert of the key with remote
control in the door lock.
IMPORTANT If the batteries of the key
with the remote control run out or
the system fails, the alarm can
be switched off by placing the key in
the ignition switch and then turning it to
MAR-ON.
IGNITION DEVICE
The key can be turned to three different
positions fig. 11:
❒STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car
radio, central door locking system,
alarm, etc.) are enabled;
❒MAR: driving position. All electrical
devices are enabled;
❒AVV: engine start-up.
The ignition switch is fitted with a safety
system that requires the ignition key
to be turned back to STOP if the engine
does not start, before the starting
operation can be repeated.
2) 3)
10A0K0548
11A0K0362
15

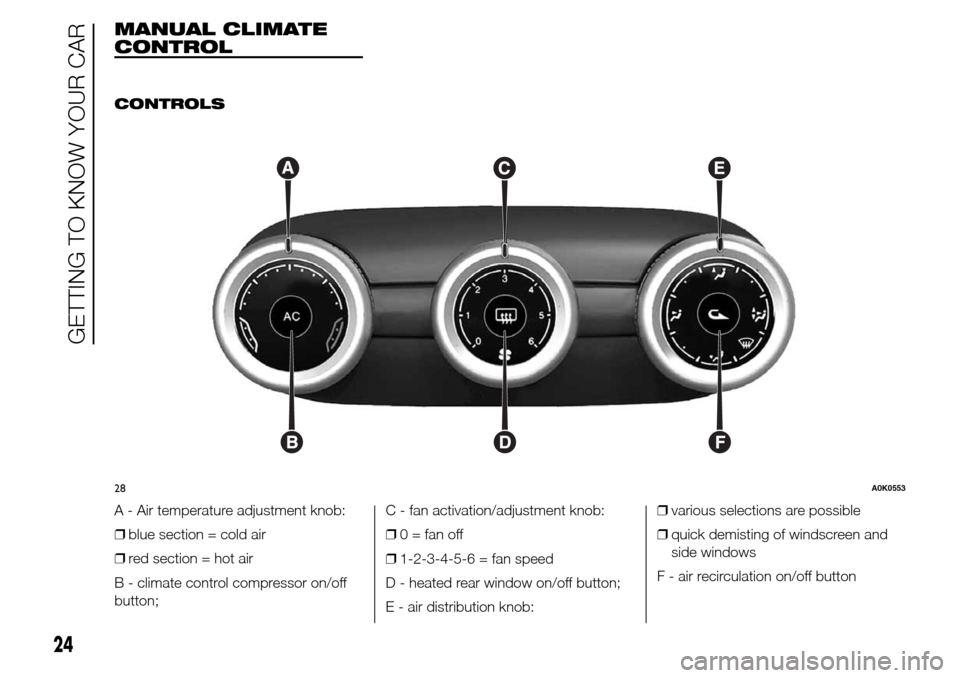

MANUAL CLIMATE
CONTROL
.
CONTROLS
A - Air temperature adjustment knob:
❒blue section = cold air
❒red section = hot air
B - climate control compressor on/off
button;C - fan activation/adjustment knob:
❒0 = fan off
❒1-2-3-4-5-6 = fan speed
D - heated rear window on/off button;
E - air distribution knob:❒various selections are possible
❒quick demisting of windscreen and
side windows
F - air recirculation on/off button
28A0K0553
24
GETTING TO KNOW YOUR CAR

CLIMATE CONTROL
(cooling)
To cool, proceed as follows:
❒turn knob A to the blue section;
❒press button F to turn internal air
recirculation on (circular LED around
the button on);
❒turn knob E to
;
❒press button B to turn the climate
control system on and turn knob C to
at least 1 (1st speed); for faster
action, turn knob C to 6 (maximum
fan speed).
Adjusting cooling
Proceed as follows:
❒turn knob A to the right to increase
the temperature;
❒press button F to turn internal air
recirculation off (circular LED around
the button off);
❒turn knob C to reduce the fan speed.
PASSENGER
COMPARTMENT HEATING
For rapid heating, proceed as follows:
❒turn knob A to the red section;
❒press button F to turn on the internal
air recirculation system;❒turn knob E to
;
❒turn knob C to 6 (maximum fan
speed).
Then use the controls to maintain the
desired comfort conditions and press
button F to turn internal air recirculation
off (circular LED around the button off)
and prevent misting.
IMPORTANT When the engine is cold, it
takes a few minutes to obtain fast
heating.
AUTOMATIC
DEMISTING/DEFROSTING
(MAX-DEF function)
This function activates automatic
demisting/defrosting of: front windows
(windscreen and side windows), heated
nozzles, heated exterior rear view
mirrors.
To activate the function, turn knob E to
the “Defrosting” symbol identified by
the
symbol.
The manual climate control system will
automatically set itself to the following
configuration:
❒the demisting symbol
will turn
from red to orange (to indicate that
the function has been activated);❒the heated rear window (and all
defrosting devices in the car) will be
turned on. The circular LED around
the
button will light up to indicate
that the function has been activated;
❒the air flow will go to maximum
speed (6th);
❒air circulation will be opened, if it was
closed (the circular LED around the
corresponding button will be off);
❒air mixing will go to “maximum heat”;
❒the additional electric heater (for
versions/markets, where provided)
will be turned on;
❒the compressor will be activated (the
circular LED will switch on to indicate
that the AC function is on).
Window demisting
The climate control system is very
useful in preventing the windows from
misting up in the event of high levels
of humidity.
In the event of considerable outside
moisture and/or rain and/or
considerable differences in temperature
inside and outside the passenger
compartment, proceed as follows to
demist the windows:
❒turn knob A to the red section;
25

❒press button F to turn internal air
recirculation off (circular LED around
the button off);
❒turn knob E to
with the possibility
of moving it to position
(B) if
demisting does not occur;
❒turn knob C to the 2nd speed.
HEATED REAR WINDOW
DEMISTING/DEFROSTING
Press button D (
) to activate/
deactivate the function. The function is
automatically deactivated after 20
minutes.
For versions/markets where provided,
press the
button to activate
demisting/defrosting of exterior rear
view mirrors and heated nozzles (for
versions/markets, where provided).
IMPORTANT Do not affix stickers to the
inside of the heated rear window over
the heating filaments, to avoid damage
that might cause them to stop working
properly.INTERNAL AIR
RECIRCULATION
Press button F (
) so that the LED
around the button turns on. It is
advisable to switch internal air
recirculation on while standing in traffic
or in tunnels to prevent the introduction
of polluted air.
Do not use the function for a long time,
particularly if there are many
passengers on board, to prevent the
windows from misting up.
IMPORTANT Internal air recirculation
makes it possible to reach the required
heating or cooling conditions more
quickly depending on the mode
selected. Do not use the air
recirculation function on rainy/cold days
as it would considerably increase the
possibility of the windows misting.
SETTING THE AIR
DISTRIBUTION
Turn knob E to manually select one of
the four possible air distribution settings
in the passenger compartment:
Air flow to the windscreen and front
side window diffusers to demist/
defrost them.
Air flow to the front/rear footwell
diffusers. This air distribution allows
the passenger compartment to
be warmed up quickly.
Air flow distribution between front
and rear diffusers, centre/side
dashboard diffusers, rear diffuser
and windscreen and front side
window demisting/defrosting
diffusers.
Air flow distribution to centre/side
dashboard diffusers (passenger's
body).
There are also another 4 positions (see
diagram below fig. 29):
29A0K0554
26
GETTING TO KNOW YOUR CAR

Position A: Air flow distribution
between centre/side dashboard
vents, rear diffuser and windscreen
and front side window demisting/
defrosting diffusers. This
distribution setting ventilates the
passenger compartment well and
prevents the windows from misting
up.
Position B: Air flow distributed
between footwell diffusers and
windscreen and front side window
defrosting/demisting diffusers.
This distribution setting allows the
passenger compartment to warm
up efficiently and prevents the
windows from misting up.
Position C: Air flow distribution
between footwell diffusers (hotter
air) and centre/side dashboard
diffusers and rear diffuser (cooler
air).
Position D: Automatic
demisting/defrosting activation
(see description in previous
pages).START&STOP
Manual climate control
If the Start&Stop function is activated
(engine off when the car speed is
0 km/h), the system keeps the air flow
selected by the user.
In these conditions, the compartment
cooling and heating cannot be
guaranteed, as the compressor stops
with the engine coolant pump.
The Start&Stop function can be
deactivated to enhance the operation of
the climate control system by pressing
the dedicated button on the
dashboard.
SERVICING
MAINTENANCE
In winter, the climate control system
must be turned on at least once a
month for about 10 minutes.
Have the system inspected at an Alfa
Romeo Dealership before the summer.
27
