Opening
Press flap A fig. 94 to release it and
access fuel tank cap B. Then press cap
B and turn it anticlockwise.
61)
The cap is provided with a loss
prevention device C which attaches it
to the flap and prevents it from being
lost. Attach the cap to device D during
refuelling.
Emergency flap opening
In case of emergency, pull the cord A
fig. 95 on the right-hand side of the
boot to open the fuel flap.
Pulling the cord will unlock the flap: it
will then be necessary to press on
the flap to open it.Closure
Release cap B from device D and insert
it in its housing. Then tighten the cap
clockwise until one or more clicks
are heard. Finally, close flap A checking
that it is correctly locked.
The sealing may cause a slight pressure
increase in the tank. A little breathing
off, while slackening the cap is
absolutely normal.
WARNING
61) Keep naked flames or lit
cigarettes away from the fuel tank
filler: fire risk. Avoid bringing
your face close to the filler, in
order not to breathe in harmful
vapours.
PROTECTING THE
ENVIRONMENT
The following devices are used for
reducing petrol fuel engine emissions:
catalytic converter, oxygen sensors and
evaporation control system
The following devices are used for
reducing diesel fuel engine emissions:
oxidising catalytic converter, exhaust
gas recirculation system (EGR) and
particulate filter (DPF).
62)
DIESEL PARTICULATE
FILTER (DPF)
(Diesel Particulate Filter)
(for versions/markets, where provided)
The Diesel Particulate Filter is a
mechanical filter, integral to the exhaust
system, that physically traps carbon
particles present in the exhaust gases
of diesel engines.
The diesel particulate filter is needed to
eliminate almost all carbon particle
emissions in compliance with
current/future regulations and
standards.94A0K0598
95A0K0599
81

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.DISPLAY ......................................... 84
MENU ITEMS .................................. 87
CONTROL PANEL AND
INSTRUMENTS ............................... 94
TRIP COMPUTER ........................... 96
WARNING LIGHTS AND
MESSAGES ................................... 99
- LOW BRAKE FLUID/HANDBRAKE
ENGAGED .......................................... 99
- EBD FAILURE .................................. 100
- AIRBAG FAILURE ............................. 100
- SEAT BELTS NOT FASTENED .......... 100
- ALTERNATOR FAILURE ................... 101
- LOW ENGINE OIL PRESSURE ......... 102
-DEGRADED ENGINE OIL (for
versions/markets, where provided) ..... 103
- ENGINE COOLANT TEMPERATURE
TOO HIGH .......................................... 105
- ALFA TCT FAILURE .......................... 106
-INCOMPLETE DOOR LOCKING ........ 106
-SPEED LIMIT EXCEEDED ................. 106
- DUAL PINION ACTIVE STEERING
FAILURE ............................................. 107
- ALFA ROMEO CODE SYSTEM
FAILURE/ALARM FAILURE ................. 107
- FUEL RESERVE/LIMITED RANGE .... 108
- GENERAL FAILURE ......................... 109
- GENERAL FAILURE ......................... 110
-REAR FOG LIGHTS ........................... 111
- ABS FAILURE ................................... 112
-BRAKE PAD WEAR ........................... 112
- PASSENGER SIDE AIRBAG
DEACTIVATED .................................... 112
- INJECTION/EOBD SYSTEM
FAILURE ............................................. 113
- GLOW PLUG HEATING/GLOW
PLUG HEATING FAILURE (diesel
versions) ............................................. 114-WATER IN DIESEL FILTER (diesel
versions) ............................................. 114
- DPF CLEANING (particulate trap) in
progress (diesel versions with DPF
only) ................................................... 116
- iTPMS SYSTEM ............................... 117
- ELECTRONIC STABILITY CONTROL
(ESC) SYSTEM ................................... 119
- ELECTRONIC STABILITY CONTROL
(ESC) SYSTEM ................................... 120
- CRUISE CONTROL (for
versions/markets, where provided) ..... 121
- SIDE LIGHTS ................................... 121
- FOLLOW ME HOME ........................ 121
- DIPPED BEAM HEADLIGHTS .......... 121
- FOG LIGHTS .................................... 121
- LEFT-HAND DIRECTION
- RIGHT-HAND DIRECTION
INDICATOR ........................................ 122
- MAIN BEAM HEADLIGHTS .............. 122
-FUEL CUT-OFF SYSTEM ................... 123
- POSSIBLE ICE ON ROAD ................ 123
- BRAKE LIGHT FAILURE ................... 123
- DUSK SENSOR FAILURE ................. 123
- RAIN SENSOR FAILURE .................. 124
- PARKING SENSOR FAILURE ........... 124
-START&STOP SYSTEM
ACTIVATION/DEACTIVATION (for
versions/markets, where provided) ..... 125
-START&STOP FAILURE .................... 125
- DISPLAY OF SELECTED DRIVING
MODE (“Alfa DNA” system) ................. 126
83
INDICATOR.......................................... 122

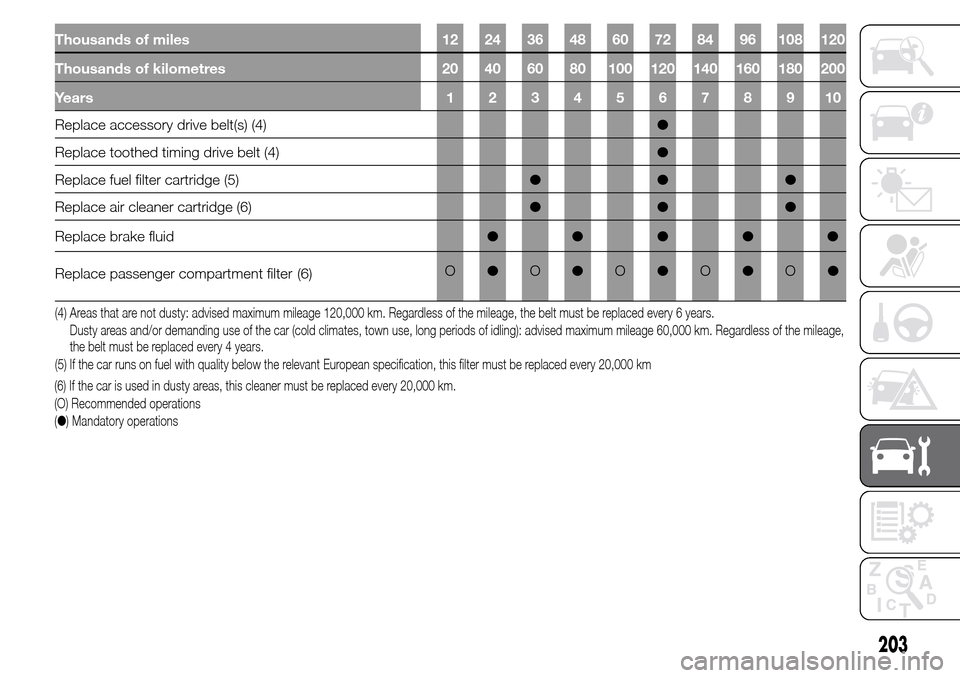

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Replace accessory drive belt(s) (4)●
Replace toothed timing drive belt (4)●
Replace fuel filter cartridge (5)●●●
Replace air cleaner cartridge (6)●●●
Replace brake fluid●●●●●
Replace passenger compartment filter(6)O●O●O●O●O●
(4) Areas that are not dusty: advised maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the car (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the mileage,
the belt must be replaced every 4 years.
(5) If the car runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km
203
(6) If the car is used in dusty areas, this cleaner must be replaced every 20,000 km.
(O) Recommended operations
(●) Mandatory operations

PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
❒engine coolant, brake fluid and
windscreen washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system
(headlamps, direction indicators,
hazard warning lights, etc.);
❒operation of window washer/wiper
system and positioning/wear of
windscreen/rear window wiper
blades
Check and top up, if required, the
engine oil level every 3,000 km.
HEAVY-DUTY USE OF
THE CAR
If the car is used mainly under one of
the following conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
❒engine often idling or driving long
distances at low speeds or long
periods of idleness;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
❒check front disc brake pad
conditions and wear;
❒check cleanliness of bonnet and boot
locks, cleanliness and lubrication of
linkage;
❒visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system -
brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery
fluid level (electrolyte);
❒visually inspect condition of the
accessory drive belts;❒check and, if necessary, change
engine oil and replace oil filter;
❒check and, if necessary, replace
pollen filter;
❒check and, if necessary, replace air
cleaner.
204
SERVICING AND MAINTENANCE

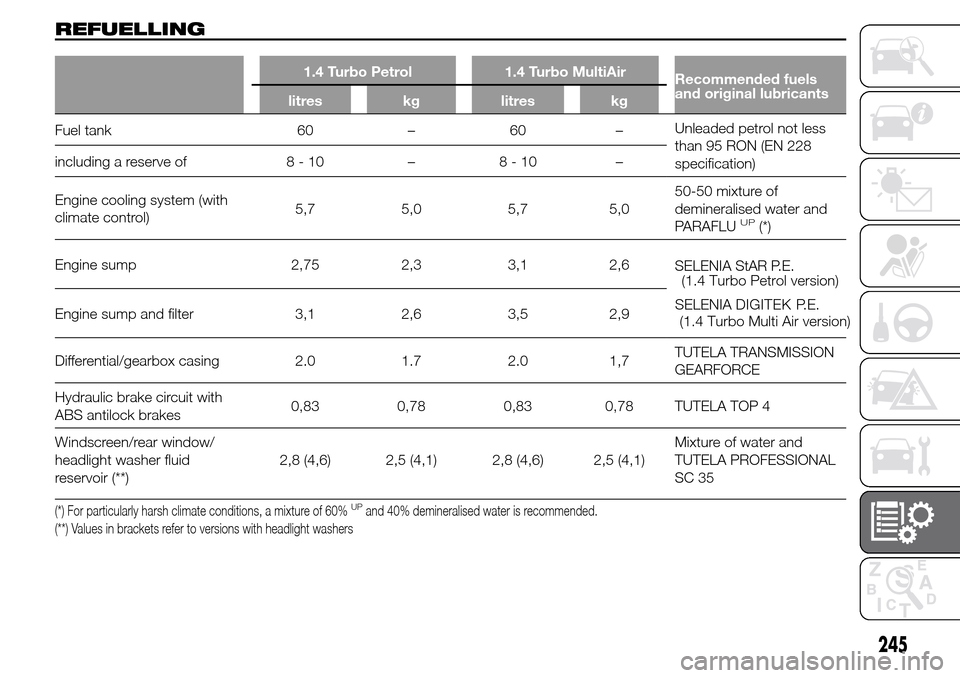

REFUELLING
1.4 Turbo Petrol 1.4 Turbo MultiAir
Recommended fuels
and original lubricants
litres kg litres kg
Fuel tank 60 – 60 –Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)5,7 5,0 5,7 5,050-50 mixture of
demineralised water and
PARAFLU
UP(*)
Engine sump 2,75 2,3 3,1 2,6
SELENIAStAR P.E.
Engine sump and filter 3,1 2,6 3,5 2,9
Differential/gearbox casing 2.0 1.7 2.0 1,7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir (**)2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and
TUTELA PROFESSIONAL
SC 35
(*) For particularly harsh climate conditions, a mixture of 60%UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
245
SELENIADIGITEK P.E.
(1.4 Turbo Petrol version)
(1.4 Turbo l version)Mu ti Air

1750 Turbo Petrol 235 HP (*)
Prescribed fuels and original
lubricants
litres kg
Fuel tank 60 –
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of 8 - 10 –
Engine cooling system (with climate
control)6,4 5,7Mixture of 50% demineralised water
and 50% PARAFLU
UP(***)
Engine sump 5,0 4,25
SELENIA SPORT POWER
Engine sump and filter 5,1 4,35
Automatic transmission casing 2,0 1,7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS (Anti-
lock braking system)0,83 0,78 TUTELA TOP 4
Windscreen/rear window/headlight
washer fluid reservoir (**)2,8 (4,6) 2,5 (4,1)Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) For versions/markets, where provided
(***) For particularly harsh climate conditions, a mixture of 60%
UPand 40% demineralised water is recommended. (**) Values in brackets refer to versions with headlight washers
246
TECHNICAL SPECIFICATIONS

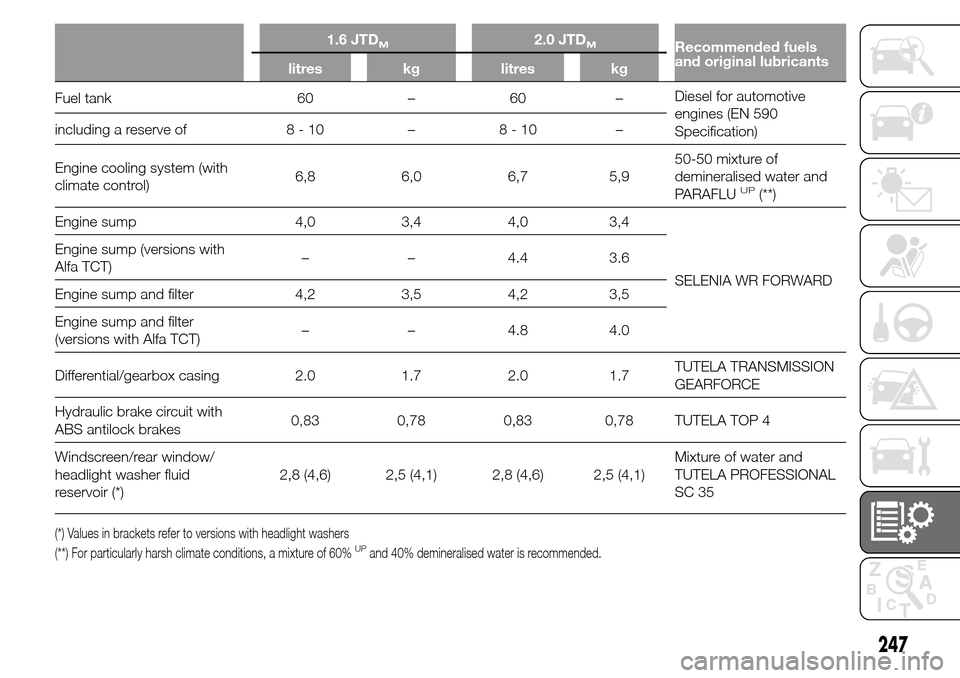

1.6 JTDM2.0 JTDMRecommended fuels
and original lubricants
litres kg litres kg
Fuel tank 60 – 60 –Diesel for automotive
engines (EN 590
Specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)6,8 6,0 6,7 5,950-50 mixture of
demineralised water and
PARAFLU
UP(**)
Engine sump 4,0 3,4 4,0 3,4
SELENIA WR FORWARD Engine sump (versions with
Alfa TCT)– – 4.4 3.6
Engine sump and filter 4,2 3,5 4,2 3,5
Engine sump and filter
(versions with Alfa TCT)– – 4.8 4.0
Differential/gearbox casing 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir (*)2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and
TUTELA PROFESSIONAL
SC 35
(**) For particularly harsh climate conditions, a mixture of 60%UPand 40% demineralised water is recommended. (*) Values in brackets refer to versions with headlight washers
247

Luggage compartment................... 56
– Bag hooks................................. 58
– Closing the luggage
compartment ............................ 56
– Emergency luggage
compartment opening ............... 56
– Extending the luggage
compartment ............................ 57
– Luggage compartment
initialisation ................................ 56
– Luggage retaining net ................ 58
– Opening the luggage
compartment ............................ 56
– Securing your load .................... 58
Main beam headlights .................. 37
– bulb replacement ...................... 177
Maintenance and care
– heavy-duty use of the car .......... 204
– periodic checks ......................... 204
Manual climate control ................... 24
Menu options ................................. 87
Money holder ................................. 48
MSR system .................................. 64
Multifunction display....................... 84
Number plate lights
– bulb replacement ...................... 179
Parking ......................................... 149
– Handbrake ................................ 149
Parking lights ................................. 36
Parking sensors ............................. 77Performance .................................. 241
Pollen filter ..................................... 210
Power sockets ............................... 47
Pre-Fill system (RAB - Ready
Alert Brake) .................................. 64
Preparation for "Isofix" child seat .... 137
Pretensioners ................................. 131
– Load limiters.............................. 131
Protecting the environment ............ 81
Radio transmitters and mobile
phones ........................................ 76
Rain sensor .................................... 39
Raising the car ............................... 192
Rear armrest .................................. 47
Rear fog lights ................................ 44
Rear fog lights/reversing lights........ 178
Rear roof light
– bulb replacement ...................... 180
Rear view mirrors ........................... 20
– Door mirrors .............................. 21
– Internal mirror ............................ 20
Rear window washer jets ............... 215
Rear window washer
– rear window washer fluid level ... 209
Rear window washer/wiper ............ 40
Rear window wiper
– blade replacement..................... 214
Reconfigurable multifunction
display ......................................... 84
Refuelling ....................................... 245Refuelling the car ........................... 80
Rev counter ................................... 96
Rim Protector (tyres)....................... 237
Roof lights...................................... 42
– Courtesy lights .......................... 43
– Front roof light ........................... 42
– Glove compartment light ........... 43
– Luggage compartment roof
light ........................................... 43
– Rear roof light............................ 43
Roof rack/ski rack .......................... 60
Safe Lock (device)......................... 13
Saving fuel ..................................... 158
SBR system (Seat Belt
Reminder) .................................... 129
Scheduled servicing ....................... 196
Scheduled Servicing Plan ............... 197
Seat belts....................................... 128
– Use ........................................... 128
Seats ............................................. 16
– Front seats ................................ 16
Setup menu ................................... 86
Side airbags (Side Bags -
Window Bags).............................. 144
Side bags (front side airbags) ......... 144
Side lights/brake lights ................... 178
Side lights/daytime running lights
(DRL)
– bulb replacement ...................... 177
Side lights/dipped beam
headlights .................................... 36
