Warning lights on
panelWhat it means What to do

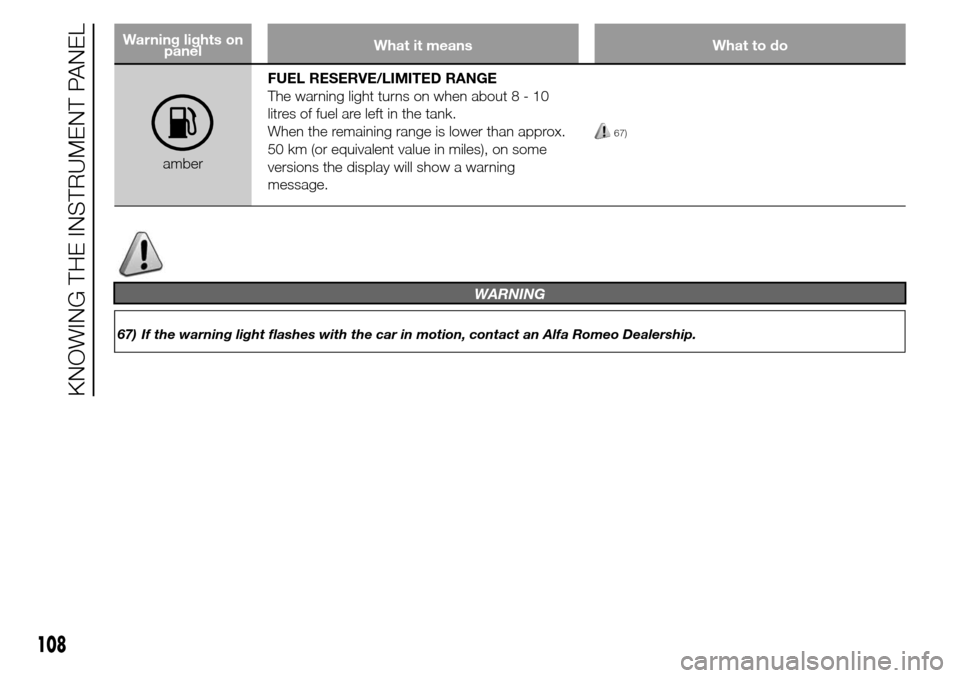

amberFUEL RESERVE/LIMITED RANGE
The warning light turns on when about8-10
litres of fuel are left in the tank.
When the remaining range is lower than approx.
50 km (or equivalent value in miles), on some
versions the display will show a warning
message.
67)
108
KNOWING THE INSTRUMENT PANEL
WARNING
67) If the warning light flashes with the car in motion, contact an Alfa Romeo Dealership.

Warning lights on
panelWhat it means What to do
amberGENERAL FAILURE
(for versions/markets, where provided)
The warning light switches on in the
circumstances indicated below.In these cases contact an Alfa Romeo Dealership
to have the fault fixed as soon as possible.
Fuel cut-off
The warning light switches on when the fuel
cut-off system intervenes. The display shows the
dedicated message.
Start&Stop system failure
(for versions/markets, where provided)
The warning light comes on when a fault is
detected in the Start&Stop system.
Rain sensor failure
(for versions/markets, where provided)
The warning light switches on when a rain sensor
fault is detected.
Parking sensor failure
(for versions/markets, where provided)
See the following description for “Parking sensor
failure”.
109

Warning lights on
panelWhat it means What to do
amberGENERAL FAILURE
(for versions/markets, where provided)
The warning light switches on in the
circumstances indicated below.In these cases contact an Alfa Romeo Dealership
to have the fault fixed as soon as possible.
Dusk sensor failure
(for versions/markets, where provided)
This warning light comes on when a dusk sensor
fault is detected.
Engine oil pressure sensor failure
The warning light comes on when the engine oil
pressure sensor is faulty. The display shows the
dedicated message.
AFS adaptive lights failure
(for versions/markets, where provided)
The warning light switches on when a fault is
detected with the AFS adaptive lights (see the
“AFS adaptive lights” paragraph in the "Knowing
your vehicle" section). The display shows the
dedicated message.
Anti-pinch system failure
The warning light comes on when a fault is
detected in the electric window anti-pinch
system. The display shows the dedicated
message.
110
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

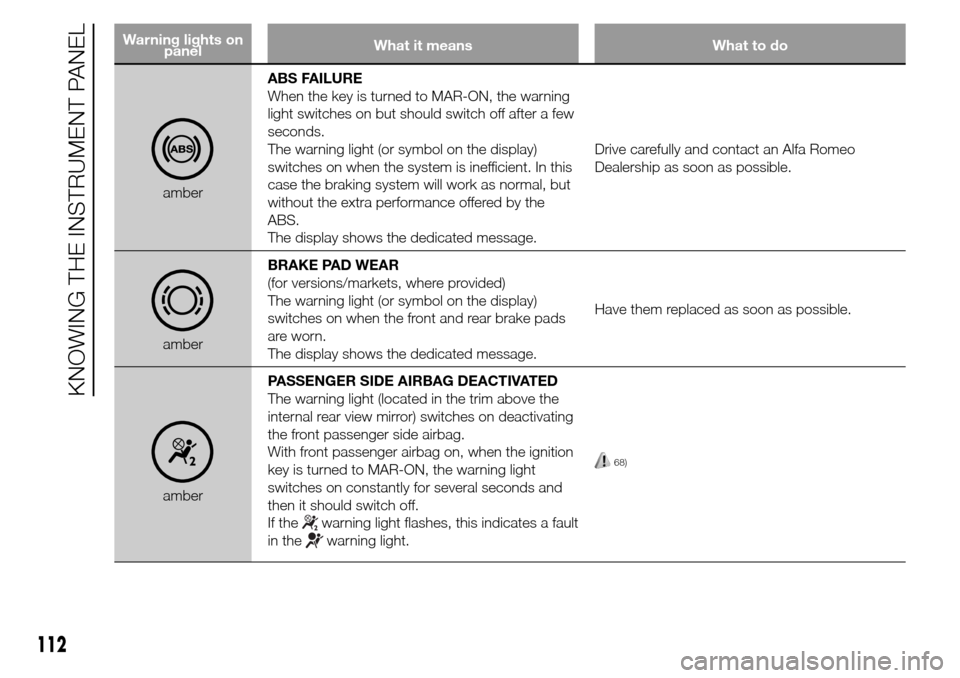

amberABS FAILURE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light (or symbol on the display)
switches on when the system is inefficient. In this
case the braking system will work as normal, but
without the extra performance offered by the
ABS.
The display shows the dedicated message.Drive carefully and contact an Alfa Romeo
Dealership as soon as possible.
amberBRAKE PAD WEAR
(for versions/markets, where provided)
The warning light (or symbol on the display)
switches on when the front and rear brake pads
are worn.
The display shows the dedicated message.Have them replaced as soon as possible.
amberPASSENGER SIDE AIRBAG DEACTIVATED
The warning light (located in the trim above the
internal rear view mirror) switches on deactivating
the front passenger side airbag.
With front passenger airbag on, when the ignition
key is turned to MAR-ON, the warning light
switches on constantly for several seconds and
then it should switch off.
If the
warning light flashes, this indicates a fault
in the
warning light.
68)
112
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR-ON the warning light switches on, but it should
switch off as soon as the engine is started. The operation
of
warning light may be checked by the traffic police
using specific devices. Comply with the laws and
regulations of the country where you are driving.
13)
If the warning light remains on or switches on whilst
driving, it means that the injection system is not working
properly. The warning light on constantly signals a
malfunction in the supply/ignition system which could
cause high exhaust emissions, a possible loss of
performance, poor driveability and high consumption.
On some versions, the display shows the dedicated
message. The warning light goes out after the fault
disappears: the indication is stored in the system.Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the
engine. Prolonged use of the car with the
warning light on constantly may cause
damage.
Contact an Alfa Romeo Dealership as
soon as possible.
Petrol engines only
If the warning light flashes, it means that the catalytic
converter may be damaged.In this case, release the accelerator pedal
to lower the speed of the engine until the
warning light stops flashing. Continue the
journey at moderate speed, trying to avoid
driving conditions that may cause further
flashing and contact an Alfa Romeo
Dealership as soon as possible.
113

Warning lights on
panelWhat it means What to do
amberGLOW PLUG HEATING/GLOW PLUG
HEATING FAILURE (diesel versions)
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as
the heater plugs have reached a preset
temperature. The engine can be started as soon
as the warning light switches off.
IMPORTANT In mild or high temperature
conditions, the warning light comes on for a very
short time only.
Glow plug preheating failure
The warning light will flash (a message will appear
on the display, on some versions) to indicate a
fault in the glow plugs preheating system.Contact an Alfa Romeo Dealership as soon as
possible.
amberWATER IN DIESEL FILTER (diesel versions)
The warning light remains on constantly when
driving (together with a message in the display),
to indicate the presence of water in the diesel
filter.
14)
WARNING
68) Failure of thewarning light is indicated by thewarning light switching on. In addition, the airbag system
automatically disables the passenger side airbag. Before proceeding, contact an Alfa Romeo Dealership to have the
system checked immediately.
114
KNOWING THE INSTRUMENT PANEL

IMPORTANT
13) If, turning the ignition key to MAR-ON, thewarning light does not turn on or if it turns on steadily or flashing
when travelling (on certain versions together with the message on the display), contact an Alfa Romeo Dealership
as soon as possible.
IMPORTANT
14) The presence of water in the fuel supply system circuit may cause severe damage to the injection system and
irregular engine operation. If the
warning light comes on in the instrument panel (together with a message in the
display) contact an Alfa Romeo Dealership as soon as possible to bleed the system. If the above indications come
on immediately after refuelling, water has probably been poured into the tank: turn the engine off immediately and
contact an Alfa Romeo Dealership.
115

Warning lights on
panelWhat it means What to do
amberDPF CLEANING (particulate trap) in progress
(diesel versions with DPF only)
When the key is turned to MAR-ON, the warning
light switches on but it should switch off after a
few seconds. The warning light switches on
constantly to indicate that the DPF system needs
to eliminate the trapped pollutants (particulate)
through the regeneration process.
The warning light does not come on during every
DPF regeneration, but only when driving
conditions require that the driver is notified. To
turn off the warning light, keep the car in motion
until the regeneration process is over.
On average, the process lasts 15 minutes.
Optimal conditions for completing the process are
achieved by travelling at 60 km/h with engine
speed above 2000 rpm.
When this warning light switches on, it does not
indicate a car failure and thus it should not be
taken to a workshop. On some versions, together
with the warning light switching on, the display
shows a dedicated message.
69)
116
KNOWING THE INSTRUMENT PANEL
WARNING
69) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine can be
stopped even if the DPF warning light is on: however, repeated interruptions of the regeneration process could cause
premature deterioration of the engine oil. For this reason, always wait until the warning light switches off before
stopping the engine as described above. It is not advisable to complete DPF regeneration with the car stationary.
