ADDITIONAL HEATER
(for versions/markets, where provided)
This allows the passenger
compartment to be heated more
quickly in cold weather conditions. The
additional heater turns off automatically
after the required comfort conditions
are achieved.
Automatic dual zone
climate control system
(for versions/markets, where provided)
The additional heater activates
automatically depending on the
environmental conditions and with
engine started.
Manual climate control
system
The additional heater activates
automatically when knob A is turned to
the end of the red section and the fan
is set to at least 1
stspeed.
IMPORTANT The heater only works if
the outside temperature and engine
coolant temperature are low. The heater
will not activate if the battery voltage is
too low.
IMPORTANT
2) The climate control system
detects the passenger
compartment temperature with a
mean radiant temperature sensor
fitted in a cover under the internal
rear view mirror. Obstructing the
field of view of this sensor with
any object could cause the
climate control system to operate
with less than optimal efficiency
.
EXTERNAL LIGHTS
IN BRIEF
The left stalk fig. 31 operates most of
the external lights. The external
lights can only be switched on when
the ignition key is at MAR-ON.
The instrument panel and the
dashboard and central tunnel
controls will light up together with the
external lights.
DAYTIME RUNNING
LIGHTS (DRL)
“Daytime Running Lights”
With the ignition key at MAR-ON and
ring nut A fig. 31 turned to
, the
daytime running lights switch on. The
other lights and interior lighting stay off.
31A0K0556
35

IMPORTANT Do not connect devices
with power higher than 180 W to the
socket. Do not damage the socket by
using unsuitable adaptors.
CIGAR LIGHTER
This is located on the central tunnel.
Press button A fig. 51 to activate the
cigar lighter.
After a few seconds the button goes
back to its initial position and the cigar
lighter is ready for use.
20)
IMPORTANT Always check that the
cigar lighter has switched off.
IMPORTANT Do not connect devices
with power higher than 180 W to the
socket. Do not damage the socket by
using unsuitable adaptors.ASHTRAY
The ashtray is a removable spring-
loaded plastic box that can be fitted
into the glass/can holder on the central
tunnel fig. 52.
21)
MONEY HOLDER
(for versions/markets, where provided)
On some versions a money holder is
present on the central tunnel fig. 53.SUN VISORS
These are located at the sides of the
interior rear view mirror. They can be
adjusted forwards and sideways.
A courtesy mirror with light is fitted
behind the visors. The light allows to
use the mirror in poor visibility
conditions.
Lift cover A fig. 54 to access the mirror.
IMPORTANT On both sides of the
passenger side sun visor there is a label
remembering that it is compulsory to
deactivate the airbags if a rearward
facing child restraint system is fitted.
Always comply with the instructions on
the sun visor (see the "Front airbag"
paragraph in chapter "Safety").
51A0K0572
52A0K0573
53A0K0808
54A0K0574
48
GETTING TO KNOW YOUR CAR

Warning lights on
panelWhat it means What to do
redALTERNATOR FAILURE
The warning light switches on when the ignition
key is turned to MAR-ON, but it should switch off
as soon as the engine has started (with the
engine idling a brief delay before switching off is
acceptable).If the warning light (or symbol on the display)
stays on constantly or flashing, contact an Alfa
Romeo Dealership as soon as possible.
WARNING
63) If thewarning light does not switch on when the key is turned to MAR-ON or if it stays on when driving (together
with the message on the display), there may be a fault in the restraint systems; in this case, the airbags or
pretensioners may not deploy in the event of an accident or, in a lower number of cases, they could deploy
erroneously. Before proceeding, contact an Alfa Romeo Dealership to have the system checked immediately.
64) Failure of the
warning light is signalled by the flashing for longer than the usual 4 seconds of thewarning light
(located in the trim above the internal rear view mirror). In addition, the airbag system automatically disables the
passenger side airbag. In this case, the
warning light may not indicate a fault in the restraint systems. Before
proceeding, contact an Alfa Romeo Dealership to have the system checked immediately.
101

Warning lights on
panelWhat it means What to do
amberABS FAILURE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light (or symbol on the display)
switches on when the system is inefficient. In this
case the braking system will work as normal, but
without the extra performance offered by the
ABS.
The display shows the dedicated message.Drive carefully and contact an Alfa Romeo
Dealership as soon as possible.
amberBRAKE PAD WEAR
(for versions/markets, where provided)
The warning light (or symbol on the display)
switches on when the front and rear brake pads
are worn.
The display shows the dedicated message.Have them replaced as soon as possible.
amberPASSENGER SIDE AIRBAG DEACTIVATED
The warning light (located in the trim above the
internal rear view mirror) switches on deactivating
the front passenger side airbag.
With front passenger airbag on, when the ignition
key is turned to MAR-ON, the warning light
switches on constantly for several seconds and
then it should switch off.
If the
warning light flashes, this indicates a fault
in the
warning light.
68)
112
KNOWING THE INSTRUMENT PANEL

72) Make sure that the backrest is
correctly secured on both sides
("red bands" B fig. 108 not visible)
to prevent it from moving forward
in the event of sharp braking,
causing injuries to occupants.SBR SYSTEM (Seat
Belt Reminder)
This system comprises an acoustic
warning which, in conjunction with the
warning lights flashing on the
instrument panel, advises the front seat
passengers if their seat belt has not
been fastened.
On some versions there is also a panel
(provided as an alternative to the
warning light on the instrument panel)
located above the interior rear view
mirror, which warns the front and back
seat passengers through acoustic
and visual signals if their seat belts have
not been fastened.
Contact an Alfa Romeo Dealership to
deactivate this acoustic warning
permanently.
The acoustic warning can be
reactivated at any time through the
Setup Menu (see "Menu options"
paragraph in the “Knowing the
instrument panel” chapter).
The warning lights may be red or green
and operate as follows:
❒1 = front left seat (driver status for
left-hand drive versions);
❒2 = rear left seat (passenger);
❒3 = rear centre seat (passenger);❒4 = rear right seat (passenger);
❒5 = front right seat (passenger status
for left-hand drive versions).
109A0K0075
129

Main recommendations
to carry children safely
❒Install the child restraint systems
on the rear seat, which is the most
protected position in the event of an
accident.
❒Keep children in rear facing child
restraint systems for as long as
possible, until 2 years old.
❒Should a rear facing child restraint
system be installed on the rear seats,
it is advisable to position it as far
forward as the position of the front
seat allows.
❒If the front passenger airbag is
deactivated always check the
permanent switching on of the
warning light in the trim above the
internal rearview mirror to make
sure that it has actually been
deactivated.
❒Carefully follow the instructions
supplied with the child restraint
system itself. Keep the instructions in
the car along with the other
documents and this handbook. Do
not use second-hand child restraint
systems without instructions.
❒Only one child is to be strapped into
each restraint system; never carry
two children simultaneously.❒Always check that the seat belts do
not interfere with the child's throat.
❒Always check that the seat belt
is well fastened by pulling on it.
❒While travelling, do not let the child sit
incorrectly or unfasten the belts.
❒Never allow a child to put the belt's
diagonal section under an arm or
behind their back.
❒Never carry children on your lap,
even newborns. No-one can restrain
a child in the event of an accident.
❒In the event of an accident, replace
the child restraint system with a
new one.
WARNING
81) The figure is indicative for fitting
purposes only. Fit the child
restraint system according to the
instructions, which must be
included.
82) If a Universal Isofix child
restraint system is not fixed to all
three anchorages, it will not be
able to protect the child correctly.
In a crash, the child could be
seriously or fatally injured.83) Fit the child restraint system only
when the car is stationary. The
child restraint system is correctly
secured to the brackets when
you hear the click. Follow the
instructions for assembly,
disassembly and positioning that
the manufacturer must supply
with the child restraint system.
84) Fit the child restraint system
according to the instructions,
which must be included.
139

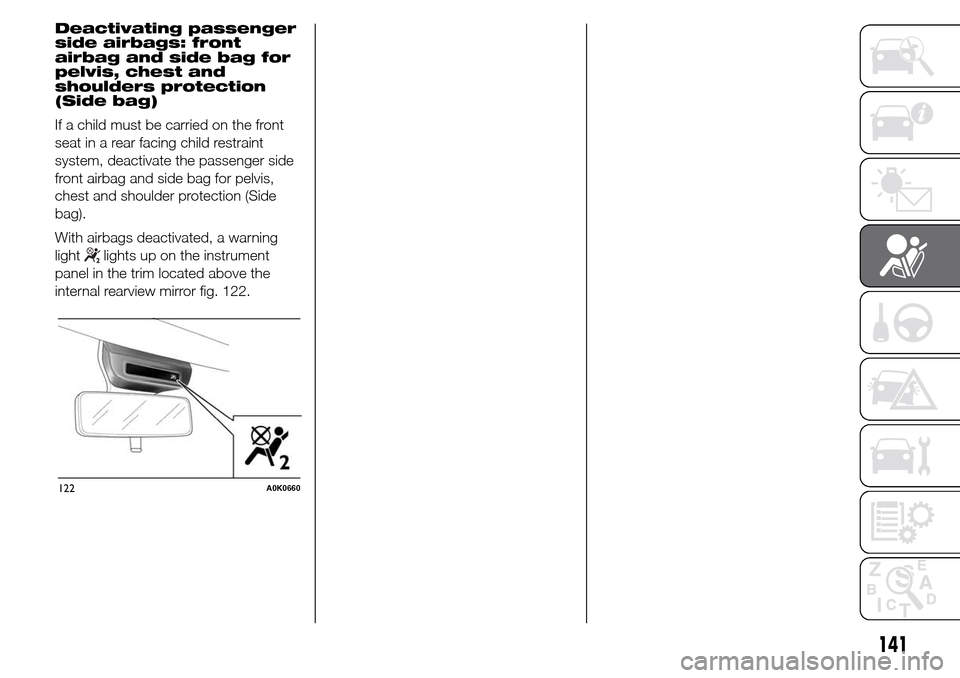

Deactivating passenger
side airbags: front
airbag and side bag for
pelvis, chest and
shoulders protection
(Side bag)
If a child must be carried on the front
seat in a rear facing child restraint
system, deactivate the passenger side
front airbag and side bag for pelvis,
chest and shoulder protection (Side
bag).
With airbags deactivated, a warning
light
lights up on the instrument
panel in the trim located above the
internal rearview mirror fig. 122.
122A0K0660
141

TOWING TRAILERS
IMPORTANT
The vehicle must be provided with a
type-approved tow hook and adequate
electrical system to tow caravans or
trailers. Installation must be carried out
by a specialist.
Fit any specific and/or additional rear
view mirrors as specified by the
Highway Code.
Remember that when towing a trailer,
steep hills are harder to climb, the
braking spaces increase and overtaking
takes longer depending on the overall
weight.
Engage a low gear when driving
downhill, rather than constantly using
the brake.
The weight of the trailer reduces the
load capacity of the car by the same
amount. Consider the weight at full
load, including accessories and
luggage, to make sure you do not
exceed the maximum towable weight
(shown in the registration document).
Do not exceed the speed limits specific
to each country you are driving in, in
the case of vehicles towing trailers.
In any case do not exceed 100 km/h.INSTALLING A TOW
HOOK
Contact an Alfa Romeo Dealership to
install a tow hook.
109) 110)
WARNING
109) The ABS with which the car is
equipped will not control the
braking system of the trailer.
Particular caution is therefore
required when travelling on
slippery roads.
110) Never modify the braking
system of the car to control the
trailer brake. The trailer braking
system must be fully independent
from the hydraulic system of the
car.
SNOW TYRES
Use snow tyres of the same size as the
normal tyres provided with the car:
the Alfa Romeo Dealership will be able
to advise you on the most appropriate
tyre to use.
Only use these tyres in the event of ice
or snow on the roads.
111)
For the type of tyre to be used, inflation
pressures and the specifications of
snow tyres, follow the instructions given
in the "Wheels" paragraph in the
"Technical specifications" chapter.
The winter performance of these tyres
is considerably reduced when the tread
thickness is less than 4 mm. Replace
them in this case.
Due to the specific characteristics of
snow tyres, in normal weather
conditions or on long motorway
journeys, the performance of these
tyres is lower than that of standard
tyres. Their usage should therefore be
restricted in accordance with their
type approval.
All four tyres should be the same (brand
and track) to ensure greater safety
when driving and braking as well as
making the car more responsive. It is
inadvisable to change the rotation
direction of tyres.
160
STARTING AND DRIVING
