PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
❒engine coolant, brake fluid and
windscreen washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system
(headlamps, direction indicators,
hazard warning lights, etc.);
❒operation of window washer/wiper
system and positioning/wear of
windscreen/rear window wiper
blades
Check and top up, if required, the
engine oil level every 3,000 km.
HEAVY-DUTY USE OF
THE CAR
If the car is used mainly under one of
the following conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
❒engine often idling or driving long
distances at low speeds or long
periods of idleness;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
❒check front disc brake pad
conditions and wear;
❒check cleanliness of bonnet and boot
locks, cleanliness and lubrication of
linkage;
❒visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system -
brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery
fluid level (electrolyte);
❒visually inspect condition of the
accessory drive belts;❒check and, if necessary, change
engine oil and replace oil filter;
❒check and, if necessary, replace
pollen filter;
❒check and, if necessary, replace air
cleaner.
204
SERVICING AND MAINTENANCE

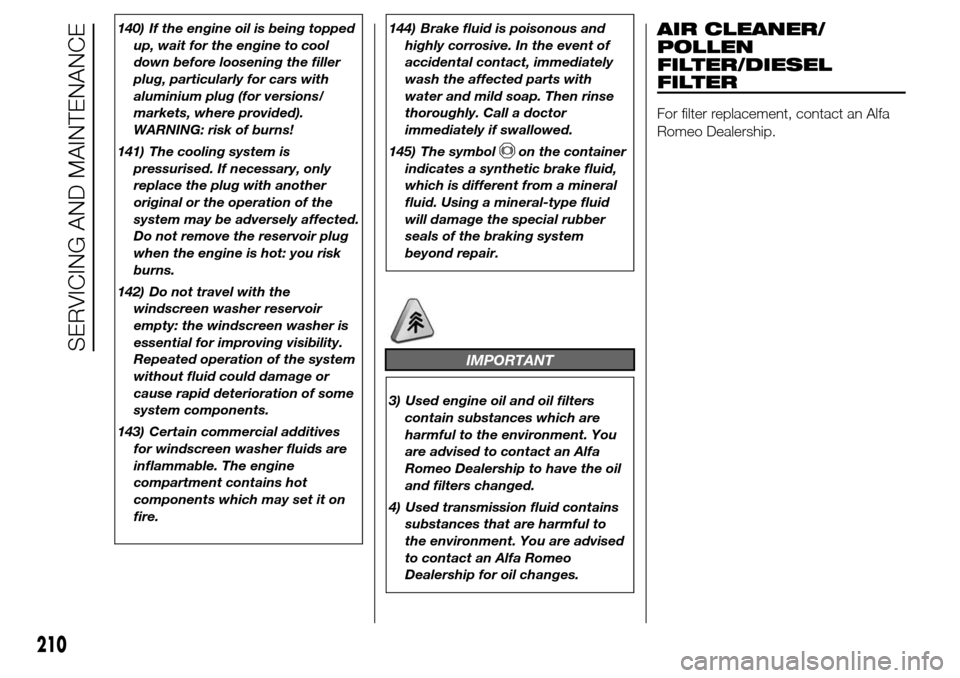

140) If the engine oil is being topped
up, wait for the engine to cool
down before loosening the filler
plug, particularly for cars with
aluminium plug (for versions/
markets, where provided).
WARNING: risk of burns!
141) The cooling system is
pressurised. If necessary, only
replace the plug with another
original or the operation of the
system may be adversely affected.
Do not remove the reservoir plug
when the engine is hot: you risk
burns.
142) Do not travel with the
windscreen washer reservoir
empty: the windscreen washer is
essential for improving visibility.
Repeated operation of the system
without fluid could damage or
cause rapid deterioration of some
system components.
143) Certain commercial additives
for windscreen washer fluids are
inflammable. The engine
compartment contains hot
components which may set it on
fire.144) Brake fluid is poisonous and
highly corrosive. In the event of
accidental contact, immediately
wash the affected parts with
water and mild soap. Then rinse
thoroughly. Call a doctor
immediately if swallowed.
145) The symbol
on the container
indicates a synthetic brake fluid,
which is different from a mineral
fluid. Using a mineral-type fluid
will damage the special rubber
seals of the braking system
beyond repair.
IMPORTANT
3) Used engine oil and oil filters
contain substances which are
harmful to the environment. You
are advised to contact an Alfa
Romeo Dealership to have the oil
and filters changed.
4) Used transmission fluid contains
substances that are harmful to
the environment. You are advised
to contact an Alfa Romeo
Dealership for oil changes.
AIR CLEANER/
POLLEN
FILTER/DIESEL
FILTER
For filter replacement, contact an Alfa
Romeo Dealership.
210
SERVICING AND MAINTENANCE

REFUELLING
1.4 Turbo Petrol 1.4 Turbo MultiAir
Recommended fuels
and original lubricants
litres kg litres kg
Fuel tank 60 – 60 –Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)5,7 5,0 5,7 5,050-50 mixture of
demineralised water and
PARAFLU
UP(*)
Engine sump 2,75 2,3 3,1 2,6
SELENIAStAR P.E.
Engine sump and filter 3,1 2,6 3,5 2,9
Differential/gearbox casing 2.0 1.7 2.0 1,7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS antilock brakes0,83 0,78 0,83 0,78 TUTELA TOP 4
Windscreen/rear window/
headlight washer fluid
reservoir (**)2,8 (4,6) 2,5 (4,1) 2,8 (4,6) 2,5 (4,1)Mixture of water and
TUTELA PROFESSIONAL
SC 35
(*) For particularly harsh climate conditions, a mixture of 60%UPand 40% demineralised water is recommended.
(**) Values in brackets refer to versions with headlight washers
245
SELENIADIGITEK P.E.
(1.4 Turbo Petrol version)
(1.4 Turbo l version)Mu ti Air

INDEX
A
BS .............................................. 62
Additional heater ............................ 35
AFS adaptive lights (Adaptive
Frontlight System) ........................ 38
Air cleaner ...................................... 210
Alarm ............................................. 14
“Alfa DNA” system ........................ 66
– Driving modes ........................... 66
– "Natural" Mode.......................... 67
Alfa Romeo Code system ............. 10
ALFA TCT ...................................... 151
Ashtray .......................................... 48
ASR system (Anti-Slip
Regulation) ................................... 63
Automatic dual zone climate
control ......................................... 28
Battery .......................................... 211
– advice for extending lifetime ...... 211
– replacement .............................. 211
Battery (recharging) ........................ 191
Bodywork
– maintenance ............................. 216
– protection against
atmospheric agents................... 216
– warranty .................................... 216
Bonnet ........................................... 59
– Closing ...................................... 59
– Opening .................................... 59Brakes ........................................... 233
– brake fluid level.......................... 209
bulb replacement ........................... 178
Bulb replacement
– exterior lights ............................. 177
– interior lights .............................. 180
Bulbs
– types of bulbs ........................... 175
Carrying children safely ................. 133
CBC (Cornering Brake Control)
system ......................................... 63
Central locking ............................... 45
Changing a bulb............................. 173
– General instructions................... 173
Changing a wheel .......................... 165
Checking levels .............................. 205
Cigar lighter.................................... 48
Cleaning and maintenance
– bodywork .................................. 216
– car interior ................................. 218
– front headlights ......................... 217
– leather parts .............................. 218
– leather seats.............................. 218
– plastic and coated parts ............ 218
– seats and fabric parts ................ 218
Climate control ............................... 22
– Central air diffusers.................... 22
– Rear air diffuser ......................... 22
– Side air diffusers ........................ 22– Upper air diffusers ..................... 22
Climatic comfort ............................. 23
– Diffusers .................................... 23
Clutch ............................................ 232
CO2 emissions............................... 254
CODE Card .................................... 11
Control buttons .............................. 85
Control panel and instruments ....... 94
– Multifunction display .................. 94
– Reconfigurable multifunction
display....................................... 95
Controls ......................................... 44
Courtesy light
– bulb replacement ...................... 181
Cruise Control ................................ 40
Daytime running lights (DRL) ......... 35
Diesel filter ..................................... 210
Dimensions .................................... 240
Dipped beam headlights
– bulb replacement ...................... 177
Direction indicators ................... 37-178
– bulb replacement ...................... 178
– “Lane change” function ............. 37
Display ........................................... 84
Doors ............................................. 51
– Child safety device .................... 52
– Door central
locking/unlocking ...................... 51
DPF (particulate filter) ..................... 81

Luggage compartment................... 56
– Bag hooks................................. 58
– Closing the luggage
compartment ............................ 56
– Emergency luggage
compartment opening ............... 56
– Extending the luggage
compartment ............................ 57
– Luggage compartment
initialisation ................................ 56
– Luggage retaining net ................ 58
– Opening the luggage
compartment ............................ 56
– Securing your load .................... 58
Main beam headlights .................. 37
– bulb replacement ...................... 177
Maintenance and care
– heavy-duty use of the car .......... 204
– periodic checks ......................... 204
Manual climate control ................... 24
Menu options ................................. 87
Money holder ................................. 48
MSR system .................................. 64
Multifunction display....................... 84
Number plate lights
– bulb replacement ...................... 179
Parking ......................................... 149
– Handbrake ................................ 149
Parking lights ................................. 36
Parking sensors ............................. 77Performance .................................. 241
Pollen filter ..................................... 210
Power sockets ............................... 47
Pre-Fill system (RAB - Ready
Alert Brake) .................................. 64
Preparation for "Isofix" child seat .... 137
Pretensioners ................................. 131
– Load limiters.............................. 131
Protecting the environment ............ 81
Radio transmitters and mobile
phones ........................................ 76
Rain sensor .................................... 39
Raising the car ............................... 192
Rear armrest .................................. 47
Rear fog lights ................................ 44
Rear fog lights/reversing lights........ 178
Rear roof light
– bulb replacement ...................... 180
Rear view mirrors ........................... 20
– Door mirrors .............................. 21
– Internal mirror ............................ 20
Rear window washer jets ............... 215
Rear window washer
– rear window washer fluid level ... 209
Rear window washer/wiper ............ 40
Rear window wiper
– blade replacement..................... 214
Reconfigurable multifunction
display ......................................... 84
Refuelling ....................................... 245Refuelling the car ........................... 80
Rev counter ................................... 96
Rim Protector (tyres)....................... 237
Roof lights...................................... 42
– Courtesy lights .......................... 43
– Front roof light ........................... 42
– Glove compartment light ........... 43
– Luggage compartment roof
light ........................................... 43
– Rear roof light............................ 43
Roof rack/ski rack .......................... 60
Safe Lock (device)......................... 13
Saving fuel ..................................... 158
SBR system (Seat Belt
Reminder) .................................... 129
Scheduled servicing ....................... 196
Scheduled Servicing Plan ............... 197
Seat belts....................................... 128
– Use ........................................... 128
Seats ............................................. 16
– Front seats ................................ 16
Setup menu ................................... 86
Side airbags (Side Bags -
Window Bags).............................. 144
Side bags (front side airbags) ......... 144
Side lights/brake lights ................... 178
Side lights/daytime running lights
(DRL)
– bulb replacement ...................... 177
Side lights/dipped beam
headlights .................................... 36
