2015 Acura ILX Hybrid key

15Quick Reference Guide
Instrument Panel
(P69)
Canada
ECON
Gauges
(P86)
/Multi-Information Display
(P87)
/System Indicators
(P70)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Door and Trunk Open
Indicator
CRUISE MAIN
Indicator
Low Fuel Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
Charge/Assist Gauge
Security System Alarm Indicator
Fuel Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position Indicator
Shift Indicator
Low Temperature Indicator
ECON
Mode Indicator
Auto Idle Stop Indicator
IMA System Indicator
U.S.
Brake System
Indicator (Amber)
CanadaU.S.
System Indicators
CanadaU.S.

17Quick Reference Guide
Steering Wheel
(P132)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside (P111)
●Pull either front door inner handle to
unlock and open it in one motion.
Trunk
(P114)
● To unlock and open the trunk:
•Pull the trunk release.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.Power Door Mirrors (P134)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P120)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger's window switch is disabled.
Power Window Lock Button
Window Switch
Indicator

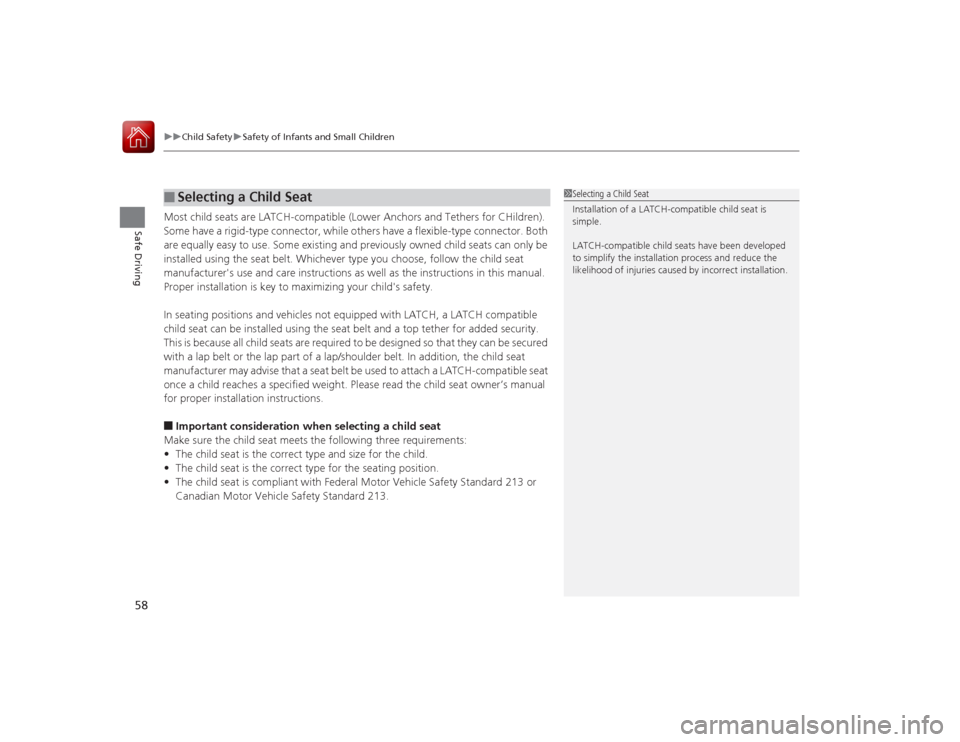

uuChild Safety uSafety of Infants and Small Children
58Safe Driving
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren).
Some have a rigid-type conn ector, while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer's use and care instructions as well as the instructions in this manual.
Proper installation is key to maximizing your child's safety.
In seating positions and vehicles not equipped with LATCH, a LATCH compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.■Important consideration when selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.■
Selecting a Child Seat
1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child seats have been developed
to simplify the installation process and reduce the
likelihood of injuries caused by incorrect installation.

78
uuIndicators u
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Side Airbag Off
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on when the passenger side
airbag system is automatically shut
off.
●It does not mean there is a problem with
your side airbags.●Comes on when nobody is sitting in the
passenger seat - Have the vehicle checked
by a dealer.●Comes on when someone is sitting in
the seat - Have the passenger sit properly.
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF (LOCK),
then select the ON mode again.●Repeatedly blinks - The system may be
malfunctioning. Have the vehicle checked
by a dealer.●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
U.S.Canada
U.S.Canada

79
uuIndicators u
Continued
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
Security System
Alarm Indicator
●Blinks when the Security System
Alarm has been set.
2Security System Alarm P. 118
—
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.●Comes on as soon as a problem is
detected in the keyless access system
or keyless starting system.
●Have your vehicle checked by a dealer.
Low Temperature
Indicator
●Comes on when the engine coolant
temperature is low.
●If the indicator stays on after the engine has
reached normal operating temperature,
there may be a problem with the
temperature sensors. Have the vehicle
inspected by a dealer.
—
Indicator

84
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.
●Disappears when you bring the keyless remote back
inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 125
●Appears when the keyless access remote battery
becomes weak.
●Replace the battery as soon as possible.
2Replacing the Button Battery P. 304
●Appears three seconds after the TO START ENGINE
message appears.
2 Starting the Engine P. 226
●Appears after you unlock and open the driver’s door.
2Starting the Engine P. 226

85
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when the steering wheel is locked.
●Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
●Appears if you push the ENGINE START/STOP button
to turn the engine off without the shift lever in
(P
.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P
.
●Appears if the keyless access remote battery is too weak
to start the engine or the key is not within operating
range to start the engine.
A beeper sounds six times.
2 If the Keyless Access Remote Battery is Weak P. 330

96
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
■Customization flow
Press the button to select CUSTOMIZE SETTINGS and press the SEL/
RESET button.
SEL/RESET
SEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESET
CUSTOMIZE SETTINGS
METER SETUP
KEYLESS ACCESS SETUP
LIGHTING SETUPDOOR SETUP
MAINTENANCE INFO.
DEFAULT ALL
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
“TRIP A” RESET TIMING“TRIP B” RESET TIMING
KEYLESS START GUIDANCE SCREENS
DOOR UNLOCK MODEKEYLESS ACCESS LIGHT FLASHKEYLESS ACCESS BEEP
INTERIOR LIGHT DIMMING TIME
HEADLIGHT AUTO OFF TIMERAUTO LIGHT SENSITIVITY
AUTO DOOR LOCKAUTO DOOR UNLOCKDOOR LOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
RESET/CANCELCANCEL/SET
