2015 Acura ILX Hybrid Owner's Manual

96
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
■Customization flow
Press the button to select CUSTOMIZE SETTINGS and press the SEL/
RESET button.
SEL/RESET
SEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESETSEL/RESET
CUSTOMIZE SETTINGS
METER SETUP
KEYLESS ACCESS SETUP
LIGHTING SETUPDOOR SETUP
MAINTENANCE INFO.
DEFAULT ALL
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
“TRIP A” RESET TIMING“TRIP B” RESET TIMING
KEYLESS START GUIDANCE SCREENS
DOOR UNLOCK MODEKEYLESS ACCESS LIGHT FLASHKEYLESS ACCESS BEEP
INTERIOR LIGHT DIMMING TIME
HEADLIGHT AUTO OFF TIMERAUTO LIGHT SENSITIVITY
AUTO DOOR LOCKAUTO DOOR UNLOCKDOOR LOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
RESET/CANCELCANCEL/SET

97
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group
Customizable
Features Description Selectable settingsMETER
SETUP
LANGUAGE
SELECTION
Changes the displayed language.
ENGLISH
*1/
FRENCH /
SPANISH
ADJUST OUTSIDE
TEMP. DISPLAY
Adjusts the temperature reading by a few degrees.
-5°F ~ ±0°F
*1 ~ +5°F (U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“TRIP A” RESET
TIMING
Changes the setting of how to reset trip meter A, average
fuel economy A, average speed A, and elapsed time A.
WITH REFUEL/IGN OFF /
MANUALLY RESET
*1
“TRIP B” RESET
TIMING
Changes the setting of how to reset trip meter B, average
fuel economy B, average speed B, and elapsed time B.
WITH REFUEL/IGN OFF /
MANUALLY RESET
*1
KEYLESS START
GUIDANCE SCREENS
Changes the display of the keyless start guidance screens.
ON
*1/ OFF
KEYLESS
ACCESS
SETUP DOOR UNLOCK
MODE
Changes which doors unlock when you grab the driver’s
door handle. DRIVER DOOR ONLY
*1/
ALL
DOORS
KEYLESS ACCESS
LIGHT FLASH Causes some exterior lights to blink when you unlock/lock
the doors.
ON
*1/
OFF
KEYLESS ACCESS
BEEP Causes the beeper to sound when you unlock/lock the doors.
ON*1/OFF

98
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
*1:Default Setting Setup
Group Customizable Features Description Selectable settingsLIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIME
Changes the length of time the interior lights stay
on after you close the doors.
60sec
/30sec
*1/ 15sec
HEADLIGHT AUTO OFF
TIMER
Changes the length of time the exterior lights stay
on after you close the driver’s door.
60sec /30sec /15sec
*1/0sec
AUTO LIGHT
SENSITIVITY
Changes the timing for the headlights to come on.
MAX /HIGH/ MID
*1/LOW /MIN
DOOR
SETUP AUTO DOOR LOCK
Changes the setting for when the doors
automatically lock.
WITH VEH SPD
*1/SHIFT FROM
(P
/
OFF
AUTO DOOR UNLOCKChanges the setting for when the doors
automatically unlock.
DRIVER DOOR with SHIFT to
(P
*1/
ALL DOORS with SHIFT to
(P
/
DRIVER DOOR with IGN OFF
/ALL
DOORS with IGN OFF
/OFF
DOOR LOCK MODE Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or Built-in key.
DRIVER DOOR
*1/
ALL DOORS
KEYLESS LOCK
ACKNOWLEDGMENT LOCK/UNLOCK - The exterior lights flash
LOCK (2nd push) - The beeper sounds
ON
*1/
OFF
SECURITY RELOCK
TIMER Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec
/60sec /30sec
*1

99
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
Setup Group Customizable Features DescriptionSelectable settings
MAINTENANCE INFO.
Resets the Maintenance Minder
TM.
RESET/CANCEL
DEFAULT ALL Sets/Cancels all the customized settings as default.CANCEL/SET

100
uuGauges and Multi- Information Display uMulti-Information Display
Instrument Panel
■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to ON are shown
below. The default setting for “TRIP A” RESET TIMING is MANUALLY RESET .
1. Press and release the button
until CUSTOMIZE SETTINGS appears on
the display.
2. Press the SEL/RESET button to go into the
METER SETUP group.
3. Press the SEL/RESET button again.
u LANGUAGE SELECTION appears first
on the display.
4. Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
u The display switches to the SETUP
screen, where you can select WITH
REFUEL , IGN OFF , MANUALLY
RESET , or EXIT .

101
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

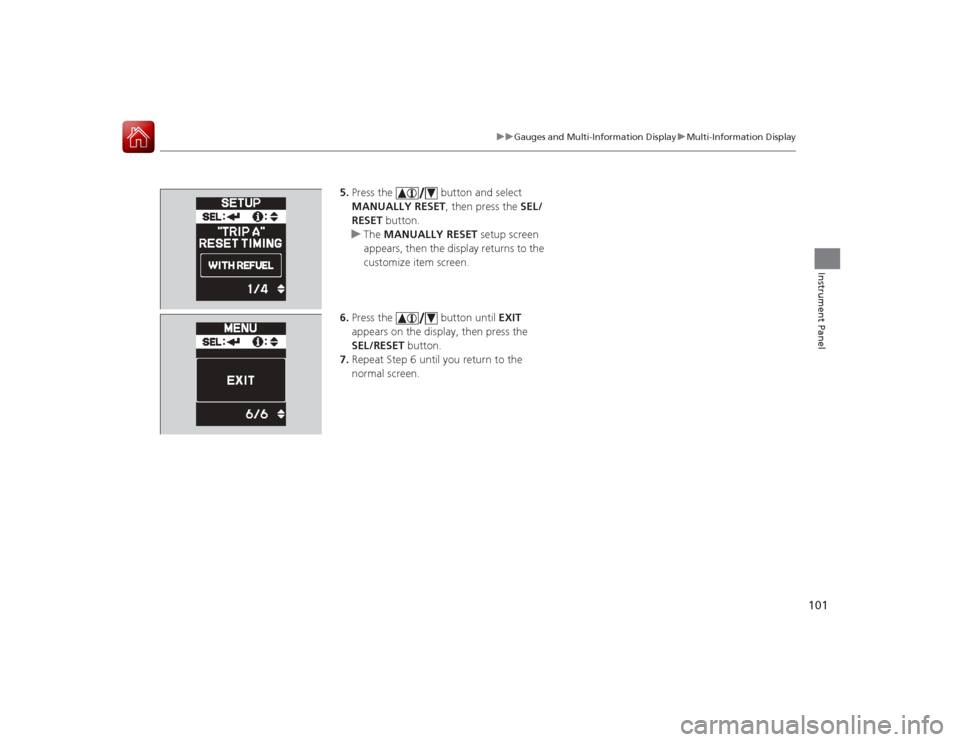

5. Press the button and select
MANUALLY RESET , then press the SEL/
RESET button.
u The MANUALLY RESET setup screen
appears, then the display returns to the
customize item screen.
6. Press the button until EXIT
appears on the display, then press the
SEL/RESET button.
7. Repeat Step 6 until you return to the
normal screen.

102

103
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock.............................. 104
Locking and Unlocking the Doors
Key Types and Functions .................. 105
Low Keyless Access Remote Signal Strength ......................................... 106
Locking/Unlocking the Doors from the Outside .......................................... 107
Locking/Unlocking the Doors from the
Inside ............................................. 111
Childproof Door Locks ..................... 112
Auto Door Locking/Unlocking .......... 113
Opening and Closing the Trunk....... 114
Security System Immobilizer System .......................... 118 Security System Alarm...................... 118
Opening and Closing the Windows
.... 120
Opening and Closing the Moonroof ... 123Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 124
Turn Signals ..................................... 126
Light Switches.................................. 126
Fog Lights ........................................ 129
Daytime Running Lights ................... 129
Wipers and Washers ........................ 130
Brightness Control ........................... 131
Rear Defogger/Heated Door Mirror Button...132
Adjusting the Steering Wheel........... 132 Adjusting the Mirrors
Interior Rearview Mirror ................... 133
Power Door Mirrors ......................... 134
Adjusting the Seats Adjusting the Seat Positions ............. 135
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 141
Interior Convenience Items .............. 142
Climate Control System Using Automatic Climate Control .... 146
Synchronized Mode .............................. 148
Automatic Climate Control Sensors ...... 149
