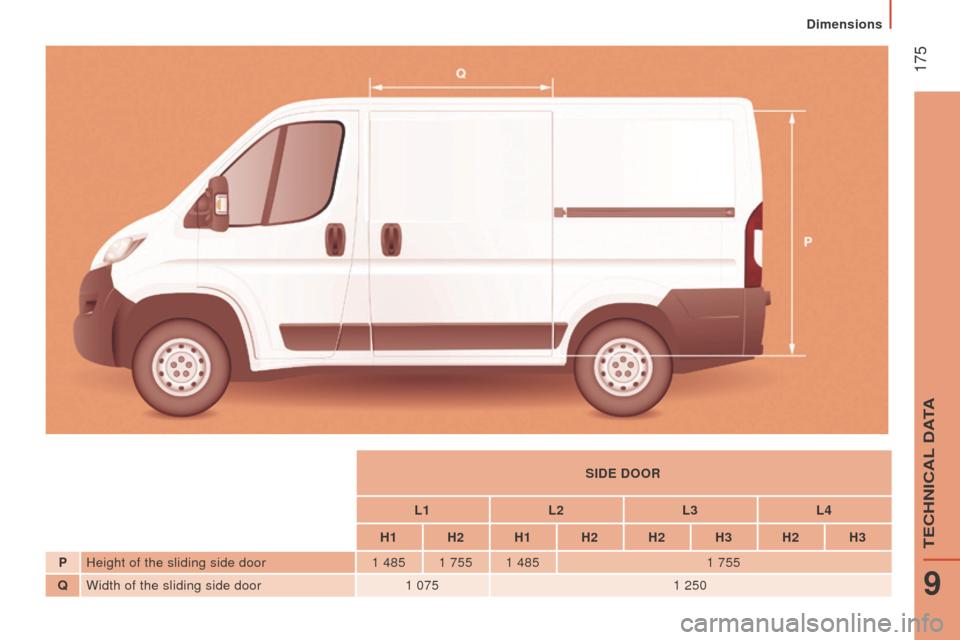

SIdE dOOr
L1L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1


485 1

755 1

485 1
755
Q Width of the sliding side door 1

075 1
250
9
TECHNICAL DATA
Dimensions

176

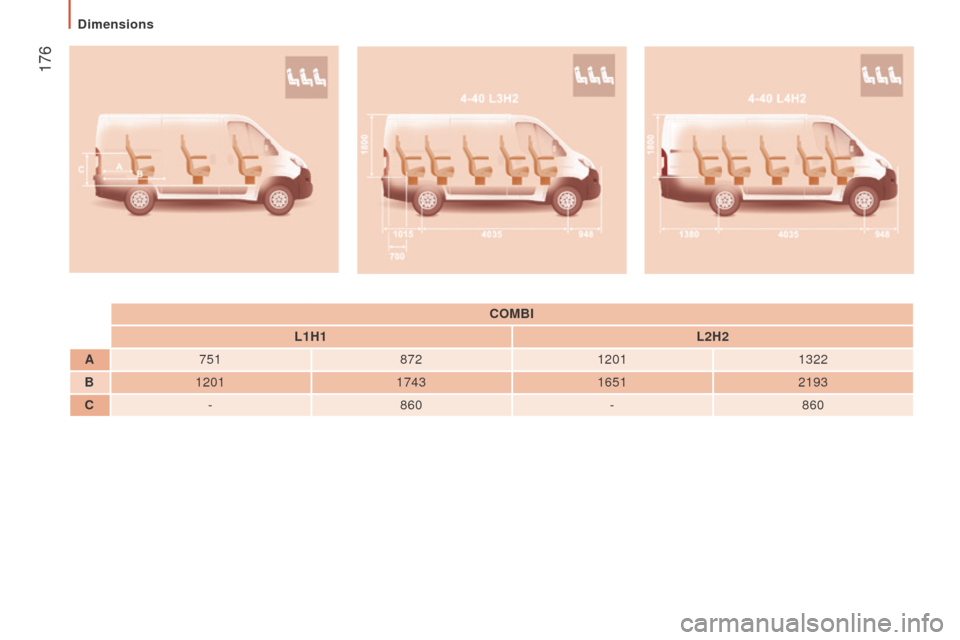

cOMBI
L1H1 L2H2
A 751 8721201 1322
B 1201 174316512193
c-860 -860
Dimensions

177
Quality of the fuel used for diesel engines
The Diesel engines are perfectly compatible with biofuels which conform \
to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with s\
tandard EN 14214) available at the pumps (containing up
to 5% Fatty Acid Methyl Ester).

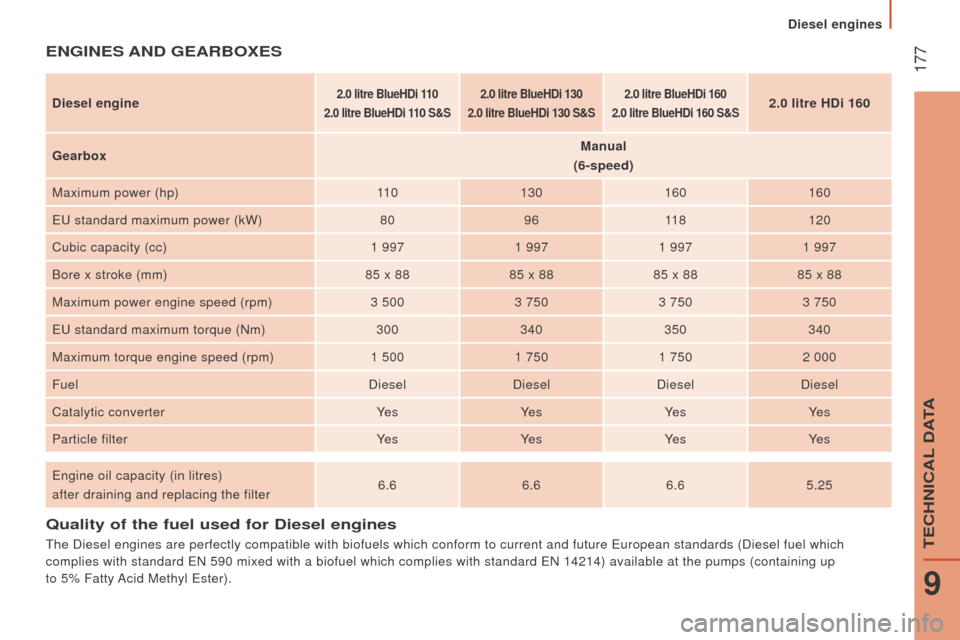

EnGInES And GEArBOxES
diesel engine2.0 litre BlueHdi 110
2.0 litre BlueH d i 110 S&S 2.0 litre BlueH
d i 130
2.0 litre BlueH d i 130 S&S2.0 litre BlueH
d i 160
2.0 litre BlueH d i 160 S&S2.0 litre Hdi 160
Gearbox Manual
(6-speed)
Maximum power (hp) 11
0 130 160160
EU standard maximum power (kW) 809611 8 120
Cubic capacity (cc) 1 9971 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 8885 x 88
Maximum power engine speed (rpm) 3 5003 7503 7503 750
EU standard maximum torque (Nm) 300340350340
Maximum torque engine speed (rpm) 1 5001 7501 7502 000
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (in litres)
after draining and replacing the filter 6.6
6.66.65.25
d
iesel engines
9
TECHNICAL DATA

178

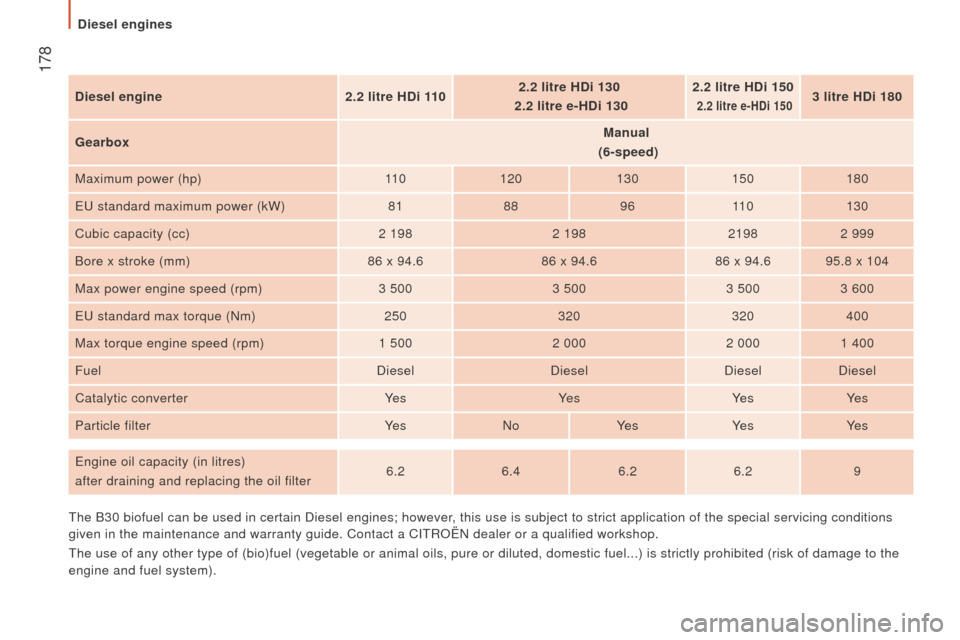

diesel engine2.2 litre H d i 1102.2 litre H d i 130
2.2 litre e-H d i 1302.2 litre H
d i 150 2.2 litre e-Hdi 1503 litre Hdi 180
Gearbox Manual

(6-speed)
Maximum power (hp) 11 0120 130150180
EU standard maximum power (kW) 8188 9611 0 130
Cubic capacity (cc) 2 1982 198 21982 999
Bore x stroke (mm) 86 x 94.686 x 94.686 x 94.6 95.8 x 104
Max power engine speed (rpm) 3 5003

500 3

500 3 600
EU standard max torque (Nm) 250320320400
Max torque engine speed (rpm) 1

500 2

000 2

000 1 400
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sNoYe s Ye sYe s
Engine oil capacity (in litres)
after draining and replacing the oil filter 6.2
6.4 6.26.2 9
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing con\
ditions
given in the maintenance and warranty guide. Contact a CITROËN dealer\
or a qualified workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pur\
e or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).
Diesel engines

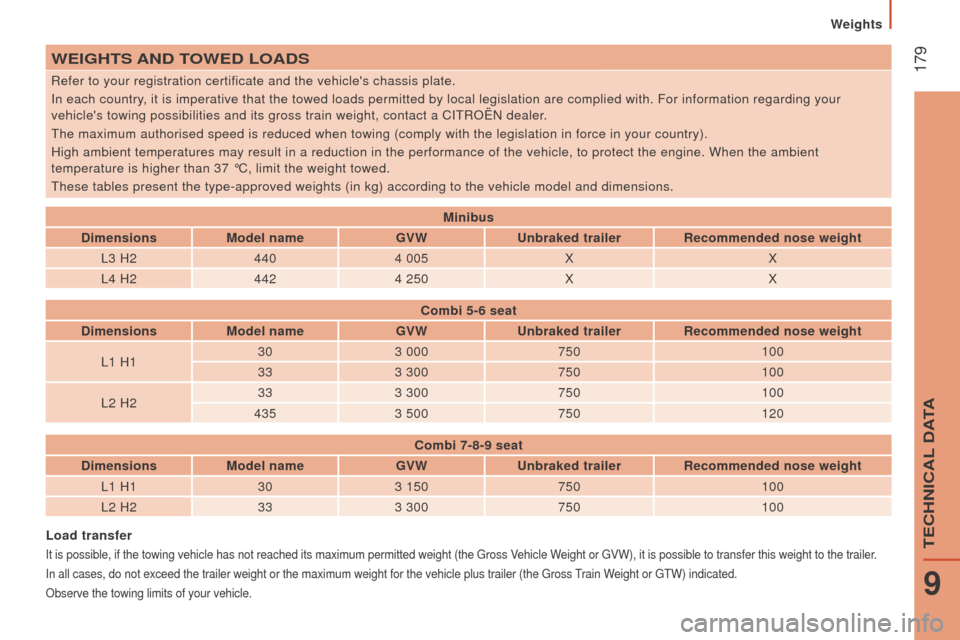

179WEIGHtS And tOWE d LOA d S
Refer to your registration certificate and the vehicle's chassis plate.
In each country, it is imperative that the towed loads permitted by local legislation a\
re complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a CIT\
ROËN dealer.
The maximum authorised speed is reduced when towing (comply with the le\
gislation in force in your country).
High ambient temperatures may result in a reduction in the performance o\
f the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
These tables present the type-approved weights (in kg) according to th\
e vehicle model and dimensions.
Load transfer
It is possible, if the towing vehicle has not reached its maximum permit\
ted weight (the Gross Vehicle Weight or GVW), it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight or the maximum weight for\
the vehicle plus trailer (the Gross Train Weight or GTW) indicated.
Observe the towing limits of your vehicle.
Minibus
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L3 H2 4404 005 X X
L4 H2 4424 250 X X
c

ombi 5-6 seat
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L1 H1 30
3 000 750 100
33 3 300 750 100
L2 H2 33
3 300 750 100
435 3 500 750 120
c

ombi 7-8-9 seat
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L1 H1 303 150 750 100
L2 H2 333 300 750 100Weights
9
TECHNICAL DATA

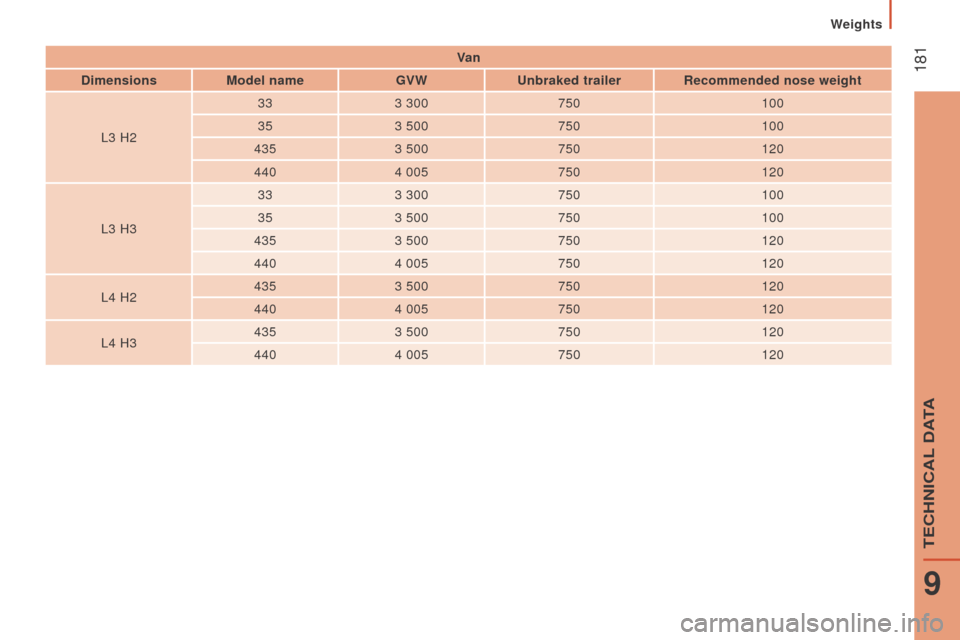

180Va n
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L1 H1 28
2 800 750 100
30 3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L1 H2 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
L2 H1 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
L2 H2 30
3 000 750 100
33 3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120
Weights

181Va n
d

imensions Model name GVW
u

nbraked trailer
r
ecommended nose weight
L3 H2 33
3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L3 H3 33
3 300 750 100
35 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L4 H2 435
3 500 750 120
440 4 005 750 120
L4 H3 435
3 500 750 120
440 4 005 750 120Weights
9
TECHNICAL DATA

182

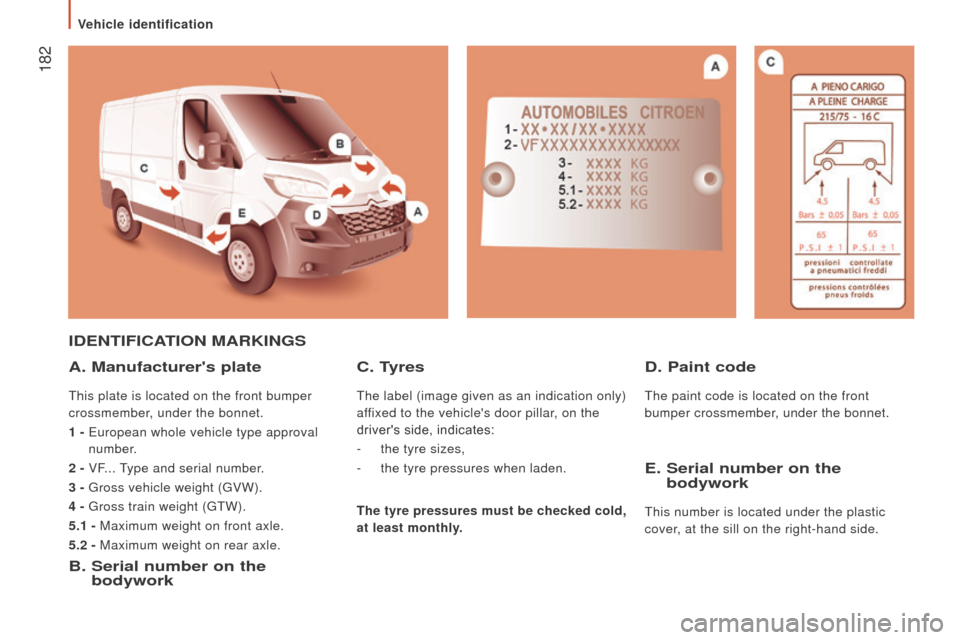

IdEntIFIcAtIO n MA r KI n GS
A. Manufacturer's plate
This plate is located on the front bumper
crossmember, under the bonnet.
1 -

European whole vehicle type approval

number.
2 - VF... Type and serial number.
3 - Gross vehicle weight (GVW).
4 - Gross train weight (GTW).
5.1 - Maximum weight on front axle.
5.2 - Maximum weight on rear axle.
B. Serial number on the
bodywork
d
. Paint code
The paint code is located on the front
bumper crossmember, under the bonnet.
c. tyres
The label (image given as an indication only)
affixed to the vehicle's door pillar, on the
driver's side, indicates:
-

the tyre sizes,
-


the tyre pressures when laden.E. Serial number on the
bodywork
This number is located under the plastic
cover, at the sill on the right-hand side.t
he tyre pressures must be checked cold,
at least monthly.
Vehicle identification
