Automatic headlamp dipping
Switching on
System which automatically changes between
dipped and main beam according to the lighting
and traffic conditions, using a camera located
in the rear view mirror.F

P
ut the lighting control stalk ring
in the "AUTO" position.
This automatic headlamp dipping
system is a driving aid. The driver
remains responsible for the vehicle's
lighting, its correct use for the prevailing
conditions of light, visibility and traffic
and observation of driving and vehicle
regulations. F

F
lash the headlamps (pull
the stalk beyond the point
of resistance) to activate
the function.
T

his indicator lamp comes
on in the instrument panel
to confirm activation.
F

P
ress the button, its indicator
lamp comes on.
Switching off
F Press the button, its indicator lamp goes off, the lighting
system changes to "automatic
illumination of headlamps" mode.
Pause
F Flashing the headlamps again pauses the
function and the lighting
system changes to
"automatic illumination of
headlamps" mode.
F

F
lash the headlamps
again to reactivate the
system.
The system will be operational as soon as
you have exceeded 15 mph (25 km/h).
If the speed drops below 9 mph (15 km/h),
the system no longer operates.
Operation
If the situation requires a change of headlamp
beam, the driver can take over at any time.
Once activated, the system operates as follows:
-

i

f there is adequate light and/or if the traffic
conditions do not allow the use of main
beam, then dipped beam is maintained,
-

i

f the light level is low and the traffic
conditions allow, main beam comes on
automatically.
Visibility

Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F
W
ithin one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side
(for example: when parking on the left;
lighting control stalk upwards; the right
hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the exit of the vehicle's
occupants easier when the light is poor.
Manual guide-me-home
lighting
Switching on
F Within one minute after switching of the
ignition, "flash" the headlamps using the
lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time (this time is
programmable in the configuration menu).
The system may suffer inter ference or
not work correctly:
-

u

nder conditions of poor visibility
(for example, snowfall, heavy rain
or thick fog, ...),
-

i

f the windscreen is dirty, misted or
obscured (by a sticker, ...) in front of
the camera,
-

i

f the vehicle is facing highly
reflective signs.
The system is not able to detect:
-

r

oad users that do not have their
own lighting, such as pedestrians,
-

r

oad users whose lighting is
obscured, such as vehicles running
behind a safety barrier (on a
motor way, for example),
-

r

oad users at the top or bottom of
a steep slope, on twisty roads, on
crossroads.

149

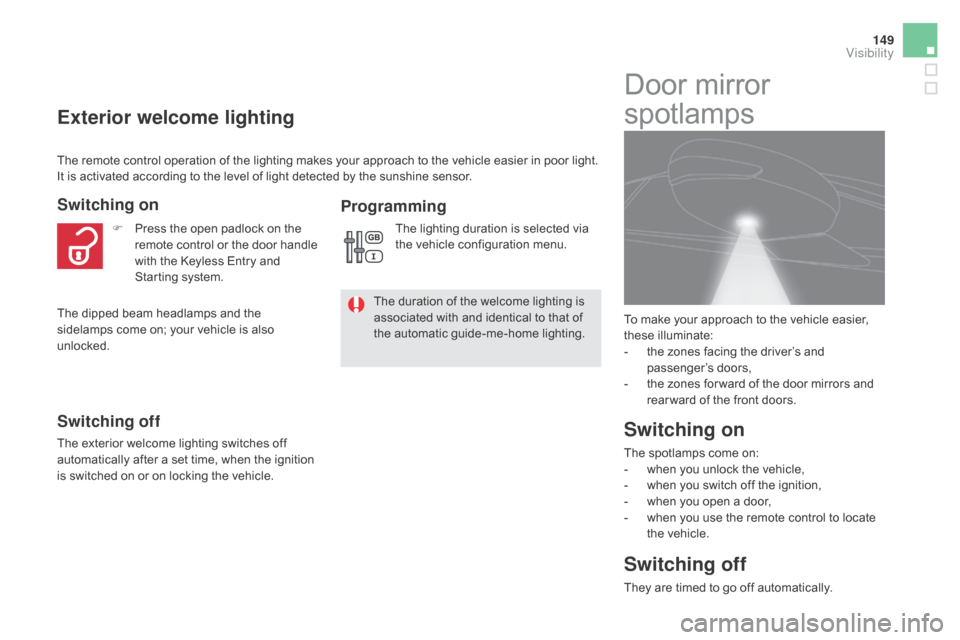

Exterior welcome lighting
Switching on
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.F

P
ress the open padlock on the
remote control or the door handle
with the Keyless Entry and
Starting system.
Door mirror
spotlamps
Switching on
The spotlamps come on:
- w hen you unlock the vehicle,
-

w
hen you switch off the ignition,
-

w
hen you open a door,
-

w
hen you use the remote control to locate
the vehicle.
Switching off
They are timed to go off automatically. To make your approach to the vehicle easier,
these illuminate:
-
t
he zones facing the driver’s and
passenger’s doors,
-
t
he zones for ward of the door mirrors and
rear ward of the front doors.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked. The remote control operation of the lighting makes your approach to the vehicle easier in poor light.
It is activated according to the level of light detected by the sunshine sensor.
The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
Programming
The lighting duration is selected via
the vehicle configuration menu.
Visibility

Manual adjustment of
halogen headlampsAutomatic adjustment of
xenon headlamps
To avoid causing a nuisance to other road
users, the height of the halogen headlamps
should be adjusted according to the load in the
vehicle.
0.
1 o

r 2 people in the front seats.
-.
I

ntermediate setting.
1.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
2.
D

river + maximum authorised load.
-.
I

ntermediate setting.
3.
5 p

eople + maximum load in the boot. If a fault occurs, this warning lamp
is displayed in the instrument panel,
accompanied by an audible signal
and a message in the instrument
panel screen.
In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, in relation to the load in the vehicle.
If a fault occurs, do not touch the xenon
bulbs.
Contact a CITROËN dealer or a
qualified workshop.
The system then places your headlamps in the
lowest position.
Headlamp beam height adjustment
The initial setting is position "0" .

151
When the dipped or main beam headlamps
are on, this function, allows the light beams to
better follow the road.
The use of this function, coupled with the
xenon headlamps and the cornering lighting,
considerably improves the quality of your
lighting round bends.
Directional lighting
with directional lighting
without directional lighting
Programming
Operating fault
The system is activated or
deactivated in the vehicle
configuration menu.
The system is activated by default.
The state of the system stays in
memory on switching off the ignition.
This function is inactive:
-

w

hen stationary or at low speeds,
-
w

hen reverse is engaged. If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
screen.
Contact a CITROËN dealer or a
qualified workshop.
Visibility

Rear wiper
If a significant accumulation of snow
or ice is present, or when using a
bicycle carrier on the boot, deactivate
the automatic rear wiper via the
configuration menu.park,
intermittent wipe,
wash-wipe (set duration).Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
The function is activated or
deactivated via the configuration
menu.
This function is activated by default.
Programming
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when the
dipped or main beam headlamps are on,
with the vehicle moving .
Windscreen and headlamp
wash
Rear wiper selection ring:
To reduce the consumption of the fluid by the
headlamp washers, they operate only with
every seventh use of the screenwash or every
25 miles (40 km) during a given journey.

2 11
Changing a bulb
Front lamps
Model with directional xenon
headlamps
1. daytime running lamps / sidelamps
(LEds ).
2.
di

rectional main beam / dipped beam
headlamps (
d1S

).
3.
di

rection indicators (LE
ds
).
4.
di

rectional foglamps (LE
ds

).
Model with halogen headlamps
1. Main beam headlamps (H1).
2. di
pped beam headlamps (H7).
3.
da

ytime running lamps / sidelamps
(LE
d s)*.
4.
di

rection indicators (HY21).
5.
di

rectional foglamps ( H11) .
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LEd)
For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.
* LEDs: light-emitting diodes.
Practical information

The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.
