2015.5 Citroen DS4 RHD stop start

Instruments and controls
Monochrome screens 43-46
Seat belt / front passenger airbag warning lamp display

1
70 -171, 175
Reversing camera

2
23
Audio system

3
87- 414
Setting the date / time

4
6
Touch screen tablet

4
7-51, 317-385
Setting the date / time

5
1
Dashboard fuses

2
49 -252
Opening the bonnet

2
80Rear view mirror

9
6
Courtesy lamps
1
40
Adjusting headlamps
1
32
Manual gearbox
1

97
Automatic gearbox

1
98 -201
Parking brake

1
90 -195, 196
Interior mood lighting

1
41
Door mirrors
9
4-95
Electric windows

8
1- 82
Ignition switch / Steering lock /
Starting with the key

1
84-186
Steering lock / Starting with the START/STOP button

1
84, 187-189
Instrument panels

1
8 -20
Warning lamps
2
1-34
Indicators 35 -38
Manuel test 3 9
Setting buttons

4
0 - 42
-

t
rip distance recorder
-
d

ashboard lighting dimmer / black panel
-

c
ustomisation of dials and screens
Ventilation
9

7-99
Manual air conditioning

1
00 -101, 106
Digital air conditioning

1
02-105, 106
Demisting / defrosting the rear screen

1
07

Emergency call 165, 314-315
Access to CITROËN services

1
65, 314-315DSC/ASR system
1 67-168
Fuel filler flap

2
75 -277
Hazard warning lamps

1
64-165
Central locking

7
5 -76
Black panel (comfortable night driving display)

4
2Alarm volumetric monitoring

7
7- 80
Electric child lock

1
60

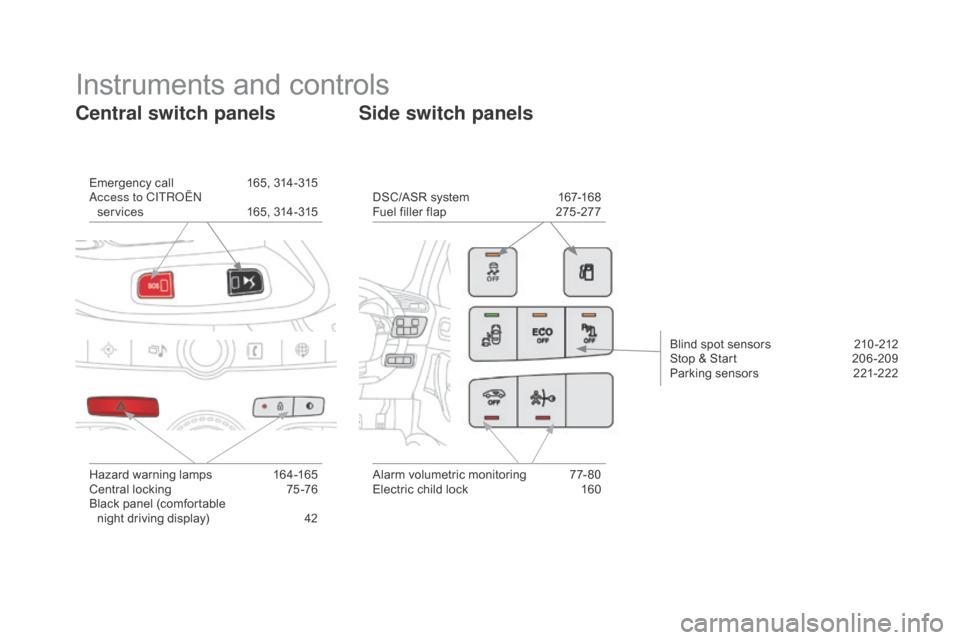

Side switch panels
Central switch panels
Instruments and controls
Blind spot sensors 2 10 -212
Stop & Start 2 06 -209
Parking sensors

2
21-222

23
Warning/indicator lampis on Cause Action/Observations
Battery charge fixed. The battery charging circuit has a fault
(dirty or loose terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Braking fixed, associated with
the STOP warning
lamp. The braking system fluid level has
dropped significantly.
You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+ fixed, associated with
the electric parking
brake malfunction
warning lamp, if the
parking brake is
released.The braking system has a fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
+ fixed, associated with
the STOP and ABS
warning lamps.The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Monitoring

Lighting dimmerfixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.
Automatic wiping
fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Warning
/indicator lampis on Cause Action/Observations
di
esel engine
pre-heating fixed.
The ignition switch is at the
2
nd position (Ignition on) or the
" START/STOP " starting button has
been pressed. Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that the brake pedal remains pressed with an
automatic gearbox, or the clutch pedal is pressed fully
down with a manual gearbox.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

33
Passenger's
airbag systemfixed in the seat belt
and passenger's front
airbag warning lamps
display.The control switch, located in the
glove box, has been placed in
the

"On" p
osition.
The passenger's front airbag is activated.
In this case, do not install a rear ward
facing child seat on this seat.Move the control switch to the "OFF" position to
deactivate the passenger's front airbag.
In this case, you can install a rear ward facing child
seat, unless there is a fault with the airbags (airbag
warning lamp on).
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,

...) the Stop & Start system
has put the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a
few

seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on Stop & Start, refer to the
corresponding section.
Warning
/indicator lampis on Cause Action/Observations
Monitoring

53
- the current information tab with:● t he range,
●

t
he current fuel consumption,
●

t
he Stop & Start time counter.
-

t
he trip "1" tab with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the first trip.
-

t
he trip "2" tab with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,


f
or the second trip.
Trip zero reset
F When the trip required is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Monitoring

55
Touch screen tablet
display of information
Permanent display:Temporary display in a new window:
F

P
ress the end of the wiper control stalk for
access to the information and display the
different tabs.
The current instantaneous fuel consumption tab with:- the range,
- t he current fuel consumption,
-

t
he Stop & Start time counter.
The trip "1" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the first trip.
The trip "2" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F Select the "dr iving" menu.
The trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab. F

W
hen the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
1.


"
Instantaneous ".
2.
" T

r i p 1
".
3.


"
Tr i p 2 ".
4.
" 0

0.0 / Reset
".
Monitoring

A few definitions…
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.This function is only displayed from
20
mph (30 km/h).
The fuel consumption of your vehicle
will be higher than the official figures
obtained by CITROËN during the first
1
800 miles (3 000 km) of the vehicle's
life.
Range
(miles or km)
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel
consumption
(mpg or l/100 km or km/l)
Average speed
(mph or km/h)
distance travelled
(miles or km)
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on. Calculated since the last trip computer reset. Calculated since the last trip computer reset.
Calculated over the last few seconds.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated since the last trip computer reset.
