2015.5 Citroen BERLINGO MULTISPACE RHD sensor

122
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
ACTIVE CITY BRAKE
Active City Brake is a driving assistance
  system   that   aims   to   avoid
a frontal collision or reduce the speed
of

  an   impact   if   the   driver   does   not
react

  sufficiently   (inadequate   brake
application).
This

  system   is   designed   to
improve

  driving   safety.
It
  remains   the   driver's   responsibility   to
continuously

  monitor   the   state   of   the
traffic

  and   to   assess   the   distances   and
relative

  speeds   of   other   vehicle.
Active
  City   Brake   can   in   no
circumstances

  replace   the   need   for
vigilance

  on   the   part   of   the   driver. Never
  look   at   the   laser   sensor
through

  an   optical   instrument
(magnifying

  glass,   microscope...)
at a distance of less than
10 centimetres:

  risk   of   eye   injury.Principle
Using a laser sensor located at the top
of  the   windscreen,   this   system   detects
a

  vehicle   running   in   the   same   direction
or

  stationary   ahead   of   your   vehicle.
When
  necessary,   the   vehicle's   braking
system

  is   operated   automatically
to avoid a collision with the vehicle
ahead.Automatic

  braking   occurs   later
than if done by the driver

, so as
to intervene only when there is a
high
  risk   of   collision.
Conditions for activation
Active City Brake only operates if the following  conditions   are   met:
●

ignition
  on,
●

the
  vehicle   is   in   a   forward   gear,
●

speed
  is   between   about   3   and
18 mph

  (5   and   30   km/h),
●

the
  braking   assistance   systems
(ABS,

  EBFD,   emergency   braking
assistance) are not faulty

,
●

the
  trajectory   control   systems
(

a SR, d SC) are not deactivated or
faulty,
●

the
  vehicle   is   not   in   a   tight   corner,
●

the
  system   has   not   been   triggered
during

  the   previous   10   seconds.
driving safely

123
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
Operation
When your vehicle is too close to or
approaches the vehicle ahead too
quickly  the   system   automatically
applies

  the   brakes   to   avoid   a   collision.
You are then alerted by the display of a
message.
The
  brake   lamps   on   your   vehicle   come
on

  to   warn   other   road   users.
The collision can be avoided
automatically
  if   the   difference   in
speed between your vehicle and the
vehicle

  ahead   does   not   exceed   9   mph
(15 km/h).
Above

  this   threshold,   the   system   will
do what is possible to avoid or reduce
the accident by lowering the speed of
impact.
The

  automatic   braking   may   bring
the

  vehicle   to   a   complete   stop   if   the
situation

  requires   it.
In this case, the vehicle is held
stationary
  temporarily   (for   about
1.5 seconds)

  to   allow   the   driver   to   take
back

  control   by   pressing   the   brake
pedal. The

  triggering   of   the   system   may  cause the engine to stall, unless
the driver depresses the clutch
pedal
  quickly   enough   during   automatic
braking.
During

  automatic   braking,   the
driver can always obtain a higher
rate of deceleration than that
controlled

  by   the   system,   by   pressing
firmly

  on   the   brake   pedal.
After
  an   impact,   the   system   is
automatically

  put   out   of   service:   it
no

  longer   operates.
You
  must   go   to   a   CITROËN   dealer   or   a
qualified

  workshop   to   have   the   system
made

  operational   again.
Operating limits
The system only detects vehicles that are  stationary   or   moving   in   the   same
direction

  as   your   vehicle.
It
  does   not   detect   small   vehicles
(bicycles,

  motorcycles),
pedestrians

  or   animals,   nor   non-
reflective
  stationary   objects.
The
  system   is   not   triggered   or   is
interrupted

  if   the   driver:
-

accelerates strongly
-


or turns the steering wheel
suddenly

  (avoiding   manoeuvre).
In
  difficult   weather   conditions   (very
heavy

  rain,   snow,   fog,   hail...),
braking

  distances   increase,   which
can

  reduce   the   ability   of   the   system   to
avoid

  a   collision.
The
  driver   must   therefore   remain
particularly

  vigilant.
Never
  leave   accumulations   of
snow

  or   any   object   projecting
above the bonnet or in front of
the

  roof:   this   might   fall   into   the   field   of
vision of the sensor and generate a
detection.
driving safely
SaFETY
5

125
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
Operating faults
Sensor fault
The  operation   of   the   laser   sensor   may
suf

fer   interference   from   accumulations
of

  dirt   or   misting   of   the   windscreen.
In this case you are warned by the
display

  of   a   message.
Use
  the   windscreen   demisting
and regularly clean the area of the
windscreen

  in   front   of   the   sensor.
Do
  not   stick   or   otherwise   fix   any
object

  on   the   windscreen   in   front
of

  the   sensor. System fault
In
  the   event   of   a   malfunction   of   the
system,

  you   are   warned   by   an   audible
signal

  and   the   display   of   the   message
"Automatic braking system fault"

.
Have
  the   system   checked   by   a
CITROËN

  dealer   or   a   qualified
workshop.In

  the   event   of   an   impact   to  the windscreen at the sensor
,
deactivate
  the   system   and   contact
a

  CITROËN   dealer   or   a   qualified
workshop

to
have

your

windscreen

replaced.
Never

  try   to   remove,   adjust   or   test
the

  sensor.
o

nly a CITR o Ë n dealer or a
qualified
  workshop   is   able   to   work
on

  the   system.
When towing a trailer or when the
vehicle
  is   being   towed,   the   system
must

  be   deactivated.
driving safely
SaFETY
5

 149
Towing a trailer
Berlingo-2-VP_en_Chap06_Accessoire_ed02-2015
Good Practice
In certain cases of particularly arduous
use  (towing   the   maximum   load   up   a
steep

  slope   in   high   temperatures),   the
engine

  automatically   limits   its   power.
In this case, the air conditioning is
automatically

  cut   off   to   save   engine
power

.
Tyres
Check
  the   tyre   pressures   of   the   towing
vehicle and of the trailer

, observing the
recommended
  pressures.
Chapter
  7,   "Levels"   section.
If
  the   coolant   temperature
warning

  lamp   comes   on,   stop
the vehicle and switch of

f the
engine
  as   soon   as   possible.Brakes
Towing
  increases   the   braking   distance.  Drive
  at   a   moderate   speed,   change
down

  early   and   brake   gradually.
Towbar
We recommend the use of genuine CITRo Ë n towbars and their wiring
harnesses, which have been tested
and
  approved   from   the   design   stage   of
your vehicle, and that you entrust the
fitting

  of   this   equipment   to   a   CITROËN
dealer

.
If
  this   equipment   is   not   fitted   by   a
CITROËN

  dealer,   it   is   imperative   that
it

  is   fitted   using   the   electrical   pre-
equipment
  installed   at   the   rear   of   the
vehicle and in accordance with the
manufacturer's

  instructions.
In accordance with the general
instructions
  a   reminder   of   which   has
been given above, we draw your
attention

  to   the   risk   associated   with
fitting

  a   towbar   or   electrical   accessory
not

  recommended   by   CITROËN.
Fitting

  such   equipment   could   result   in
the failure of your vehicle's electronic
system.

  Please   obtain   information   from
the

  Manufacturer   before   fitting   this   type
of

  equipment.
Side wind
Sensitivity

to

side

wind

is

increased.

Drive


smoothly

and

at

a

moderate

speed.
ABS/DSC
The


ABS


or

DSC

systems

only

control

the


vehicle,

not

the

trailer

or

caravan.
Parking sensors
The

rear

parking

sensors

system

does

not


function

while

the

vehicle

is

towing.
Chapter

9,

"Identification

markings"


section.
ACCESSORIES
6

152
Berlingo-2-VP_en_Chap06_Accessoire_ed02-2015
Equipment
Berlingo-2-VP_en_Chap06_Accessoire_ed02-2015
OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle.
A
wide   range   of   recommended
accessories and genuine parts is
available.
a further range is also available,
structured

  around   comfort,   leisure   and
maintenance:
Anti-theft

  alarm,   window   etching,   first
aid

  kit,   high   visibility   vest,   front   and
rear

  parking   sensors,   warning   triangle,
security

  bolts   for   alloy   wheels, ...
Seat
  covers   compatible   with   airbags
for the front seats, bench seat, rubber
mats,


carpet

mats,

snow

chains,

blinds,

tailgate

  bicycle   carrier,   ...
To
  prevent   the   mat   from   becoming
caught

  under   the   pedals:
-

ensure
  that   the   mat   and   its   fixings
are positioned correctly

,
-

never
  fit   one   mat   on   top   of   another.Audio
  equipment,   hands-free   kit, speakers,
  CD   changer,   satellite navigation


system,

USB

box,

V
ideo
kit,
...
Regardless
  of   the   audio   and   telematic
 equipment

  offered   on   the   market,   the
 technical constraints associated with


the
  fitting   of   equipment   of   these   product
 groups

  mean   that   the   special   features
 of

  the   equipment   and   its   compatibility
 with the capacities of your vehicle's


standard
  equipment   must   be   taken   into
 account.

  Please   ask   a   CITROËN   dealer
 for

  more   information   before   fitting   such
 equipment.
Maximum weights on bars
-


T
ransverse bars on longitudinal
bars:
  75   Kg   (these   bars   are   not
compatible

  with   the   Modutop   roof).
Installing radiocommunication
transmitters
You are advised to contact a CITR
o Ë n
dealer before installing accessory
radiocommunication
  transmitters   with
external

  aerial   on   your   vehicle.
The
  CITROËN dealer   network
will

  inform   you   of   the   specification
(frequency

  band,   maximum   output
power

,   aerial   position,   specific
conditions of installation) of the
transmitters

  which   can   be   fitted,   in
accordance with the Motor V

ehicle
Electromagnetic
  Compatibility
Directive (2004/104/EC).Front

  mud   flaps,   rear   mud   flaps,  15/17 inch
  alloy   wheels,   wheelarch
trim,

  leather   steering   wheel,   ...
Screenwash, interior and exterior
cleaning
  and   maintenance   products,
spare

  bulbs,   ...
The
  fitting   of   electrical   equipment
or accessories which are not
recommended

  by   CITROËN   may
result in a failure of your vehicle's
electronic

  system.   Please   note   this
specific

  warning.
Y
ou   are   advised
to contact a dealer to be shown the
range

  of   recommended   equipment   or
accessories.
d

epending on the country in which
the
  vehicle   is   sold,   it   is   compulsory
to have a high visibility vest, warning
triangle and spare bulbs available in
the

  vehicle.

176
Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015

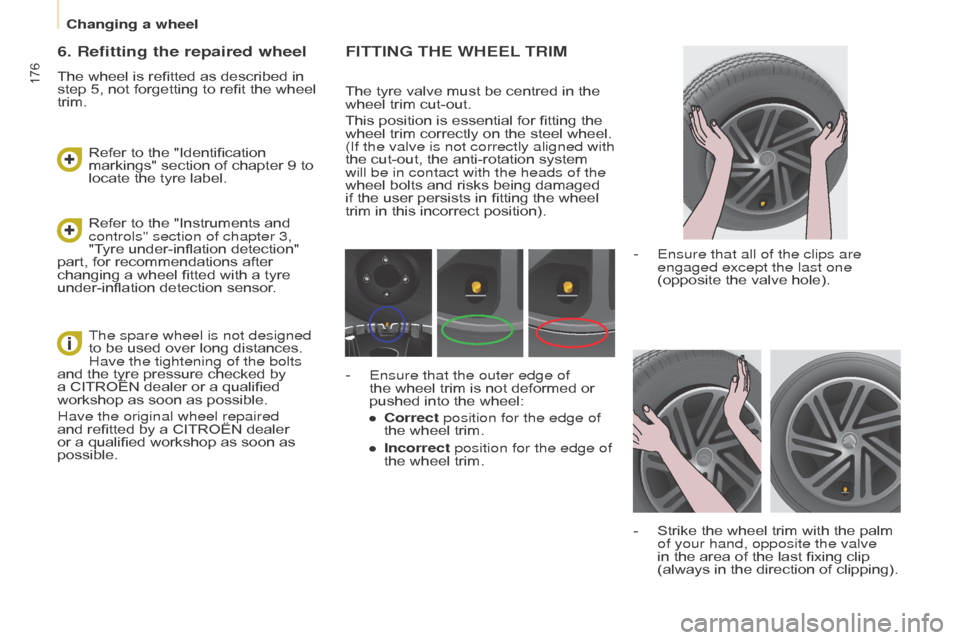

FITTING THE WHEEL TRIM
The tyre valve must be centred in the wheel
  trim   cut-out.
This
  position   is   essential   for   fitting   the
wheel

  trim   correctly   on   the   steel   wheel.
(If

the valve is not correctly aligned with
the
  cut-out,   the   anti-rotation   system
will be in contact with the heads of the
wheel

  bolts   and   risks   being   damaged
if

  the   user   persists   in   fitting   the   wheel
trim

  in   this   incorrect   position). -

Ensure that all of the clips are
engaged except the last one
(opposite

  the   valve   hole).
-

Strike
  the   wheel   trim   with   the   palm
of your hand, opposite the valve
in

  the   area   of   the   last   fixing   clip
(always

  in   the   direction   of   clipping).
-

Ensure that the outer edge of
the

  wheel   trim   is   not   deformed   or
pushed

  into   the   wheel:
●

Correct
position for the edge of
the
  wheel   trim.
●

Incorrect
position for the edge of
the
  wheel   trim.
6. Refitting the repaired wheel
The wheel is refitted as described in step  5,   not   forgetting   to   refit   the   wheel
trim.
Refer

  to   the   "Instruments   and
controls" section of chapter 3,
"T

yre   under-inflation   detection"
part,

  for   recommendations   after
changing

  a   wheel   fitted   with   a   tyre
under-inflation

  detection   sensor.
Refer
  to   the   "Identification
markings"

  section   of   chapter   9   to
locate

  the   tyre   label.
The spare wheel is not designed
to
  be   used   over   long   distances.
Have the tightening of the bolts
and

  the   tyre   pressure   checked   by
a

  CITROËN   dealer   or   a   qualified
workshop

  as   soon   as   possible.
Have the original wheel repaired
and
  refitted   by   a   CITROËN   dealer
or

  a   qualified   workshop   as   soon   as
possible.
Changing a wheel

187
Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015
Dashboard fuses
Tilt the cover to gain access to the
fuses.Fuses
F Amperes
a a llocation
1 15 Rear wiper
2 -
n

ot used
3 5
a

irbag
4 10 Air
  conditioning,   diagnostic   socket,   mirror   control,
headlamp

  beam
5 30 Electric windows
6 30Locks
7 5Rear
  courtesy   lamp,   front   map   reading   lamp,   roof
console
8 20 Audio

  equipment,   screen,   tyre   under-inflation
detection,

  alarm   and   siren
9 30Front
  and   rear   12V   socket
10 15 Central
  column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument
  panel
14 15 Parking
  sensors,   digital   air   conditioning   controls,
hands-free

  phone   kit
15 30 Locks
16 -
n

ot used
17 40Rear
  screen/mirrors   demist/defrost
QUICk HELP
8
Changing a fuse

189
Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed02-2015
Fuses under the bonnet
after opening the bonnet, unclip and tilt
the corresponding box to gain access
to
  the   fuses. Fuses
F Amperes
a a llocation
1 20 Engine
  management
2 15 Horn
3 10 Front
  and   rear   wash-wipe   pump
4 20 Headlamp
  wash   pump
5 15 Engine
  components
6 10 Steering wheel angle sensor,
d SC
7 10Brake
  switch,   clutch   switch
8 25 Starter
  motor
9 10Headlamp
  beam   motor,   fleet   management   unit
10 30 Engine
  components
11 40
n

ot used
12 30 Wipers
13 40 Built-in
  systems   interface
14 30 Pump
15 10 Right-hand
  main   beam   headlamp
16 10Left-hand
  main   beam   headlamp
17 15Right-hand
  dipped   beam   headlamp
18 15 Left-hand
  dipped   beam   headlamp
QUICk HELP
8
Changing a fuse
