INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU38625
Immobilizer system in dicator li ght
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system
circuits. (See page 3-15 for an expla-
nation of the self-diagnosis device.)
EAU51814
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g settin
gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a tachometer
 an odometer
 two tripmeters (which show the
distance traveled since they were
last set to zero)
 a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
 a stopwatch
 a clock
 a coolant temperature display
 an air intake temperature display
 a transmission gear display
 a drive mode display (which
shows the selected drive mode)
 a fuel consumption display (in-
stantaneous and average con-
sumption functions)
 a traction control system mode
display (which shows the selected
traction control system mode)
1. “RESET” button
2. “SELECT” button
3. Tachometer
4. Shift timing indicator light
5. Traction control system mode display
6. Coolant temperature display/air intake tem-
perature display
7. Drive mode display
8. Speedometer
9. Odometer/tripmeter/fuel reserve tripme- ter/instantaneous fuel consumption dis-
play/average fuel consumption display
10.Clock/stopwatch
11.Transmission gear display2
1 3
4
5
6
7
8
9
10
11
U2SGE0E0.book Page 8 Wednesday, June 12, 2013 1:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
a self-diagnosis device
 a display brightness and shift tim-
ing indicator light control mode
TIPBe sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons, except for setting
the display brightness and shift
timing indicator light control
mode.
 For the U.K. only: To switch the
speedometer and odometer/trip-
meter/fuel consumption displays
between kilometers and miles,
press the “SELECT” button for at
least one second.
Tachometer
The electric tachometer allows the rid-
er to monitor the engine speed and
keep it within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle sweeps once across
the r/min range and then returns to
zero r/min in order to test the electrical
circuit.NOTICE
ECA10032
Do not operate the en gine in the ta-
chometer red zone.
Re d zone: 13750 r/min an d a bove
Clock an d stopwatch mo des
To set the clock1. Push the “SELECT” button and “RESET” button together for at
least two seconds.
2. When the hour digits start flash- ing, push the “RESET” button to
set the hours.
3. Push the “SELECT” button, and the minute digits start flashing.
4. Push the “RESET” button to set the minutes.
5. Push the “SELECT” button and then release it to start the clock.
1. Tachometer
2. Tachometer red zone
2
1
1. Clock/stopwatch
1
U2SGE0E0.book Page 9 Wednesday, June 12, 2013 1:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
To display the stopwatch
To change the display to the stop-
watch mode, push the “SELECT” but-
ton and “RESET” button together. To
change the display back to the clock
mode, push the “SELECT” button and
“RESET” button together; however,
this is not possible when the stop-
watch is counting.
Standard measurement1. Push the “RESET” button to start
the stopwatch.
2. Push the “SELECT” button to stop the stopwatch.
3. Push the “SELECT” button again to reset the stopwatch.
Split time measurement1. Push the “RESET” button to start the stopwatch.
2. Push the start switch “ ” or “RE- SET” button to measure split
times. Split times are displayed on
the odometer display for five sec-
onds. 3. Push the start switch “ ” or “RE-
SET” button to display the final
split time or push the “SELECT”
button to stop the stopwatch and
display the final split time.
Split time history
The split time history displays up to 20
stored split times. The split time history
can be displayed either in reverse
chronological order or by speed. 1. Push the “SELECT” button for at least one second to select the re-
verse chronological order mode;
“L-20” displays on the stopwatch. Push the “SELECT” button again
to select the speed mode; “F-20”
displays on the stopwatch.
TIP
Reverse chronological order
mode: The split times are shown
from the latest to earliest (i.e., L1,
L2, L3, L4).
 Speed order mode: The split times
are shown from the fastest to
slowest (i.e., F1, F2, F3, F4).2. Push the “RESET” button. De-
pending on the selected split time,
“L1” or “F1” displays on the cool-
ant temperature display/air intake
temperature display, and its corre-
sponding stored split time dis-
plays on the stopwatch.
3. Push the “SELECT” button to switch the displayed split time in
ascending order (i.e., 1, 2, 3, 4),
and the “RESET” button to switch
the displayed split time in de-
scending order (i.e., 20, 19, 18,
17).
1. Coolant temperature display/air intake tem-perature display
2. Stopwatch
21
U2SGE0E0.book Page 10 Wednesday, June 12, 2013 1:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3Ri
ght
Hazar d switch
EAU12381
Pass switch “ ”
Press this switch to flash the head-
lights.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU51842
Traction control system switch
“TCS”
This switch is used to select the trac-
tion control system modes.
See “Traction control system” on page
3-22 for detailed information.
EAU12661
En gine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12712
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41701
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
EAU12734
Hazar d switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
1. Engine stop switch “ / ”
2. Drive mode switch “MODE”
3. Start switch “ ”
1. Hazard switch “ ”
213
1
U2SGE0E0.book Page 19 Wednesday, June 12, 2013 1:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-37
3

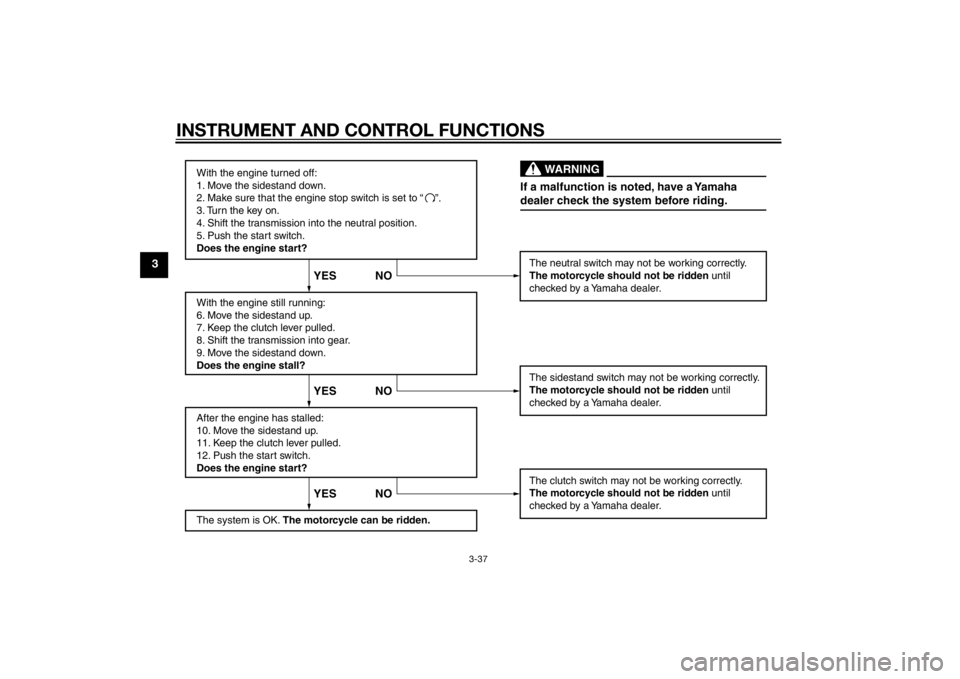

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden. The neutral switch may not be working correctly.
The motorcycle should not be ridden
until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U2SGE0E0.book Page 37 Wednesday, June 12, 2013 1:15 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU48711
TIPThis model is equipped with:  a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear
the error code. Failing to do so will
prevent the engine from starting
even though the engine will crank
when pushing the start switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start
switch to restart the engine.
EAU51881
Startin g the en gineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
 The transmission is in the neutral
position.
 The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-36 for more informa-
tion.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off. Oil level warning light
 Fuel level warning light
 Coolant temperature warning
light
 Shift timing indicator light
 Engine trouble warning light
 Traction control system indi-
cator/warning light
 Immobilizer system indicator
light
U2SGE0E0.book Page 1 Wednesday, June 12, 2013 1:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-41
6En

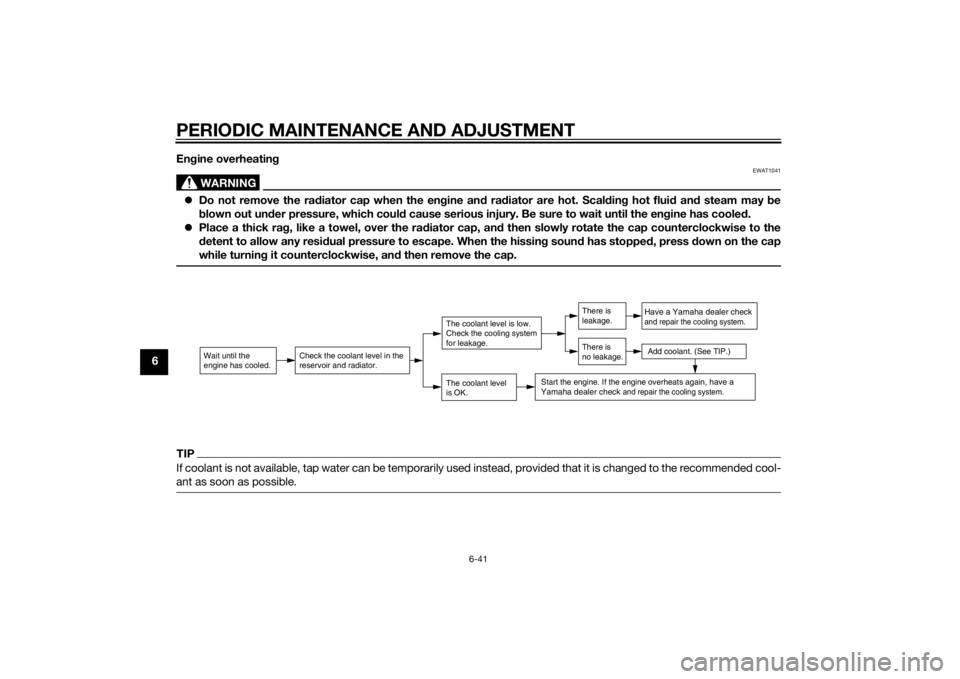

gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2SGE0E0.book Page 41 Wednesday, June 12, 2013 1:15 PM

INDEXAAir filter element .................................... 6-17
Auxiliary light......................................... 6-38BBattery .................................................. 6-32
Brake and clutch levers, checking and lubricating ........................................... 6-29
Brake and shift pedals, checking and lubricating ........................................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ............................................ 3-21
Brake lever free play, checking............. 6-22
Brake light switches.............................. 6-23
Brake pedal........................................... 3-22CCables, checking and lubricating ......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-27
Clutch lever ........................................... 3-20
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-14
Coolant temperature warning light ......... 3-5
Cowlings, removing and installing .......... 6-8DDimmer switch ...................................... 3-19
D-mode (drive mode) ............................ 3-18
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack................................... 6-25EEngine break-in....................................... 5-3
Engine idling speed, checking .............. 6-17
Engine oil and oil filter cartridge ........... 6-11
Engine stop switch ............................... 3-19 Engine trouble warning light ................... 3-7
FFront and rear brake pads, checking ... 6-23
Front fork, adjusting ............................. 3-31
Front fork, checking ............................. 6-30
Fuel ....................................................... 3-25
Fuel consumption, tips for reducing ...... 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose and overflow
hose ................................................... 3-26
Fuel tank cap ........................................ 3-24
Fuses, replacing ................................... 6-33HHandlebar switches .............................. 3-18
Hazard switch....................................... 3-19
Headlight bulb, replacing ..................... 6-35
Helmet holder ....................................... 3-29
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-19IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-36
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-8
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing........ 6-37
Luggage strap holders ......................... 3-35MMain switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system.................................................. 6-3
Matte color, caution ............................... 7-1 Model label .............................................9-1
Multi-function meter unit .........................3-8
NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PParking ....................................................5-4
Part locations ..........................................2-1
Pass switch ...........................................3-19RRear view mirrors ..................................3-30
Rider footrest position, adjusting ..........3-30SSafety information ...................................1-1
Seats .....................................................3-27
Shifting ....................................................5-2
Shift pedal .............................................3-21
Shift timing indicator light .......................3-7
Shock absorber assembly, adjusting ....3-33
Sidestand ..............................................3-35
Sidestand, checking and lubricating.....6-29
Spark plugs, checking ..........................6-10
Specifications .........................................8-1
Starting the engine ..................................5-1
Start switch ...........................................3-19
Steering, checking ................................6-31
Storage ...................................................7-4
Storage compartment ...........................3-29
Supporting the motorcycle ...................6-38
Swingarm pivots, lubricating ................6-30TTail/brake light ......................................6-36
U2SGE0E0.book Page 1 Wednesday, June 12, 2013 1:15 PM
