Helmet indicator light “ ”
The indicator light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
indicator light does not come on when the key
is turned to “ ” (on), have a Yamaha dealer
check the electrical circuit.
Seat belt indicator light “ ”
The indicator light comes on when the key is
turned to “ ” (on) to remind the occupants to
fasten their seat belt. The indicator light stays
on until the driver seat belt is properly latched.
If the indicator light does not come on when
the key is turned to “ ” (on), or if the indica-
tor light remains on after the driver seat belt is
properly latched, have a Yamaha dealer
check the electrical circuit.
5B410004Multi-function meter unit1. “CLOCK” button 2. “RESET” button
3. “SELECT” button 4. Speedometer
5. Fuel meter
6. Clock/Hour meter/Voltage display
7. Odometer/Tripmeter A/Tripmeter BThe multi-function meter unit is equipped with
the following:●
a speedometer
●
an odometer
●
two tripmeters (which show the distance
traveled since they were last set to zero)
●
a clock321
4
5
6
7
1XP7B_EE.book Page 6 Tuesday, February 4, 2014 3:40 PM

4-8
4
5
6
7
8
9
10
11
12
13
14
To reset a tripmeter, select it by pushing the
“SELECT” button, and then push the “RE-
SET” button for at least three seconds. The
tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of fu-
el. This information enables you to plan future
fuel stops.TIPTo switch the display between “mph” and
“km/h”, turn the key to “ ” (off), then push
and hold the “SELECT” button while turning
the key to “ ” (on).
Clock, hour meter and voltage display
modes1. “SELECT” button 2. “RESET” button
3. “CLOCK” button
4. Clock/Hour meter/Voltage displayPushing the “CLOCK” button switches the dis-
play between the clock mode “CLOCK”, the
hour meter mode “HOUR”, and the voltage
display mode “ ” in the following order:
CLOCK → HOUR → → CLOCK
4
123
1XP7B_EE.book Page 8 Tuesday, February 4, 2014 3:40 PM

4-9
1
2
34
5
6
7
8
9
10
11
12
13
14
To set the clock1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET”button together for at least three sec-
onds.
3. When the hour digits start flashing, push
the “RESET” button to set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the min- utes.
6. Push the “SELECT” button, and then re-
lease it to start the clock. Voltage display mode
This display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and then
“ ” appears and the battery voltage is dis-
played.
If the battery voltage is less than 10 volts, “LO”
is displayed, and if the voltage is above 16
volts, “HI” is displayed.
1XP7B_EE.book Page 9 Tuesday, February 4, 2014 3:40 PM

4-17
1
2
34
5
6
7
8
9
10
11
12
13
14

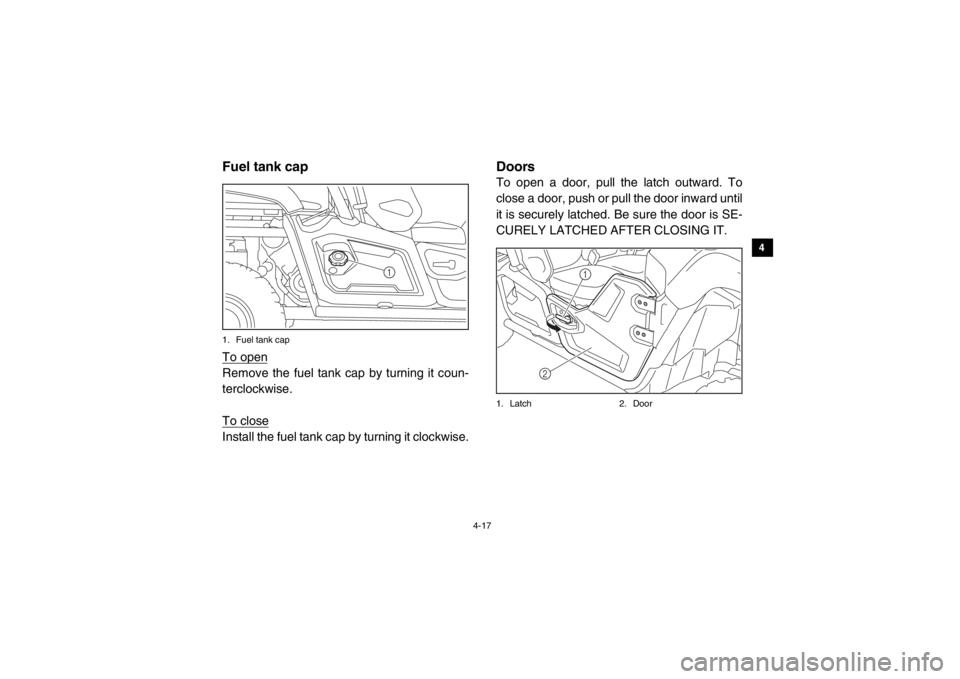

EVU00300Fuel tank cap1. Fuel tank capTo openRemove the fuel tank cap by turning it coun-
terclockwise.
To closeInstall the fuel tank cap by turning it clockwise.
DoorsTo open a door, pull the latch outward. To
close a door, push or pull the door inward until
it is securely latched. Be sure the door is SE-
CURELY LATCHED AFTER CLOSING IT.1. Latch2. Door
1
1
2
1XP7B_EE.book Page 17 Tuesday, February 4, 2014 3:40 PM

4-22
4
5
6
7
8
9
10
11
12
13
14

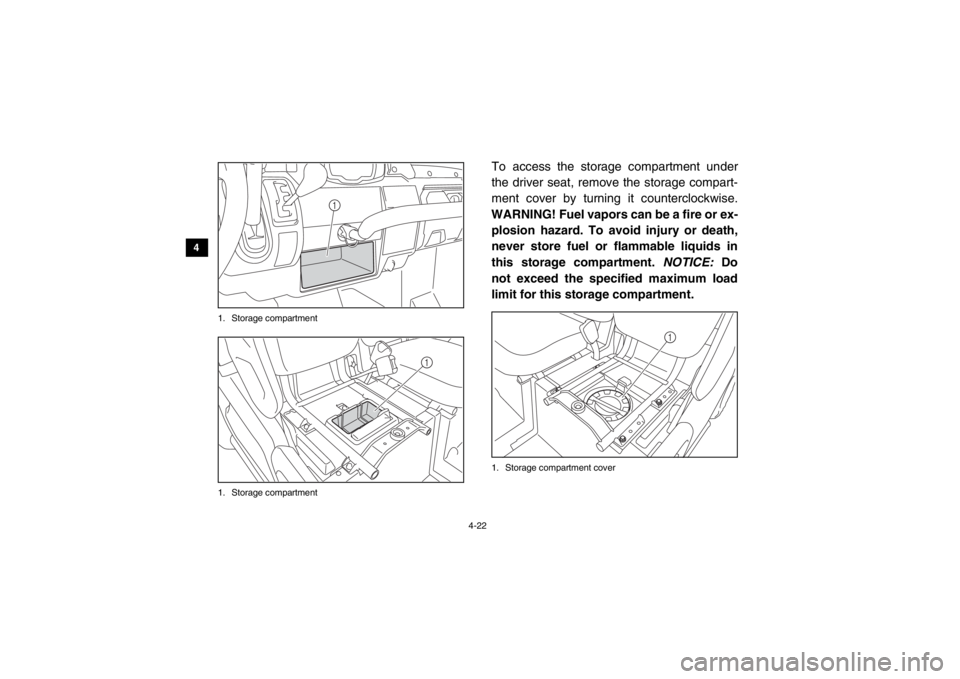

1. Storage compartment
1. Storage compartment
To access the storage compartment under
the driver seat, remove the storage compart-
ment cover by turning it counterclockwise.
WARNING! Fuel vapors can be a fire or ex- plosion hazard. To avoid injury or death,
never store fuel or flammable liquids in
this storage compartment. NOTICE: Do
not exceed the specified maximum load
limit for this storage compartment.1. Storage compartment cover
1
1
1
1XP7B_EE.book Page 22 Tuesday, February 4, 2014 3:40 PM

8-7
1
2
3
4
5
6
78
9
10
11
12
13
14

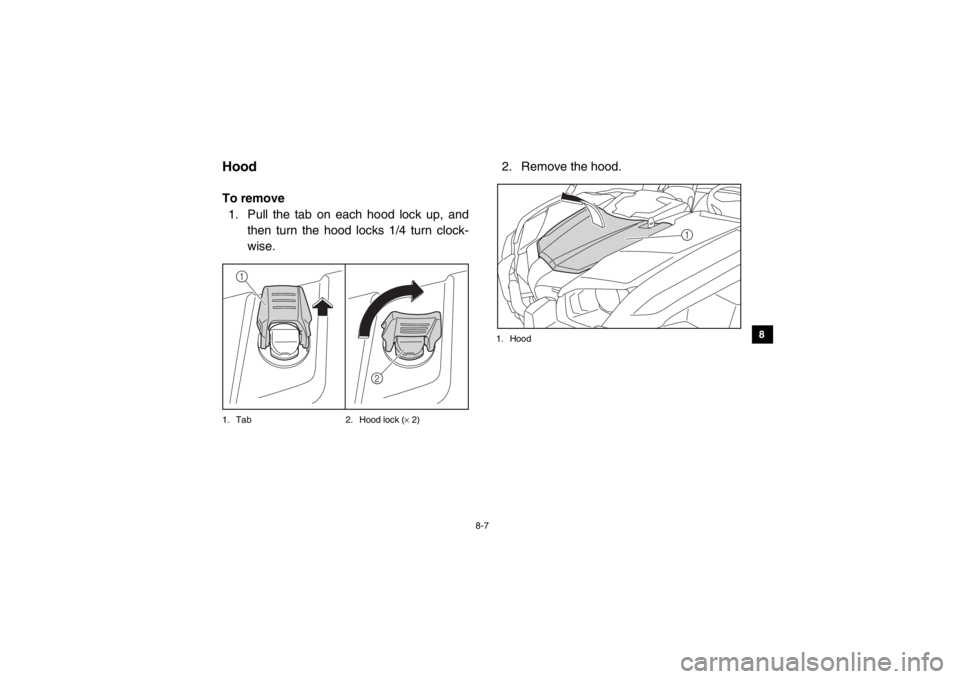

EVU00680HoodTo remove1. Pull the tab on each hood lock up, and then turn the hood locks 1/4 turn clock-
wise.1. Tab 2. Hood lock (× 2)
2. Remove the hood.1. Hood
1
2
1
1XP7B_EE.book Page 7 Tuesday, February 4, 2014 3:40 PM

8-8
8
9
10
11
12
13
14

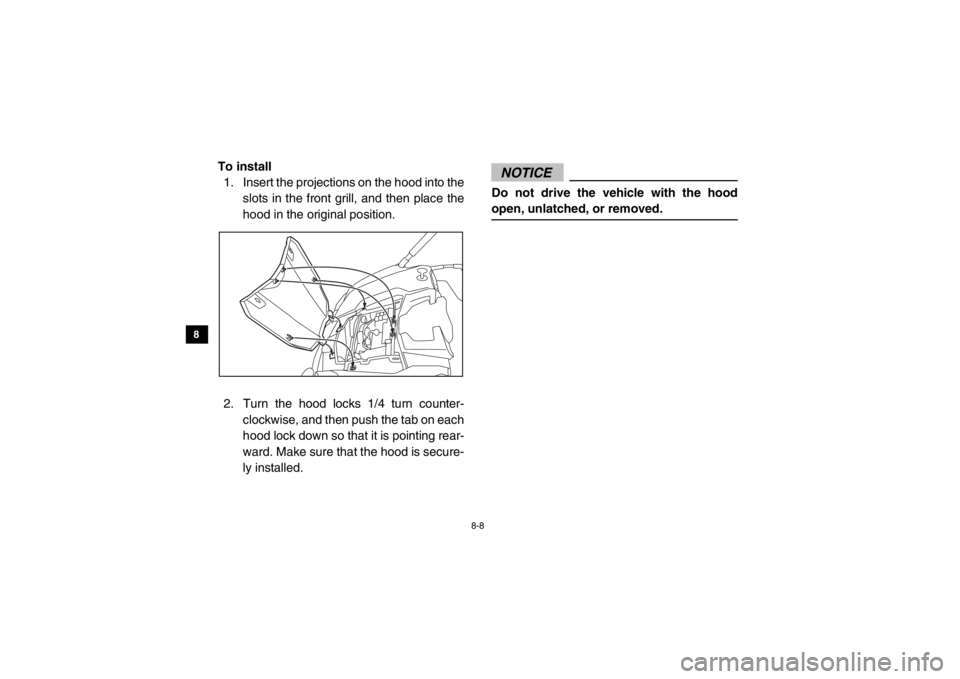

To install 1. Insert the projections on the hood into the slots in the front grill, and then place the
hood in the original position.
2. Turn the hood locks 1/4 turn counter- clockwise, and then push the tab on each
hood lock down so that it is pointing rear-
ward. Make sure that the hood is secure-
ly installed.
NOTICEDo not drive the vehicle with the hood
open, unlatched, or removed.
1XP7B_EE.book Page 8 Tuesday, February 4, 2014 3:40 PM

8-48
8
9
10
11
12
13
14

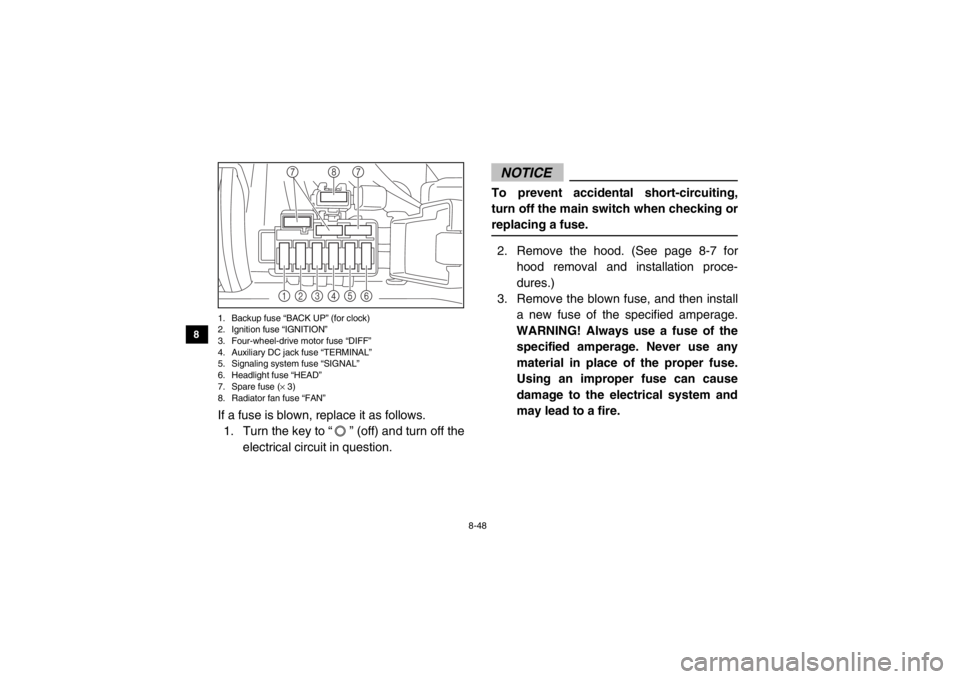

1. Backup fuse “BACK UP” (for clock)
2. Ignition fuse “IGNITION”
3. Four-wheel-drive motor fuse “DIFF”
4. Auxiliary DC jack fuse “TERMINAL”
5. Signaling system fuse “SIGNAL”
6. Headlight fuse “HEAD”
7. Spare fuse ( × 3)
8. Radiator fan fuse “FAN”If a fuse is blown, replace it as follows.
1. Turn the key to “ ” (off) and turn off the
electrical circuit in question.
NOTICETo prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.2. Remove the hood. (See page 8-7 for hood removal and installation proce-
dures.)
3. Remove the blown fuse, and then install a new fuse of the specified amperage.
WARNING! Always use a fuse of the specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
1
2
3
4
5
6
8
