The multi-function display is equipped
with the following:
a fuel meter
a coolant temperature meter
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled when
the remaining fuel in the fuel tank
reaches approximately 3.0 L (0.79
US gal, 0.66 Imp.gal))
a self-diagnosis device
a clock
an ambient temperature display
a fuel consumption display (aver-
age and instantaneous consump-
tion functions)
an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)
a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
TIP
Be sure to turn the key to “ON” be-
fore using the left and right set but-
tons.
When the key is turned to “ON”, all
of the display segments of the multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuits.
Clock
To set the clock:
1. Push the left set button and right set button together for at least two
seconds.
2. When the hour digits start flashing, push the right set button to set the
hours.
3. Push the left set button, and the minute digits will start flashing.
4. Push the right set button to set the

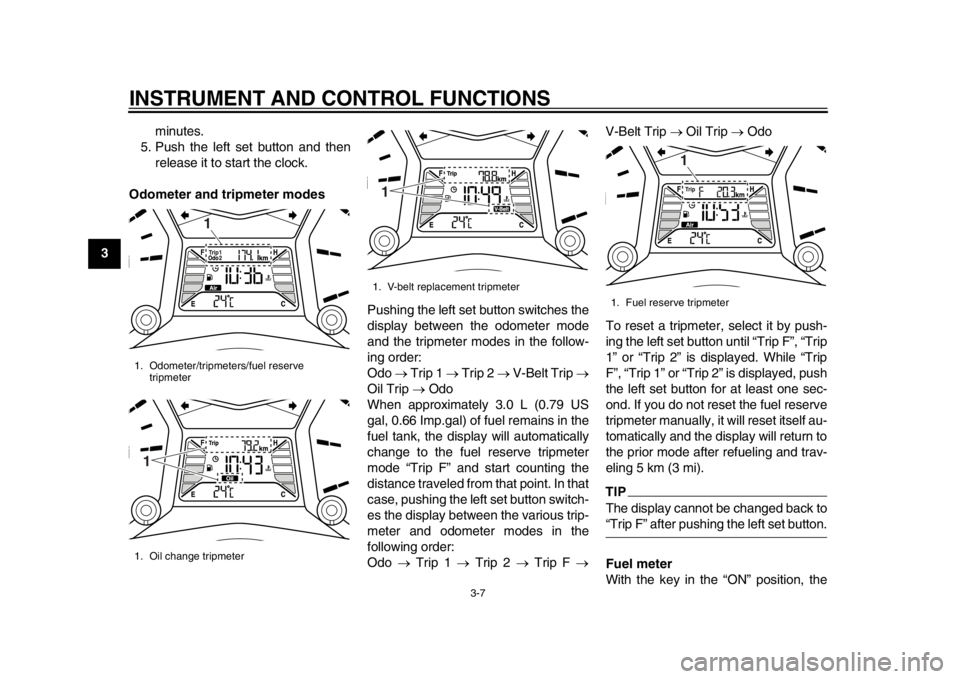

1. Tripmeter/fuel reserve tripmeter
2. Ambient temperature/average fuel consumption/instantaneous fuel
consumption
1. Clock
211
1. Clock
1
