PERIODIC MAINTENANCE AND ADJUSTMENT
6-45
6En

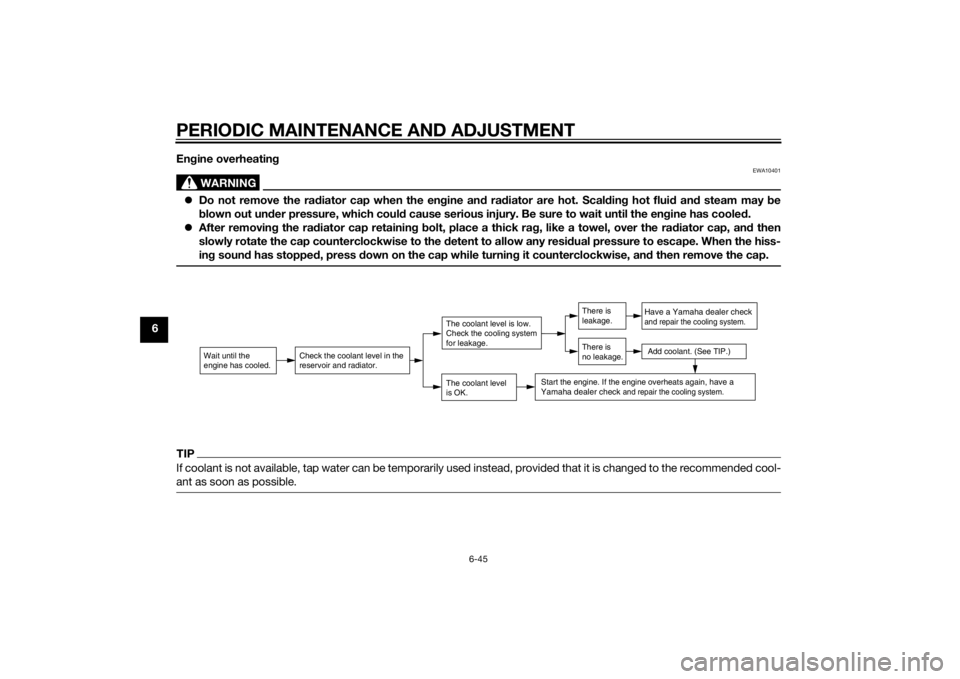

gine overheatin g
WARNING
EWA10401
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
After removin g the ra diator cap retainin g b olt, place a thick ra g, like a towel, over the rad iator cap, and then
slowly rotate the cap counterclockwise to the d etent to allow any residual pressure to escape. When the hiss-
in g soun d has stoppe d, press d own on the cap while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U1RCELE0.book Page 45 Monday, May 12, 2014 8:51 AM
10-1
10
INDEXAABS (for ABS models) ........................... 3-17
ABS warning light (for ABS models) ....... 3-5
Air filter element .................................... 6-14
Auxiliary DC connector ......................... 3-28
Auxiliary light bulb, replacing ................ 6-38BBattery .................................................. 6-29
Brake and clutch levers, checking and lubricating ........................................... 6-26
Brake and shift pedals, checking and lubricating ........................................... 6-26
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-16
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-20
Brake pedal........................................... 3-17CCables, checking and lubricating ......... 6-25
Care ........................................................ 7-1
Catalytic converter ................................ 3-20
Clutch lever ........................................... 3-16
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-11
Coolant temperature warning light ......... 3-4DDimmer switch ...................................... 3-14
D-mode (drive mode) ............................ 3-13
Drive chain, cleaning and lubricating .... 6-24
Drive chain slack................................... 6-23EEngine break-in....................................... 5-4
Engine idling speed, checking .............. 6-14 Engine oil and oil filter
cartridge ............. 6-9
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4
FFront and rear brake pads, checking ... 6-20
Front fork, adjusting ............................. 3-22
Front fork, checking ............................. 6-28
Fuel ....................................................... 3-19
Fuel consumption, tips for reducing ...... 5-4
Fuel tank breather hose and overflow
hose ................................................... 3-20
Fuel tank cap ........................................ 3-18
Fuses, replacing ................................... 6-31HHandlebar switches .............................. 3-14
Hazard switch....................................... 3-15
Headlight bulb, replacing ..................... 6-34
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-15IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-26
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-5
Indicator lights and warning lights ......... 3-3LLicense plate light bulb, replacing........ 6-37
Luggage strap holders ......................... 3-25MMain switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control system.................................................. 6-3
Matte color, caution ............................... 7-1 Model label .............................................9-1
Multi-function meter unit .........................3-6
NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PParking ....................................................5-5
Part locations ..........................................2-1
Pass switch ...........................................3-14SSafety information ...................................1-1
Seat .......................................................3-21
Shifting ....................................................5-2
Shift pedal .............................................3-16
Shock absorber assembly, adjusting ....3-24
Sidestand ..............................................3-26
Sidestand, checking and lubricating.....6-27
Spark plugs, checking ............................6-8
Specifications .........................................8-1
Start/Engine stop switch .......................3-15
Starting the engine ..................................5-1
Steering, checking ................................6-28
Storage ...................................................7-3
Storage compartment ...........................3-22
Supporting the motorcycle ...................6-39
Swingarm pivots, lubricating ................6-27TTail/brake light ......................................6-36
Throttle grip and cable, checking and
lubricating ...........................................6-25
Throttle grip free play, checking ...........6-15
Tires ......................................................6-15
Tool kit ....................................................6-2
