PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
use a fuse of a hi
gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive dam-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU59881
Replacin g the hea dlig ht bul bThis model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10651
Take care not to d amage the follow-
in g parts:
 Hea dlig ht bul b
Do not touch the glass part of
the hea dlig ht bul b to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bul b, an d the bul b life will
b e a dversely affected . Thor-
ou ghly clean off any dirt an d fin-
g erprints on the head lig ht bul b
usin g a cloth moistene d with al-
cohol or thinner.
 Hea dlig ht lens
Do not affix any type of tinted
film or stickers to the hea dlig ht
lens.
Do not use a hea dlig ht bul b of a
watta ge hi gher than specified .
Specified fuses:
Main fuse: 30.0 A
Auxiliary fuse:
2.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse: 7.5 A
Radiator fan fuse: 10.0 A
ABS motor fuse:
MT07A 30.0 A
ABS solenoid fuse: MT07A 20.0 A
Fuel injection system fuse: 10.0 A
ABS control unit fuse:
MT07A 7.5 A
Backup fuse: 7.5 A
U1WSE0E0.book Page 32 Wednesday, November 13, 2013 10:28 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33

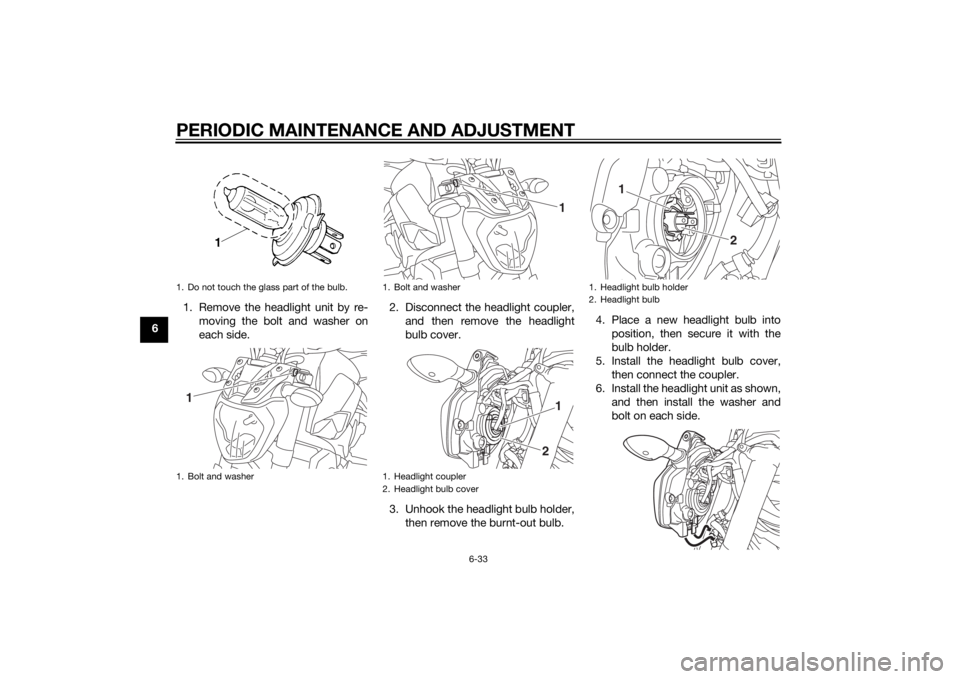

61. Remove the headlight unit by re-
moving the bolt and washer on
each side. 2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder, then remove the burnt-out bulb. 4. Place a new headlight bulb into
position, then secure it with the
bulb holder.
5. Install the headlight bulb cover, then connect the coupler.
6. Install the headlight unit as shown, and then install the washer and
bolt on each side.
1. Do not touch the glass part of the bulb.
1. Bolt and washer1
1. Bolt and washer
1. Headlight coupler
2. Headlight bulb cover
11
2
1. Headlight bulb holder
2. Headlight bulb
2
1
U1WSE0E0.book Page 33 Wednesday, November 13, 2013 10:28 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24182
Tail/b rake li ghtThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24205
Replacin g a turn sig nal light
b ul b1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it coun-
terclockwise.1. Turn signal light lens
2. Screw
1
2
U1WSE0E0.book Page 34 Wednesday, November 13, 2013 10:28 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU46405
Replacing the auxiliary li ght
b ul bIf the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See page 6-32.)
2. Remove the auxiliary light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out of the socket. 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the headlight unit.
EAU24351
Supportin g the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
U1WSE0E0.book Page 36 Wednesday, November 13, 2013 10:28 AM

SPECIFICATIONS
8-3
8
Battery:Model:YTZ10S
Voltage, capacity:
12 V, 8.6 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 1
Tail/brake light: LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light: 12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil pressure warning light: LED
Turn signal indicator light: LED
Coolant temperature warning light:
LED Engine trouble warning light:
LED
ABS warning light: MT07A LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:30.0 A
Auxiliary fuse:
2.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse: 7.5 A
Radiator fan fuse: 10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse: MT07A 7.5 A
ABS motor fuse: MT07A 30.0 A
ABS solenoid fuse:
MT07A 20.0 A
Backup fuse: 7.5 A
