2014 YAMAHA FZS SVHO Owners Manual

Safety information
19

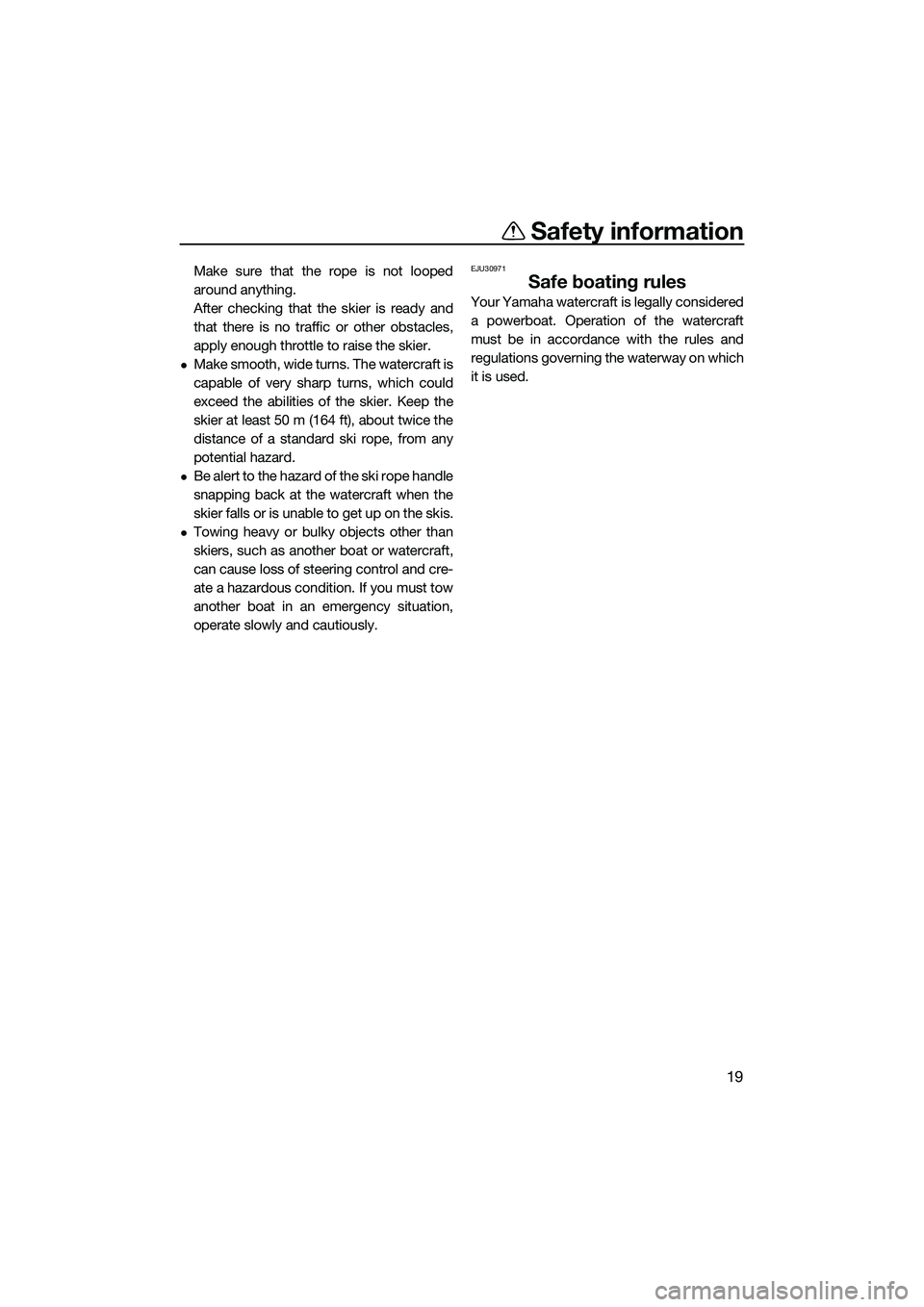

Make sure that the rope is not looped
around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles,
apply enough throttle to raise the skier.
Make smooth, wide turns. The watercraft is
capable of very sharp turns, which could
exceed the abilities of the skier. Keep the
skier at least 50 m (164 ft), about twice the
distance of a standard ski rope, from any
potential hazard.
Be alert to the hazard of the ski rope handle
snapping back at the watercraft when the
skier falls or is unable to get up on the skis.
Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and cre-
ate a hazardous condition. If you must tow
another boat in an emergency situation,
operate slowly and cautiously.
EJU30971
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft
must be in accordance with the rules and
regulations governing the waterway on which
it is used.
UF3K70E0.book Page 19 Tuesday, November 5, 2013 8:44 AM

Safety information
20
EJU30992

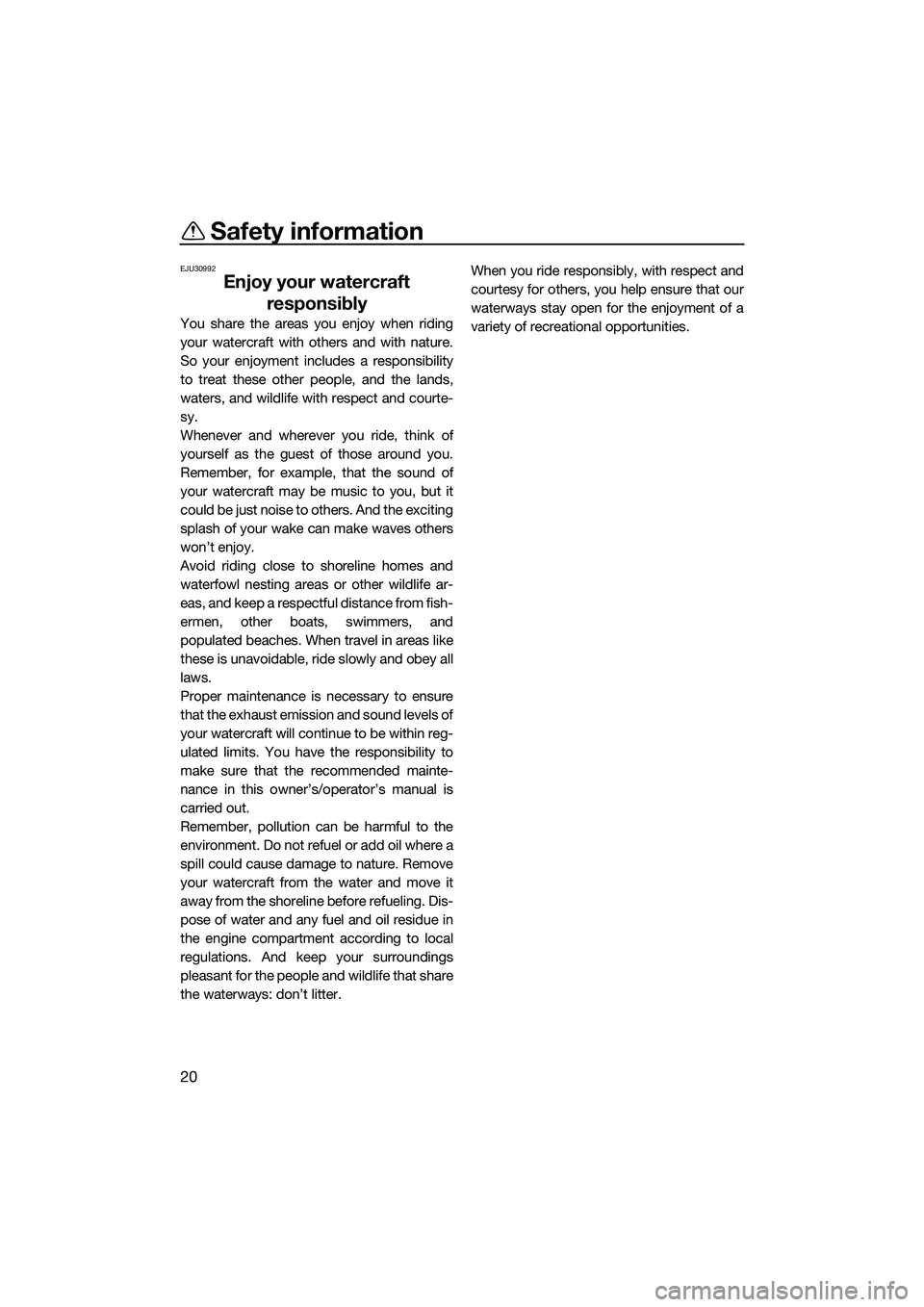

Enjoy your watercraft responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility
to treat these other people, and the lands,
waters, and wildlife with respect and courte-
sy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the exciting
splash of your wake can make waves others
won’t enjoy.
Avoid riding close to shoreline homes and
waterfowl nesting areas or other wildlife ar-
eas, and keep a respectful distance from fish-
ermen, other boats, swimmers, and
populated beaches. When travel in areas like
these is unavoidable, ride slowly and obey all
laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within reg-
ulated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter. When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF3K70E0.book Page 20 Tuesday, November 5, 2013 8:44 AM

Description
21
EJU40303

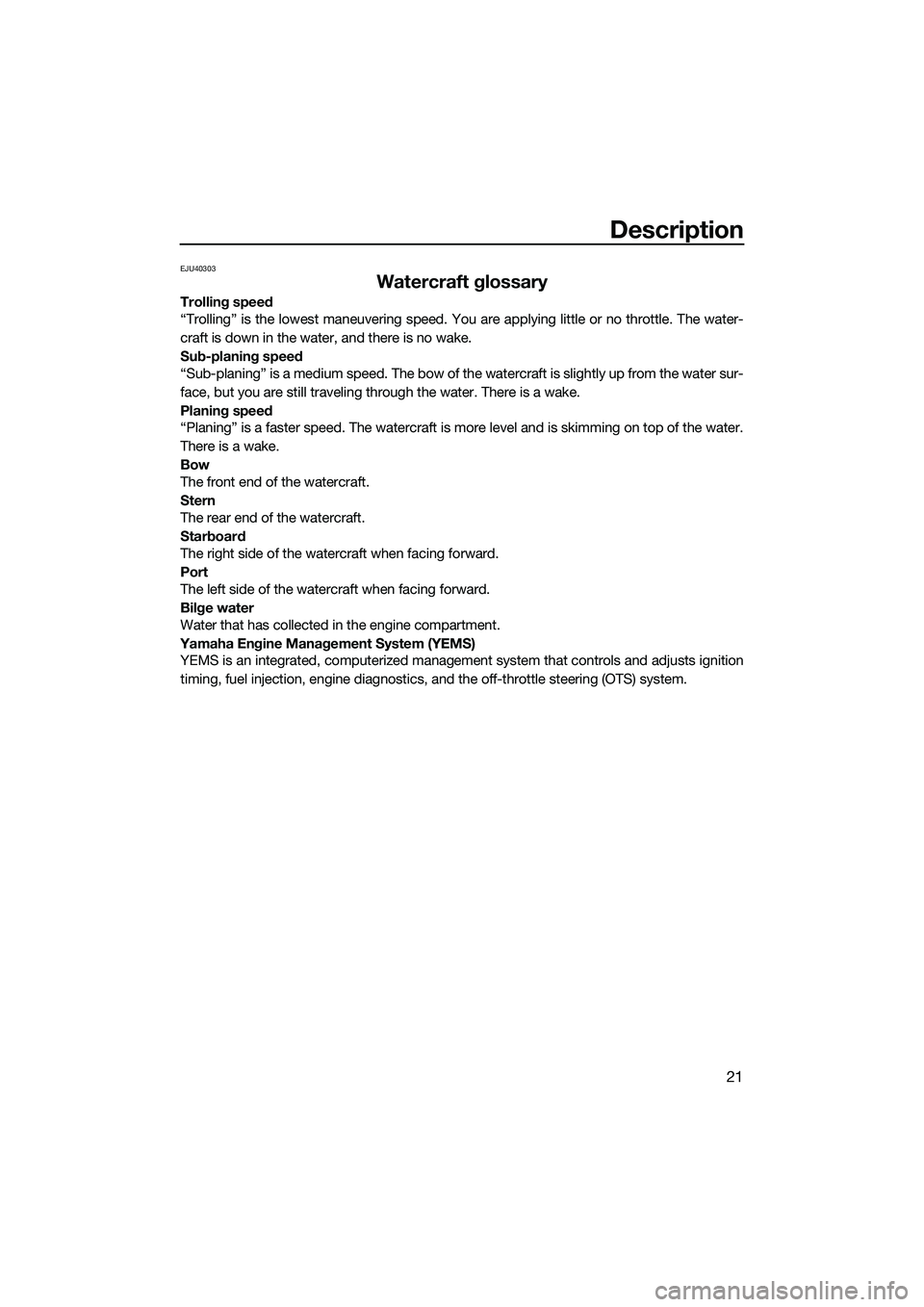

Watercraft glossary
Trolling speed
“Trolling” is the lowest maneuvering speed. You are applying little or no throttle. The water-
craft is down in the water, and there is no wake.
Sub-planing speed
“Sub-planing” is a medium speed. The bow of the watercraft is slightly up from the water sur-
face, but you are still traveling through the water. There is a wake.
Planing speed
“Planing” is a faster speed. The watercraft is more level and is skimming on top of the water.
There is a wake.
Bow
The front end of the watercraft.
Stern
The rear end of the watercraft.
Starboard
The right side of the watercraft when facing forward.
Port
The left side of the watercraft when facing forward.
Bilge water
Water that has collected in the engine compartment.
Yamaha Engine Management System (YEMS) YEMS is an integrated, computerized management system that controls and adjusts ignition
timing, fuel injection, engine diagnostics, and the off-throttle steering (OTS) system.
UF3K70E0.book Page 21 Tuesday, November 5, 2013 8:44 AM

Description
22
EJU31012

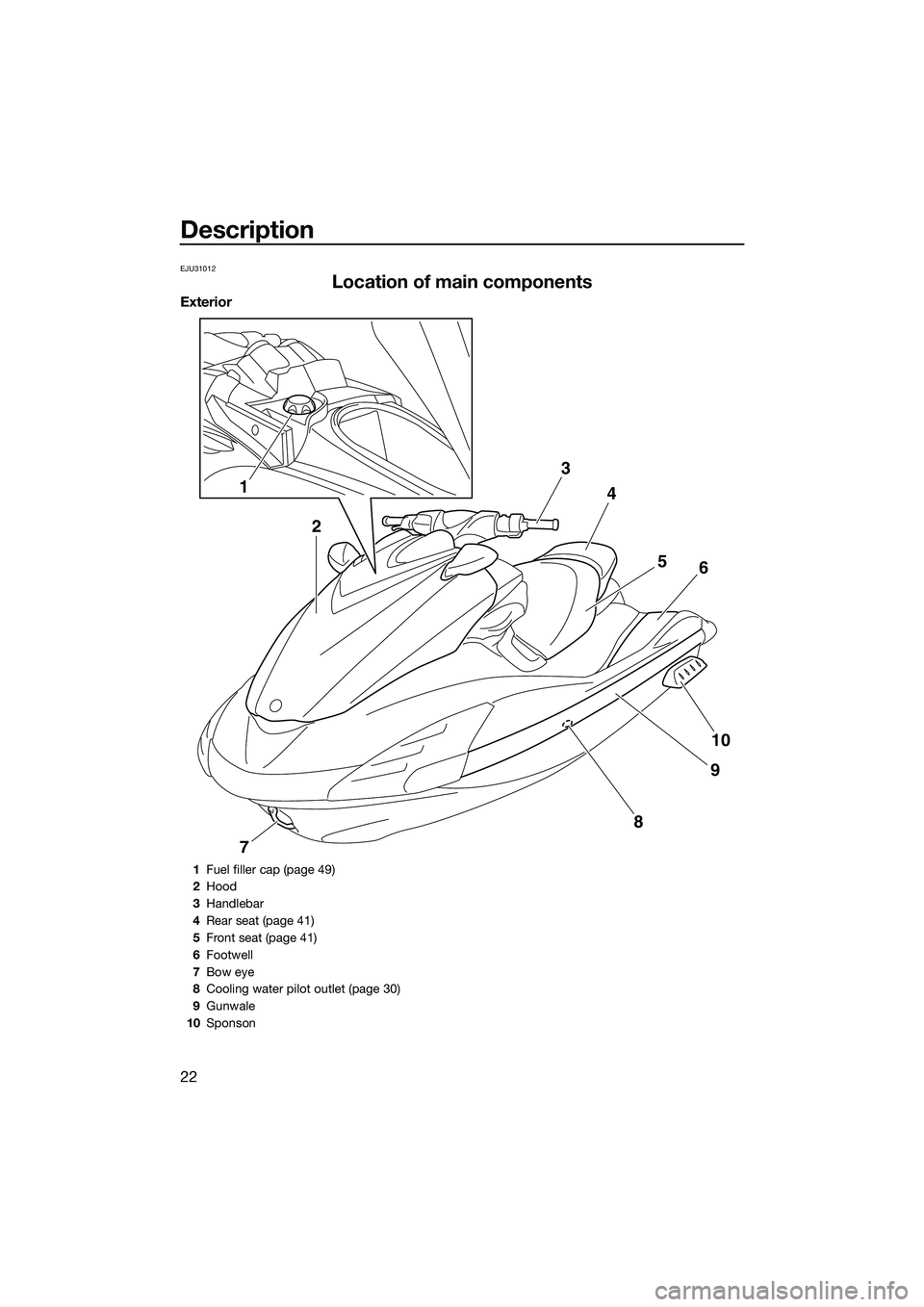

Location of main components
Exterior
12 3
4
56
10
9
8
7
1 Fuel filler cap (page 49)
2 Hood
3 Handlebar
4 Rear seat (page 41)
5 Front seat (page 41)
6 Footwell
7 Bow eye
8 Cooling water pilot outlet (page 30)
9 Gunwale
10 Sponson
UF3K70E0.book Page 22 Tuesday, November 5, 2013 8:44 AM

Description
23
24
11
10
9
8
7
1
3
5
13
12
6

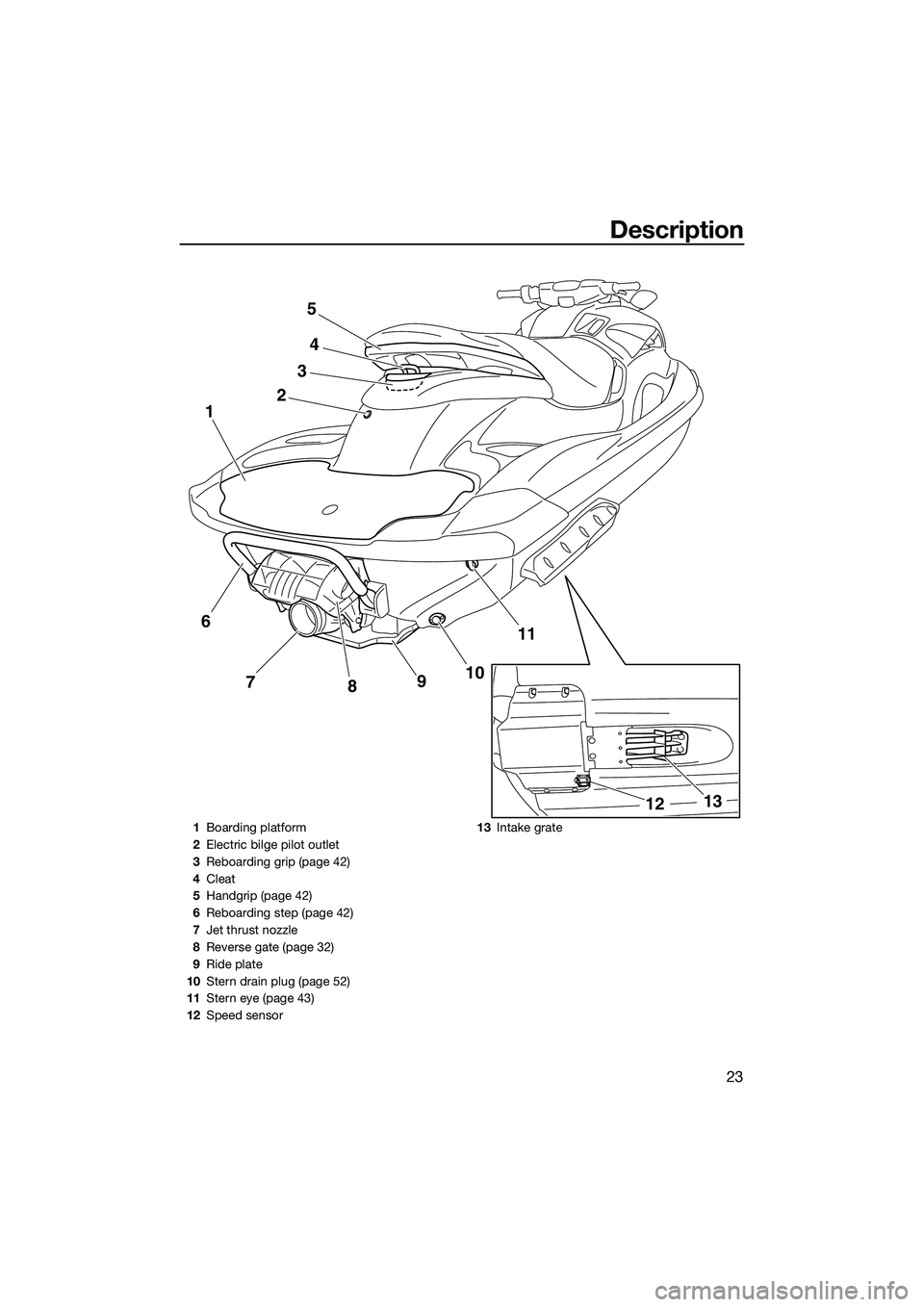

1 Boarding platform
2 Electric bilge pilot outlet
3 Reboarding grip (page 42)
4 Cleat
5 Handgrip (page 42)
6 Reboarding step (page 42)
7 Jet thrust nozzle
8 Reverse gate (page 32)
9 Ride plate
10 Stern drain plug (page 52)
11 Stern eye (page 43)
12 Speed sensor 13
Intake grate
UF3K70E0.book Page 23 Tuesday, November 5, 2013 8:44 AM

Description
24
1234675
10
1112 13
14
9
8

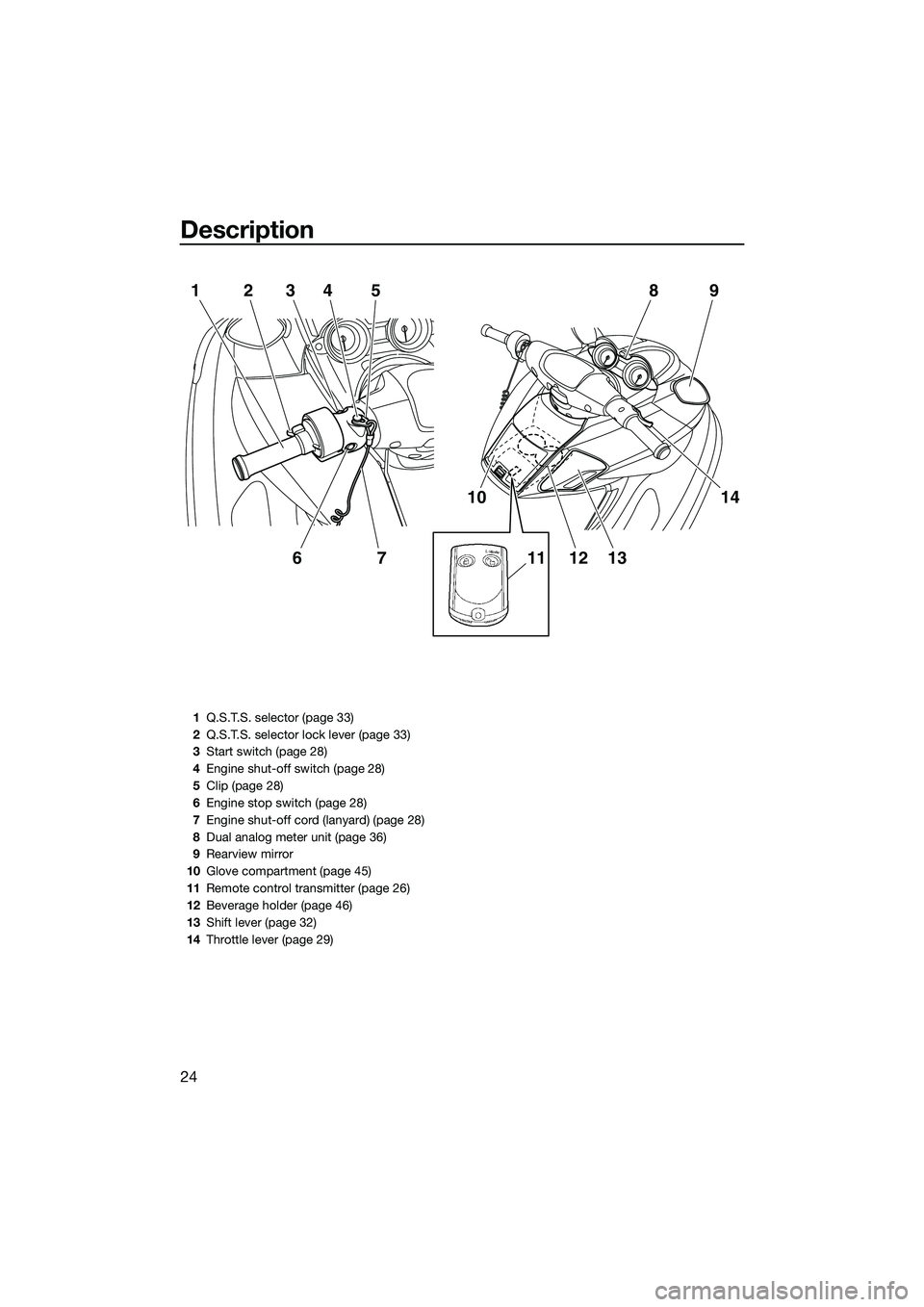

1 Q.S.T.S. selector (page 33)
2 Q.S.T.S. selector lock lever (page 33)
3 Start switch (page 28)
4 Engine shut-off switch (page 28)
5 Clip (page 28)
6 Engine stop switch (page 28)
7 Engine shut-off cord (lanyard) (page 28)
8 Dual analog meter unit (page 36)
9 Rearview mirror
10 Glove compartment (page 45)
11 Remote control transmitter (page 26)
12 Beverage holder (page 46)
13 Shift lever (page 32)
14 Throttle lever (page 29)
UF3K70E0.book Page 24 Tuesday, November 5, 2013 8:44 AM

Description
25

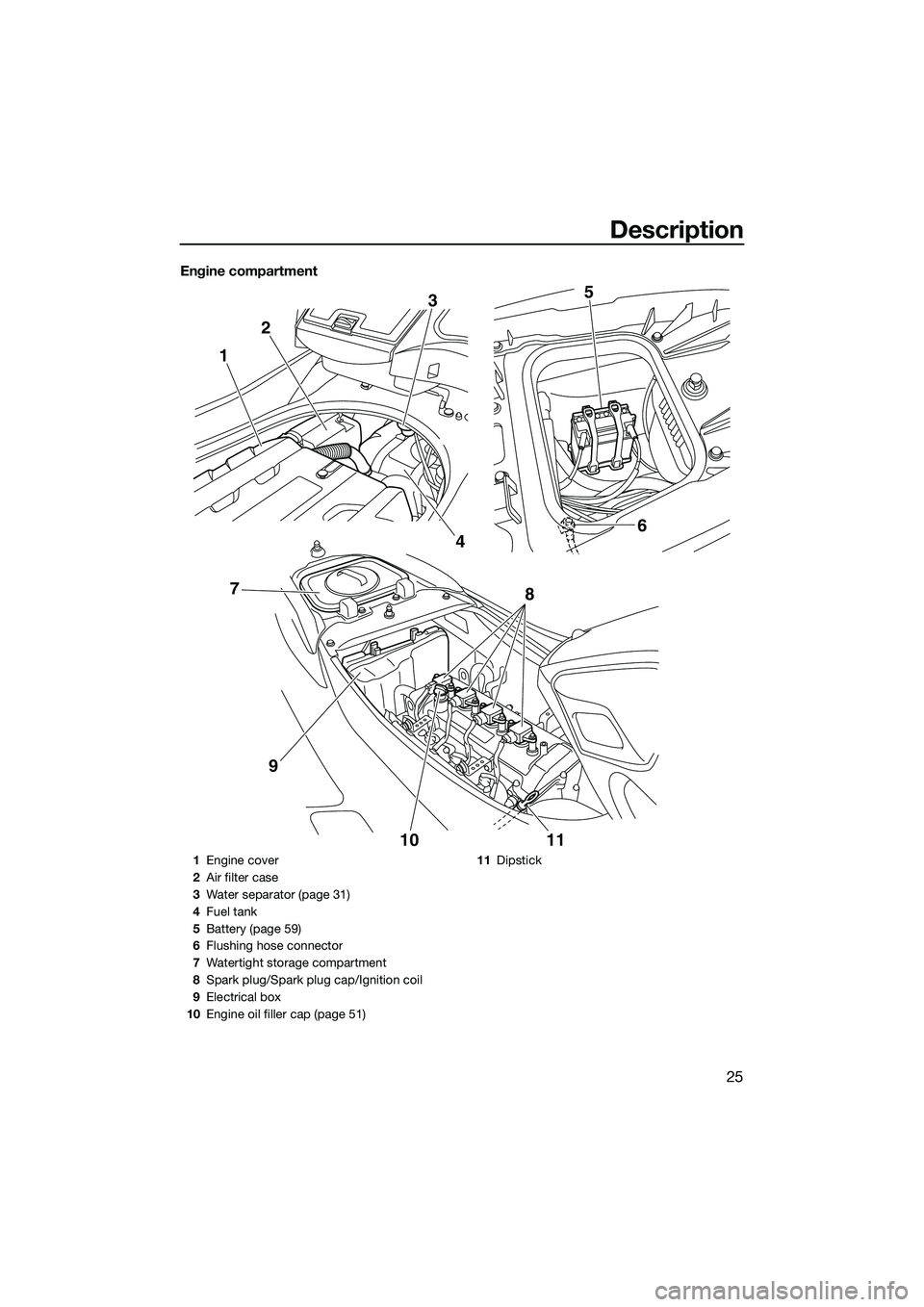

Engine compartment
12
3
4 6
5
10 11
8
97
1 Engine cover
2 Air filter case
3 Water separator (page 31)
4 Fuel tank
5 Battery (page 59)
6 Flushing hose connector
7 Watertight storage compartment
8 Spark plug/Spark plug cap/Ignition coil
9 Electrical box
10 Engine oil filler cap (page 51) 11
Dipstick
UF3K70E0.book Page 25 Tuesday, November 5, 2013 8:44 AM

Control function operation
26
EJU31025

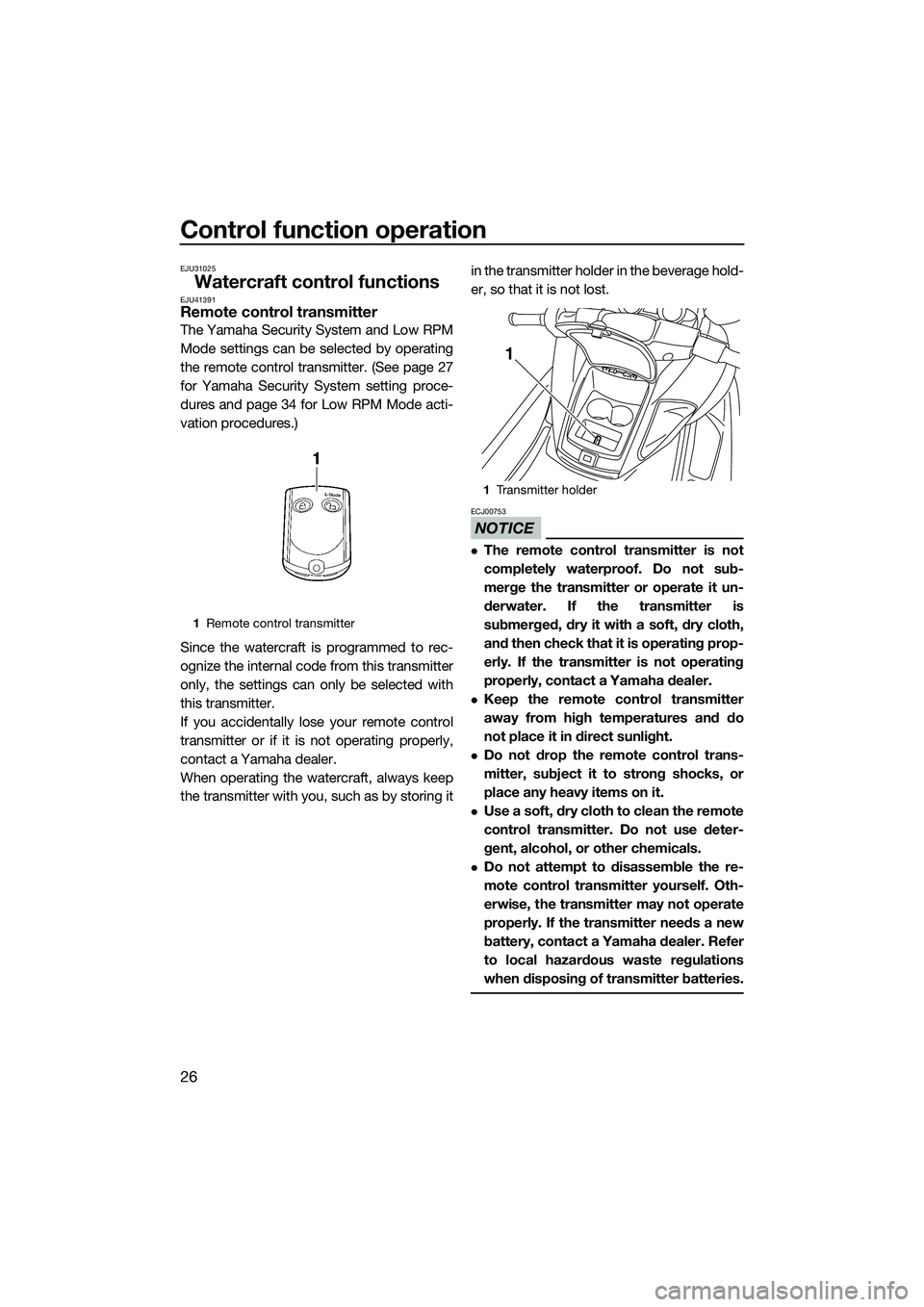

Watercraft control functionsEJU41391Remote control transmitter
The Yamaha Security System and Low RPM
Mode settings can be selected by operating
the remote control transmitter. (See page 27
for Yamaha Security System setting proce-
dures and page 34 for Low RPM Mode acti-
vation procedures.)
Since the watercraft is programmed to rec-
ognize the internal code from this transmitter
only, the settings can only be selected with
this transmitter.
If you accidentally lose your remote control
transmitter or if it is not operating properly,
contact a Yamaha dealer.
When operating the watercraft, always keep
the transmitter with you, such as by storing itin the transmitter holder in the beverage hold-
er, so that it is not lost.
NOTICE
ECJ00753
The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.
Keep the remote control transmitter
away from high temperatures and do
not place it in direct sunlight.
Do not drop the remote control trans-
mitter, subject it to strong shocks, or
place any heavy items on it.
Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.
Do not attempt to disassemble the re-
mote control transmitter yourself. Oth-
erwise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer. Refer
to local hazardous waste regulations
when disposing of transmitter batteries.
1
Remote control transmitter
1Transmitter holder
1
