2014 VOLVO XC90 key

04 Interior
Interior lighting
04
}}
111
Reading lights and courtesy light
G026960
Driver's side front reading lamp
Courtesy lights
Passenger's side front reading lamp The reading lights can be switched on or offby pressing buttons 1 or 3. The courtesylighting (including footwell lighting) can beturned on or off by pressing button 2.This also activates the automatic func-tion.
G027153
Rear reading lights
Driver's side rear reading light
Passenger's side rear reading light. The rear reading lights can be switched onand off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights willswitch off automatically approximately10 minutes after the engine has been turnedoff. The lights can be turned off sooner bypressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 secondswhen: • The vehicle has been unlocked from the outside with the remote key or key blade
• If the engine has been switched off andthe ignition key has been turned to posi-tion 0
The courtesy lights will come on and remain on for approximately 10 minutes when:
• One of the doors is opened (assuming the courtesy lighting has not previously beenswitched off)
The courtesy lighting will go off when:
• The engine is started
• The vehicle is locked from the outsidewith the remote key or key blade
The automatic function can be disconnected by pressing button (2) for more than 3 sec-onds. Briefly pressing the button again automati- cally reconnects the function. The courtesy light timer periods can be changed. Contact a trained and qualifiedVolvo service technician.
1 This function is light dependent and is only activated in dark conditions.

04 Interior

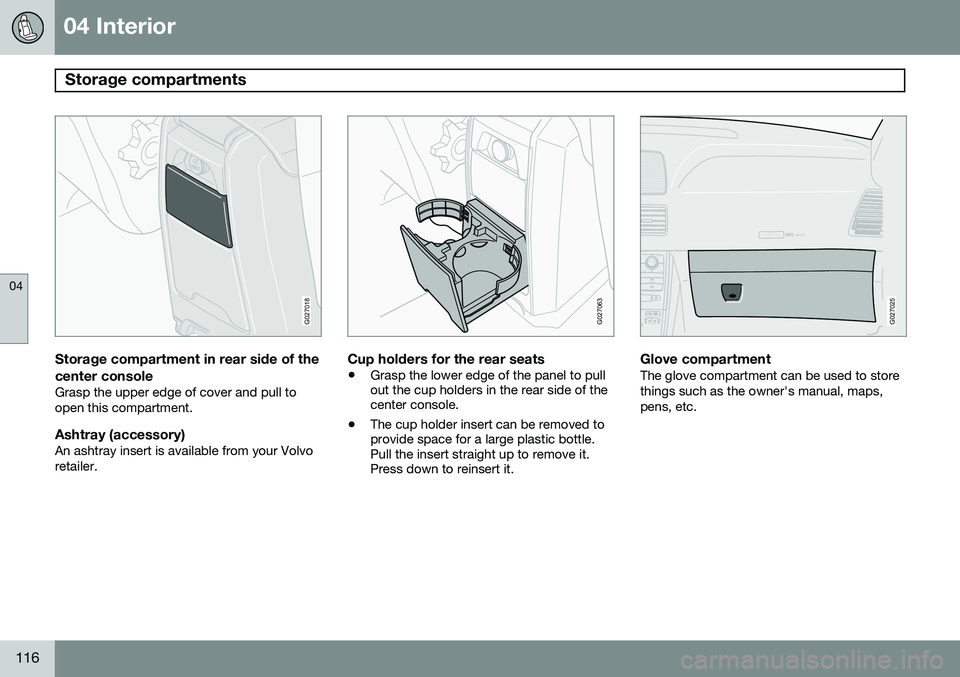

Storage compartments
04
116
G027018
Storage compartment in rear side of the
center console
Grasp the upper edge of cover and pull to open this compartment.
Ashtray (accessory)An ashtray insert is available from your Volvoretailer.
G027063
Cup holders for the rear seats
• Grasp the lower edge of the panel to pull out the cup holders in the rear side of thecenter console.
• The cup holder insert can be removed toprovide space for a large plastic bottle.Pull the insert straight up to remove it.Press down to reinsert it.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Glove compartmentThe glove compartment can be used to store things such as the owner's manual, maps,pens, etc.

124
Remote keys and key blades................................................................ 126
Locking and unlocking.......................................................................... 130
Child safety locks..................................................................................132Alarm..................................................................................................... 133

05 Locks and alarm
Remote keys and key blades
05
126
Key blades
Your vehicle is equipped with two coded remote key transmitters with integrated igni-tion key blades called Key Integrated Remote(KIR). To unlock/lock the vehicle using the key blade:
1. If necessary, press button (1) to fold outthe key blade.
2. Insert the key blade in the driver's door lock and turn it once to unlock the driv-
er's door only .
3. Turn the key blade again (within 10 sec- onds) to unlock all doors and the tailgate. 4. Turn the key blade once in the opposite
direction to lock all doors and the tailgate.
Use the switch on the driver's door armrest to lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this may hinder rapid access to the occupantsof the vehicle in the event of an accident.(Also see information on "Child safetylocks".)
NOTE
To help prevent accidentally locking the keys in the vehicle, the central locking sys-tem is designed to unlock the doors imme-diately if the key is left in the ignitionswitch, the vehicle is locked using the lockbutton on the door and the door is thenclosed. A sound from the lock will be audi-ble at this time. Please note that this function will not unlock the doors if the engine is running.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle contains a coded transmitter. The code in thekey is transmitted to an antenna in the igni-tion switch where it is compared to the code stored in the start inhibitor module. The vehi-cle will start only with a properly coded key. Each key has a unique code, which your Volvo retailer uses if new keys are required. Amaximum of six remote keys can be pro-grammed and used for one vehicle. If you misplace a key, take the other keys to an authorized Volvo retailer for reprogram-ming as an antitheft measure. If two of the keys to your vehicle are close together, e.g., on the same key ring, whenyou try to start the vehicle, this could causeinterference in the immobilizer system andresult in the vehicle not starting. If this shouldoccur, remove one of the keys from the keyring before trying to start the vehicle again.
NOTE
This device complies with part 15 of the FCC rules. Operation is subject to the fol-lowing condition: (1) This device may notcause harmful interference, and (2) thisdevice must accept any interferencereceived, including interference that maycause undesired operation.

05 Locks and alarm
Remote keys and key blades
05
127
Remote keys
G026963
Your vehicle is equipped with two coded remote key transmitters with integrated igni-tion keys called Key Integrated Remote (KIR). The remote key transmitters will also activate or allow "keyless" entry into the passengercompartment or the tailgate. These transmit-ters use a radio frequency that will enable youto lock/unlock all doors and the tailgate froma distance of 10 – 15 feet (3 – 5 meters). Theywill also activate or deactivate your vehicle'salarm system(s). The vehicle can also belocked/unlocked with the key. If either of the remote keys is lost, the other should be taken with the car to a Volvoretailer. As an anti-theft measure, the code ofthe lost remote key must be erased from thesystem.
NOTE
Additional or duplicate remote control keys can be obtained from any AuthorizedVolvo Retailer. You can also obtain additional or duplicate remote control keys from certain inde-pendent repair facilities and locksmithsthat are qualified to make remote controlkeys. Each key must be programmed towork with your vehicle. California Only: A list of independent repair facilities and/or locksmiths known to Volvo that can cutand code replacement keys can be found:
• on the Volvo website at http://www.volvocars.com/us/keys
• by calling Volvo Customer Care at1-800-458-1552
G027013
Unlock
Unlock tailgate
"Panic" function
Approach lighting
Lock
Fold key blade in/out
Using the remote key
Unlock
Press this button once to unlock the driver's door only. Wait for at least 1 second and

05 Locks and alarm
Remote keys and key blades
05
128
press the button again (within 10 seconds) to unlock all doors, and the tailgate.
Tailgate unlock
Press this button to unlock the tailgate (with- out unlocking the other doors). This functionwill not open the tailgate.
Panic function
For more information on this function, see page 133.
Approach lighting
Press this button when approaching the vehi- cle at night to light up the interior courtesylight, parking lights, license plate lights andthe lights in the door mirrors.
Lock
Press once to lock all doors, and the tailgate.
Fold key blade in/out
Press to extend the key blade. This button must also be pressed when the key blade isfolded back into the slot in the side of theremote key unit.
NOTE
• If an airbag deploys, your vehicle's SRS control module will attempt toautomatically unlock all doors.
• The key blade may also be used tolock and unlock the doors, and to acti-vate and deactivate the alarm system.
• To avoid leaving your keys in the vehi-cle, make a habit of always locking thevehicle with the remote key.
• If the key blade section of the remoteis not fully folded out when starting thevehicle, the immobilizer function maymake it impossible to start the engine.
• The vehicle can be locked even if adoor is open. When the door(s) areclosed, they will be locked. Please beaware that the keys could be locked inthe car when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto- matically reengage (re-lock) and the alarm willrearm after 2 minutes unless a door or thetailgate has been opened. This helps preventthe car from inadvertently being left unlocked. FCC ID: LQNP2T-APU This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not causeharmful interference, and (2) this device mustaccept any interference received, includinginterference that may cause undesired opera-tion. Canadian 2306104388 Model 504 2927 by Donnelly Operation is subject to the following condi- tions: (1) this device may not cause interfer-ence, and (2) this device must accept anyinterference, including interference that maycause undesired operation of the device. Canadian 2306104388A Model 509 977 by Connaught Electronics Operation is subject to the following condi- tions: (1) this device may not cause interfer-ence, and (2) this device must accept anyinterference, including interference that maycause undesired operation of the device.

05 Locks and alarm
Remote keys and key blades
05
129
WARNING
Never use the transmitter to lock the doors from inside the vehicle.• Doing so would ACTIVATE:
• the break-in alarm, which would sound if one of the doors were opened
• the optional interior motion and incli-nation alarm sensors.
• Doing so would DEACTIVATE:
• the moonroof and interior courtesylight controls.
• the central locking buttons on the frontdoor armrests, although the interiordoor handles would still function toallow occupants to leave the vehicle.
• Disabled features would remain disa-bled until the remote is used again tounlock the vehicle.
• In addition, locking an occupied vehi-cle would hinder rapid access to theoccupants in an accident or emer-gency.
Replacing the battery in the remote keyIf the range of the transmitter is noticeably reduced, this indicates that the battery isweak and should be replaced.
To replace the battery:1. Carefully pry open the rear edge of the
cover with a small screwdriver.
2. Insert a new 3-volt, CR2032 battery, with the battery's plus side up. Avoid touching the contact surfaces of the battery withyour fingers.
3. Press the cover back into place. Ensure that the rubber seal is correctly posi-tioned to help keep out moisture.
NOTE
The old battery should be disposed of properly at a recycling center or at yourVolvo retailer.

05 Locks and alarm
Locking and unlocking
05
130
G029646
Locking and unlocking the vehicle from
the inside
The switch on the driver's door armrest can be used to lock or unlock all doors and thetailgate, and to set the alarm. Each door can also be locked with the lock button on the respective door and opened bypulling the door handle on the door.
Alternative locking when parkingThe central locking button on the driver's door can also be used to lock the vehiclewhen you leave it. To do so:
1. Open the door. 2. Press the lock section of the button.
3. Close the door. This will lock the vehicle
completely and arm the alarm.
NOTE
Please be aware that locking the vehicle in this way makes it possible to lock theremote key in the passenger compartment.To help avoid this, lock the vehicle fromthe outside by pressing the lock button onthe remote key. If the vehicle is locked using the central locking button, be sure that the remote keyis in your possession before closing thedoor.
Automatic lockingThe function locks the doors automatically when the vehicle's speed exceeds approxi-mately 5 mph (7 km/h). The doors will thenremain locked until a door in opened from theinside or if all of the doors are unlocked fromthe control panel in the driver's door. This function can be activated/deactivated from the control panel in the driver's door.
Activating/deactivating automatic
locking
1. Turn the ignition key to position I or II. 2. Press the
READ button on the left-side
steering wheel lever to erase any mes- sages that may be displayed in the infor-mation display.
3. Depress the central locking button on the control panel until a new message aboutthe locking status is displayed.
The message
AUTOLOCK ON (the doors will
be locked when the vehicle begins to move) or
AUTOLOCK OFF will be displayed.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Locking the glove compartmentThe glove compartment can be locked with the master key.
