Front passenger side overview

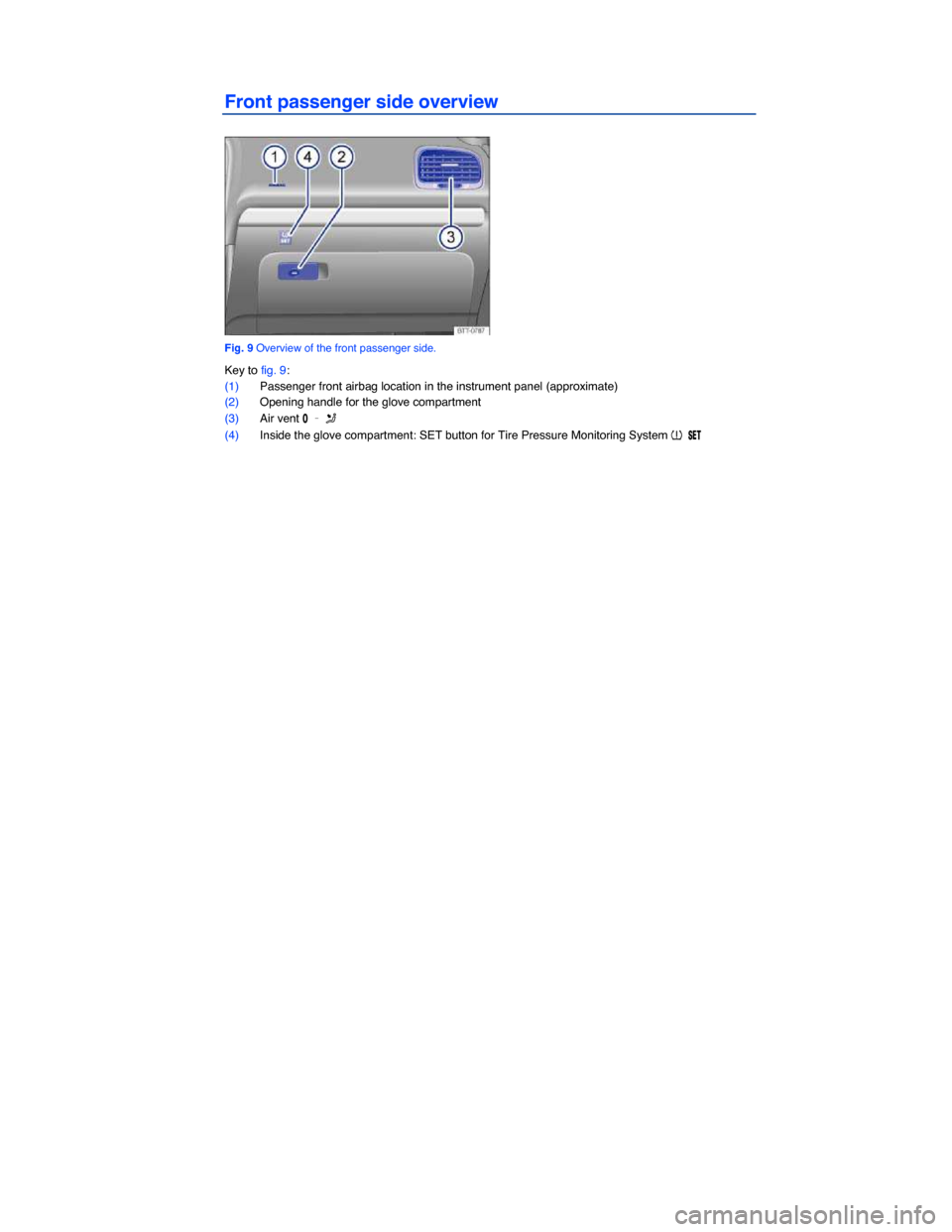

Fig. 9 Overview of the front passenger side.
Key to fig. 9:
(1) Passenger front airbag location in the instrument panel (approximate)
(2) Opening handle for the glove compartment
(3) Air vent / – J
(4) Inside the glove compartment: SET button for Tire Pressure Monitoring System

Symbols on the roof console

Symbol Meaning
* / s   Interior and reading lights
g c h
# $ Power sunroof and sunshade

/ a 3-button module (if equipped) ⇒ booklet Mobile Phone Package.

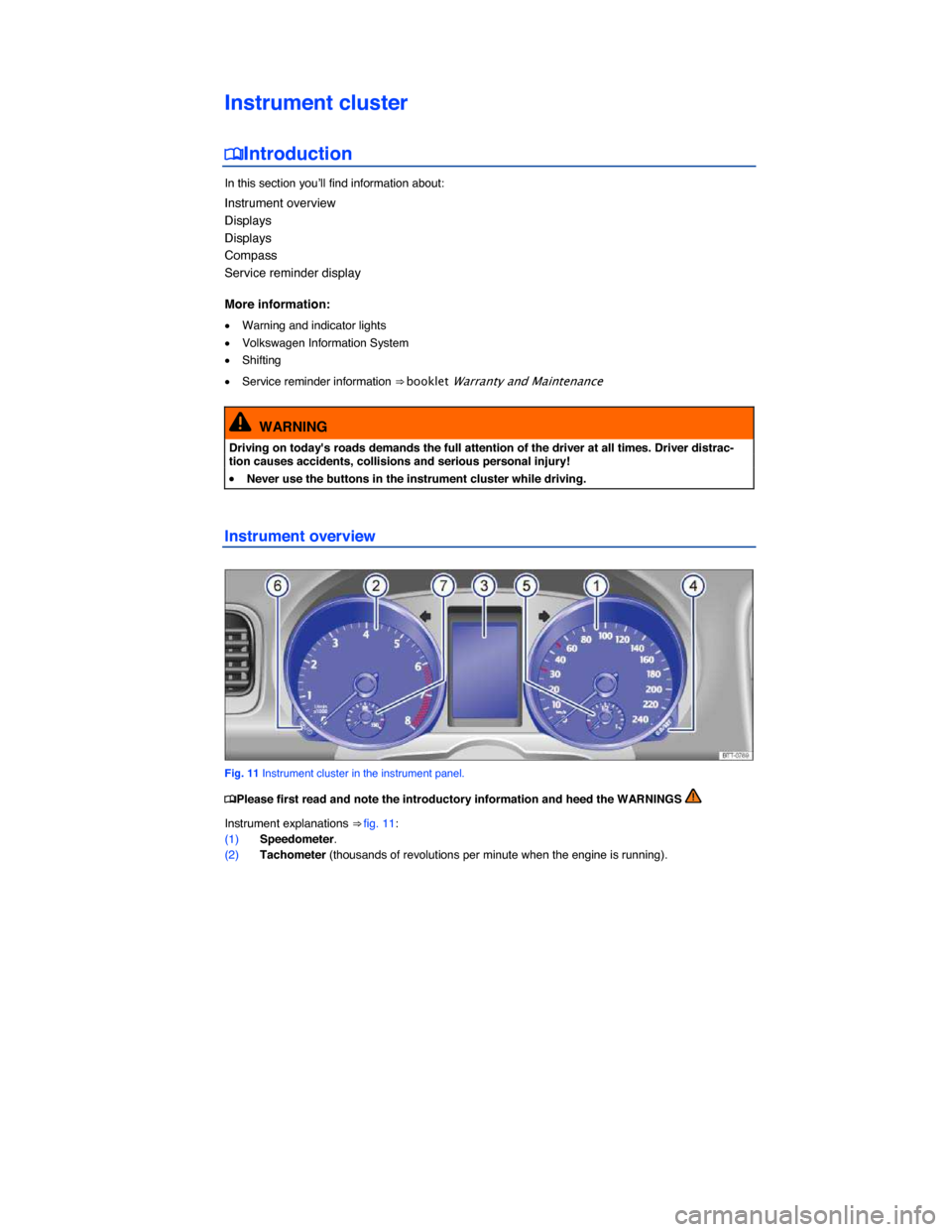

Instrument cluster

The red zone at the end of the scale indicates maximum permissible engine rpm (revolutions per minute) for all gears after the break-in period. Before reaching the red zone, select the next
higher gear or selector level position D, or ease your foot off the accelerator ⇒ .
(3) Displays
(4) Reset button for the trip odometer display (trip).
– Push the /./

x Time
x Outside temperature
x Compass display

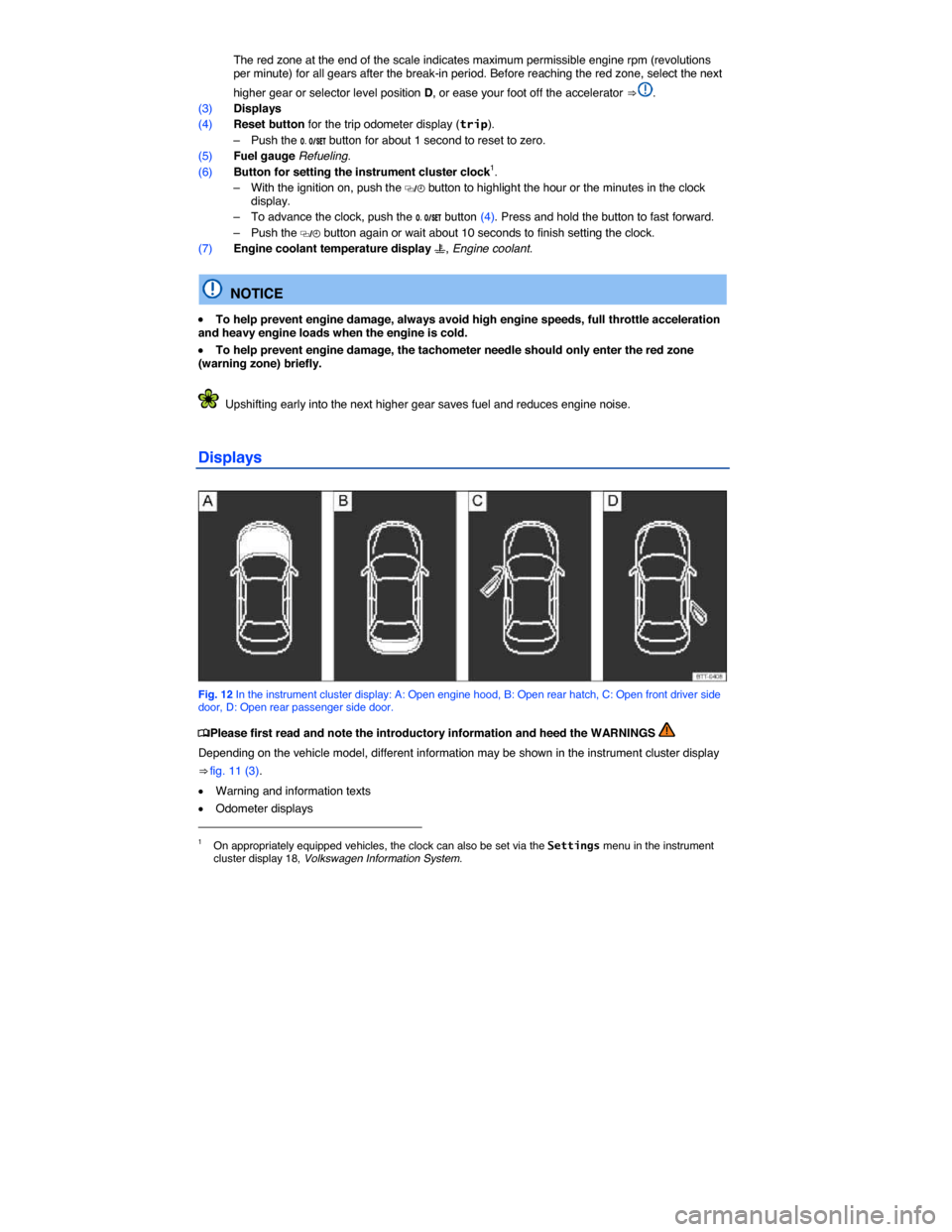

x Open door, engine hood, or rear hatch ⇒ fig. 12
x Selector lever position, Shifting
x Multi-Function Indicator (MFI) and menus for different settings, Volkswagen Information System
x Service reminder display, Service reminder display
Warning and information texts
The status of various vehicle functions and components is monitored when the ignition is switched on and while driving. Malfunctions are indicated by red and yellow warning symbols with text messages in
the instrument cluster display (⇒ page Error! Bookmark not defined., Warning and indicator lights). In some cases, they may also be signaled acoustically. The display can vary depending on the instru-ment cluster model.

Type of notification Symbol color Explanation
Priority 1 warning message Red Symbol flashing or lit – sometimes with acoustic warnings.

Compass display (if applicable)
On vehicles equipped with compass display, the current compass direction is indicated in the instru-
ment cluster display when the ignition and navigation system are switched on ⇒ page 15, Compass.
Selector lever positions
The selector lever position is shown both on the side of the selector lever and in the instrument cluster display. The respective gear may also be shown in the instrument cluster display in Drive D and Sport Drive S, as well as in Tiptronic® mode.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Park the vehicle at a safe distance from moving traffic and where no part of the hot cata-lytic converter and exhaust system can come into contact with flammable materials under the vehicle, such as dry grass, brush, spilled fuel, etc.
x A broken down vehicle presents a high accident risk for itself and others. Switch on emergency flashers and set up a warning triangle to warn oncoming traffic.
WARNING
Roads and bridges may be dangerously icy even if the outside air temperature is above freez-ing.
x If you use the outside temperature display to tell you about frost conditions, remember that roads can even ice over at temperatures above +39 °F (+4 °C). Always remember: even if the “snowflake symbol” (icy road warning) is not displayed, there could still be black ice on the road.
x Never rely exclusively on the outside temperature display.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
The instrument cluster displays and their arrangement may vary depending on the vehicle model and engine. For displays without warning and information messages, malfunctions are only signaled with indicator lights.
If there are multiple warning messages, the symbols are displayed for several seconds in order of importance. The symbols are displayed until the cause has been corrected.

Compass

Fig. 14 Compass zones.

Service reminder display
