Page 233 of 297
Vehicle care231
Sidelight/Daytime running light(3)
1. Rotate bulb socket (3) anticlockwise to disengage.
Withdraw the bulb socket from the
reflector.
2. Remove the bulb from the socket by pulling.
3. Replace and insert new bulb into socket.
4. Insert the bulb socket into the reflector and turn clockwise.
Adaptive forward lighting9 Danger
Adaptive forward lighting system
uses Xenon headlights.
Xenon headlights work under
extremely high electrical voltage.
Do not touch. Have bulbs replaced by a workshop.
Bulbs for front turn signal and
corner lighting can be changed.
Corner lighting (1) .
Front turn signal (2) .
Page 234 of 297
232Vehicle care
Sidelight/Daytime running light are
designed as Light Emitting Diodes
(LEDs) and cannot be changed.
Corner lighting (1) 1. Rotate the cap (1) anticlockwise and remove it.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb from the plug connector by pulling.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector androtate clockwise to secure.
6. Fit the cap and rotate clockwise.
Front turn signal (2)
1. Rotate bulb socket (2) anticlockwise to disengage.
Withdraw the bulb socket from the
reflector.
Page 235 of 297
Vehicle care233
2. Remove the bulb from the socketby turning anticlockwise.
3. Replace and insert new bulb into socket by turning clockwise.
4. Insert the bulb socket into the reflector and turn clockwise.
Fog lights
The bulbs are accessible from
beneath the vehicle.1. Remove the outer screws of the cover, marked by the arrows.
2. Hinge away the cover.
Turn the bulb socket anti-
clockwise and remove it from the
reflector.
3. Disengage the bulb socket from the plug connector by pressing
the retaining lug.
4. Remove and replace the bulb socket with bulb and attach the
plug connector.
5. Insert the bulb socket into the reflector, turn clockwise andengage.
6. Mount the cover with the screws.
Page 236 of 297

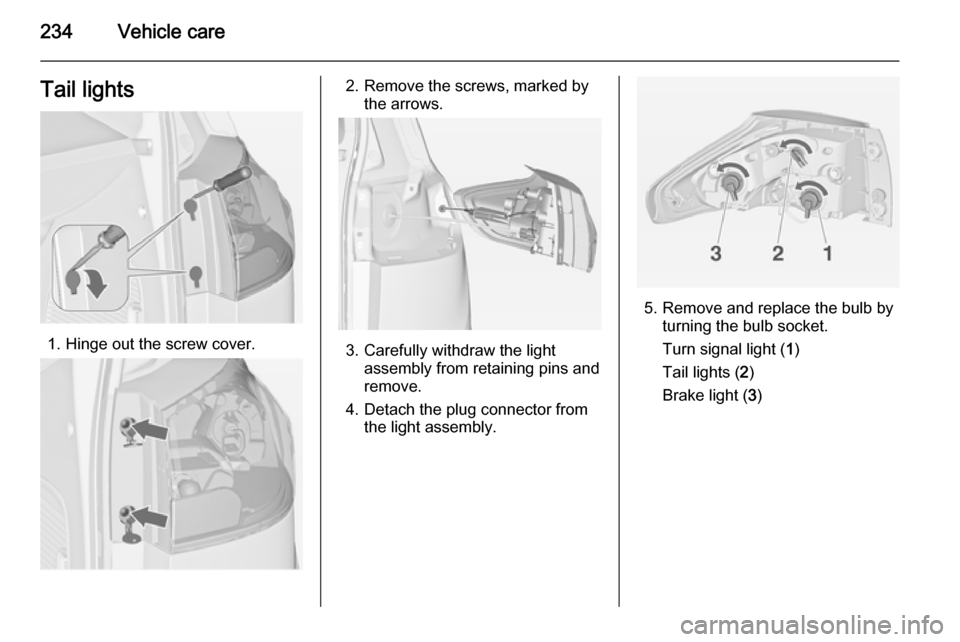

234Vehicle careTail lights
1. Hinge out the screw cover.
2. Remove the screws, marked bythe arrows.
3. Carefully withdraw the lightassembly from retaining pins and
remove.
4. Detach the plug connector from the light assembly.
5. Remove and replace the bulb byturning the bulb socket.
Turn signal light ( 1)
Tail lights ( 2)
Brake light ( 3)
Page 237 of 297
Vehicle care235
Tail lights with Light Emitting
Diode (LED) for tail and brake light
Only turn signal light ( 1) can be
changed.
Remove and replace the bulb by
turning the bulb socket.
6. Connect the plug connector with the light assembly.
7. Fit light assembly onto retaining pins and mount light assembly
with the screws.
8. Plug in screw cover.
Reverse lights (4) in the tailgate
1. Open the tailgate and remove the
cover.
2. Turn the bulb holder anti- clockwise and remove it from the
reflector.
3. Remove the bulb from the socket by pulling.
4. Replace and insert new bulb into socket.
5. Insert the bulb socket into the reflector and turn clockwise.
6. Install the cover.
Rear fog light The bulbs are accessible from
beneath the vehicle.
Page 238 of 297
236Vehicle care
1. Turn the bulb socket anti-clockwise and remove it from the
reflector.
2. Remove the bulb from the socket by turning anticlockwise.
3. Replace and insert new bulb into the socket by turning clockwise.
4. Insert the bulb socket into the reflector, turn clockwise and
engage.
Bulb check Switch on the ignition, operate andcheck all lights.
Side turn signal lights
To replace bulb, remove lamp
housing:1. On left vehicle side, slide lamp to the front and remove it out of the
wing with the rear end.
On right vehicle side, slide lamp to
the rear and remove it out of the wing with the front end.
2. Turn bulb holder anticlockwise and remove from housing.
Page 239 of 297
Vehicle care237
3. Pull bulb from bulb holder andreplace it.
4. Insert bulb holder and turn clockwise.
5. On left vehicle side: insert front end into wing, slide forward and
insert rear end.
On right vehicle side: insert rear
end into wing, slide rearward and insert front end.
Number plate light
1. Insert screwdriver in recess of the
cover, press to the side and
release spring. Remove cover.
2. Remove the bulb from the socket by pulling.
3. Replace the bulb and insert it into
the socket.
4. Push the cover into the housing.
Interior lights Courtesy lights, reading lights
Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Page 240 of 297
238Vehicle careInstrument panel
illumination Have bulbs replaced by a workshop.Electrical system
Fuses
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
■ in the front left of the engine compartment,
■ in left-hand drive vehicles, in the interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox,
■ behind a cover on the left side of the
load compartment.
Before replacing a fuse, turn off the respective switch and the ignition.
There are different kinds of fuses in
the vehicle.
