2014 TOYOTA YARIS display

212 3-5. Other interior features
■The outside temperatur e is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
●When the vehicle is stopped, or moving at low speeds (less than 16 mph
[25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When “ ” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.

229
4-2. Maintenance
4
Maintenance and care
■
Reset the maintenance data (except Canada)
After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedures described below:
Switch the display to the trip meter “A” when the engine is running.
(P. 140)
Turn the engine switch to the “LOCK” position.
While pressing the display change button ( P. 140), turn the
engine switch to the “ON” position (do not start the engine because
reset mode will be canceled). Continue to press and hold the button
until the trip meter displays “000000”.
■ Allow inspection and repairs to be performed by a Toyota dealer
● Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
CAUTION
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■ Handling of the battery
●Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
● Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
● Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. ( P. 250)

262
4-3. Do-it-yourself maintenance

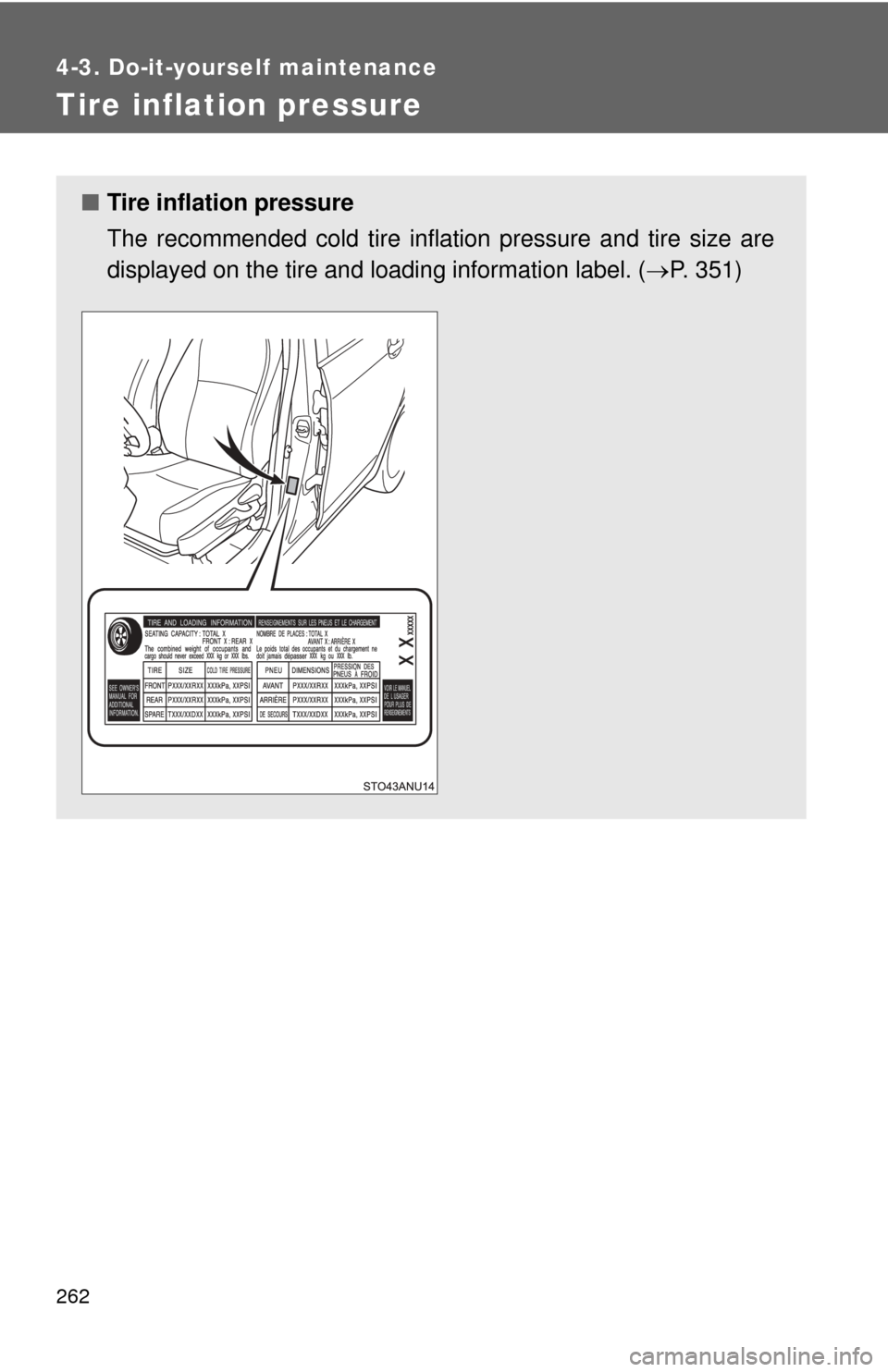

Tire inflation pressure
■Tire inflation pressure
The recommended cold tire inflation pressure and tire size are
displayed on the tire and loading information label. ( P. 351)

391
Alphabetical index
License plate lights
Replacing light bulbs ............ 287
Switch ................................... 145
Wattage ................................ 352
Light bulbs
Replacing ............................. 287
Wattage ................................ 352
Lights
Emergency flashers switch ................................. 296
Fog lights switch ................... 149
Hazard lights switch ............. 296
Headlights switch ................. 145
Instrument panel lights
switch ................................. 145
Interior light switch................ 203
License plate lights switch .... 145
Parking lights switch ............. 145
Personal lights switch ........... 203
Replacing light bulbs ............ 287
Side marker lights switch...... 145
Tail lights switch ................... 145
Turn signal lights switch ....... 130
Load capacity .......................... 172
Lock steering column ............. 125
Luggage compartment featuresDeck board ........................... 217
Luggage cover...................... 218
Luggage compartment light Wattage ................................ 352 Maintenance
Do-it-yourself
maintenance .......................235
Emission inspection and maintenance (I/M)
programs.............................234
General maintenance ............230
Maintenance data..................342
Maintenance requirements....228
Reset the maintenance data .....................................229
Vehicle exterior .....................222
Vehicle interior ......................225
Manual transmission
Manual transmission .............129
Oil ..........................................349
Meter
Instrument panel light control .................................135
Meters ...................................133
Multi-information display .......140
Mirrors Inside rear view mirror.............63
Side mirror heaters................199
Side mirrors .............................64
Vanity mirrors ........................209
Multi-information display ........140
Noise from under vehicle ..........20LM
N

392 Alphabetical index
Odometer .................................. 141
OilEngine oil .............................. 244
Manual transmission ............. 349
Warning light ................. 306, 307
Opener Fuel door .................................69
Fuel filler door .........................69
Hood...................................... 238
Outside rear view mirrors Adjusting .................................64
Folding ....................................65
Outside temperature display .................................... 211
Overheating, Engine ................334
Parking brake ........................... 131
Parking lights Replacing light bulbs ............. 287
Switch.................................... 145
Wattage ................................. 352
Personal lights
Switch.................................... 203
Wattage ................................. 352
Power outlet ............................. 213
Power windows ..........................67
Radiator .................................... 248
Rear seat Folding down ...........................47
Rear side marker lights Replacing light bulbs ............. 287
Switch.................................... 145
Wattage ................................. 352
Rear turn signal lights Indicator ................................ 136
Lever ..................................... 130
Replacing light bulbs ............. 287
Switch.................................... 130
Wattage ................................. 352
Rear window defogger ............ 199
Rear window wiper .................. 154 Replacing
Fuses .................................... 275
Key battery ............................ 271
Light bulbs............................. 287
Tires .............................. 254, 315
Reporting safety defects for U.S. owners ...................... 372
Seat belts ALR ......................................... 57
Automatic Locking
Retractor ............................... 57
Child restraint system
installation..................... 98, 102
Cleaning and maintaining ..... 226
ELR ......................................... 57
Emergency Locking Retractor .............................. 57
How to wear your seat belt ..... 54
How your child should wear
the seat belt .......................... 58
Pregnant women, proper
seat belt use ......................... 58
Reminder light ....................... 307
Seat belt extenders ................. 58
Seat belt pretensioners ........... 57
Seats Adjustment .............................. 43
Adjustment precautions .......... 46
Child seats/child restraint system installation ........ 98, 102
Cleaning ................................ 225
Folding down the rear seat ..... 47
Folding down the rear seat precautions ........................... 49
Front seat adjustment ............. 43
Front seat adjustment precautions ........................... 46
Head restraint ......................... 51
Properly sitting in the seat....... 78
Service reminder indicators ............................... 136O
P
R
S
