2014 TOYOTA YARIS display

140
2-2. Instrument cluster
Multi-information display
Changing the displayItems displayed can be switched
by pressing the display change
button.
The multi-information display presen ts the driver with a variety of
driving-related data.
● Odometer ( P. 141)
● Trip meter ( P. 141)
● Trip information ( P. 141)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Eco Driving Indicator Light
customization (vehicles with
an automatic transmission)
( P. 143)

141
2-2. Instrument cluster
2
When driving
Display items
■ Odometer
■ Tr i p m e t e r
Except Canada
Displays the total distance the vehicle has been
driven.
Canada
Except Canada Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters “A” and
“B” can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Canada

142 2-2. Instrument cluster
■Instantaneous fuel consumption
■ Average fuel consumption
Except Canada
Displays instantaneous fuel consumption.
Canada
Except Canada Displays the average fuel consumption since the
function was reset.
• The function can be reset by pressing and holding the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Canada

143
2-2. Instrument cluster
2
When driving
■
Driving range
■ Average vehicle speed
Eco Driving Indicator Light cu stomization (vehicles with an
automatic transmission) Except Canada
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When adding fuel, turn the engine switch to the
“LOCK” position. In case fuel is added without
turning the engine switch to the “LOCK” position,
the display may not be updated.
Canada
Except Canada Displays the average vehicle speed since the
engine was started or the function was reset.
Canada
Eco Driving Indicator Light can be activated or
deactivated by pressing t he display change button
when the Eco Driving Indicator Light customiza-
tion display is displayed.
To change the Eco Driving Indicator Light customiza-
tion display, display the odometer and press and
hold the button until the display changes.

144 2-2. Instrument cluster
■When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Average fuel consumption
● Driving range
● Average vehicle speed
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

Interior features3
191
3-1. Using the air conditioning system and defogger
Air conditioning system .... 192
Rear window and outside rear view mirror
defoggers ....................... 199
3-2. Using the audio system Using the AUX port/USB port ........................ 200
Using the steering wheel audio switches ............... 201
3-3. Using the interior lights Interior lights list ............... 202
• Personal lights ............... 203
• Interior light .................... 203
3-4. Using the storage features List of storage features .... 204
• Glove box....................... 205
• Cup holders ................... 205
• Bottle holders ................. 207 3-5. Other interior features
Sun visors ........................ 208
Vanity mirrors ................... 209
Clock ................................ 210
Outside temperature display............................ 211
Power outlet ..................... 213
Assist grips....................... 214
Floor mat .......................... 215
Luggage compartment features .......................... 217

210
3-5. Other interior features
Clock
■The clock is displayed when
The engine switch is in the “ON” position.
■ When disconnecting and reco nnecting battery terminals
The clock data will be reset.
Adjusts the hours
Adjusts the minutes

211
3-5. Other interior features
3
Interior features

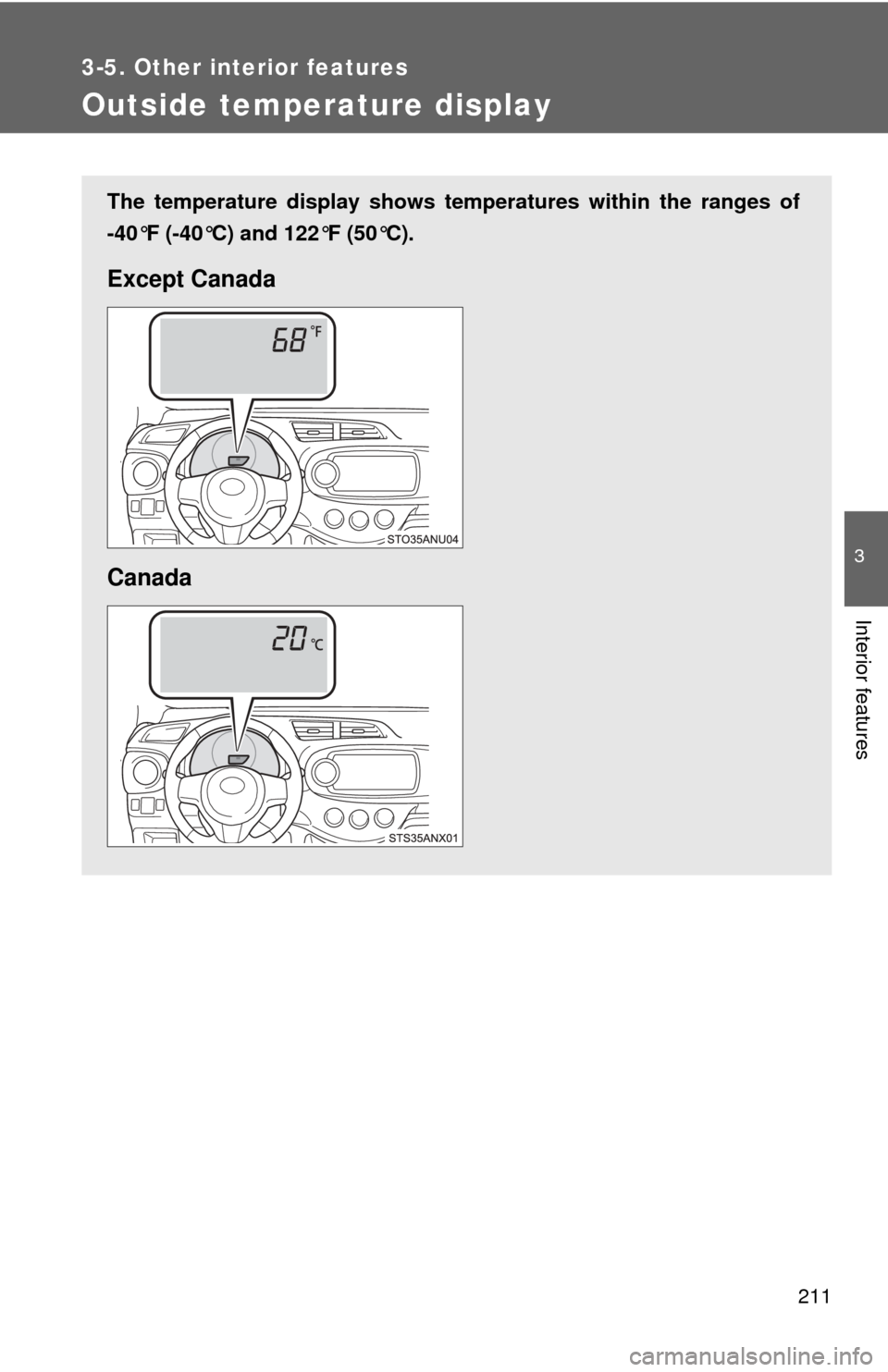

Outside temperature display
The temperature display shows temperatures within the ranges of
-40°F (-40°C) and 122°F (50°C).
Except Canada
Canada
