SCIONSECURITYSYSTEM Page10
GLASS BREAKAGE SENSORINFORMA TION
TheScion Security provides protection foryour vehicle aboveandbeyond entrypointmonitoring –it
"listens" forthe noise made bytapping on,orbreaking ofglass. Usingamicrophone designed
specifically forthis task, theG
LASSBREAKAGESENSORiscapable ofignoring othernoises, which
helps toprevent "falsealarms" fromoccuring.
GLASS BREAKAGE SENSORCHECKPROCEDURE
WhentheScion Security wasinstalled inyour vehicle, carewastaken toadjust thesensitivity level
of the G
LASSBREAKAGESENSOR.You may observe howitworks following theprocedure listed
below.
1.A
RMthe system .
Press thelock button onthe remote controlorlock thedoors
with thekey.
(Remember, thesystem willnot ARM ifany door isopen.)
2. Wait untiltheSTATUSMONITORʼ SLEDstarts flashing.
The LED willflash 30seconds afterthelast door isclosed.
3. With thetipofakey, tapthecenter ofthe driver'
sdoor window.
Tap theglass withlight tomoderate force.
WARNING :Do not hitthe glass withexcessive force,especially incold
weather, oryou may crack orbreak it.
A W
ARNAWAYALARMshould beTRIGGERED.If the ALARMisnot
TRIGGERED, make sureyouperformed theprocedure correctlyandtry
again. Ifyou findthat thesystem didnot perform asexpected, contact
your SCION dealerformore information.
4. D
ISARMthe system tostop theWARNAWAYALARM.
Press theunlock buttonontheremote controloruse thekey to
DISARMthe system.
UNLOCK
UNLOCK
Page 1SCIONSECURITY SYSTEM
INTRODUCTION
Congratulations onyour choice ofthe Scion add-on security systemtoprotect yourvehicle! Toget
the most fromthesystem, westrongly recommend thatyouread thisOwnerʼs Guidecompletely to
learn allofits features andfunctions.
The Scion Security provides securitythroughpoint-of-entry monitoring,glassbreakage detection
and ignition switchmonitoring. WhileA
RMED,the system willbeTRIGGEREDand sound anALARM
whenadoor isforcibly unlocked oropened*, orwhen awindow istapped onorbroken. Duringthe
A
LARM, the vehicleʼs hornsounds and th e headlig hts , ta il lig hts and fr o nt m ark e r or tu rn sig nallig hts
f la sh . Also, th e ve hic le ʼs starter isdisabled, preventing enginestart.Inaddition tothe comprehen-
sive protection, theScion Security worksinconjunction withyour vehicleʼs remotekeyless entry
system, enabling youtoA
RMand DISARMthesecurity systematthe same timethedoorsare
remotely lockedandunlocked. Invehicles equipped withabuzzer, itwill chirp when thesystem is
R
EMOTEARMEDand DISARMED.
An important noteabout yoursystem:
Throughout thisguide, therearereferences tothe S
TATUSMONITORforthis system.
Illustrated below,thispanel holdstheLED indicator (forthesystemʼs operating status)andthe
G
LASSBREAKAGE SENSOR'Smicrophone.
* When thesystem isP
ASSIVELY(AUTOMAT ICALLY)ARMED,there isan ENTRYDELAYthat willelapse
when adoor isopened beforeanA
LARMisTRIGGERED.
21
SCION
SECURITY
2
SECURITY
LIGHTS
FOR 30
SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)1

SCIONSECURITYSYSTEM Page2

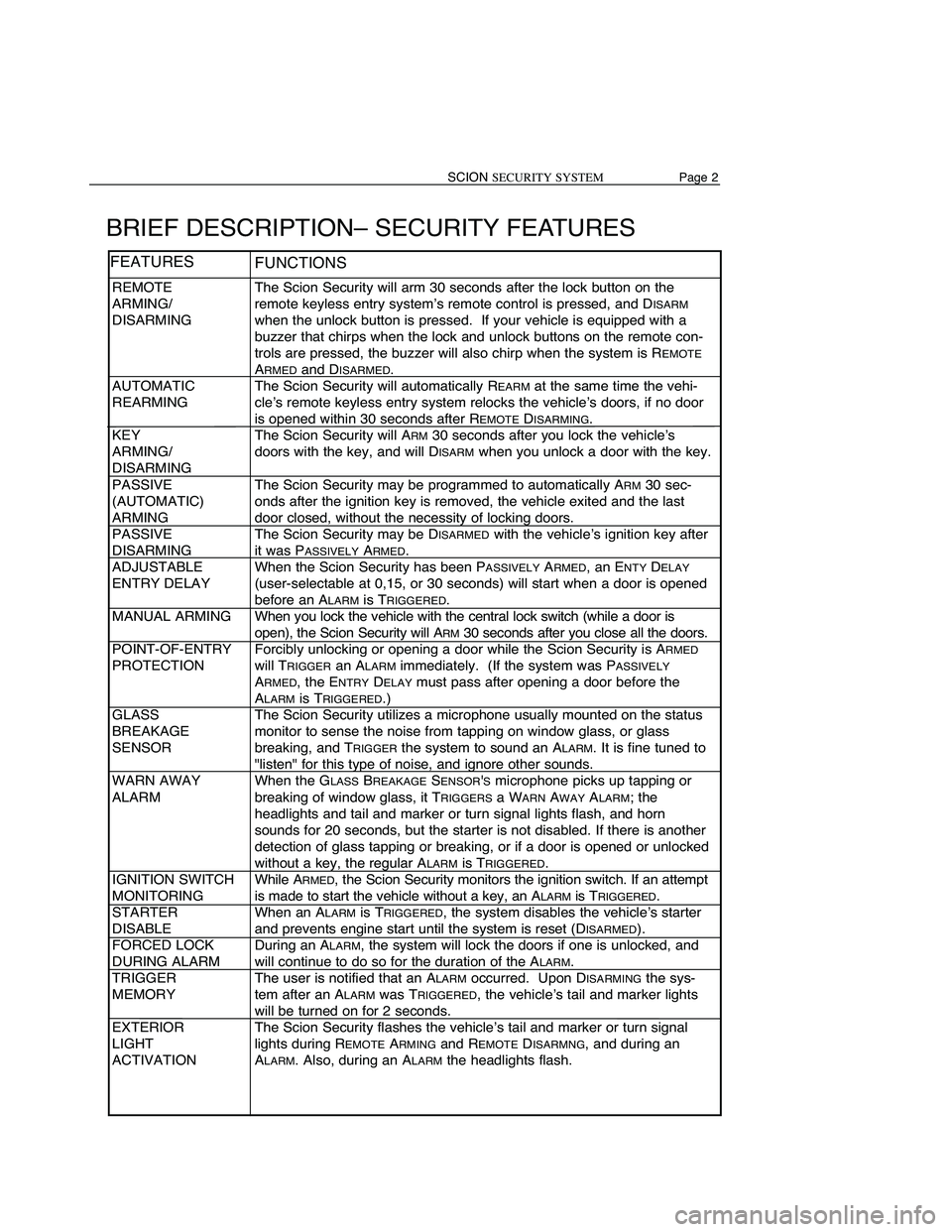

BRIEF DESCRIPTION– SECURITYFEATUR ES
TheScion Security willarm 30seconds afterthelock button onthe
remote keyless entrysystemʼs remotecontrolispressed, andD
ISARM
when theunlock buttonispressed. Ifyour vehicle isequipped witha
buzzer thatchirps whenthelock andunlock buttons onthe remote con-
trols arepressed, thebuzzer willalso chirp when thesystem isR
EMOTE
ARMEDand DISARM ED.
The Scion Security willautomatically R
EARMatthe same timethevehi-
cleʼs remote keyless entrysystem relockst
hevehicleʼs doors,ifno door
is opened within30seconds afterR
EMOTEDISARMIN G.
The Scion Security willA
RM30seconds afteryoulock thevehicleʼs
doors withthekey, andwillD
ISARMwhen youunlock adoor withthekey.
The Scion Security maybeprogrammed toautomatically A
RM30sec-
onds aftertheignition keyisremoved, thevehicle exitedandthelast
door closed, withoutthenecessity oflocking doors.
The Scion Security maybeD
ISARM EDwiththevehicleʼs ignitionkeyafter
it was P
ASSIVELYARMED.
When theScion Security hasbeen P
ASSIVELYARMED,an ENTYDELAY
(user-selectable at0,15, or30 seconds) willstart when adoor isopened
before anA
LARMisTRIGGERED.
W hen yo u lo ck th e ve hic le wit h th e ce ntr a llo ck sw it c h (w hile adoor is
o pen), th e Scio n Secu rit y will A
R M30 se co nds afte r yo u clo se all th e doors .
Forcibly unlocking oropening adoor while theScion Security isA
RMED
will TRIGGERanALARMimmediately. (Ifthe system wasPASSIVELY
ARMED,the ENTRYDELAYmust passafteropening adoor before the
A
LARMis TRIGGERED.)
The Scion Security utilizesamicrophone usuallymounted onthe status
monitor tosense thenoise fromtapping onwindow glass,orglass
breaking, andT
RIGGERthesystem tosound anALARM.It is fine tuned to
"listen" forthis type ofnoise, andignore othersounds.
When theG
LASSBREAKAGESENSOR'Smicrophone picksuptapping or
breaking ofwindow glass,itT
RIGGERSa WARNAWAYALARM;the
headlight
s and tailand marker orturn signal lightsflash, andhorn
sounds for20seconds, butthestarter isnot disabled. Ifthere isanother
detection ofglass tapping orbreaking, orifa door isopened orunlocked
without akey, theregular A
LARMisTRIGGERED.
W hile A
RM ED,th e Scio n Secu rit y m onit o rs th e ig nit io n sw it c h . If an atte m pt
i s m ade to sta rt th e ve hic le wit h out a ke y, an A
LA R Mis TRIG GER ED.
When anA
LARMisTRIGGERED,the system disables thevehicleʼs starter
and prevents en
ginestart untilthesystem isreset (DISARM ED).
During anA
LARM,the system willlock thedoors ifone isunlocked, and
will continue todo sofor the duration ofthe A
LARM.
The user isnotified thatanA
LARMoccurred. UponDISARMINGthesys-
tem after anA
LARMwas TRIGGERED,the vehicleʼs tailand marker lights
will beturned onfor 2seconds.
The Scion Security flashesthevehicleʼs tailand marker orturn signal
lights during R
EMOTEARMINGandREMOTEDISARM NG,and during an
A
LARM. Also, during anALARMthe headlights flash.
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY
DELAY
MANUAL ARMING
POINT-OF-ENTRY
PROTECTION
GLASS
BREAKAGE
SENSOR
WARN AWAY
ALARM
IGNITION SWITCH
MONITORING
STARTER
DISABLE
FORCED LOCK
DURING ALARM
TRIGGER
MEMORY
EXTERIOR
LIGHT
ACTIVATION
FEATURES FUNCTIONS
Page9SCIONSECURITY SYSTEM
ALARMINFORMA TION
ALARM DESCRIPTIO NS
RegularALARM
WhenanALARMistriggered inany way other thaninitial detection bythe GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for60seconds.
The headlights flashrepeatedly for60seconds.
The tailand marker orturn signal lightsflashrepeatedly for60seconds.
The starter isdisabled (noengine start)untilthesystem isD
ISARMED.
The door lockwillberelocked ifsomeone
reaches inand unlocks theinside lockbutton.
After 60seconds ofA
LARM,the system willREARMand continue toprotect thevehicle.
W
ARN-AWAYALARM
Upon initialdetection ofnoise fromtapping on,orbreaking glass,theGLASSBREAKAGESENSOR
TRIGGERSaWARNAWAYALARM:
The horn sounds repeatedly for20seconds.
The headlights flashrepeatedly for20seconds.
The tailand marker orturn signal lightsflashrepeatedly for20seconds.
If the G
LASSBREAKAGESENSORdetects noiseagain,orifa door isopened whilethesystem isstill
A
RMED, the regular ALARM(described above)isactivated.
STOPPING ANALARM
Simply DISARMthesystem usingtheremote controlorkey asdescribed onpage 5.
THEHORN
SOUNDS
FOR 60SECONDS
HEAD LIGHTS
FLASH
FOR 60SECONDS THE
STARTER ISDIS-
ABLED UNTILTHESYSTEM
IS DISARMED
MARKERORTURN
SIGNAL LIGHTS
FLASH
FOR 60SECONDS TAIL
ORTURN SIG-
NAL LIGHTS FLASH
FOR 60SECONDS
1
THE HORN
SOUNDS
FOR 20SECONDS
HEAD LIGHTS
FLASH
FOR 20SECONDS MARKER
ORTURN
SIGNAL LIGHTS
FLASH
FOR 20SECONDS TAIL
ORTURN SIG-
NAL LIGHTS FLASH
FOR 20SECONDS
2
1
2

Page3SCIONSECURITY SYSTEM
BUZZER
ACTIVATION
HORNACTIVATE
POWER LOSS
MEMORY
STATUS
MONITORIf your vehicle isequipped withabuzzer thatchirps whenthelock and
unlock buttons onthe remote keyless entrysystemʼs remotecontrols are
pressed, thebuzzer willalso chirp when thesystem isR
EMOTEARMED
and DISARMED.
During anA
LARM,the Scion Security activates thevehicleʼs horn.
If power tothe Scion Security isdisrupted whileitis A
RMED,an ALARM
isTRIGGEREDonce power isrestored.
This panel houses theG
LASSBREAKAGESENSORmicrophone andthe
flashing LEDthat
indicates theoperating statusofthe security system.
FEATURES FUNCTIONS
SCIONSECURITY
SYSTEM Page8
ALARM INFORMA TION
ALARMTRIGGERS
Whilethesystem isArmed, anAlarm willbeTriggered whenanyofthe following occurs:
Forcibly opening anydoor
Manually unlocking adoor
Manually operating aninside lockbutton willT
RIGGERanALARM.
Note: Because thisaction willT
RIGGERanALARM,it is important
that youdonot A
RMthesystem whilesomeone isin the
vehicle.
“Hot wiring” thevehicle
The Scion Security candetect theabsence ofthe ignition key
if
the ignition circuitisshorted inattempt tostart thevehicle.
Tapping onorbreaking theglass
The noise fromtapping on,orbreaking ofglass T
RIGGERSaWARN
AWAYALARMfirst, then regular ALARM.See thedecription ofhow the
G
LASSBREAKAGESENSORTRIGGERSALARMSon page 10.
Power restoration
If power tothe system isinterrupted whileitis A
RMED,an
A
LARMwill beTRIGGEREDimmediately whenpower isrestored.

Page7SCIONSECURITY SYSTEM
OPERATION
AUTOMAT ICREARMING
When youunlock thedoors usingtheremote control, theScion Security isDISARMEDat the same
time. However, ifyou donot open adoor within 30seconds, thekeyless entrysystem willrelock the
doors andtheScion Security willR
EARM30seconds later.
How theScion Security automatically R
EARMS:
0
15
3 0
4
5
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON
ON THE REMO TE
CONTROL.. .WHEN
NODOOR,
TRUNK ORHATCH
IS OPENED... FOR
MORETHAN
30
SECONDS... THE
KEYLESS
ENTRY
SYSTEM AUTOMAT -
ICALLY RELOCKS
THE DOORS, THEN
THE SCION
SECURITY
AUTOMAT ICALLY
REARMS. THE
LEDWILL
LIGHT UPFOR 30
SECONDS
(PRE-ARM), THEN
FLASH WHENTHE
SYSTEM ISARMED
SCIONSECURITY SYSTEM Page4
OPERA TION
ARMING THESECURITY (exceptPASSIVE ARMING)
Thesystem maybeARMEDinseveral ways.Dooneofthe following:
Lock thedoors withyour key:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.*
Close thetrunk orhatch, ifnecessary.*
Insert thekey into thedoor keyswitch andturn ittoward the
front ofthe vehicle:
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
Lock thedoors frominside th
evehicle:
Remove thekey from theignition switch.
Open thedriverʼs orfront passengerʼs door.
Push thecentral lockswitch.
Exit thevehicle, andclose allthe doors.*
Close thetrunk orhatch, ifnecessary.* Then:
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
Lock thedoors withtheremote control:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.*
Close thetrunk orhatch, ifnecessary.*
Pr
ess thelock button onthe remote control. Simultaneously:
The doors lock.
The vehicleʼs tailand marker orturn signal lightsflash
once.
The vehicleʼs buzzerchirpsonce.
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
* The system willnot A
RMwhile anyofthe doors, trunkorhatch isopen.
If your vehicle isequipped withabuzzer.
3
1
2
1
1
TURN TOWARD THE
FRONT
OF THE VEHICLE
UNLOCK
PRESS ANDRELEASE
THE LOCK BUTTON
PUSH THELOCK
SWIT CHWHILE THE
DOOR ISOPEN
LIGHTS
FOR 30
SEC-
ONDS (PRE-
ARMIN G)
THEN
FLASHES (SYSTEM IS
ARMED)
THE TAIL ANDMARKER ORTURN SIGNAL
LIGHTS FLASHONCEWHEN THESYSTEM IS
REMOTE ARMED
ALL
DOORS LOCKWHEN
THE SYSTEM ISREMOTE
ARMED
123

SCIONSECURITYSYSTEM Page6
OPERA TION
PASSIVE (AUTOMATIC) ARMING&DISARM ING
WhentheScion Security isprogrammed toPASSIVELYARM,the system willARMafter theignition
key isremoved andalldoors areclosed; youdonot need tolock thedoors. Whenyoucome back
to your vehicle andopen adoor, youmust insert thekey into theignition switchandturn itto “ON”
during theE
NTRYDELAY(0,15or30 seconds), oran ALARMwill beTRIGGERED.If you lock the
doors, regular A
RMINGwilloverride PASSIVEARMING;there willbenoENTRYDELAY.See the
PROGRAMMING informationonpage 11toactivate theP
ASSIVEARMINGmode, aswell astoselect
the E
NTRYDELAYtime.
ToP
ASSIVELYARMthe system:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.
(The system willnot
A
RMwhile anyofthe doors areopen.)
After thelast door isclosed:
The S
TATUSMONITORʼSLED turns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
To D
ISARMthePASSIVELYARMEDsystem:
Enter thevehicle through afront door.
The E
NTRYDELAYbegins:
The S
TATUSMONITORʼSLED turns on(no flashing).
Insert thekey into theignition switchandturn itto
“ON”
before theENTRYDELAYends.*
The LED turns off.The system isnow D
ISARM ED.
Youmay alsoDISARMthesystem following anyofthe methods
described onpage 5.
NOTE: Ifyour vehicleʼs tailand marker lightsturnonfor 2seconds whentheignition key
is turned to“ON,” theT
RIGGERMEMORYwasactivated; something TRIGGEREDanALARM
while youwere away fromthevehicle.
* If the E
NTRYDELAYtime elapses beforetheignition switchisturned to“ON,” anALARMwill be
T
RIGGERED. To DISARMthe system duringanALARM,insert theignition keyand turn itto “ON,” or
press andrelease theremote controlʼs unlockbutton.
2
1THESYSTEM ARMS30
SECONDS AFTERTHE
LAST DOOR
IS CLOSED
THE SYSTEM DISARMS
WHEN
YOU INSERT THEKEY
AND TURN ITTO “ON”
TURNS
ON (NO
FLASH- ING)
DURING THE
ENTRY DELAY
2
Page 5SCIONSECURITY SYSTEM
OPERATION
DISARMING THESECURITY (exceptPASSIVE DISARMING)
Thesystem maybeDISARMEDinseveral ways.Doone ofthe following:
Unlock thedoors withyour key:
Insert thekey into thedoor keyswitch andturn ittoward therear of
the vehicle:
TheS
TATUSMONITORʼSLED stops flashing.
The system isnow D
ISARMED.*
Unlock thedoors withtheremote control:
Press theunlock buttononthe remote control. Simultaneously:
The driverʼs doorunlocks.
The
vehicleʼs tailand marker orturn signal lightsflash
twice.
The vehicleʼs buzzerchirpstwice.
The S
TATUSMONITORʼSLED stops flashing.
The system isnow D
ISARMED.*
Press theunlock buttonagainwithin 3seconds afterunlocking the
driverʼs doortounlock theremaining doors.
NOTE: Ifyour vehicleʼs tailand marker orturn signal lightsturnonfor 2seconds whenthesystem
is D
ISARM ED,*the TRIGG ERMEMORYwasactivated; something TRIGGEREDanALARMwhile
you were away fro
mthe vehicle.
If your vehicle isequipped withabuzzer.
*Please note,ifthe system utilizesyourvehicleʼs engineimmobilizer systemLEDinstead ofthe
S
TATUSMONITOR, the LED willcontinue toflash.
2
1
TURN TOWAR DTHE
REAR
OF THE VEHICLE
THEDRIVERʼS DOOR
UNLOCKS WHENTHE
SYSTEM ISREMOTE
DISARMED THE
TAIL ANDMARKER ORTURN SIGNAL
LIGHTS FLASHTWICEWHENTHESYSTEM
IS REMOT EDISARMED
UNLOCK
PUSH THEUNLOCK
BUTTON
STOPS
FLASH- ING
WHEN
THE SYS-
TEM IS
DIS-
ARMED
123
3
1
LIGHTS FOR 30
SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)1

SCIONSECURITYSYSTEM Page6
OPERA TION
PASSIVE (AUTOMATIC) ARMING&DISARM ING
WhentheScion Security isprogrammed toPASSIVELYARM,the system willARMafter theignition
key isremoved andalldoors areclosed; youdonot need tolock thedoors. Whenyoucome back
to your vehicle andopen adoor, youmust insert thekey into theignition switchandturn itto “ON”
during theE
NTRYDELAY(0,15or30 seconds), oran ALARMwill beTRIGGERED.If you lock the
doors, regular A
RMINGwilloverride PASSIVEARMING;there will benoENTRYDELAY.See the
PROGRAMMING informationonpage 11toactivate theP
ASSIVEARMINGmode, aswell astoselect
the E
NTRYDELAYtime.
ToP
ASSIVELYARMthe system:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.
(The system willnot
A
RMwhile anyofthe doors areopen.)
After thelast door isclosed:
The S
TATUSMONITORʼSLED turns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
To D
ISARMthe PASSIVELYARMEDsystem:
E
nter thevehicle through afront door.
The E
NTRYDELAYbegins:
The S
TATUSMONITORʼSLED turns on(no flashing).
Insert thekey into theignition switchandturn itto
“ON”
before theENTRYDELAYends.*
The LED turns off.The system isnow D
ISARM ED.
Youmay alsoDISARMthesystem following anyofthe methods
described onpage 5.
NOTE: Ifyour vehicleʼs tailand marker lightsturnonfor 2seconds whentheignition key
is turned to“ON,” theT
RIGGERMEMORYwas activated; something TRIGGEREDanALARM
while youwere away fromthevehicle.
* If the E
NTRYDELAYtime elapses beforetheignition switchisturned to“ON,” anALARMwill be
T
RIGGERED. To DISARMthe system duringanALARM,insert theignition keyand turn itto “ON,” or
press andrelease theremote controlʼs unlockbutton.
2
1THESYSTEM ARMS30
SECONDS AFTERTHE
LAST DOOR
IS CLOSED
THE SYSTEM DISARMS
WHEN
YOU INSERT THEKEY
AND TURN ITTO “ON”
TURNS
ON (NO
FLASH- ING)
DURING THE
ENTRY DELAY
2
Page
5
SCIONSECURITY SYSTEM
OPERATION
DISARMING THESECURITY (exceptPASSIVE DISARMING)
Thesystem maybeDISARMEDinseveral ways.Doone ofthe following:
Unlock thedoors withyour key:
Insert thekey into thedoor keyswitch andturn ittoward therear of
the vehicle:
TheS
TATUSMONITORʼSLED stops flashing.
The system isnow D
ISARMED.*
Unlock thedoors withtheremote control:
Press theunlock buttononthe remote control. Simultaneously:
The driverʼs doorunlocks.
Th
e vehicleʼs tailand marker orturn signal lightsflash
twice.
The vehicleʼs buzzerchirpstwice.
The S
TATUSMONITORʼSLED stops flashing.
The system isnow D
ISARMED.*
Press theunlock buttonagainwithin 3seconds afterunlocking the
driverʼs doortounlock theremaining doors.
NOTE: Ifyour vehicleʼs tailand marker orturn signal lightsturnonfor 2seconds whenthesystem
is D
ISARM ED,*the TRIGG ERMEMORYwasactivated; something TRIGGEREDanALARMwhile
you were away fr
omthe vehicle.
If your vehicle isequipped withabuzzer.
*Please note,ifthe system utilizesyourvehicleʼs engineimmobilizer systemLEDinstead ofthe
S
TATUSMONITOR, the LED willcontinue toflash.
2
1
TURN TOWAR DTHE
REAR
OF THE VEHICLE
THEDRIVERʼS DOOR
UNLOCKS WHENTHE
SYSTEM ISREMOTE
DISARMED THE
TAIL ANDMARKER ORTURN SIGNAL
LIGHTS FLASHTWICEWHENTHESYSTEM
IS REMOT EDISARMED
UNLOCK
PUSH THEUNLOCK
BUTTON
STOPS
FLASH- ING
WHEN
THE SYS-
TEM IS
DIS-
ARMED
123
3
1
LIGHTS FOR 30
SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)1

Page7SCIONSECURITY SYSTEM
OPERATION
AUTOMAT ICREARMING
When youunlock thedoors usingtheremote control, theScion Security isDISARMEDat the same
time. However, ifyou donot open adoor within 30seconds, thekeyless entrysystem willrelock the
doors andtheScion Security willR
EARM30seconds later.
How theScion Security automatically R
EARMS:
0
15
3 0
4
5
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON
ON THE REMO TE
CONTROL.. .WHEN
NODOOR,
TRUNK ORHATCH
IS OPENED... FOR
MORETHAN
30
SECONDS... THE
KEYLESS
ENTRY
SYSTEM AUTOMAT -
ICALLY RELOCKS
THE DOORS, THEN
THE SCION
SECURITY
AUTOMAT ICALLY
REARMS. THE
LEDWILL
LIGHT UPFOR 30
SECONDS
(PRE-ARM), THEN
FLASH WHENTHE
SYSTEM ISARMED
SCIONSECURITY SYSTEM Page4
OPERA TION
ARMING THESECURITY (exceptPASSIVE ARMING)
Thesystem maybeARMEDinseveral ways.Dooneofthe following:
Lock thedoors withyour key:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.*
Close thetrunk orhatch, ifnecessary.*
Insert thekey into thedoor keyswitch andturn ittoward the
front ofthe vehicle:
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
Lock thedoors frominside thevehicle:
Remove thekey from theignition switch.
Open thedriverʼs orfront passengerʼs door.
Push thecentral lockswitch.
Exit thevehicle, andclose allthe doors.*
Close thetrunk orhatch, ifnecessary.* Then:
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
Lock thedoors withtheremote control:
Remove thekey from theignition switch.
Exit thevehicle, andclose allthe doors.*
Close thetrun
kor hatch, ifnecessary.*
Press thelock button onthe remote control. Simultaneously:
The doors lock.
The vehicleʼs tailand marker orturn signal lightsflash
once.
The vehicleʼs buzzerchirpsonce.
The S
TATUSMONITO RʼSLEDturns onfor 30seconds,
then starts flashing. Thesystem isnow A
RMED.
* The system willnot A
RMwhile anyofthe doors, trunkorhatch isopen.
If your vehicle isequipped withabuzzer.
3
1
2
1
1
TURN TOWARD THE
FRONT
OF THE VEHICLE
UNLOCK
PRESS ANDRELEASE
THE LOCK BUTTON
PUSH THELOCK
SWIT CHWHILE THE
DOOR ISOPEN
LIGHTSFOR 30
SEC-
ONDS (PRE-
ARMIN G)
THEN
FLASHES (SYSTEM IS
ARMED) THE
TAIL ANDMARKER ORTURN SIGNAL
LIGHTS FLASHONCEWHEN THESYSTEM IS
REMOTE ARMED
ALL
DOORS LOCKWHEN
THE SYSTEM ISREMOTE
ARMED
123

Page3SCIONSECURITY SYSTEM
BUZZER
ACTIVATION
HORNACTIVATE
POWER LOSS
MEMORY
STATUS
MONITOR If
your vehicle isequipped withabuzzer thatchirps whenthelock and
unlock buttons onthe remote keyless entrysystemʼs remotecontrols are
pressed, thebuzzer willalso chirp when thesystem isR
EMOTEARMED
and DISARMED.
During anA
LARM,the Scion Security activates thevehicleʼs horn.
If power tothe Scion Security isdisrupted whileitis A
RMED,an ALARM
isTRIGGEREDonce poweris restored.
This panel houses theG
LASSBREAKAGESENSORmicrophone andthe
flashing LEDthatindicates theoperating statusofthe security system.
FEATURES FUNCTIONS
SCIONSECURITY
SYSTEM Page8
ALARM INFORMA TION
ALARMTRIGGERS
Whilethesystem isArmed, anAlarm willbeTriggered whenanyofthe following occurs:
Forcibly opening anydoor
Manually unlocking adoor
Manually operating aninside lockbutton willT
RIGGERanALARM.
Note: Because thisaction willT
RIGGERanALARM,it is important
that youdonot A
RMthesystem whilesomeone isin the
vehicle.
“Hot wiring” thevehicle
The Scion Security candetect theabsence ofthe ignition keyif
the ignition circuitissh
orted inattempt tostart thevehicle.
Tapping onorbreaking theglass
The noise fromtapping on,orbreaking ofglass T
RIGGERSaWARN
AWAYALARMfirst, then regular ALARM.See thedecription ofhow the
G
LASSBREAKAGESENSORTRIGGERSALARMSon page 10.
Power restoration
If power tothe system isinterrupted whileitis A
RMED,an
A
LARMwill beTRIGGEREDimmediately whenpower isrestored.
