378
4-3. Do-it-yourself maintenance
VERSO-S_EE

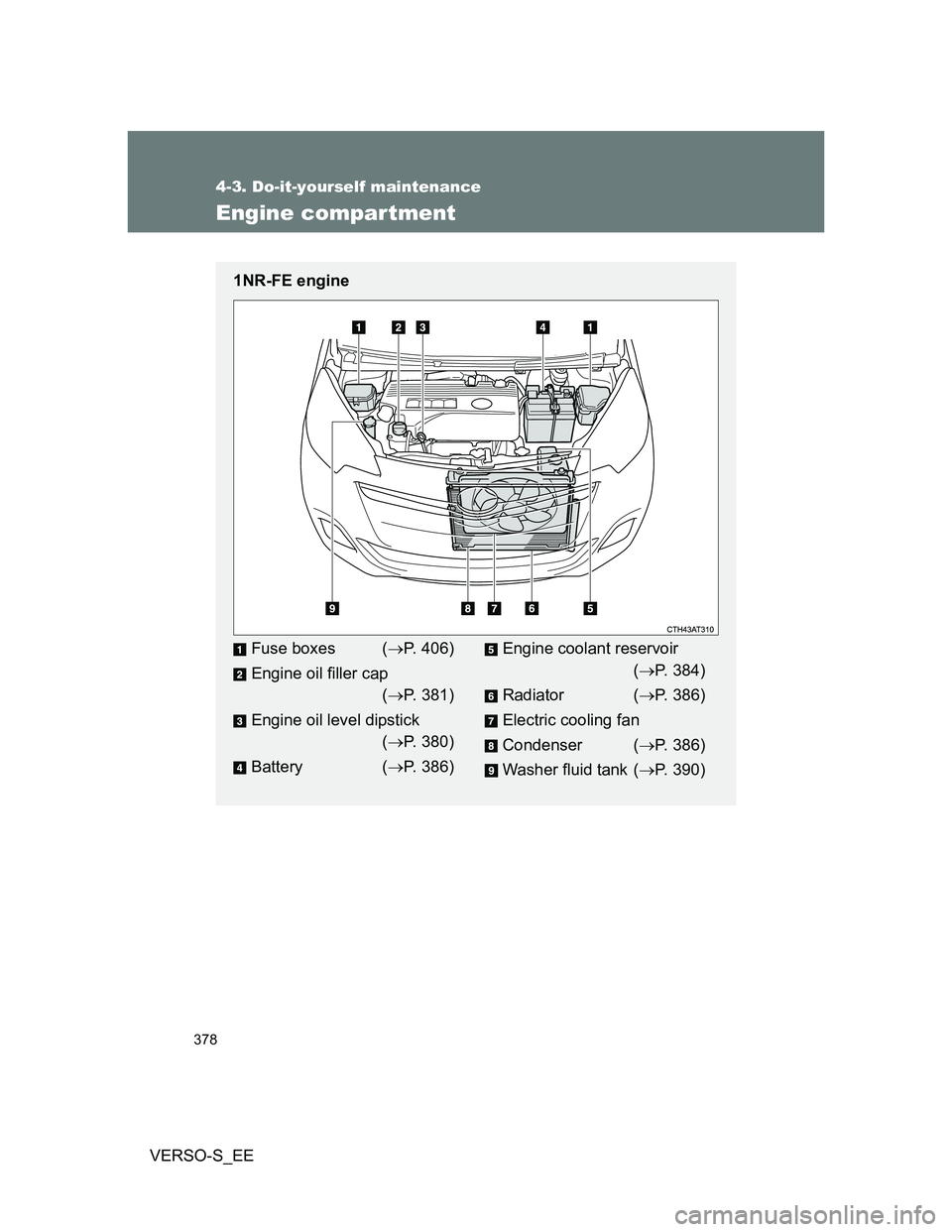

Engine compartment
1NR-FE engine
Fuse boxes (P. 406)
Engine oil filler cap
(P. 381)
Engine oil level dipstick
(P. 380)
Battery (P. 386)Engine coolant reservoir
(P. 384)
Radiator (P. 386)
Electric cooling fan
Condenser (P. 386)
Washer fluid tank (P. 390)

379 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

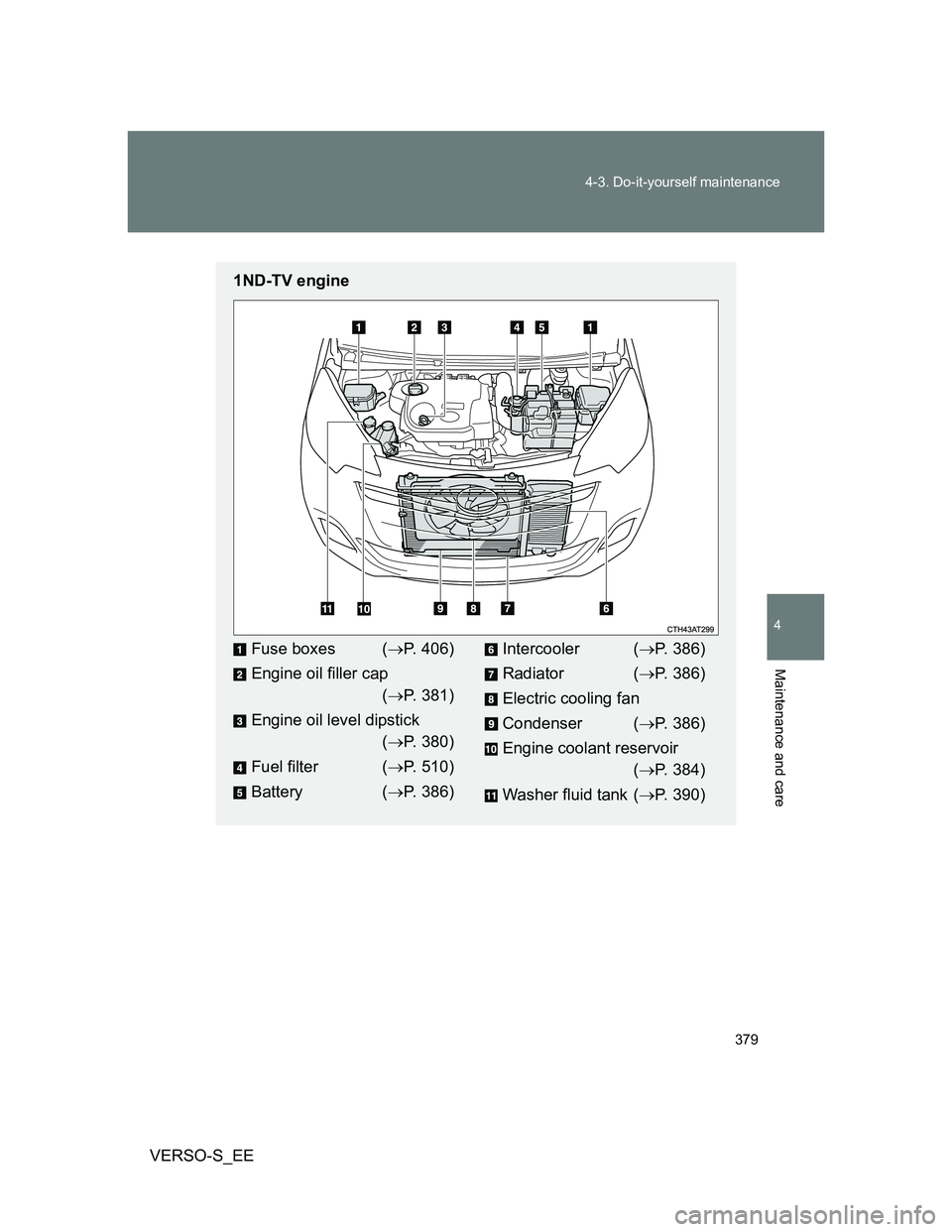

1ND-TV engine
Fuse boxes (P. 406)
Engine oil filler cap
(P. 381)
Engine oil level dipstick
(P. 380)
Fuel filter (P. 510)
Battery (P. 386)Intercooler (P. 386)
Radiator (P. 386)
Electric cooling fan
Condenser (P. 386)
Engine coolant reservoir
(P. 384)
Washer fluid tank (P. 390)

406
4-3. Do-it-yourself maintenance
VERSO-S_EE

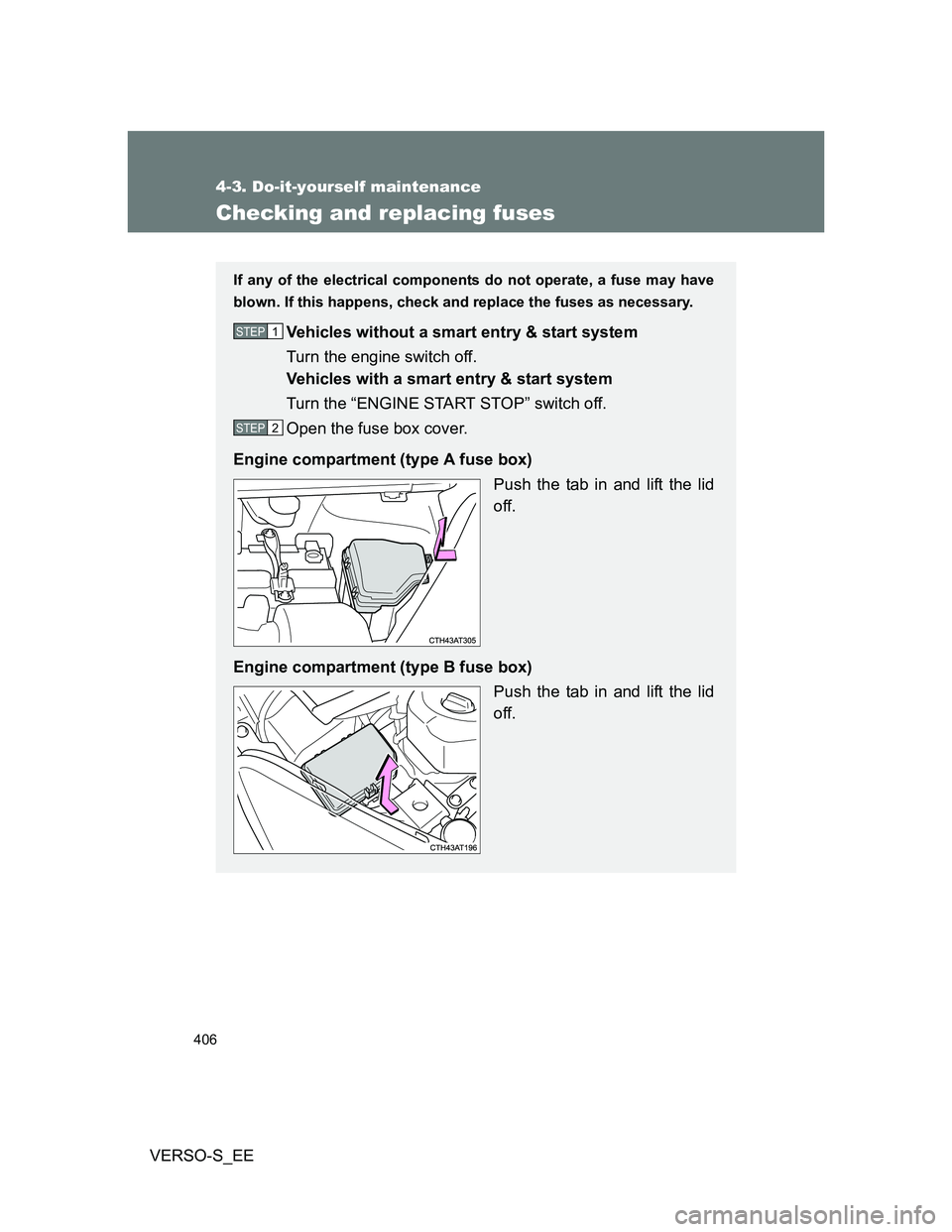

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart entry & start system
Turn the engine switch off.
Vehicles with a smart entry & start system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tab in and lift the lid
off.
Engine compartment (type B fuse box)
Push the tab in and lift the lid
off.STEP1
STEP2

407 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

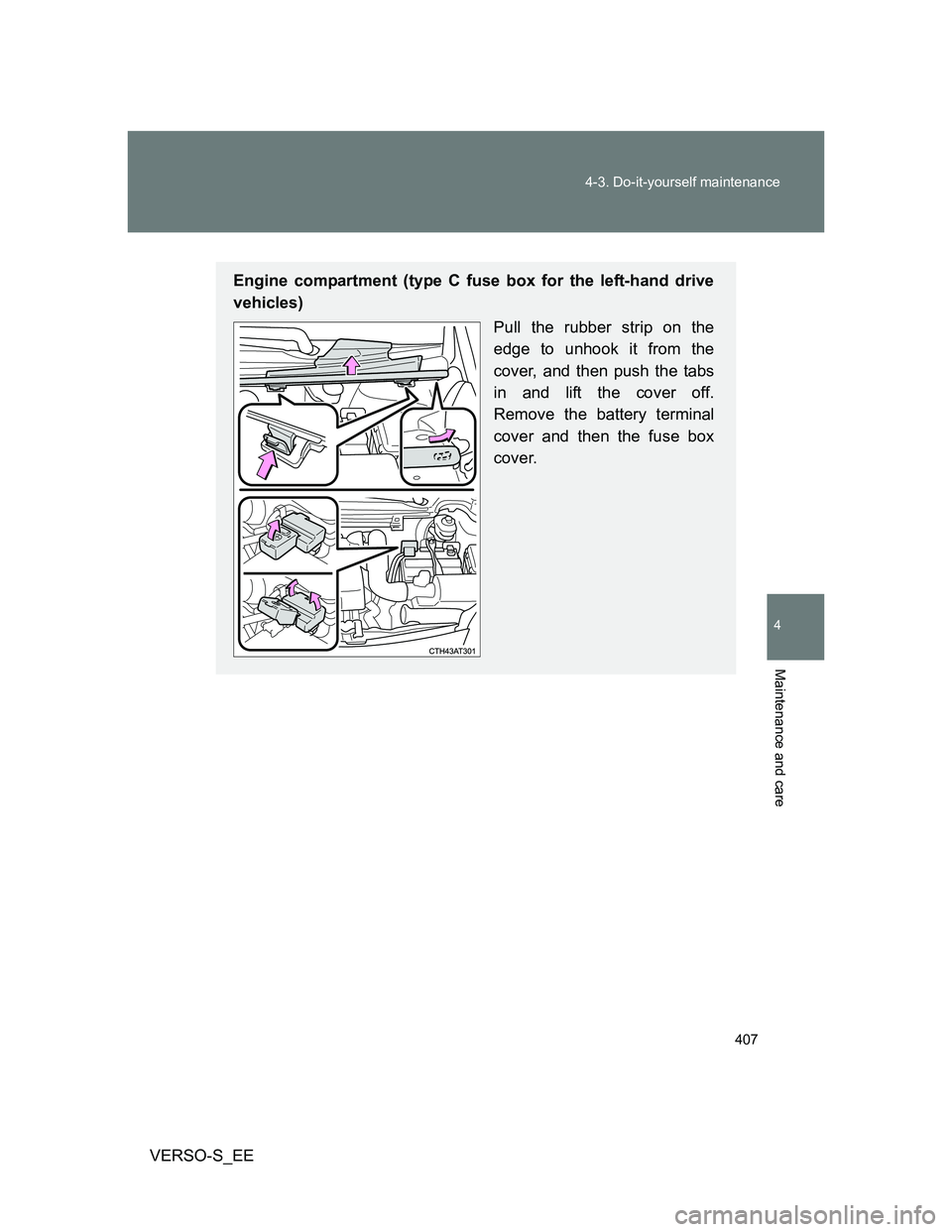

Engine compartment (type C fuse box for the left-hand drive
vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.

408 4-3. Do-it-yourself maintenance
VERSO-S_EE

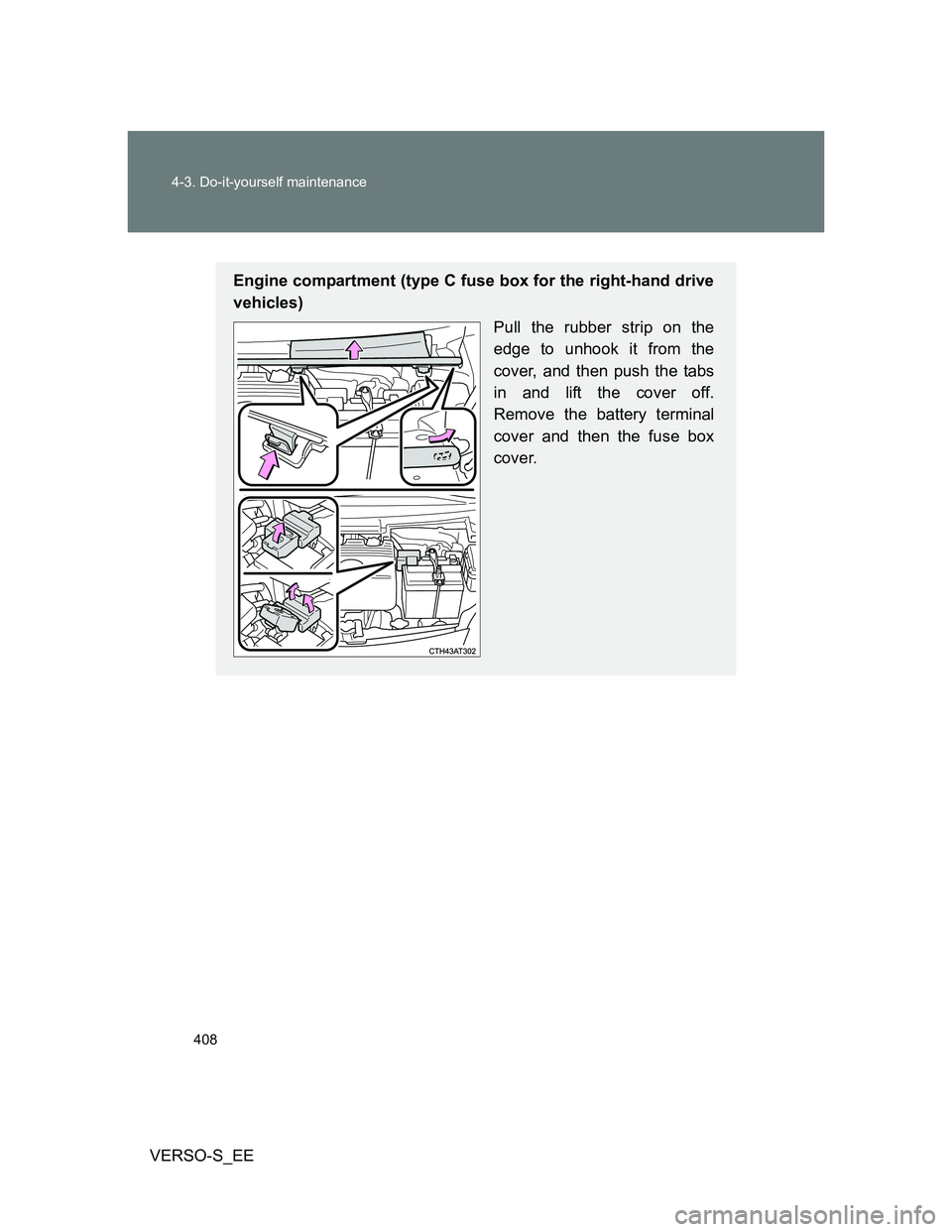

Engine compartment (type C fuse box for the right-hand drive
vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.

410 4-3. Do-it-yourself maintenance
VERSO-S_EE

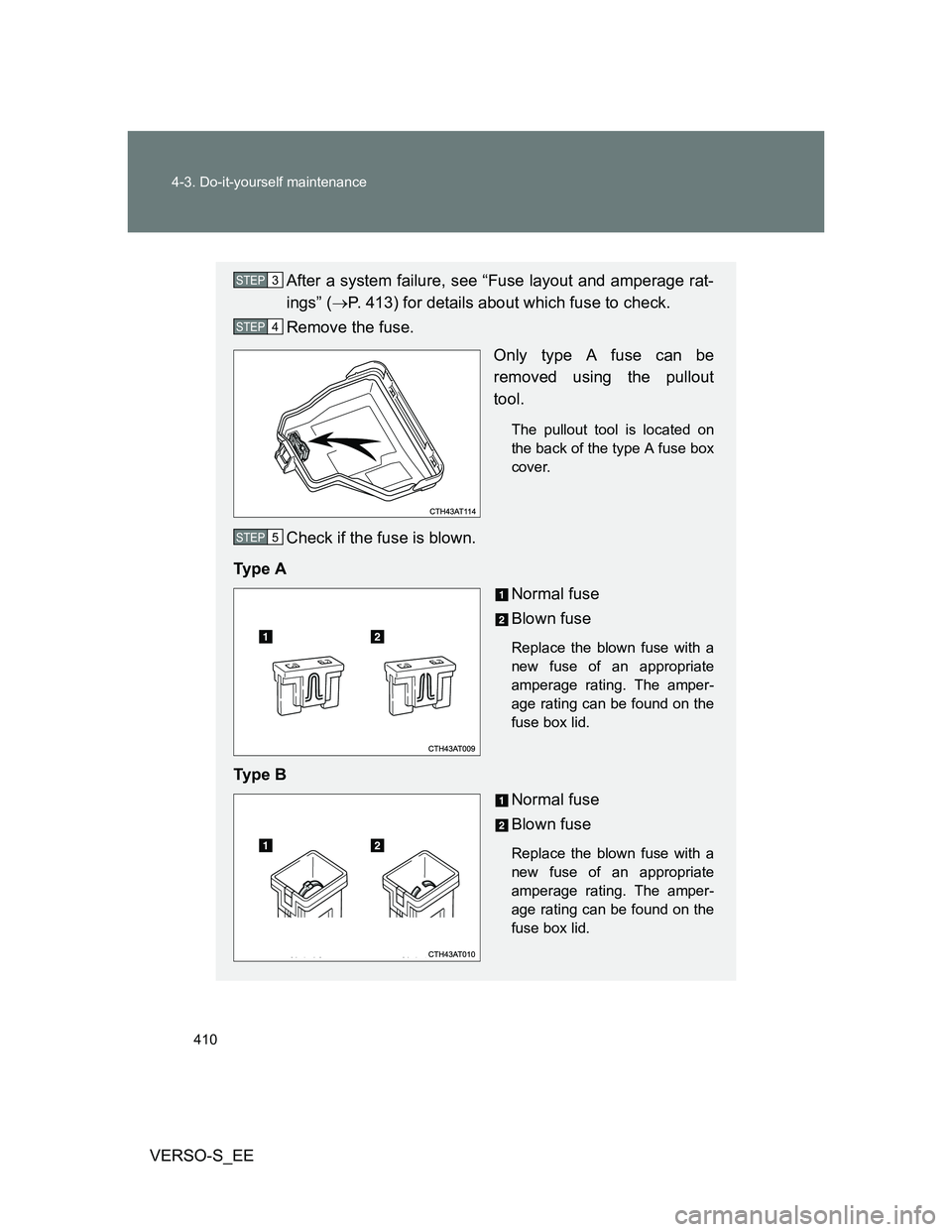

After a system failure, see “Fuse layout and amperage rat-
ings” (P. 413) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
The pullout tool is located on
the back of the type A fuse box
cover.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP3
STEP4
STEP5

411 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

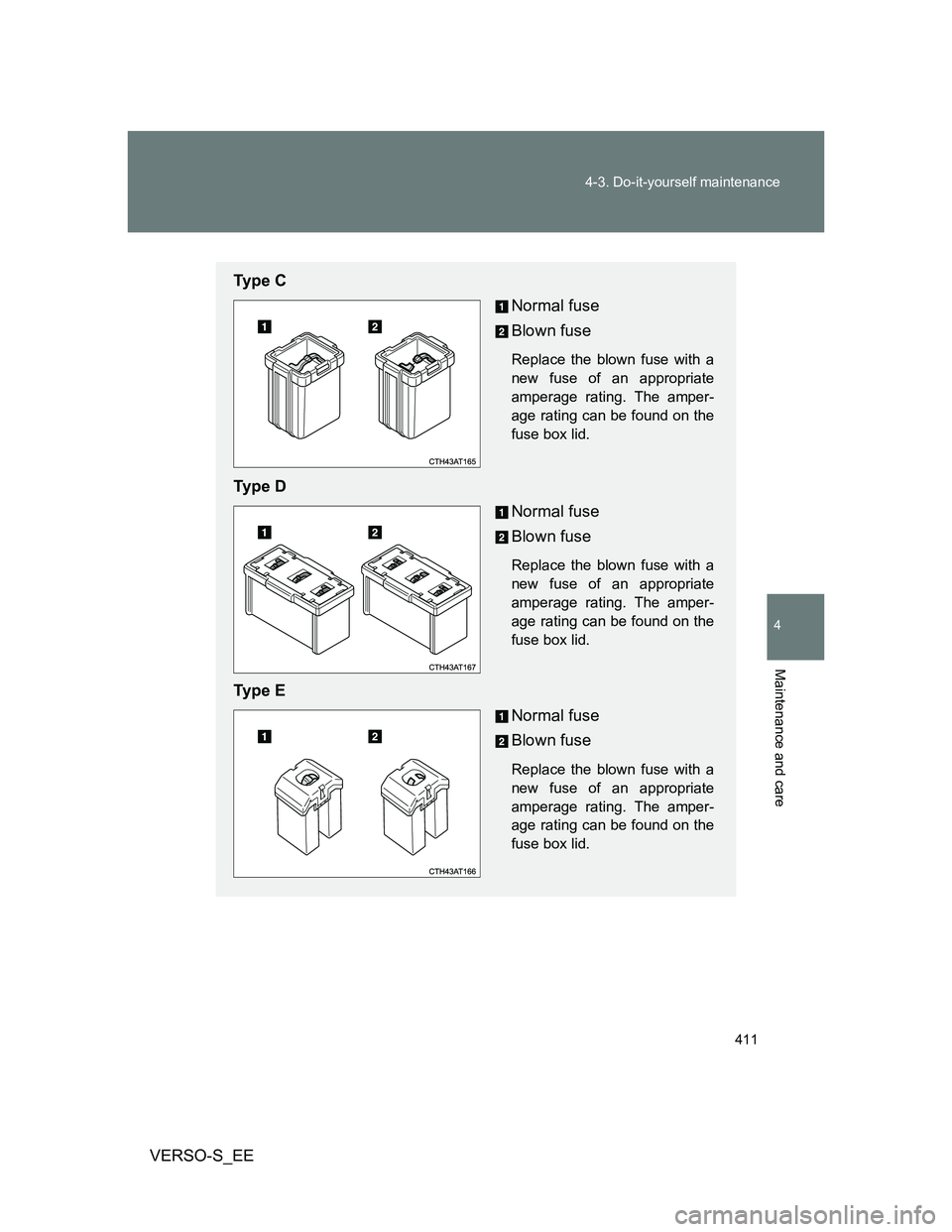

Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e E
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.

412 4-3. Do-it-yourself maintenance
VERSO-S_EE

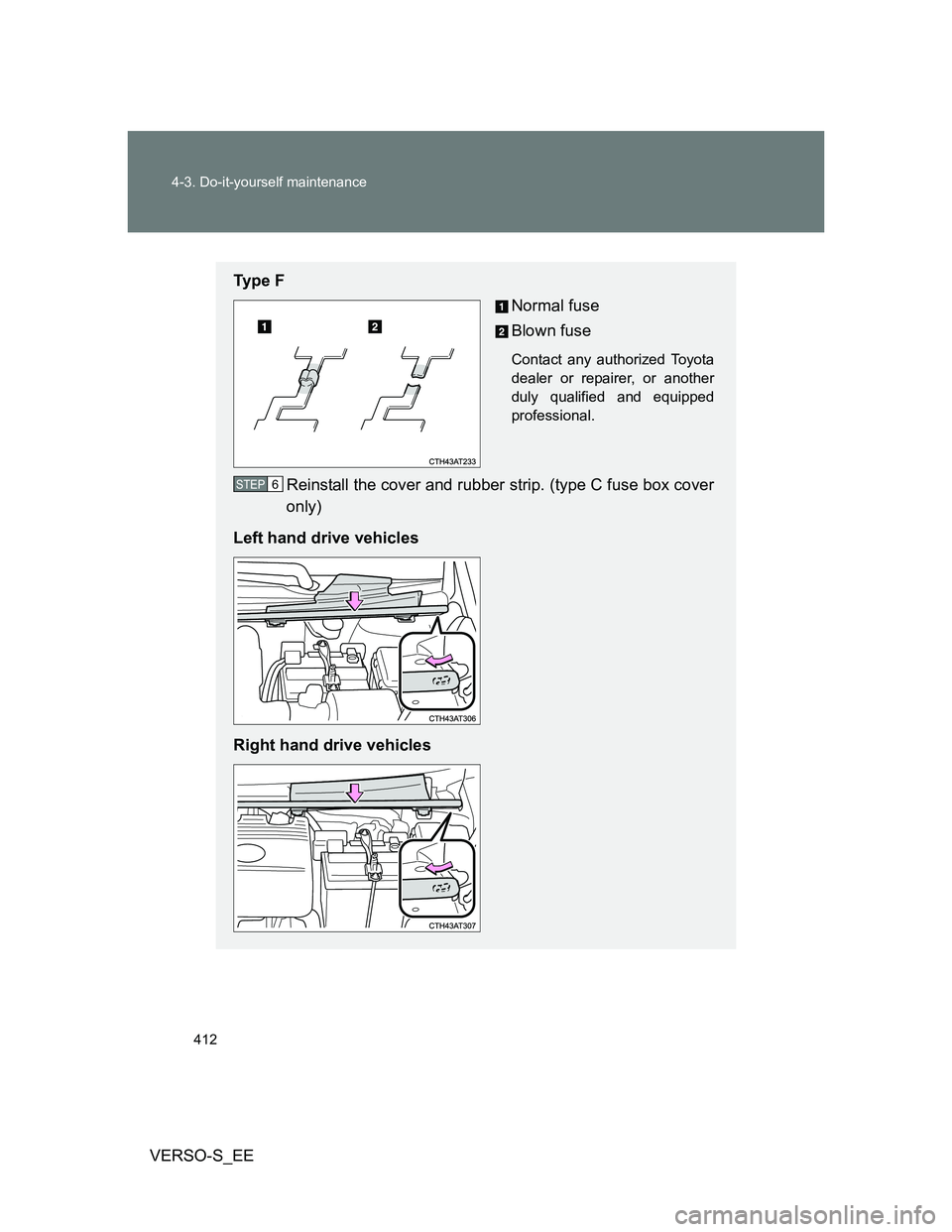

Ty p e F
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Reinstall the cover and rubber strip. (type C fuse box cover
only)
Left hand drive vehicles
Right hand drive vehiclesSTEP6
