381 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEAdding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 523
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 Imp. qt.)
Item Clean funnel
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
STEP1
STEP2
STEP3

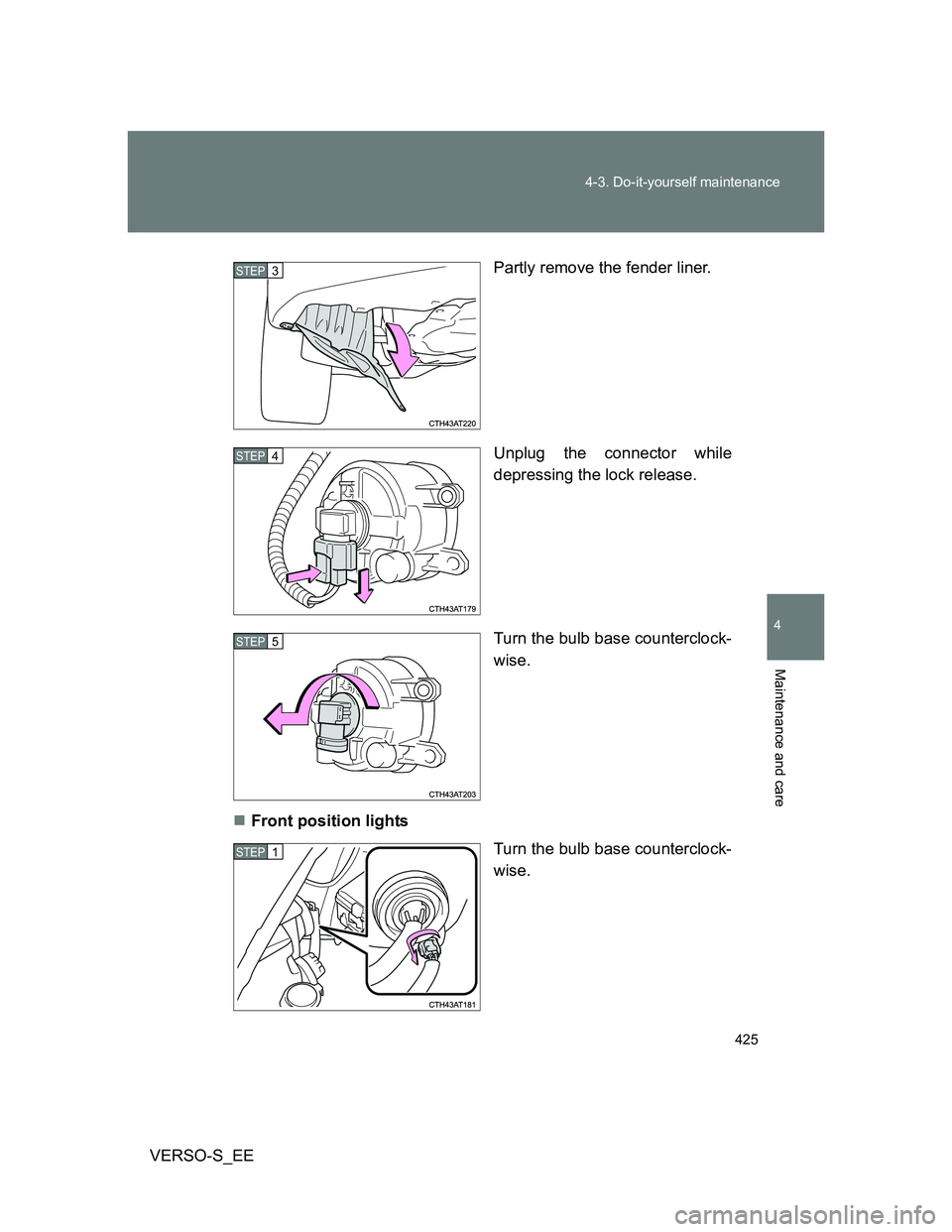

425 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
STEP3
STEP4
STEP5
STEP1

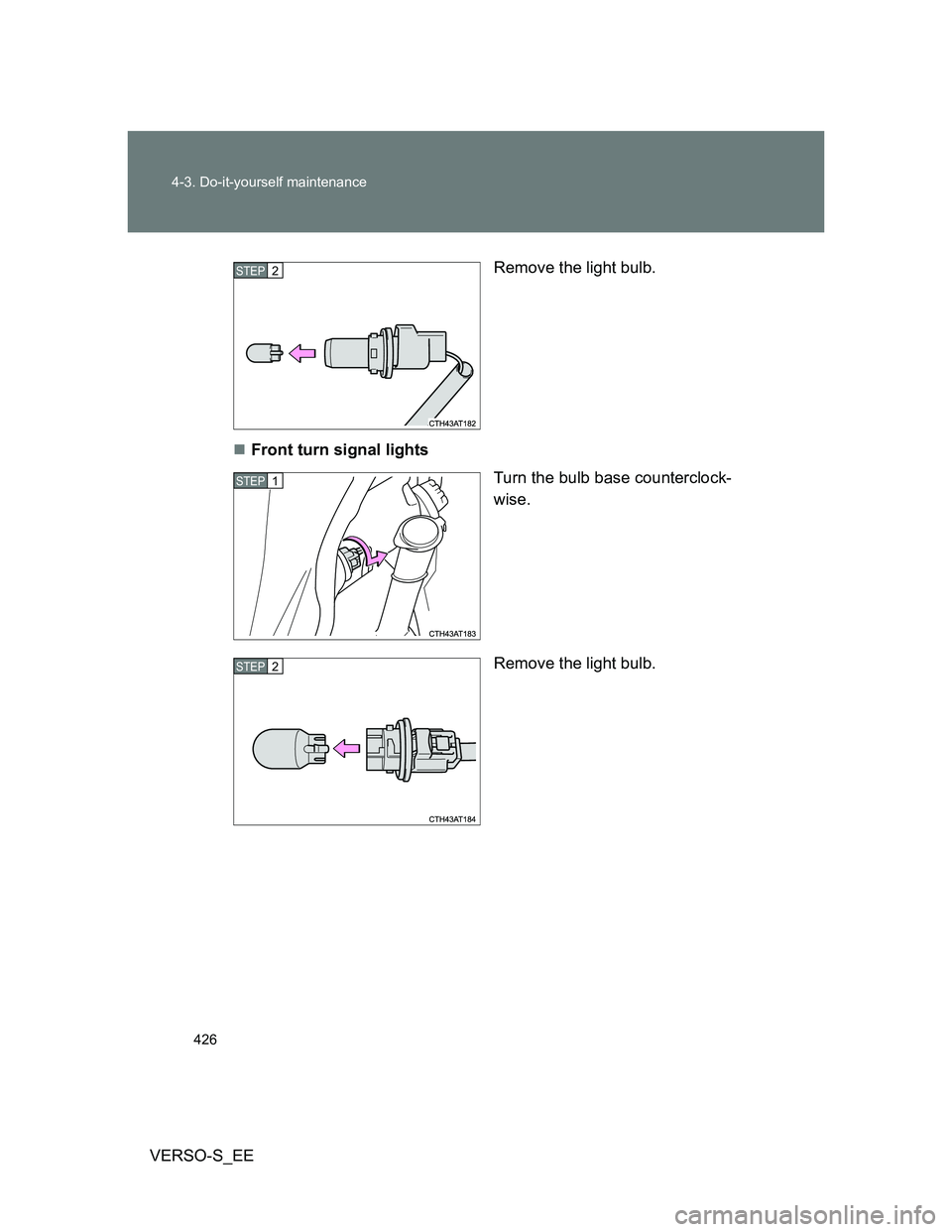

426 4-3. Do-it-yourself maintenance
VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

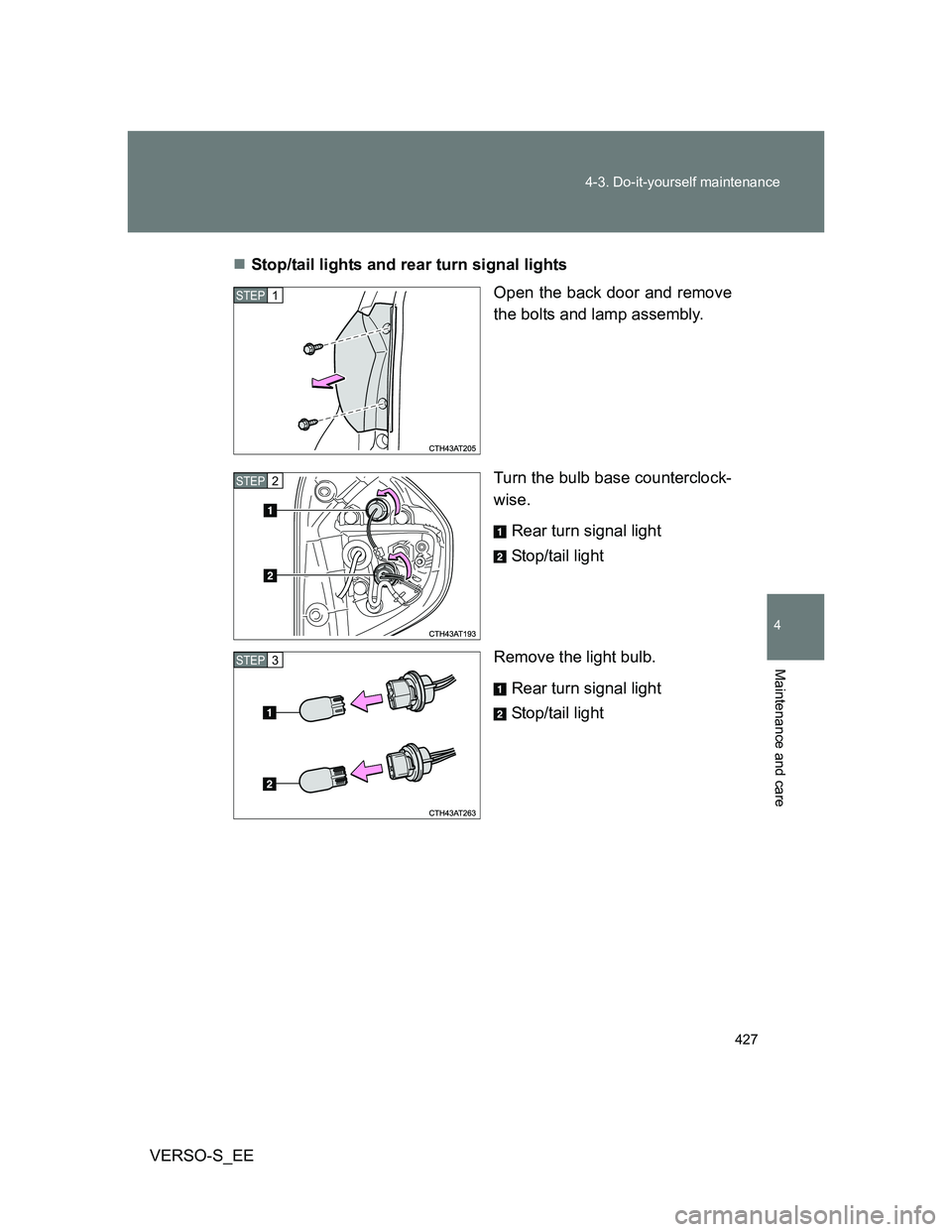

427 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

428 4-3. Do-it-yourself maintenance
VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

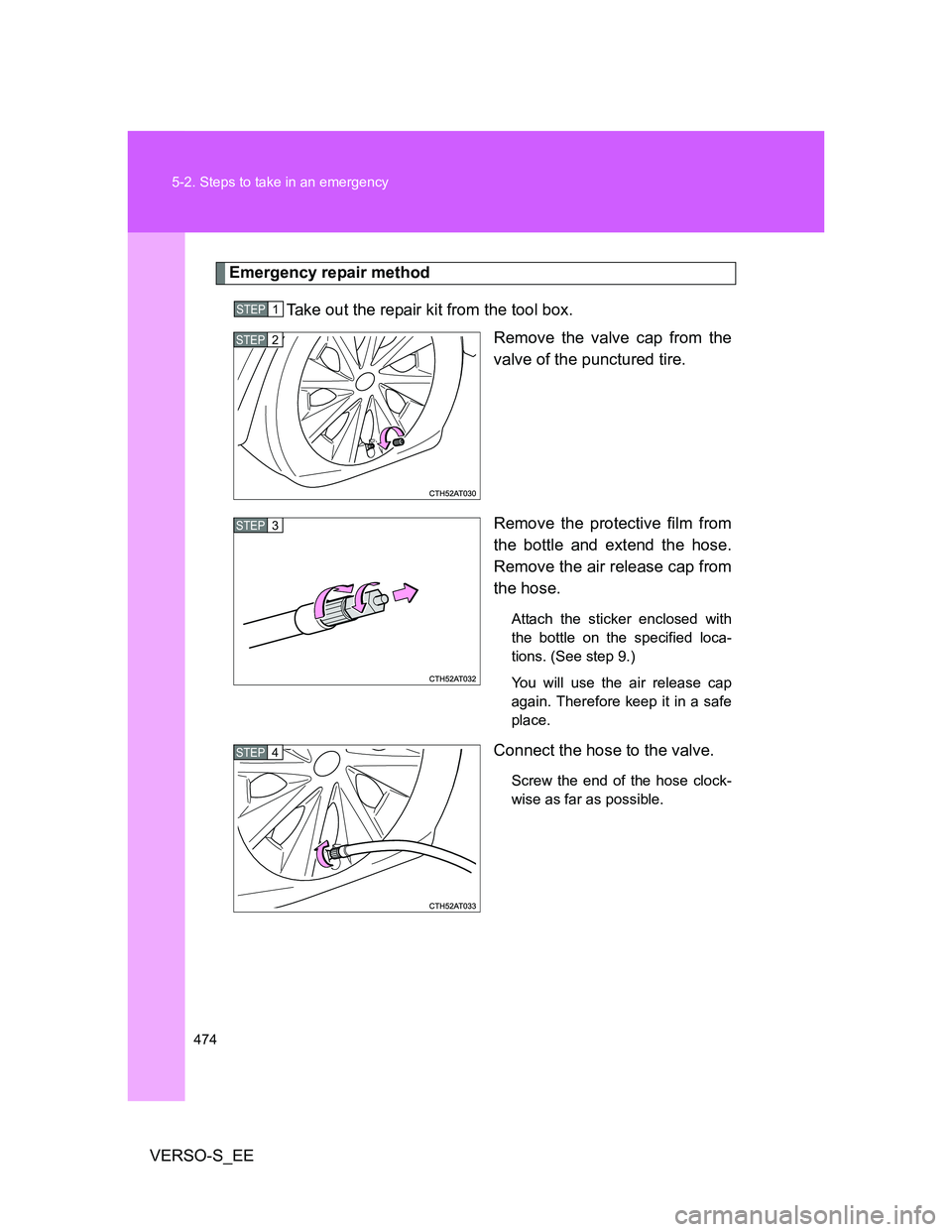

474 5-2. Steps to take in an emergency
VERSO-S_EE
Emergency repair method
Take out the repair kit from the tool box.
Remove the valve cap from the
valve of the punctured tire.
Remove the protective film from
the bottle and extend the hose.
Remove the air release cap from
the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See step 9.)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
STEP1
STEP2
STEP3
STEP4

545 Alphabetical index
VERSO-S_EE
Child safety
Airbag precautions ................ 130
Battery precautions ....... 389, 503
Child-protectors....................... 70
Child restraint system ........... 138
How your child should wear
the seat belt .......................... 91
Installing child restraints........ 147
Panoramic roof shade
precautions ......................... 349
Power window lock switch .... 100
Power window precautions ... 102
Removed key battery
precautions ......................... 405
Seat belt precautions .............. 91
Seat heater
precautions ......................... 346
Cleaning
Exterior.................................. 362
Interior ................................... 366
Seat belts .............................. 367Clock ......................................... 341
Condenser ................................ 386
Cooling system
Engine overheating ............... 505
Cruise control .......................... 245
Cup holders.............................. 338
Curtain shield airbags ............. 124
Customizable features ............ 536
