408 4-3. Do-it-yourself maintenance
VERSO-S_EE
Engine compartment (type C fuse box for the right-hand drive
vehicles)
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the tabs
in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.

413 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

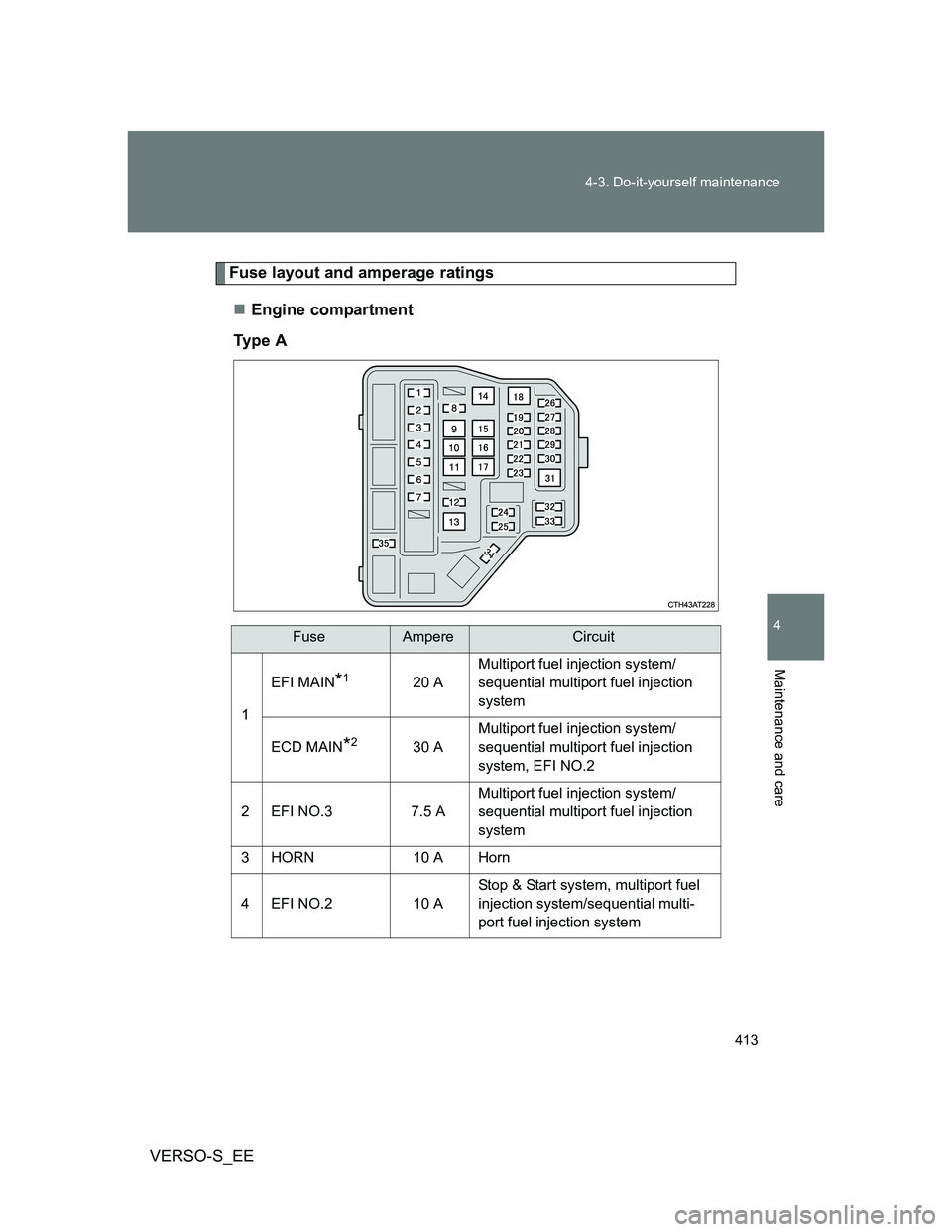

Fuse layout and amperage ratings
Engine compartment
Ty p e A
FuseAmpereCircuit
1EFI MAIN
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
ECD MAIN
*230 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
2 EFI NO.3 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 HORN 10 A Horn
4 EFI NO.2 10 AStop & Start system, multiport fuel
injection system/sequential multi-
port fuel injection system

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
*1: Vehicles with a gasoline engine
*2: Vehicles with a diesel engine
*3: Vehicles with a 1NR-FE engine (with a Stop & Start system) 24 ECU-B NO.1 5 AMain body ECU, smart entry & start
system
25 DOME 15 A Interior lights, audio system, VSC
26 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
27 HAZ 10 A Turn signal lights
28 AM2 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart entry & start system,
starting system, multi-mode man-
ual transmission
29 ECU-B NO.2 5 AGauge and meters, power door
lock, wireless remote control, Stop
& Start system, smart entry & start
system, multi-mode manual trans-
mission, air conditioning system
30 ALT-S 7.5 A
31 R/I 50 AEFI MAIN, ECD MAIN, EFI NO.2,
EFI NO.3, IG2, IGN, MET, HORN
32 SPARE 20 A Spare fuse
33 SPARE 30 A Spare fuse
34 MIR-HTR 10 A
35 ID/UP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

417 4-3. Do-it-yourself maintenance
4
Maintenance and care

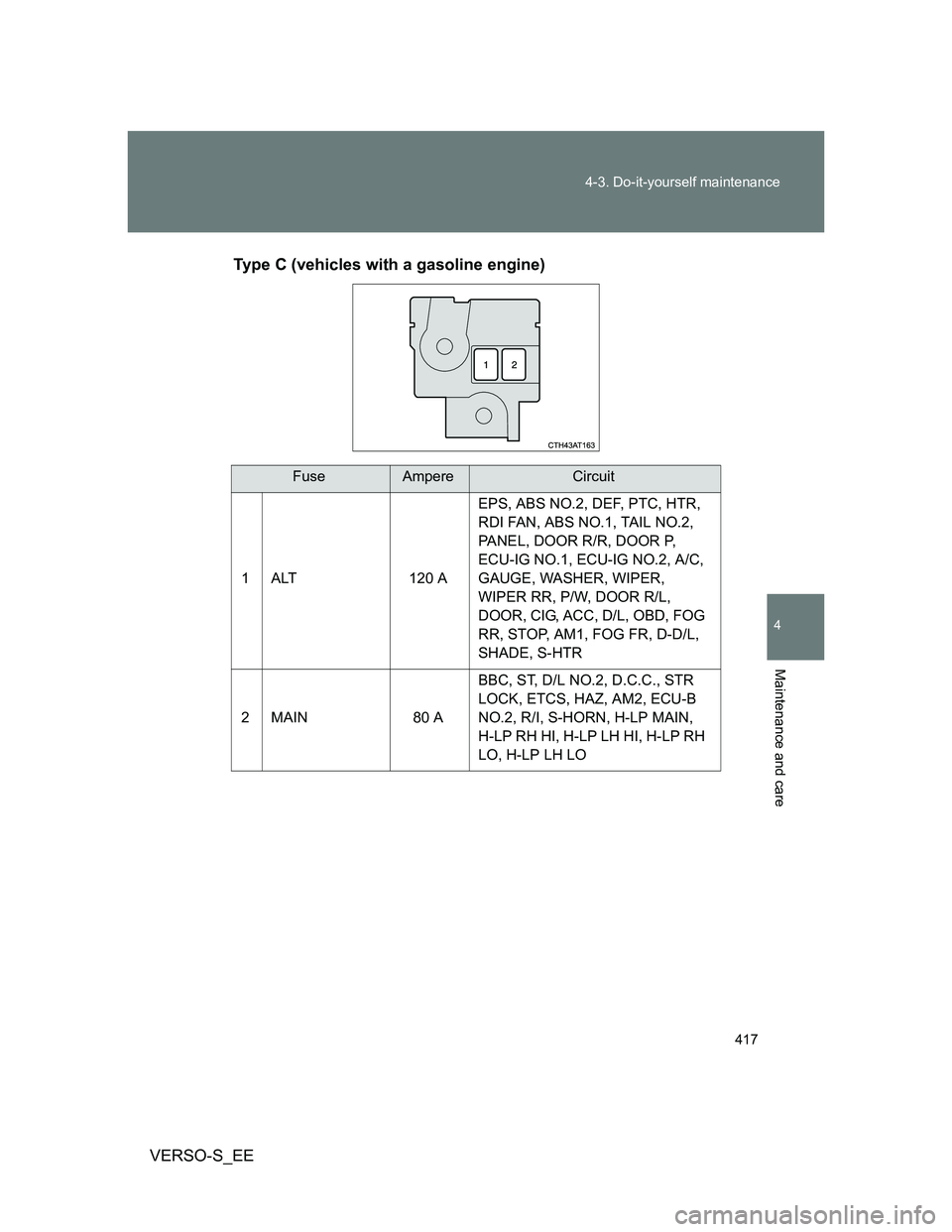

VERSO-S_EEType C (vehicles with a gasoline engine)
FuseAmpereCircuit
1 ALT 120 AEPS, ABS NO.2, DEF, PTC, HTR,
RDI FAN, ABS NO.1, TAIL NO.2,
PANEL, DOOR R/R, DOOR P,
ECU-IG NO.1, ECU-IG NO.2, A/C,
GAUGE, WASHER, WIPER,
WIPER RR, P/W, DOOR R/L,
DOOR, CIG, ACC, D/L, OBD, FOG
RR, STOP, AM1, FOG FR, D-D/L,
SHADE, S-HTR
2MAIN 80 ABBC, ST, D/L NO.2, D.C.C., STR
LOCK, ETCS, HAZ, AM2, ECU-B
NO.2, R/I, S-HORN, H-LP MAIN,
H-LP RH HI, H-LP LH HI, H-LP RH
LO, H-LP LH LO

418 4-3. Do-it-yourself maintenance

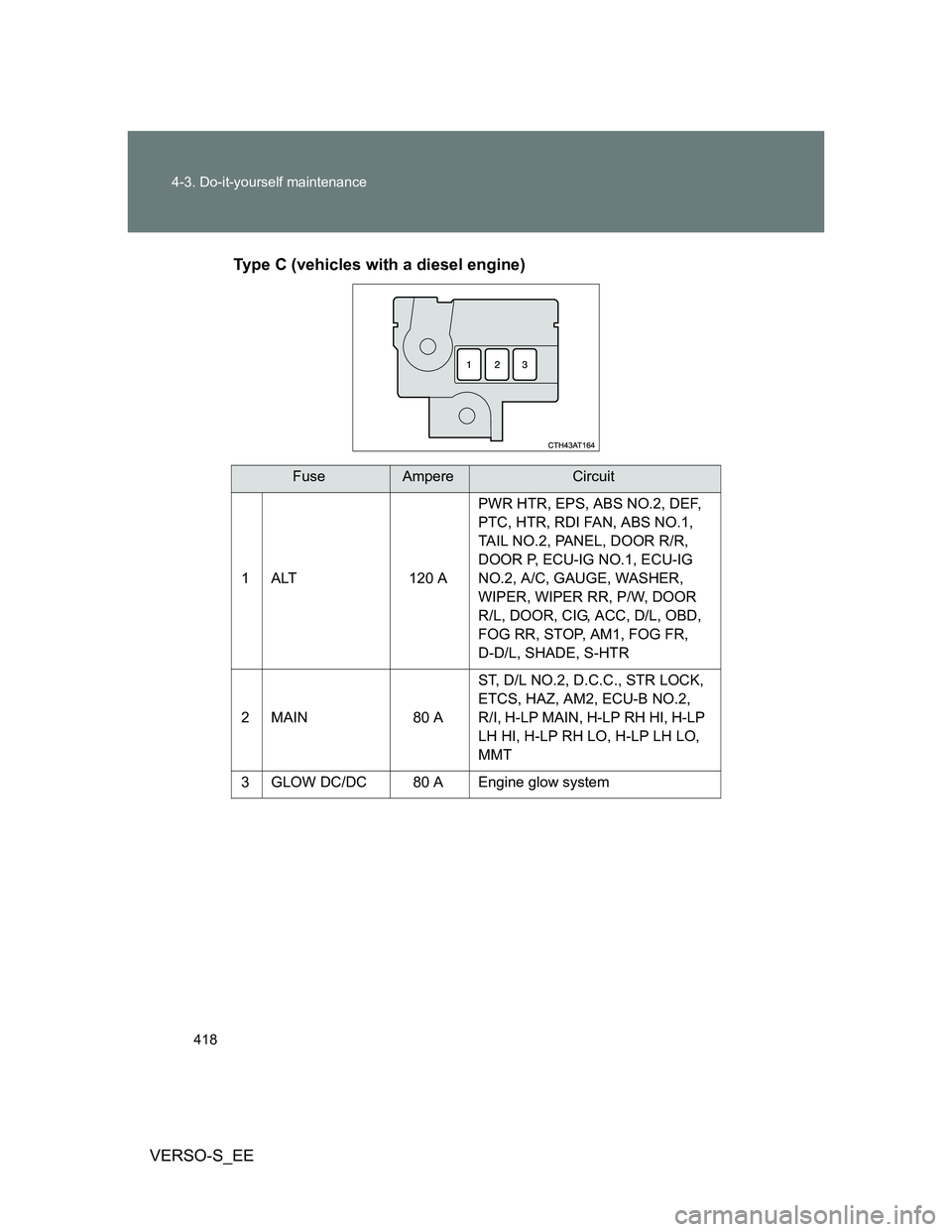

VERSO-S_EEType C (vehicles with a diesel engine)
FuseAmpereCircuit
1 ALT 120 APWR HTR, EPS, ABS NO.2, DEF,
PTC, HTR, RDI FAN, ABS NO.1,
TAIL NO.2, PANEL, DOOR R/R,
DOOR P, ECU-IG NO.1, ECU-IG
NO.2, A/C, GAUGE, WASHER,
WIPER, WIPER RR, P/W, DOOR
R/L, DOOR, CIG, ACC, D/L, OBD,
FOG RR, STOP, AM1, FOG FR,
D-D/L, SHADE, S-HTR
2MAIN 80 AST, D/L NO.2, D.C.C., STR LOCK,
ETCS, HAZ, AM2, ECU-B NO.2,
R/I, H-LP MAIN, H-LP RH HI, H-LP
LH HI, H-LP RH LO, H-LP LH LO,
MMT
3 GLOW DC/DC 80 A Engine glow system

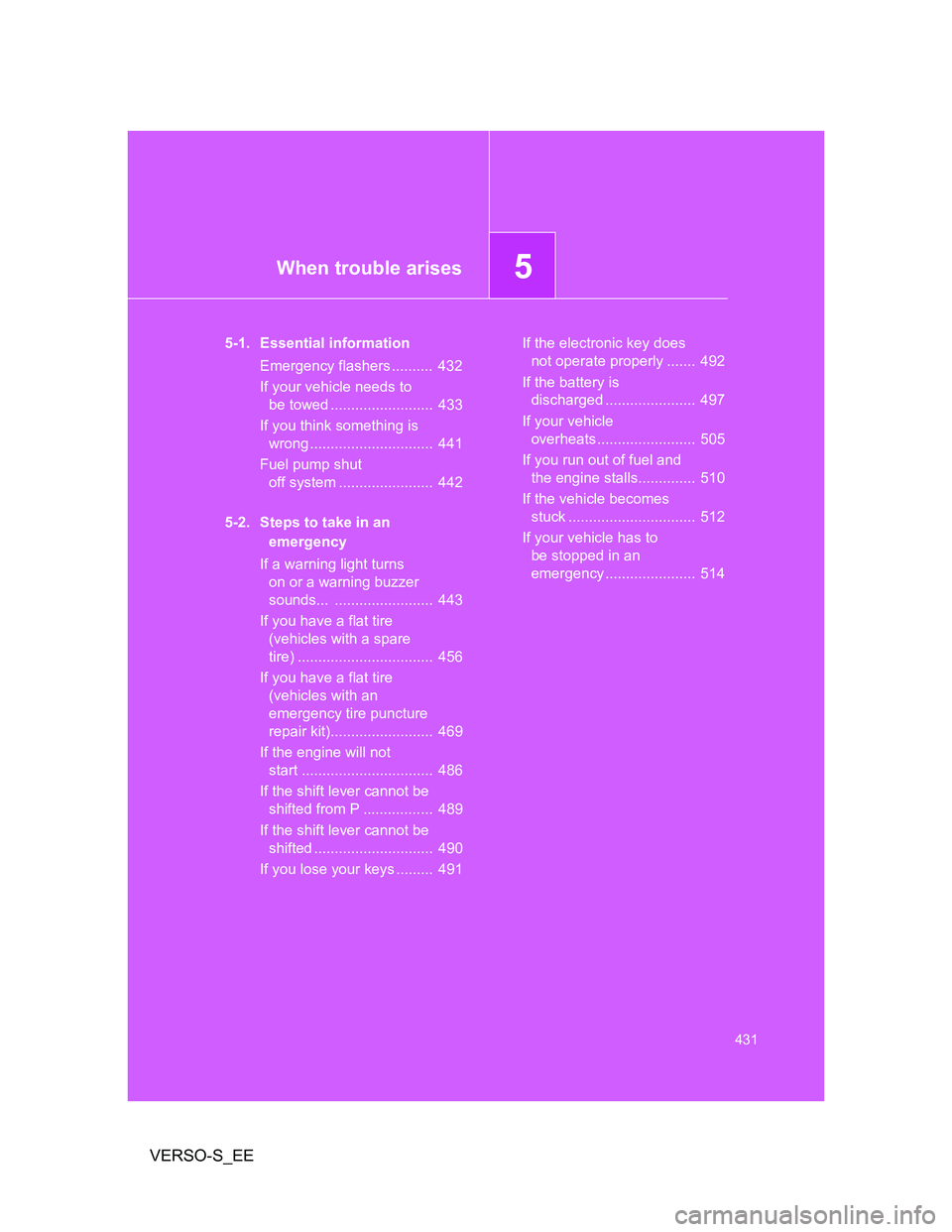

5When trouble arises
431
VERSO-S_EE
5-1. Essential information
Emergency flashers .......... 432
If your vehicle needs to
be towed ......................... 433
If you think something is
wrong .............................. 441
Fuel pump shut
off system ....................... 442
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ........................ 443
If you have a flat tire
(vehicles with a spare
tire) ................................. 456
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit)......................... 469
If the engine will not
start ................................ 486
If the shift lever cannot be
shifted from P ................. 489
If the shift lever cannot be
shifted ............................. 490
If you lose your keys ......... 491If the electronic key does
not operate properly ....... 492
If the battery is
discharged ...................... 497
If your vehicle
overheats ........................ 505
If you run out of fuel and
the engine stalls.............. 510
If the vehicle becomes
stuck ............................... 512
If your vehicle has to
be stopped in an
emergency ...................... 514

432
VERSO-S_EE
5-1. Essential information

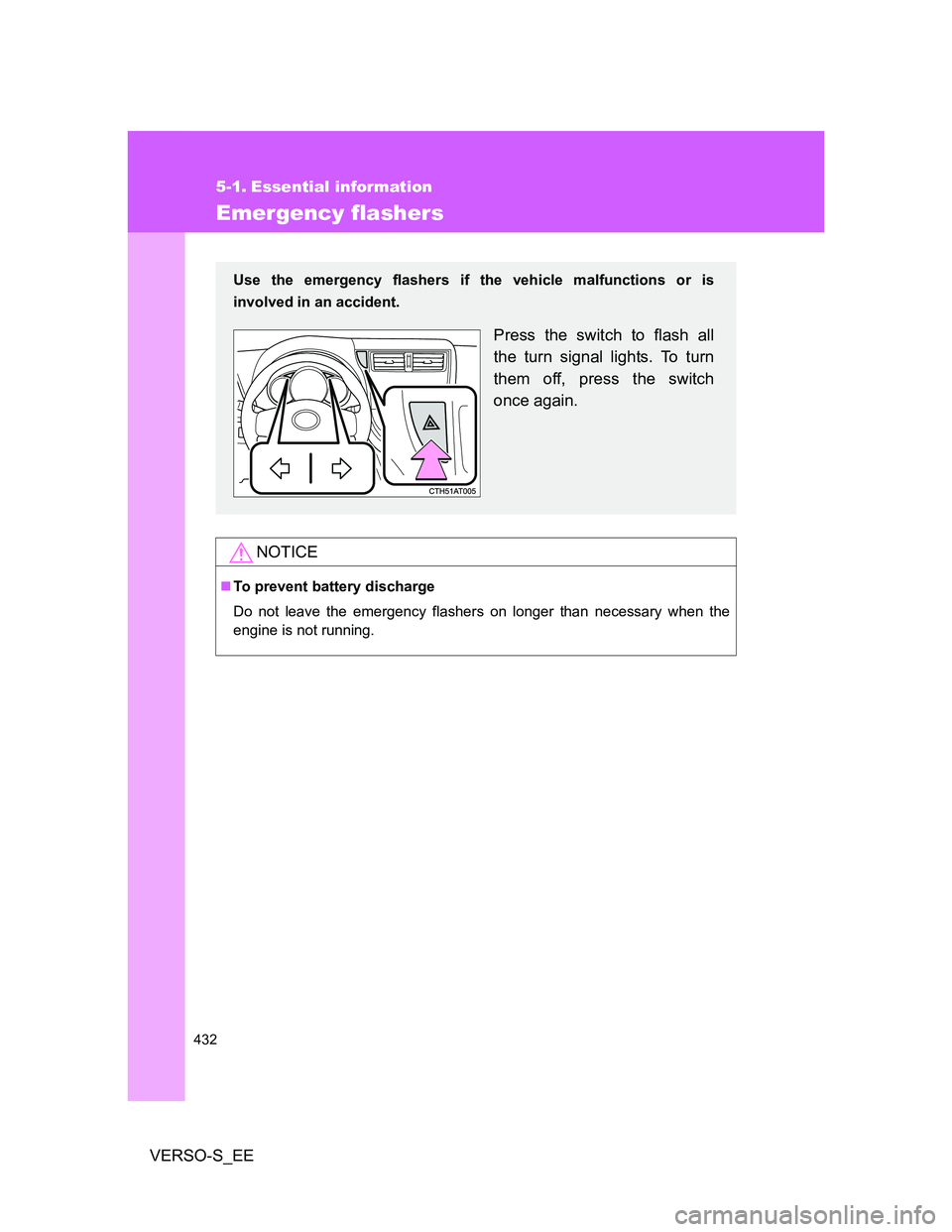

Emergency flashers
NOTICE
To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
433
5-1. Essential information
When trouble arises
VERSO-S_EE
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional before towing.
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as a commercial towing service,
using a lift-type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
