2014 TOYOTA PRIUS C warning light

1
2
3
4
5
6
7
3
2-2. Instrument clusterGauges and meters ............ 181
Indicators and warning lights ................................. 184
Multi-information display ..... 187
2-3. Operating the lights and wipers
Headlight switch .................. 204
Fog light switch ................... 208
Windshield wipers and washer .............................. 210
Rear window wiper and washer .............................. 214
2-4. Using other driving systems
Cruise control ...................... 217
Driving assist systems ........ 221
2-5. Driving information Cargo and luggage ............. 226
Vehicle load limits ............... 230
Winter driving tips ............... 231
Trailer towing ...................... 235
Dinghy towing ..................... 236 3-1. Using the air conditioning
system and defogger
Automatic air conditioning system.......... 238
Rear window and outside rear view mirror
defoggers ......................... 247
3-2. Using the audio system Audio system types ............ 248
Using the radio ................... 254
Using the CD player ........... 256
Playing back MP3 and WMA discs ....................... 261
Operating an iPod .............. 268
Operating a USB memory ............................ 276
Optimal use of the audio system .............................. 284
Using the AUX port............. 287
Using the steering wheel audio switches.................. 288
3-3. Using the Bluetooth
®
audio system
Bluetooth
® audio/phone ..... 291
Using the Bluetooth®
audio/phone ..................... 295
Operating a Bluetooth
®
enabled portable player.... 300
Making a phone call ........... 303
Using the “SET UP” menu (“Bluetooth” menu) ........... 308
Using the “SET UP” menu (“Phone” menu) ................ 314
3Interior features

1
2
3
4
5
6
7
5
5-1. Essential informationEmergency flashers ............ 428
If your vehicle needs to be towed ........................... 429
If you think something is wrong ............................ 436
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds .............................. 437
If a warning message is displayed........................... 447
If you have a flat tire............ 463
If the hybrid system will not start ............................. 475
If the shift lever cannot be shifted from P.................... 477
If you lose your keys ........... 478
If the electronic key does not operate properly.......... 479
If the vehicle 12-volt battery is discharged..................... 481
If your vehicle overheats ..... 487
If the vehicle becomes stuck ................................. 492
If your vehicle has to be stopped in an
emergency ........................ 493 6-1. Specifications
Maintenance data (fuel, oil level, etc.) ........... 496
Fuel information.................. 506
Tire information .................. 509
6-2. Customization Customizable features........ 522
Items to initialize ................. 528
Reporting safety defects for U.S. owners ................ 530
Seat belt instructions for Canadian owners
(in French) ........................ 531
SRS airbag instructions for Canadian owners
(in French) ........................ 533
Abbreviation list ......................... 544
Alphabetical index ..................... 546
What to do if... ........................... 558
5When trouble arises6Vehicle specifications
7For owners
Index

12
Pictorial indexInstrument panel
Hood lock release lever P. 364
Gauges and meters
Multi-information display P. 181
P. 187
Glove box
P. 325
Fuel filler door opener P. 105
Tire pressure warning reset switch P. 385
AUX port/USB port
P. 268, 276, 287
Power outlet P. 336
Power (ignition) switch (vehicles with
a smart key system)
P. 160
Tilt and telescopic steering lock release lever P. 93
Audio system 
Display Audio system
, *
P. 248
Emergency flasher switch P. 428
Headlight switch P. 204
Turn signal lever P. 178
Fog light switch  P. 208
Floor mat P. 341
Cord hook P. 272
Windshield wiper and washer switch
Rear window wiper and washer switch

P. 210
P. 214

31
1-1. Hybrid system
1
Before driving
■
If a warning light comes on, a warn ing message is displayed, or the 12-
volt battery has been disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be
started, refuel the vehicle with at least enough gasoline to make the low fuel
level warning light ( P. 439) stop flashing. If there is only a small amount of
fuel, the hybrid system may not be able to start. (The minimum amount of
fuel to add to make the low fuel level warning light stop flashing is about 1.3
gal. [5.0 L, 1.1 Imp. gal.] when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope.)
■ Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore emit approximately the same amount
of electromagnetic waves as conventional gasoline powered vehicles or
home electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.

90 1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 84)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
Obtain medical advice and wear the seat
belt in the proper way. ( P. 84)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

118 1-8. Safety information
SRS airbag system componentsCurtain shield airbags
SRS warning light and “AIR
BAG ON” and “AIR BAG
OFF” indicator lights
Side airbags
Side impact sensors (rear)
Front passenger’s seat
cushion airbag
Front passenger’s seat belt
buckle switch
Driver airbag
Driver’s seat belt buckle
switch Driver’s seat cushion airbag
Side impact sensors (front)
Seat belt pretensioners and
force limiters
Side impact sensors (front
door)
Driver’s knee airbag
Front passenger occupant
classification system (ECU
and sensors)
Airbag sensor assembly
Front impact sensors
Front passenger airbag

130
1-8. Safety information

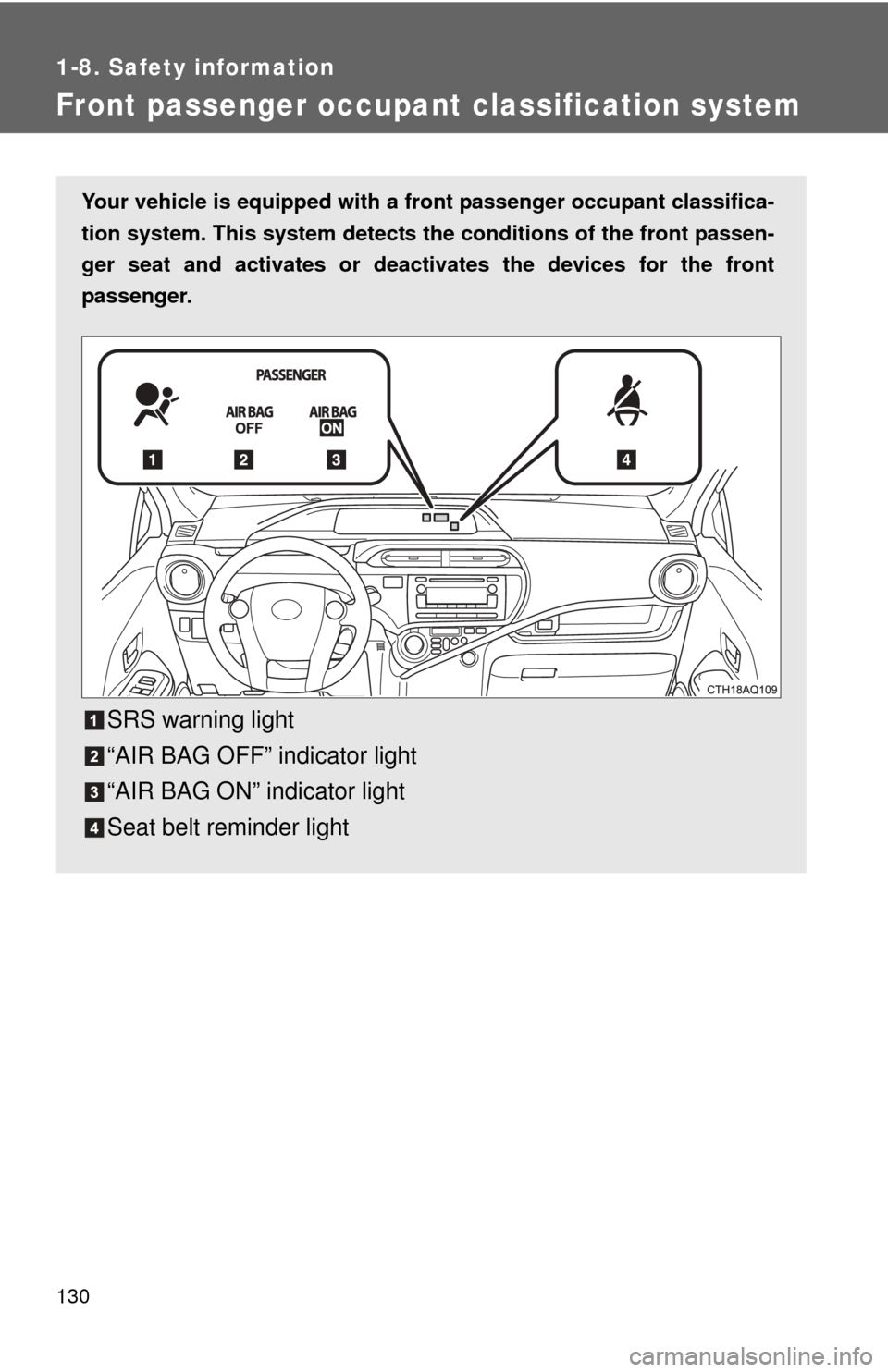

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica-
tion system. This system detects the conditions of the front passen-
ger seat and activates or deactiv ates the devices for the front
passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Seat belt reminder light

131
1-8. Safety information
1
Before driving
Condition and operation in the front passenger occupant classification system
■
Adult*1
■Child*4
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
ON”
SRS warning light Off
Seat belt reminder light Off*2
or
flashing
*3
Devices Front passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger side
Seat cushion airbag in the front passenger side Activated*2
or
deactivated
*3
Front passenger’s seat belt pretensioner Activated
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG
OFF” or
“AIR BAG ON”
*4
SRS warning light Off
Seat belt reminder light Off
*2 or
flashing
*3
Devices Front passenger airbag
Deactivated
or activated
*4
Side airbag on the front passenger seat Activated
Curtain shield airbag in the front
passenger side
Seat cushion airbag in the front passenger side Deactivated
or
activated
*4, *2
Front passenger’s seat belt pretensioner Activated
