Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by your Toyota dealer.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 505)
■ Front bulb locations
Front side
marker
lights
Front turn signal lights
Parking lights
Headlights (low beam)
Headlights (high beam) and daytime running lights
Front fog lights (if equipped)

416 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlights and daytime running lights
Turn the bulb base counterclock-
wise.
High beam and daytime run-
ning lights (inside)
Low beam (outside)

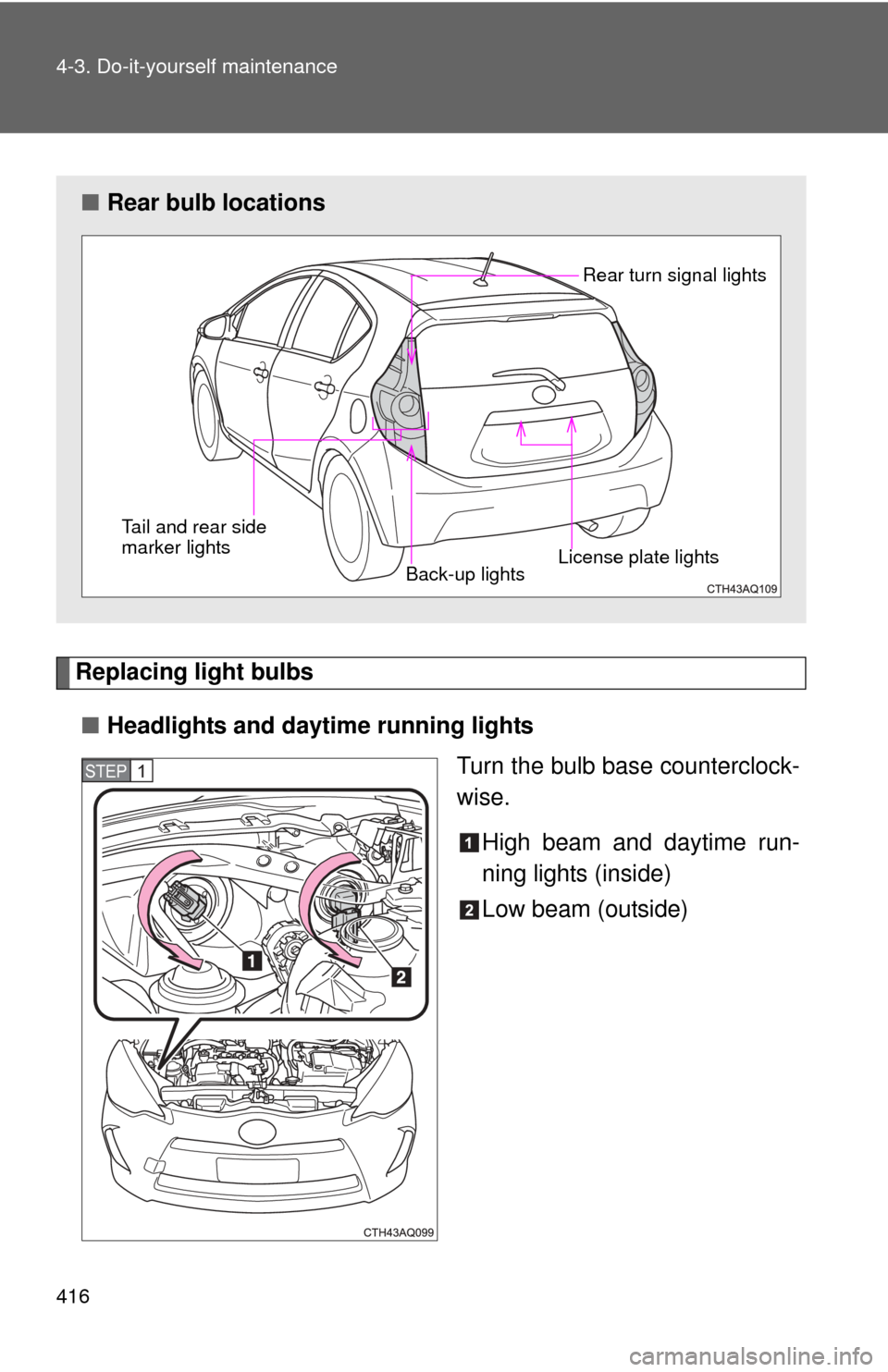

■Rear bulb locations
Back-up lights Rear turn signal lights
Tail and rear side
marker lights License plate lights
STEP1

417
4-3. Do-it-yourself maintenance
4
Maintenance and care

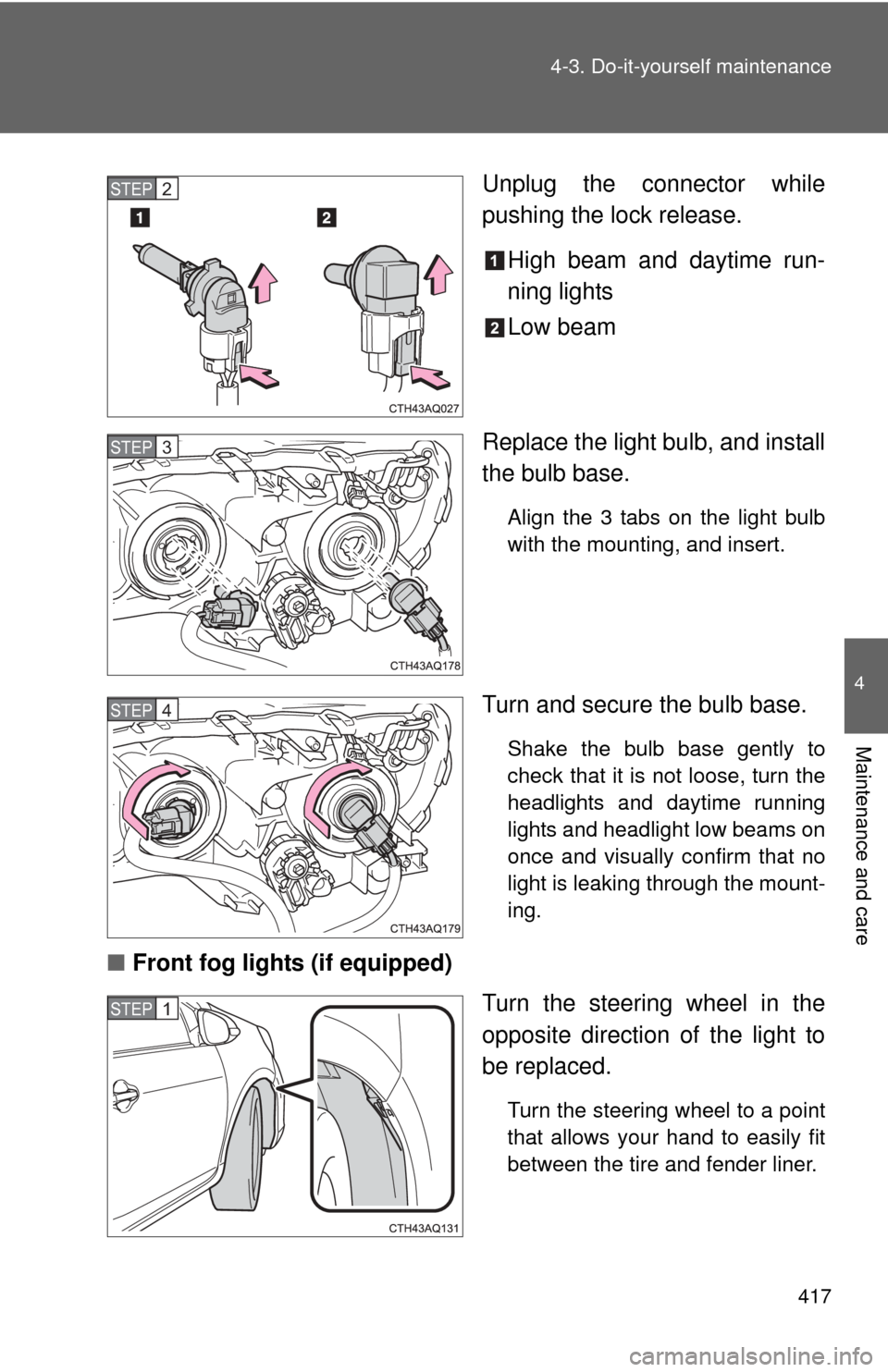

Unplug the connector while
pushing the lock release.
High beam and daytime run-
ning lights
Low beam
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights and daytime running
lights and headlight low beams on
once and visually confirm that no
light is leaking through the mount-
ing.
■ Front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1
