2014 TOYOTA PRIUS C wheel

78 1-4. Adjustable components (seats, mirrors, steering wheel)
Remove the outside head restraints. ( P. 81)
Lower the center head restraint to the lowest position.
(  P. 8 1 )
■ Folding down rear seatbacks
Vehicles with a split rear seats Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded
separately.
Vehicles with a non-split rear seatPull both seatback lock release
knobs at the same time and fold
the seatback down.
STEP3
STEP4

79
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
CAUTION
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● For vehicles with split rear seats, do not allow anyone sit on the rear center
seat if the rear right seat is folded down, as the seat belt buckle for \
the rear
center seat belt is then concealed under the folded seat and cannot be
used.
● Be careful not to catch your hand when folding the rear seatbacks.
● If it is necessary to detach the head restraints, remove it from the vehicle
or store it securely in the luggage compartment. This will prevent it from
injuring passengers in the event of sudden braking, sudden swerving or an
accident.
● Adjust the position of the front seat before folding down the rear seatbacks
so that the front seat does not interfere with the rear seatbacks when fold-
ing down the rear seatbacks.

80 1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.

81
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving

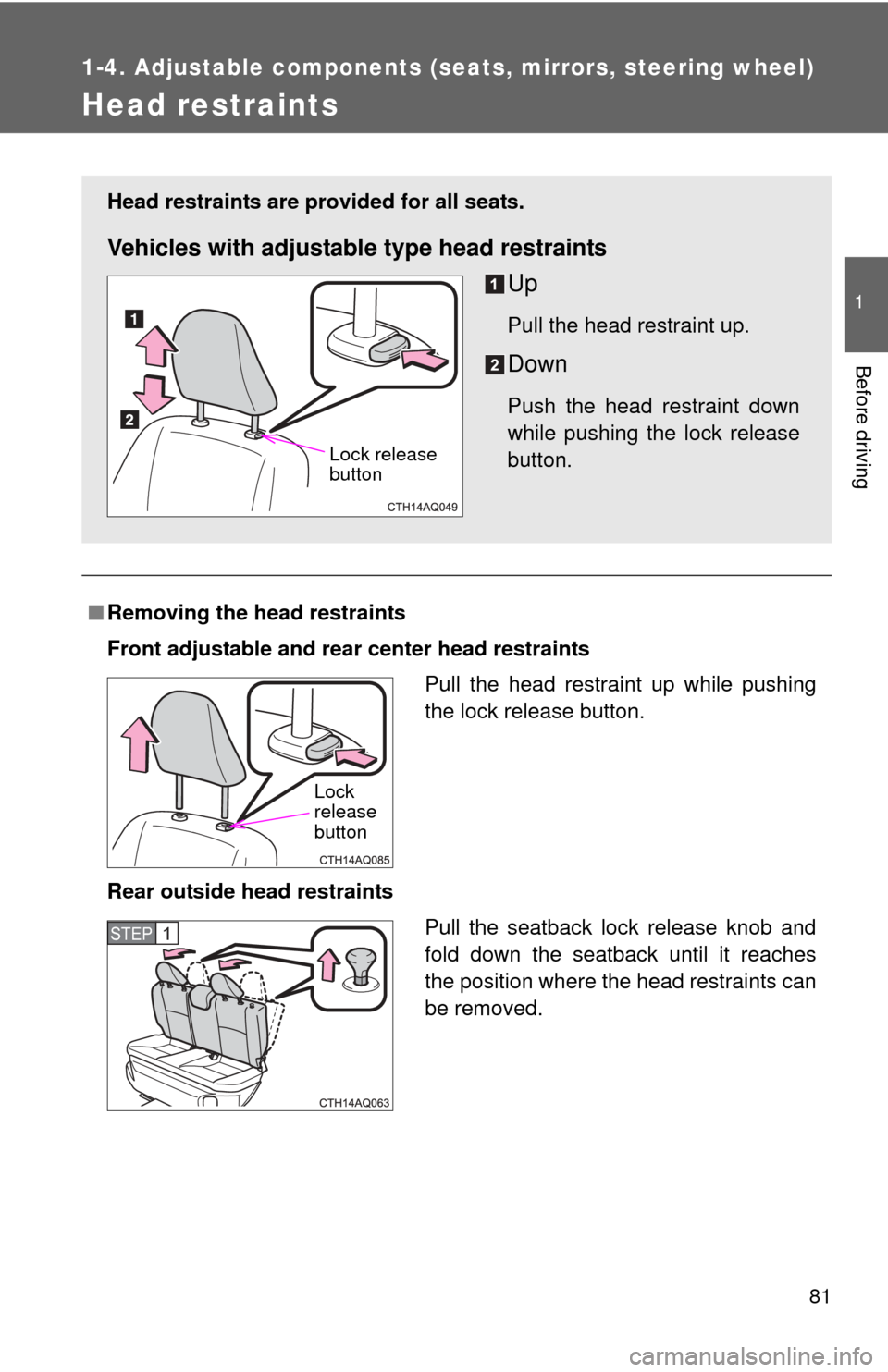

Head restraints
■Removing the head restraints
Front adjustable and rear center head restraints
Rear outside head restraints
Head restraints are provided for all seats.
Vehicles with adjustable type head restraints Up
Pull the head restraint up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release
button
Pull the head restraint up while pushing
the lock release button.
Lock
release
button
Pull the seatback lock release knob and
fold down the seatback until it reaches
the position where the head restraints can
be removed.STEP1

82 1-4. Adjustable components (seats, mirrors, steering wheel)
■Installing the head restraints
Front adjustable and rear center head restraints
Rear outside head restraints
Pull the head restraint up while pressing
the lock release button.STEP2
Lock release buttons
Align the head restraint with installation
holes and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
Lock
release
button
Pull the lock release knob and fold down
the seatback until it reaches the position
where the head restraints can be
installed.
Align the head restraint with installation
holes and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.STEP1
STEP2
Lock release button

83
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Adjusting the height of the head re straints (vehicles with adjustable
type head restraints)
■ Adjusting the rear cent er seat head restraints
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■ Head restraint precautions (vehicles with adjustable type head
restraints)
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

84
1-4. Adjustable components (seats, mirrors, steering wheel)

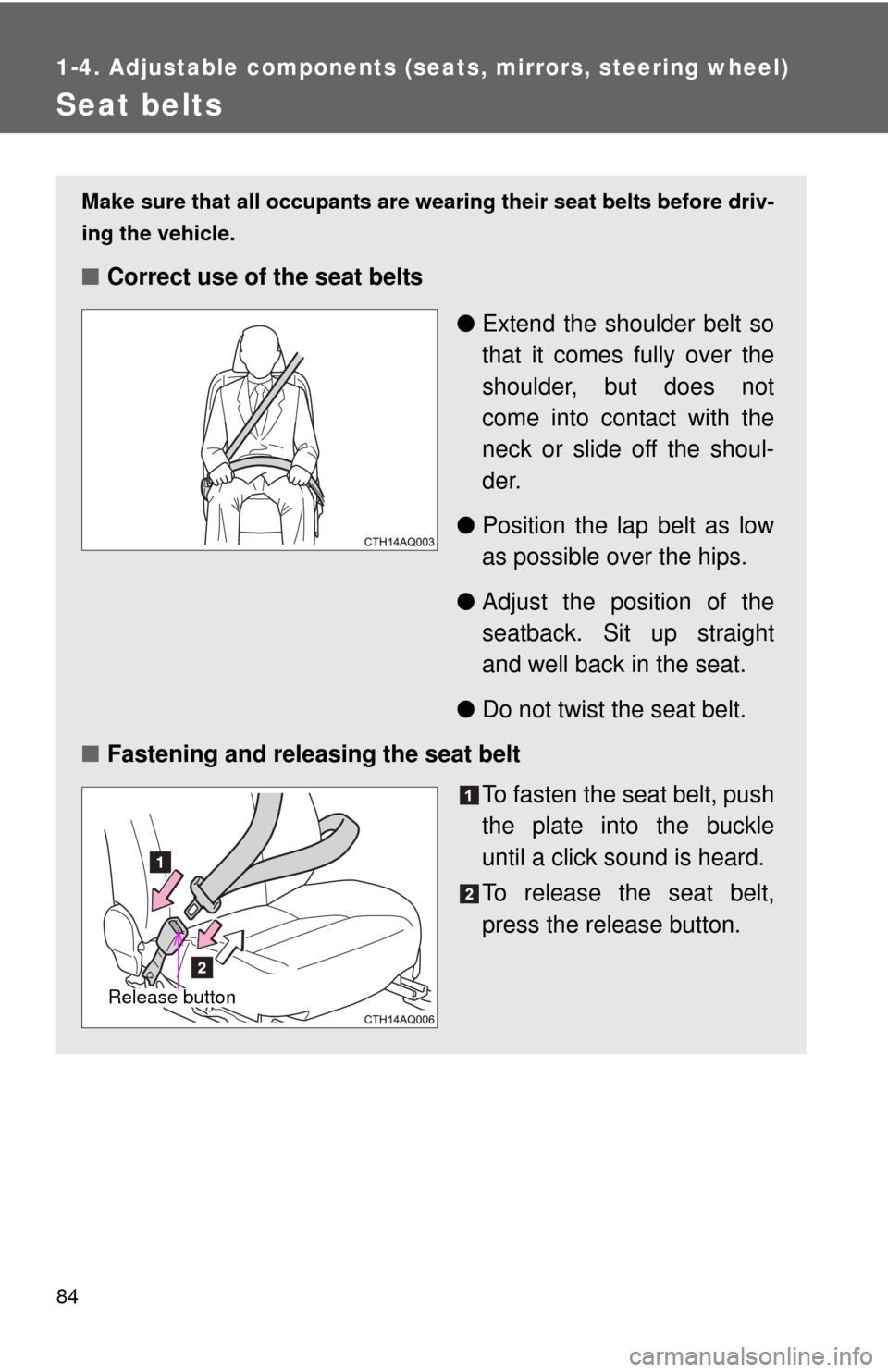

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

85
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Rear center seat belt
■ Fastening the seat belt
The rear center seat belt is a 3- point type restraint with 2 buckles.
Both seat belt buckles must be co rrectly located and securely latched
for proper operation.
Push the tabs back all the way
into the cover and then remove
the tabs.
Push tab “B” into the buckle
until a click sound is heard.
Push tab “A” into the buckle
until a click sound is heard.
B
A
STEP1
STEP2
B A
