2014 TOYOTA PRIUS C headlights

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
Unplug the connector while
pushing the lock release.
High beam and daytime run-
ning lights
Low beam
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights and daytime running
lights and headlight low beams on
once and visually confirm that no
light is leaking through the mount-
ing.
■ Front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1

426 4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

5
When trouble arises
475
5-2. Steps to take in an emergency

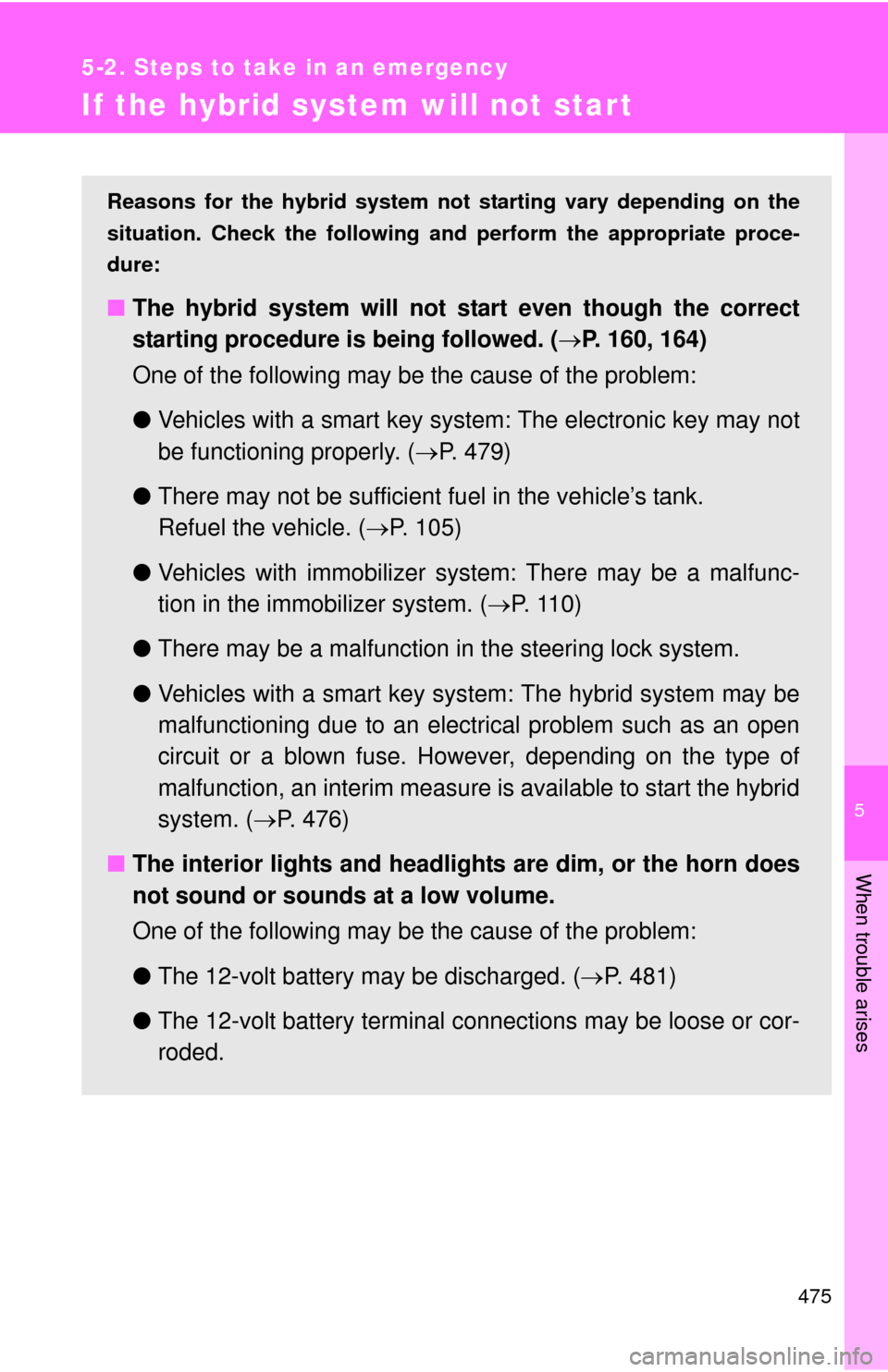

If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the
situation. Check the following and perform the appropriate proce-
dure:
■ The hybrid system will not start even though the correct
starting procedure is being followed. ( P. 160, 164)
One of the following may be the cause of the problem:
● Vehicles with a smart key system: The electronic key may not
be functioning properly. ( P. 479)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 105)
● Vehicles with immobilizer sy stem: There may be a malfunc-
tion in the immobilizer system. ( P. 1 1 0 )
● There may be a malfunction in the steering lock system.
● Vehicles with a smart key syst em: The hybrid system may be
malfunctioning due to an electrical problem such as an open
circuit or a blown fuse. However, depending on the type of
malfunction, an interim measure is available to start the hybrid
system. ( P. 476)
■ The interior lights and headlights are dim, or the horn does
not sound or sounds at a low volume.
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 481)
● The 12-volt battery terminal c onnections may be loose or cor-
roded.

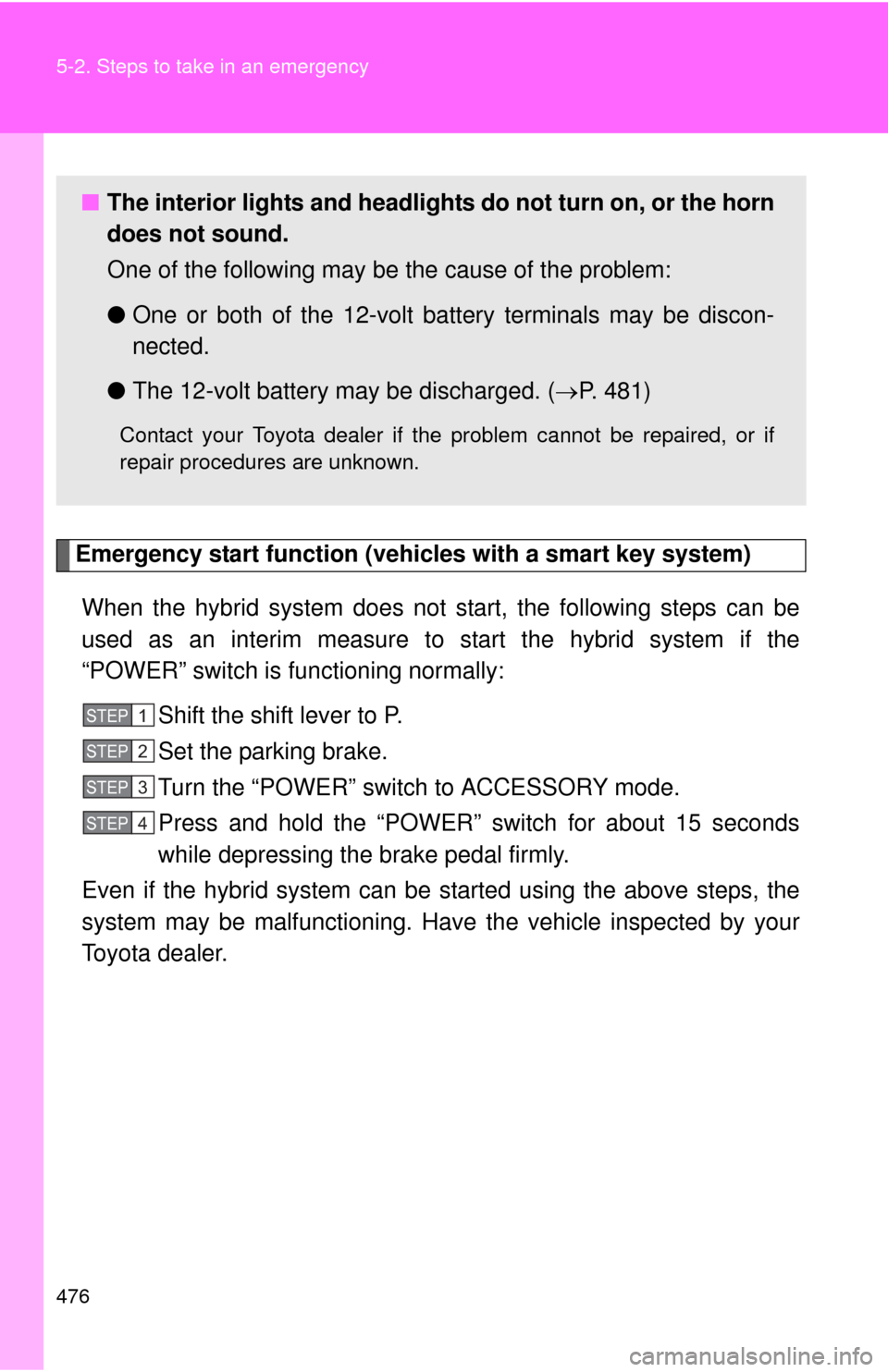

476 5-2. Steps to take in an emergency
Emergency start function (vehicles with a smart key system)When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the
“POWER” switch is functioning normally: Shift the shift lever to P.
Set the parking brake.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” switch for about 15 seconds
while depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer.
■ The interior lights and headlights do not turn on, or the horn
does not sound.
One of the following may be the cause of the problem:
●One or both of the 12-volt ba ttery terminals may be discon-
nected.
● The 12-volt battery may be discharged. ( P. 481)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4

484 5-2. Steps to take in an emergency
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic.
■ Precautions when the 12-volt batter y is discharged (vehicles with a
smart key system)
● In some cases, it may not be possible to unlock the doors using the smart
key system immediately after the 12-volt battery has been disconnected
and reconnected. Use the wireless remote control or the mechanical key
to lock or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt bat-
tery has recharged but will start normally after the second attempt. This is
not a malfunction.
● The “POWER” switch mode is memorized by the vehicle. When the 12-
volt battery is reconnected, the system will return to the mode it was in
before the 12-volt battery was discharged. Before disconnecting the 12-
volt battery, turn the “POWER” switch off.
If the “POWER” switch was in ACCESSORY or ON mode before the 12-
volt battery was discharged, the audio system and/or air conditioning
system may operate when the 12-volt battery is reconnected.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even
when the vehicle is not in use, due to natural discharge and the draining
effects of certain electrical appliances. If the vehicle is left for a long time, the
12-volt battery may discharge, and the hybrid system may be unable to start.
(The 12-volt battery recharges automatically while the hybrid system is oper-
ating.)

505
6-1. Specifications
6
Vehicle specifications
Light bulbs
*1: If equipped
*
2: Side turn signal lights should be replaced as an assembly.
A: H11 halogen bulbs B: HB3 halogen bulbs
C: H16 halogen bulbs D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
Light bulbsBulb NoWTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Parking lights 5D
Front turn signal lights 21 E
Front fog lights*
1 19 C
Tail and rear side marker
lights 
5D
License plate lights 5D
Back-up lights 16 D
Side turn signal lights 5E*
2
Front side marker lights 5D
Rear turn signal lights 21 E
Interior Interior lights/personal
lights

5D
Luggage compartment
light*
1 5D

550 Alphabetical index
Engine oilCapacity ................................ 499
Checking ............................... 369
Preparing and checking before winter ....................... 231
Engine/power control unit coolantCapacity ................................ 500
Checking ............................... 373
Preparing and checking before winter ....................... 231
Engine switch ................... 160, 164
EPS ............................................ 221
EV drive mode .......................... 172
Event data recorder ...................18
Exclusive jump starting terminal .................... 481
Floor mat................................... 341
Fluid Brake ..................................... 503
Washer .................................. 378
Fog lights Replacing light bulbs ............. 415
Switch.................................... 208
Wattage ................................. 505
Front fog lights Replacing light bulbs ............. 415
Switch.................................... 208
Wattage ................................. 505
Front passenger occupant
classification system ............ 130 Front passenger’s seat
belt reminder light ................. 439
Front seats Adjustment .............................. 76
Front side marker lights
Replacing light bulbs ............. 415
Switch ................................... 204
Wattage................................. 505
Front turn signal lights Replacing light bulbs ............. 415
Switch ................................... 178
Wattage................................. 505
Fuel Capacity ................................ 498
Fuel gauge ............................ 181
Gas station information ......... 560
Information ............................ 506
Refueling ............................... 105
Type ...................................... 498
Fuel door .................................. 105
Fuel filler door .......................... 105
Fuses ........................................ 404
Gas station information .......... 560
Gauges...................................... 181
Glove box ................................. 325
Hazard lights
Switch ................................... 428
Head restraints
Adjusting ................................ 81
Headlights Replacing light bulbs ............. 415
Switch ................................... 204
Wattage................................. 505
F
G
H
