2014 TOYOTA PRIUS C cruise control

1
2
3
4
5
6
7
3
2-2. Instrument clusterGauges and meters ............ 181
Indicators and warning lights ................................. 184
Multi-information display ..... 187
2-3. Operating the lights and wipers
Headlight switch .................. 204
Fog light switch ................... 208
Windshield wipers and washer .............................. 210
Rear window wiper and washer .............................. 214
2-4. Using other driving systems
Cruise control ...................... 217
Driving assist systems ........ 221
2-5. Driving information Cargo and luggage ............. 226
Vehicle load limits ............... 230
Winter driving tips ............... 231
Trailer towing ...................... 235
Dinghy towing ..................... 236 3-1. Using the air conditioning
system and defogger
Automatic air conditioning system.......... 238
Rear window and outside rear view mirror
defoggers ......................... 247
3-2. Using the audio system Audio system types ............ 248
Using the radio ................... 254
Using the CD player ........... 256
Playing back MP3 and WMA discs ....................... 261
Operating an iPod .............. 268
Operating a USB memory ............................ 276
Optimal use of the audio system .............................. 284
Using the AUX port............. 287
Using the steering wheel audio switches.................. 288
3-3. Using the Bluetooth
®
audio system
Bluetooth
® audio/phone ..... 291
Using the Bluetooth®
audio/phone ..................... 295
Operating a Bluetooth
®
enabled portable player.... 300
Making a phone call ........... 303
Using the “SET UP” menu (“Bluetooth” menu) ........... 308
Using the “SET UP” menu (“Phone” menu) ................ 314
3Interior features

14
B
Pictorial indexInstrument panel
Cruise control switch  P. 217
Engine (ignition) switch
(vehicles without a smart key
system)
P. 160
Audio remote control
switches
P. 288
Talk switch , *1
Telephone switches
, *2 P. 296
Horn P. 180
Climate remote co
ntrol switches P. 243
“DISP” switch P. 188
“TRIP” switch P. 188

17
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow-
ered vehicles or home electronic appliances despite of their electromagnetic
shielding.
Unwanted noise may occur in the reception of the mobile two-way radio.

When driving2
149
2-1. Driving proceduresDriving the vehicle............ 150
Engine (ignition) switch ............................. 160
Power (ignition) switch ..... 164
EV drive mode ................. 172
Hybrid transmission ......... 175
Turn signal lever .............. 178
Parking brake ................... 179
Horn ................................. 180
2-2. Instrument cluster Gauges and meters ......... 181
Indicators and warning lights ................. 184
Multi-information display............................ 187
2-3. Operating the lights and wipers
Headlight switch ............... 204
Fog light switch ................ 208
Windshield wipers and washer .................... 210
Rear window wiper and washer .................... 214 2-4. Using other driving
systems
Cruise control ................... 217
Driving assist systems ..... 221
2-5. Driving information Cargo and luggage .......... 226
Vehicle load limits ............ 230
Winter driving tips ............ 231
Trailer towing ................... 235
Dinghy towing .................. 236

185
2-2. Instrument cluster
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart key system) or the “POWER”
switch is turned to ON mode (vehicles with a smart key system) to
indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be
a malfunction in a system if a light does not come on, or if the lights
do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 178)Driving ready indicator
( P. 160, 164)
Headlight high beam
indicator ( P. 205)EV drive mode indica-
tor (P. 172)
(U.S.A.)
Headlight indicator
(P. 204)Shift position indicator
( P. 176)
(Canada)
Tail light indicator
(P. 204)“ECO MODE” indicator
( P. 176)
(if equipped)
Front fog light indicator
(P. 208)EV drive indicator lamp
( P. 194)
(if equipped)
Immobilizer system indi-
cator ( P. 110)
(if equipped)
Cruise control indicator
(P. 217)
(if equipped)
Cruise control set indi-
cator (P. 217)
*1,2
Slip indicator ( P. 222)
SRS airbag
on-off indica-
tor (P. 130)*1

202 2-2. Instrument cluster
■The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “POWER” switch is in ON mode.
■ Eco score
●As the accelerator pedal is not depressed, the driven distance using
cruise control (if equipped) is not included in the eco score.
● As the eco score evaluation differs according to driving conditions and
environmental factors, in some cases it may not be linked to fuel con-
sumption.
■ Eco savings
●Fuel cost and savings should be used as a guide only.
● Depending on refueling methods, driving conditions and environmental
factors, the actual and displayed fuel costs may differ.
● In some cases, fuel cost and savings may not be linked to the eco score
evaluation.
■ When disconnecting and reconnect ing 12-volt battery terminals
The following information data will be reset:
● Clock
● Past record (aside from the top 3 results)
● Average fuel consumption
● Cruising range
● Average vehicle speed
● Driving time
● EV driving rate/EV driven distance
Additionally, some displays may return to their default settings.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

217
2
When driving
2-4. Using other driving systems

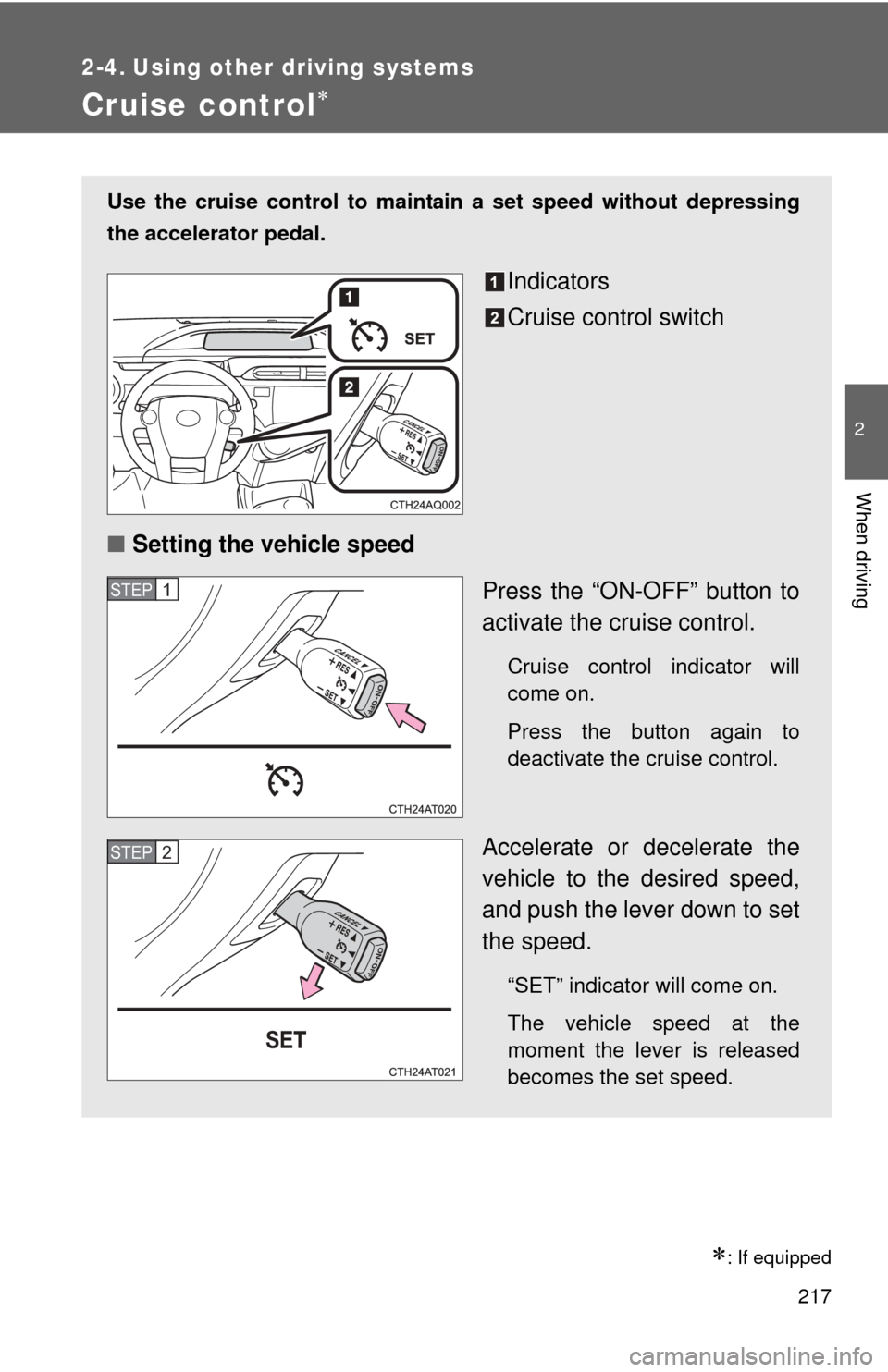

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

219
2-4. Using other
driving systems
2
When driving
■Cruise control can be set when
●The shift lever is in D.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
●Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
■ If “CHECK CRUISE CONTROL SYSTEM ” is shown on the multi-infor-
mation display
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Toyota dealer.
