2014 TOYOTA IQ Owners Manual

121
2
When driving
2-2. Instrument cluster
Gauges and meters
Multi-information display
P. 126
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Clock reset button
P. 130
MODE button
P. 127

122 2-2. Instrument cluster
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted.
When the tail lights/headlights
are turned on, the brightness
level can be changed with each
press of the switch.
● Instrument panel light control display
Displays the instrument pa nel light control display.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the high engine coolant temperature
warning light flashes or comes on. In this case, immediately stop the vehi-
cle in a safe place, and check the engine after it has cooled completely.
(
P. 312)

123
2-2. Instrument cluster
2
When driving
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel

124 2-2. Instrument cluster
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the ON posi-
tion to indicate that a system check is being performed. They will turn
off after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by your Scion dealer.
*2: The indicator flashes to indicate that the system is operating.
Turn signal indicator
(P. 117)*1VSC OFF indicator
( P. 142)
Headlight high beam
indicator ( P. 134)*1TRAC OFF indicator
(P. 142)
Shift position and shift
range indicators
(P. 116)
(if equipped)
Engine immobilizer
system indicator
( P. 62)
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.*1Eco Driving Indicator
Light ( P. 105, 129)
*1AIR BAG ON indicator
(P. 81)
*1,2
Slip indicator ( P. 142)
*1AIR BAG OFF indicator
(P. 81)

125
2-2. Instrument cluster
2
When driving
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Scion dealer
immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 277)
*: These lights turn on when the engine switch is turned to the ON
position to indicate that a system check is being performed. They will
turn off after the engine is started, or after a few seconds. There may
be a malfunction in a system if a light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Scion
dealer.
(except
Canada)(Canada)(except
Canada)(Canada)
(except
Canada)(Canada)


(except
Canada)
********
****
***

126
2-2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of
driving-related information, including the current outside tempera-
ture and time.
Fuel gauge
Displays the quantity of fuel
remaining in the tank.
Shift position and shift
range/gear display ( P. 116)
Displays the shift position
along with the currently
selected shift range or gear.
Clock ( P. 130)
Displays the time and sets the
clock.
Outside temperature dis-
play
Displays the outside air tem-
perature.
The temperature range that
can be displayed is from -40°F
(-40°C) to 122°F (50°C).
Trip information ( P. 127)
Displays odometer, trip meter,
fuel consumption, Stop & Start
system operation time, Stop &
Start system total operation
time and other cruising-related
information.

127
2-2. Instrument cluster
2
When driving
Switch the display
Display items can be switched
by pressing the MODE button.
● Odometer
● Trip meter A
*1
●Trip meter B*1
*1: Trip meters A and B can be used to record and display different distances
independently.
Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset.
The function can be reset by pressing the MODE but-
ton for longer than 1 second when the trip meter A is
displayed.
Displays the distance the vehicle has been driven
since the meter was last reset.
The function can be reset by pressing the MODE but-
ton for longer than 1 second when the trip meter B is
displayed.

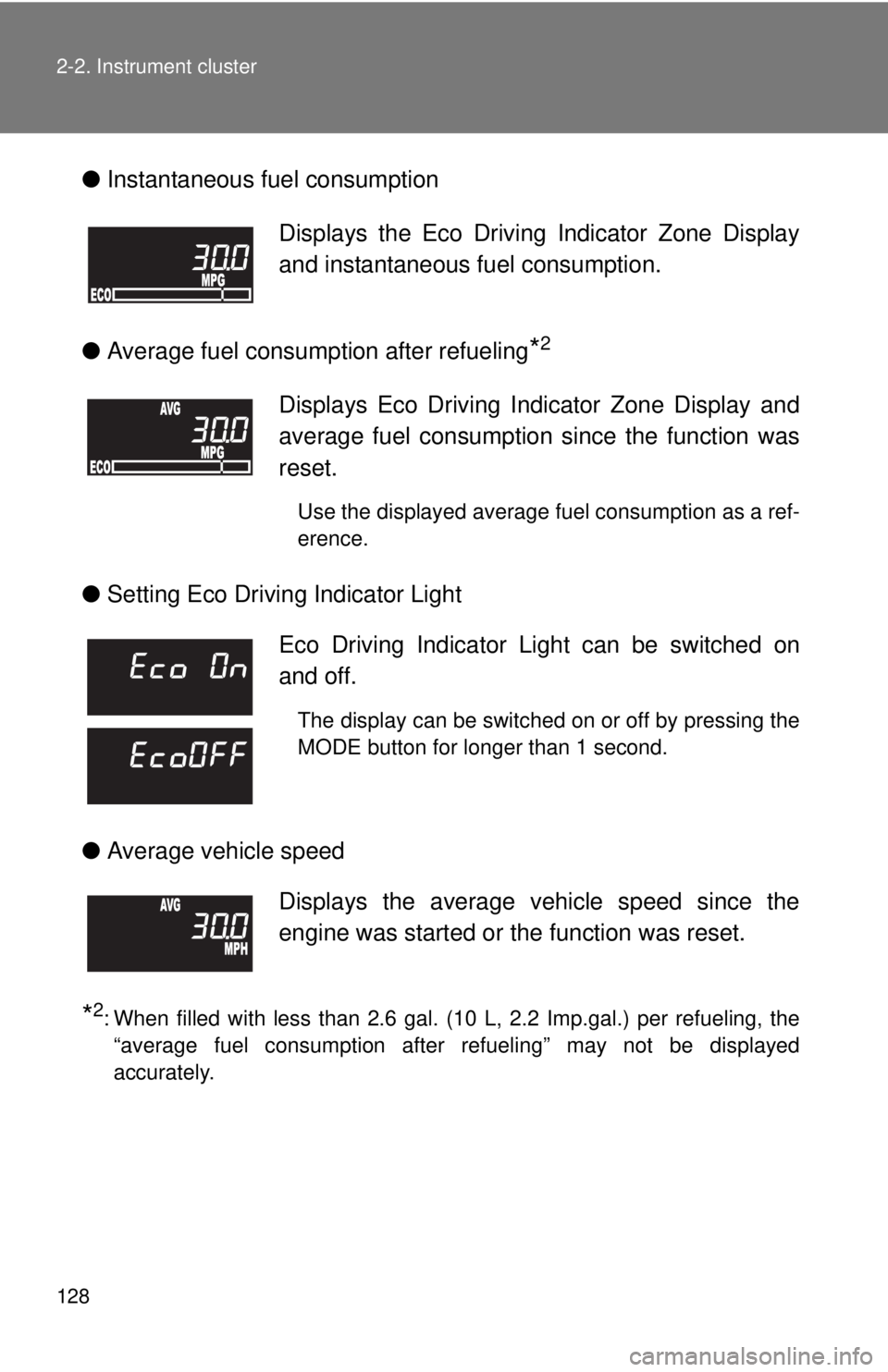

128 2-2. Instrument cluster
●Instantaneous fuel consumption
● Average fuel consumption after refueling
*2
●Setting Eco Driving Indicator Light
● Average vehicle speed
*2: When filled with less than 2.6 gal. (10 L, 2.2 Imp.gal.) per refueling, the
“average fuel consumption after refueling” may not be displayed
accurately.
Displays the Eco Driving Indicator Zone Display
and instantaneous fuel consumption.
Displays Eco Driving Indicator Zone Display and
average fuel consumption since the function was
reset.
Use the displayed average fuel consumption as a ref-
erence.
Eco Driving Indicator Light can be switched on
and off.
The display can be switched on or off by pressing the
MODE button for longer than 1 second.
Displays the average vehicle speed since the
engine was started or the function was reset.
