2014 TOYOTA COROLLA Quick Reference Guide

2014
Corolla
Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Corolla.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla
operations. Every Corolla owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
Corolla
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Smart Key system1 7

Air Conditioning/Heating 16
Audio 14
Auto lock/unlock
2 11
Automatic Transmission 10
Auxiliary storage 20
Clock 18
Continuously Variable Transmission 10
Cruise control 17
Cup holders-Adjust size 20
Drive monitor display/Multi-Information Display 19
iPod
®/USB/AUX port 15
Light control-Instrument panel 20
Lights & turn signals 13
Manual Transmission 10
Moonroof 19
Parking brake 11
Power outlet 14
Seat adjustments-Front 11
Seat adjustments-Rear 12
Seat heaters 17
Seats-Head restraints 12
Steering wheel switches 15
Telephone controls (Bluetooth
®) 18
Tilt and telescopic steering wheel 19
Windows-Power 12
Windshield wipers & washers 12

Doors-Child safety locks 21
Floor mat installation 25
Seat belts 21
Seat belts-Shoulder belt adjustment 21
Spare tire & tools 23
Star Safety System
TM 24-25
Tire Pressure Monitoring (warning) System 22
Trunk-Internal release 22
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Audio system*, multimedia system* or navigation system*/Rearview monitor*
Air Conditioning controls
Shift lever
Parking brake
Engine switch
Tilt and telescopic steering control
Hood lock release lever
Tire Pressure Monitoring (warning) System reset
* If equipped
NOTE: For vehicles equipped with Entune
® App Suite, please consult the
“Navigation System With Entune® App Suite Quick Reference Guide ” or
www.toyota.com/entune.
OVERVIEW
Instrument panel
Steering wheel audio controls
Paddle shift switches*
Telephone controls
Voice command button*
“DISP” switch
Cruise control*
Power outside rearview mirror controls
Instrument panel light control dial
Headlight, turn signal and front fog light* controls
Meters
Drive monitor display* or Multi-Information Display*
Wiper and washer controls
Emergency flasher button
Clock
Steering wheel controls

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
Indicator symbols
Charging system warning1
Brake system warning1
“AIRBAG ON/OFF” indicator
Anti-lock Brake System warning1
Headlight high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control/Cruise control SET indicator
Low Tire Pressure Warning1
Open door warning
SRS airbag warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Front fog light indicator
For details, refer to “Warning lights and indicators,” Section 2, 2014 Owner’s
Manual .
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Maintenance/Service required indicator1
Electric power steering warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
OVERVIEW
Instrument cluster
Tachometer
Speedometer
Fuel gauge
Drive monitor display
Multi-Information Display
Display change button
Engine coolant temperature gauge
Type A
Type B
Traction control OFF indicator1
Headlight indicator
High engine coolant temperature warning
1
Master warning1
Sport mode indicator
Security indicator
“ECO MODE” indicator
Smart key system indicator
ECO driving indicator light1
Seat belt reminder
(alarm will sound if speed is over 12mph)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW
Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Type A
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Trunk lid
Push and hold
Type B
Type A
Type A Type B
Type B
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Carry the electronic key to enable start function. Gear shift lever must be
in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Trunk open
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to open
Front door unlock*
Touch
Grasp
Vehicles without a Multi-Information Display
Vehicles with a Multi-Information Display

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
89
OVERVIEW
Hood release
Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Pull
Fuel tank door release and cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “
” indicator may
illuminate.
Pull
Turn to open
Store

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
10
FEATURES/OPERATIONS
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the engine switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the engine switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle
Automatic Transmission (if equipped)
Manual Transmission (if equipped)
* The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Type AType B
Parking brake
(2) Push
Lift up ring to shift into reverse
SetRelease
(1) Pull slightly
(3) Lower
Pull
Seat adjustments-Front
Manual seatPower seat* (driver side only)
Park*
Reverse
Neutral
Drive
Engine Braking
Maximum Engine Braking
S
B
P
R
N
D
* The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.

+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Changing gear steps in the M position
Park*
Reverse
Neutral
Drive
“M” position
P
R
N
D
M
+
+
-
-
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
P
R
N
D
Continuously Variable
Transmission (if equipped)
* If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1213

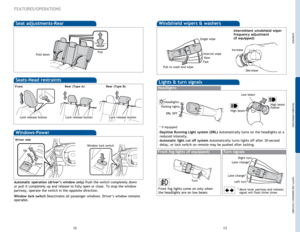

FEATURES/OPERATIONS
Front fog lights (if equipped)
Front fog lights come on only when
the headlights are on low beam.
Turn
Turn signals
Right turn
Lane change*
Lane change* Left turn
Seats-Head restraints
Front Rear (Type B)
Rear (Type A)
Lock release buttonLock release buttonLock release button
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Increase
Decrease
Lights & turn signals
Headlights
High beam
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
High beam
flasher
* If equipped
* Move lever partway and release; signal will flash three times
*
Headlights
Parking lights
DRL OFF Low beam
Seat adjustments-Rear
Fold down
Pull
