2014 TOYOTA CAMRY Owners Manual

169
2-1. Driving procedures
2
When driving
■
To discontinue flashing of the tu rn signals during a lane change
Operate the lever in the opposite direction.

170
2-1. Driving procedures
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 229)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully
depress the parking brake
pedal with your left foot while
depressing the brake pedal
with your right foot.
(Depressing the pedal again
releases the parking brake.)
U.S.A. Canada

171
2-1. Driving procedures
2
When driving
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 79)
To sound the horn, press on or
close to the mark.

172
2-2. Instrument cluster
Gauges and meters
■Instrument cluster
Ty p e A
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Average fuel consumption meter
Displays the average fuel consumption since the function was reset.
Display change button
P. 176
Engine coolant temperature displa y/instrument panel light con-
trol display
Displays the engine coolant temperature and instrument panel light
control.

173
2-2. Instrument cluster
2
When driving

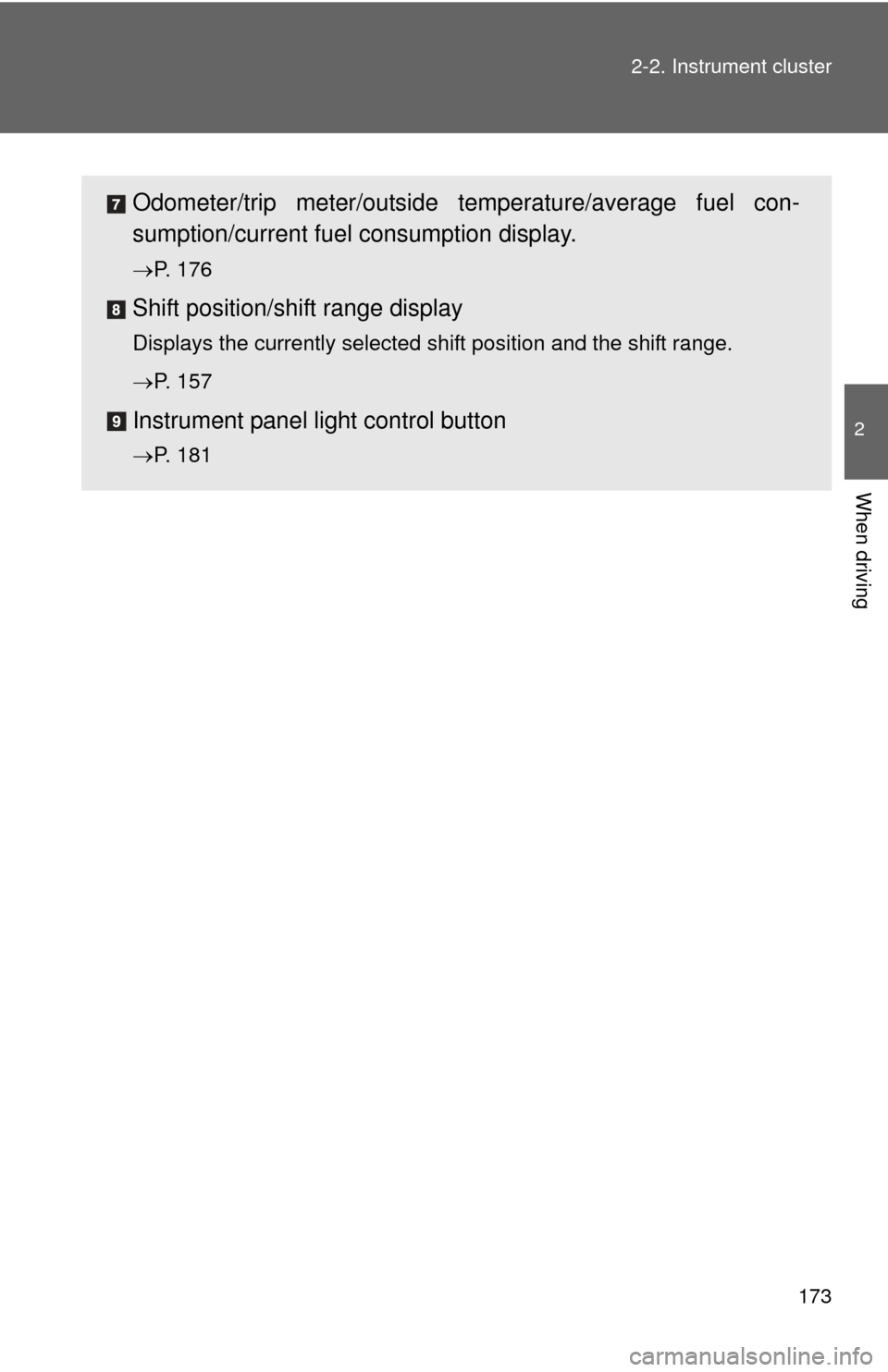

Odometer/trip meter/outside temperature/average fuel con-
sumption/current fuel
consumption display.
P. 176
Shift position/shift range display
Displays the currently selected shift position and the shift range.
P. 157
Instrument panel light control button
P. 181

174 2-2. Instrument cluster
Ty p e BTachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Average fuel consumption meter
Displays the average fuel consumption since the function was reset.
Current fuel consumpt ion gauge (if equipped)
Displays the current rate of fuel consumption.
Display change button
P. 176

175
2-2. Instrument cluster
2
When driving
Odometer/trip meter/average
fuel consumption display
P. 176
Engine coolant temperature displa y/instrument panel light con-
trol display
Displays the engine coolant temperature and instrument panel light
control.
Outside temperature display
P. 387
Shift position/shift range display
Displays the currently selected shift position and the shift range.
P. 157, 161
Instrument panel light control button
P. 181
■ Audio system
Fuel consumption information
can be displayed on the audio
system screen. (P. 179)

176 2-2. Instrument cluster
Changing the odometer/trip meter displayPressing the button changes the
display as follows.
