2014 TOYOTA CAMRY HYBRID remote control

TABLE OF CONTENTSIndex
2
1-1. Hybrid systemHybrid system ...................... 30
Hybrid system precautions ........................ 35
Energy monitor/ consumption screen ........... 41
Hybrid vehicle driving tips .... 46
1-2. Key information Keys ..................................... 48
1-3. Opening, closing and locking the doors and
trunk
Smart key system................. 51
Wireless remote control ....... 64
Doors.................................... 67
Trunk .................................... 72
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ........................... 76
Rear seats ............................ 79
Head restraints ..................... 81
Seat belts ............................. 83
Steering wheel ..................... 90
Anti-glare inside rear view mirror.......................... 91
Outside rear view mirrors ..... 93 1-5. Opening and closing
the windows and
moon roof
Power windows..................... 95
Moon roof ............................. 98
1-6. Refueling Opening the fuel tank cap .................................... 102
1-7. Theft deterrent system Immobilizer system ............. 106
Alarm .................................. 108
1-8. Safety information Correct driving posture ....... 111
SRS airbags ....................... 113
Front passenger occupant classification system ......... 125
Child restraint systems ....... 131
Installing child restraints ..... 135
2-1. Driving procedures Driving the vehicle .............. 146
Power (ignition) switch........ 157
EV drive mode .................... 165
Hybrid transmission ............ 168
Turn signal lever ................. 170
Parking brake ..................... 172
Horn .................................... 173
1Before driving
2When driving

17
B
Cruise control switch P. 204
Talk switch *1 P. 350
“DISP” switch P. 186
Telephone switches *1 P. 328Audio remote control
switches *1 P. 254
: If equipped
*1: For vehicles with a navigation system or Entune Audio Plus, refer to “Navigation and Multimedia System Owner’s Manual”.

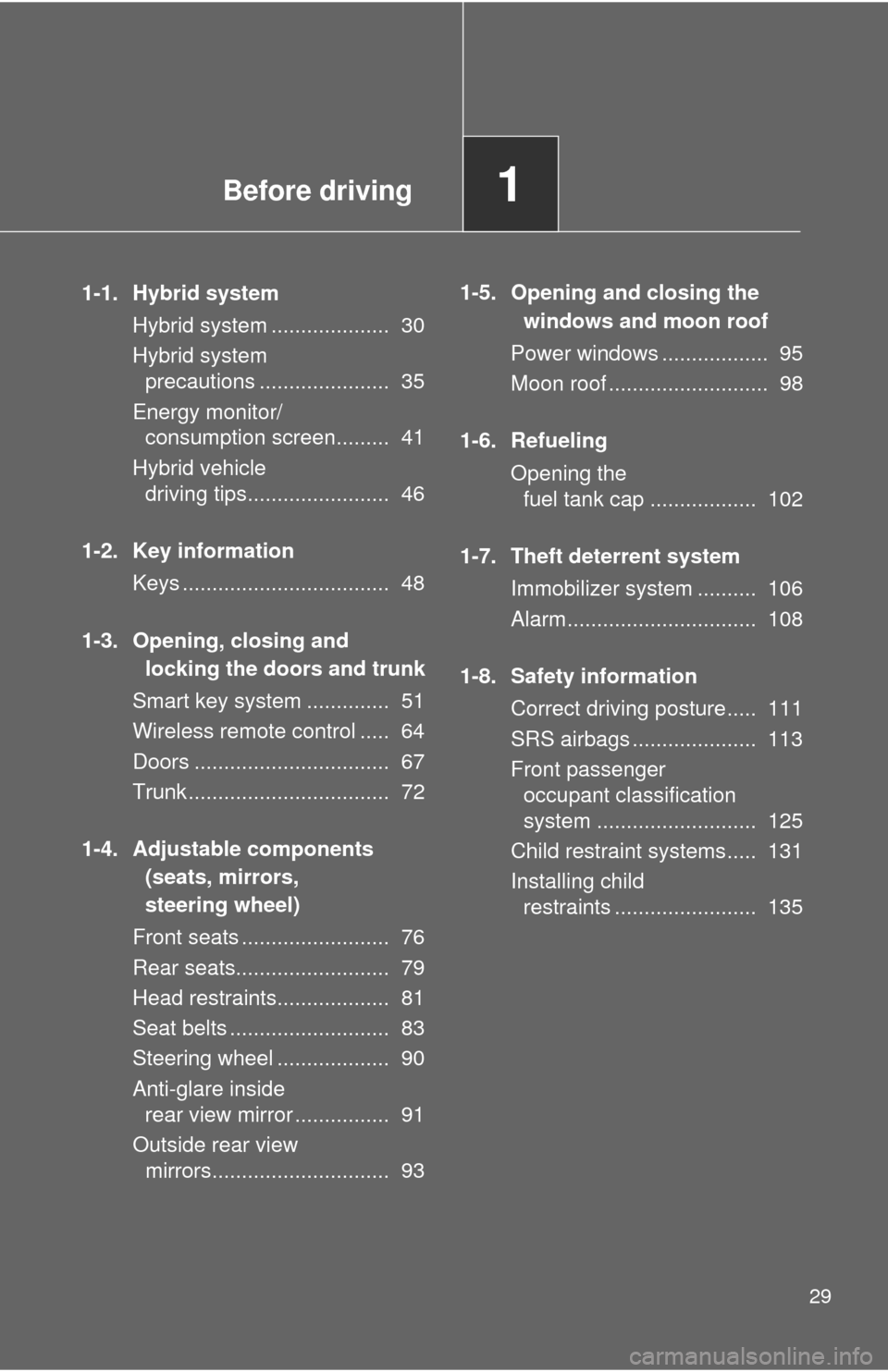

Before driving1
29
1-1. Hybrid systemHybrid system .................... 30
Hybrid system precautions ...................... 35
Energy monitor/ consumption screen......... 41
Hybrid vehicle driving tips........................ 46
1-2. Key information Keys ................................... 48
1-3. Opening, closing and locking the doors and trunk
Smart key system .............. 51
Wireless remote control ..... 64
Doors ................................. 67
Trunk .................................. 72
1-4. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 76
Rear seats.......................... 79
Head restraints................... 81
Seat belts ........................... 83
Steering wheel ................... 90
Anti-glare inside rear view mirror ................ 91
Outside rear view mirrors.............................. 93 1-5. Opening and closing the
windows and moon roof
Power windows .................. 95
Moon roof ........................... 98
1-6. Refueling Opening the fuel tank cap .................. 102
1-7. Theft deterrent system Immobilizer system .......... 106
Alarm................................ 108
1-8. Safety information Correct driving posture..... 111
SRS airbags ..................... 113
Front passenger occupant classification
system ........................... 125
Child restraint systems..... 131
Installing child restraints ........................ 135

48
1-2. Key information
Keys
Using the mechanical keyTo take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be inserted
in a lock cylinder, turn it over and
re-attempt to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key. (P. 535)
The following keys are provid ed with the vehicle.
Electronic keys
• Operating the smart key
system ( P. 51)
• Operating the wireless remote control function
( P. 64)
Mechanical keys
Key number plate

49
1-2. Key information
1
Before driving
■
When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (P. 368)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a mechanical key is lost, a new key can be made at your Toyota
dealer using the key number plate. ( P. 534)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircra\
ft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.

56 1-3. Opening, closing and locking the doors and trunk
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.\
)
■ Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the “POWER” switch off.
When the indicator light on the key surface is not on, press and
hold , , or for about 5 seconds while pressing and
holding .
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)
Vehicles with an alarm system: To prevent unintended triggering of the
alarm, unlock the doors using the wireless remote control and open and
close a door once after the settings have been changed. (If a door is not
opened within 60 seconds after is pressed, the doors will be locked
again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. (P. 108)
STEP1
STEP2
Multi-information displayUnlocking doorsBeep
Holding the driver's door
handle unlocks only the
driver's door. Exterior: Beeps 3
times
Interior: Beeps once
Holding the front passen-
ger’s door handle unlocks
all the doors.
Holding either front door
handle unlocks all the
doors. Exterior: Beeps twice
Interior: Beeps once

57
1-3. Opening, closing and locking the doors and trunk
1
Before driving
■
Battery-saving function
The battery-saving function will be activated in order to prevent the elec-
tronic key battery and the 12-volt battery from being discharged while the
vehicle is not in operation for a long time.
●In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m)
of the outside of the vehicle for 10 minutes or longer.
• The smart key system has not been used for 5 days or longer.
● If the smart key system has not been used for 14 days or longer, the
doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote
control or the mechanical key, to unlock the doors.
■ Electronic Key Batter y-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from emitting radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the elec-
tronic key buttons.

58 1-3. Opening, closing and locking the doors and trunk
■Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system, wireless remote control and
engine immobilizer system from operating properly.
(Ways of coping: P. 535)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless key (that emit radio waves) is being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• A portable radio, cellular phone, cordless phone or other wireless com-
munication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to
the rear window
● When the electronic key is placed near a battery charger or electronic
devices
