2014 TOYOTA AYGO clock

233
3-6. Other interior features
3
Interior features
AYGO_WE_99G80E
Clock
: If equipped
The clock can be adjusted by the following steps.
Ty p e A
Press and hold the “CLOCK”
button until you hear a beep.
Adjusts the hours
Adjusts the minutes
Ty p e B
Press the “MENU” button.

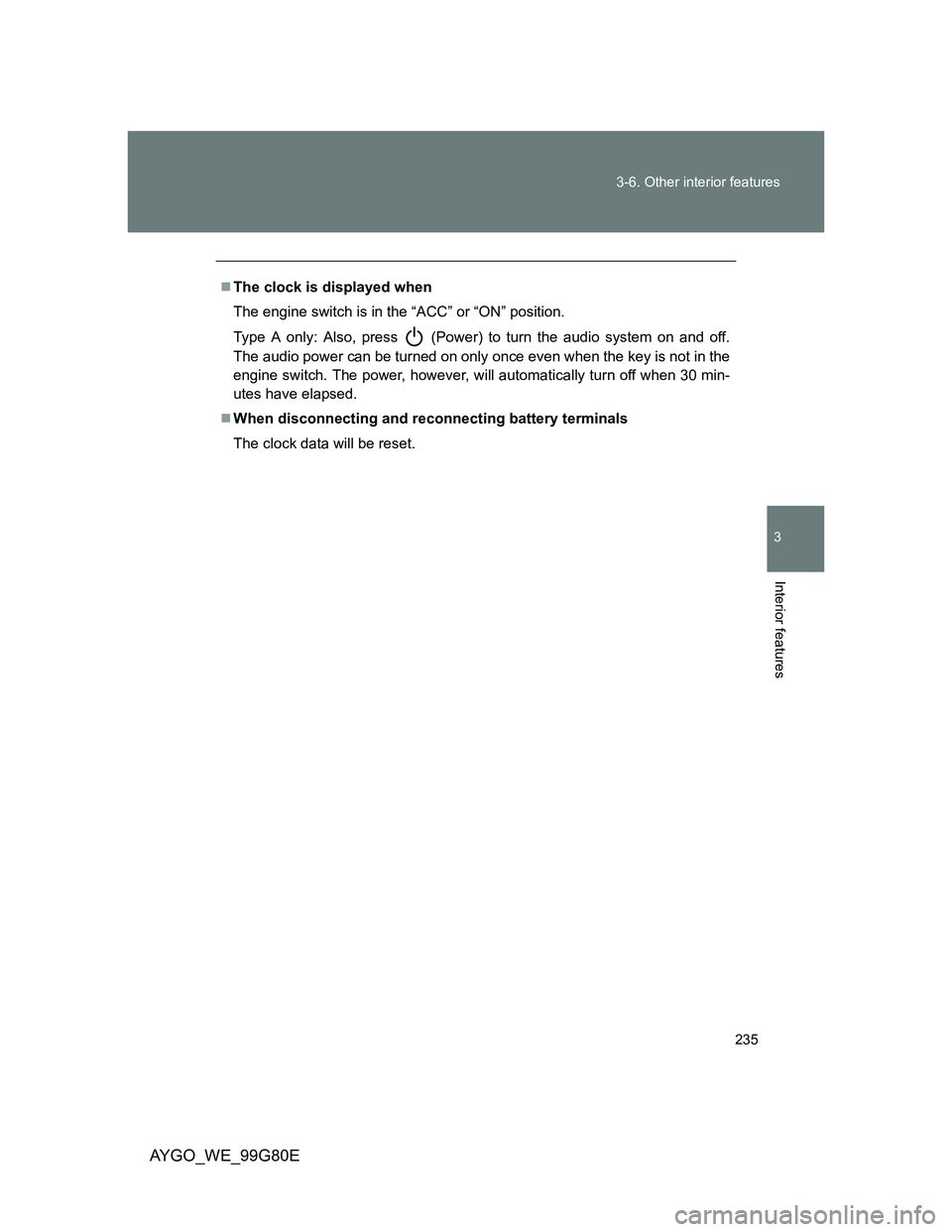

235 3-6. Other interior features
3
Interior features
AYGO_WE_99G80E
The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Type A only: Also, press (Power) to turn the audio system on and off.
The audio power can be turned on only once even when the key is not in the
engine switch. The power, however, will automatically turn off when 30 min-
utes have elapsed.
When disconnecting and reconnecting battery terminals
The clock data will be reset.

262 4-3. Do-it-yourself maintenance
AYGO_WE_99G80EAdding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 349
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 Imp.qt.)
Item Clean funnel

295 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80EPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.

296 4-3. Do-it-yourself maintenance
AYGO_WE_99G80ETurn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
Front position lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

297 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80EFront turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Back-up light, stop/tail lights, rear turn signal lights and rear
fog light
Open the back door and remove
the cover using a Phillips-head
screwdriver.

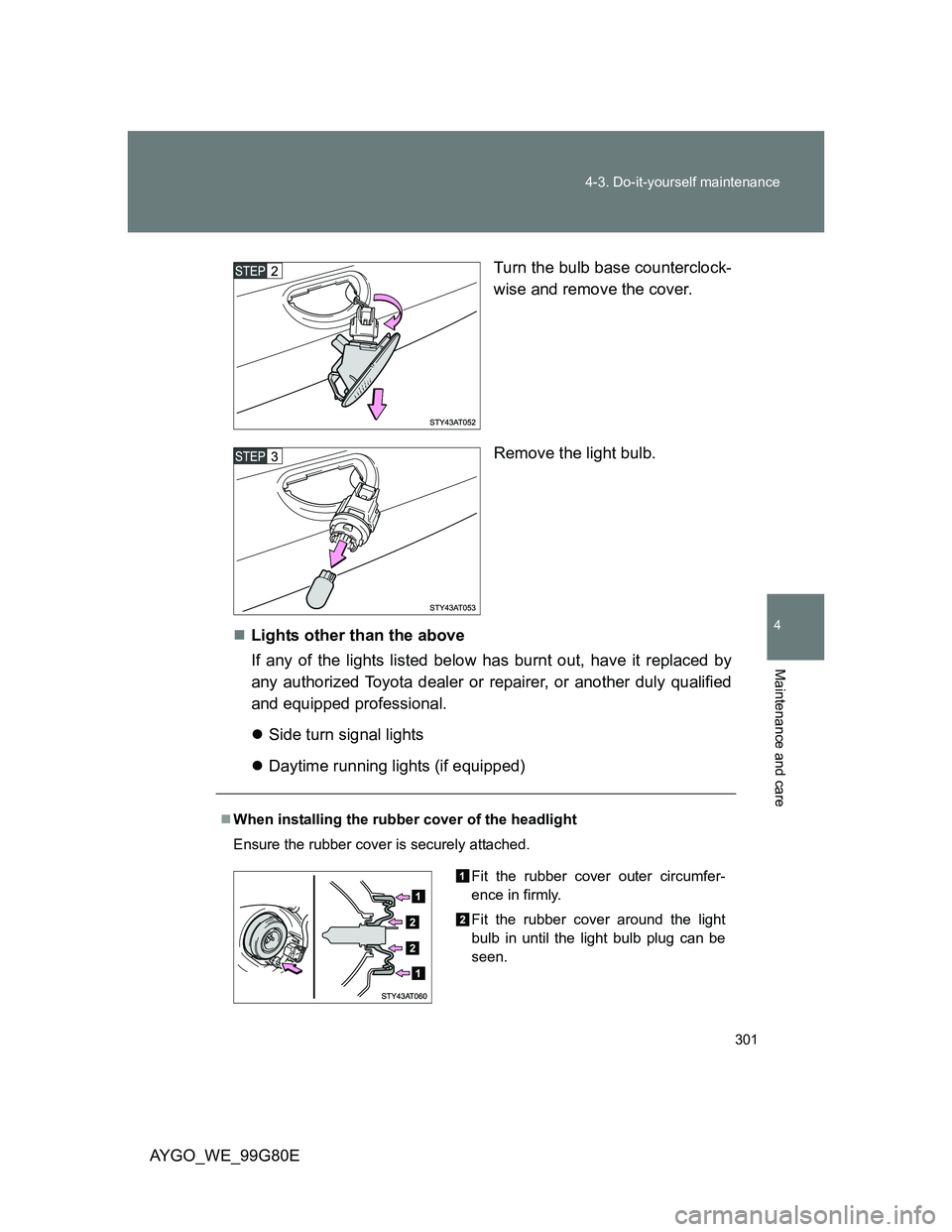

301 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80ETurn the bulb base counterclock-
wise and remove the cover.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
Daytime running lights (if equipped)
When installing the rubber cover of the headlight
Ensure the rubber cover is securely attached.
Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.

362 Alphabetical index
AYGO_WE_99G80E
Back door ................................... 48
Back-up lights
Replacing light bulbs ............. 292
Wattage................................. 356
Battery
Checking ............................... 266
If the vehicle battery is
discharged .......................... 332
Preparing and checking
before winter ....................... 159
Bluetooth
® audio ..................... 209
Bluetooth® phone .................... 212
Brake
Parking brake ........................ 137
Brake assist.............................. 154
Break-in tips ............................. 117
Care
Exterior.................................. 242
Interior ................................... 245
Seat belts .............................. 246
CD player .......................... 181, 196
Chains ....................................... 159
Child-protectors ......................... 46
Child restraint system
Baby seats, definition .............. 92
Baby seats, installation ......... 103
Child seats, definition .............. 92
Child seats, installation ......... 103
Installing CRS with ISOFIX
rigid anchor ......................... 107
Installing CRS with seat
belts .................................... 104
Installing CRS with top
straps .................................. 107
Junior seats, definition ............ 92
Junior seats, installation........ 103Child safety
Airbag precautions .................. 85
Battery precautions ....... 268, 334
Child-protectors ...................... 46
Child restraint system ............. 92
How your child should wear
the seat belt .......................... 60
Installing child restraints ....... 103
Power window precautions ..... 66
Removed key battery
precautions ......................... 281
Seat belt precautions .............. 61
Cleaning
Exterior ................................. 242
Interior................................... 245
Seat belts .............................. 246
Clock ......................................... 233
Condenser ................................ 266
Cooling system
Engine overheating ............... 336
Cup holders.............................. 230
Curtain shield airbags ............... 79
B
C
