4097-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (OM41451U)
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.
Using a flat bed truck
CAUTION
Observe the following precaution.
Failure to do so may result in death or serious injury.
■Caution while towing
If the hybrid system is off, the power assist for the brakes and steering will
not function, making steering and braking more difficult.

4107-2. Steps to take in an emergency
AVALON_HV_U (OM41451U)
NOTICE
■To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck
Never tow this vehicle from the rear with the front wheels on the ground.
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

4117-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (OM41451U)
●Fluid leaks under the vehicle.
(Water dripping from the air co nditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points higher
than normal.
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spon gy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the follow ing symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

4127-2. Steps to take in an emergency
AVALON_HV_U (OM41451U)
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Brake system warning buzzer:
When there is a possible problem that could affect braking performance,
the warning light will come on and a warning buzzer will sound.
Parking brake engaged warning buzzer:
Parking brake engaged warning buzzer: The buzzer sounds to indicate
that the parking brake is still engaged (with the vehicle having reached a
speed of 3 mph [5 km/h]).
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following acti ons if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.

4137-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (OM41451U)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Im mediately stop the vehicle in a
safe place and contact your Toyota dealer.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle ins pected by your Toyota dealer immediately.
Stop the vehicle immediately.

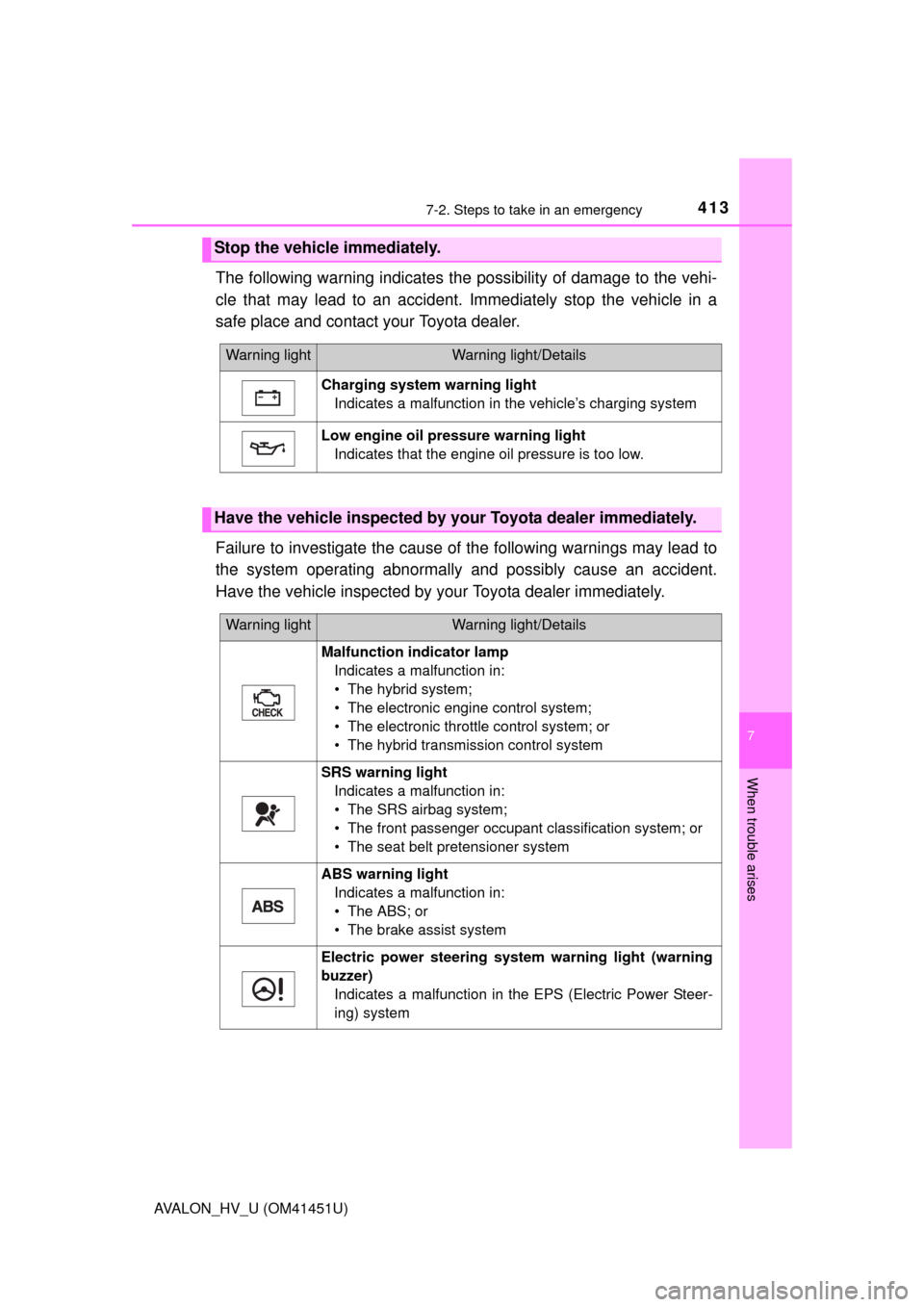

Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Malfunction indicator lampIndicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
ABS warning lightIndicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)Indicates a malfunction in the EPS (Electric Power Steer-
ing) system

4147-2. Steps to take in an emergency
AVALON_HV_U (OM41451U)
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
(Flashes)
(If equipped)

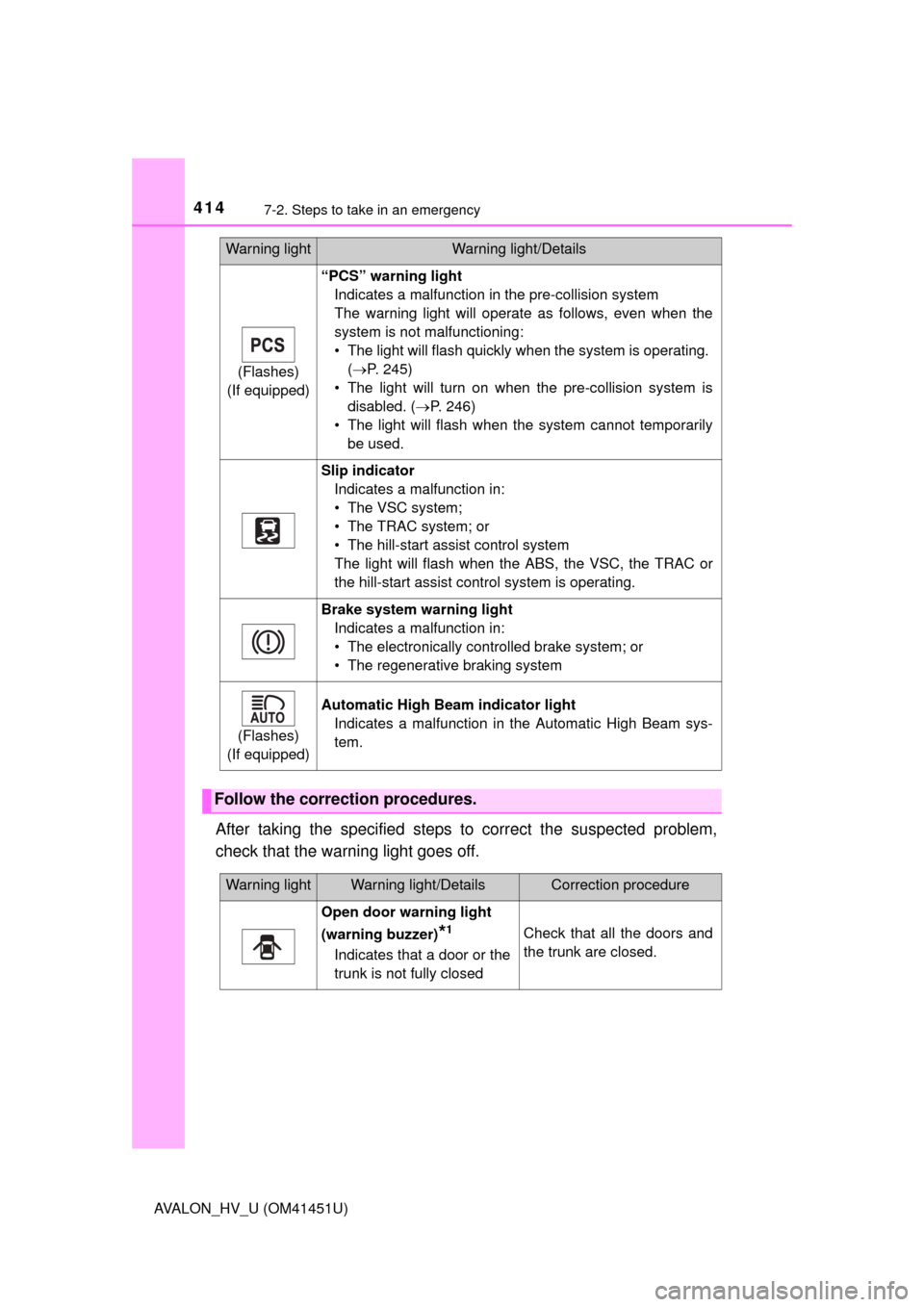

“PCS” warning light Indicates a malfunction in the pre-collision system
The warning light will operate as follows, even when the
system is not malfunctioning:
• The light will flash quickly when the system is operating. (P. 245)
• The light will turn on when the pre-collision system is disabled. ( P. 246)
• The light will flash when the system cannot temporarily be used.
Slip indicatorIndicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The hill-start assist control system
The light will flash when the ABS, the VSC, the TRAC or
the hill-start assist control system is operating.
Brake system warning light Indicates a malfunction in:
• The electronically controlled brake system; or
• The regenerative braking system
(Flashes)
(If equipped)
Automatic High Beam indicator light Indicates a malfunction in the Automatic High Beam sys-
tem.
Follow the correction procedures.
Warning lightWarning light/Details
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed
Check that all the doors and
the trunk are closed.

4157-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (OM41451U)

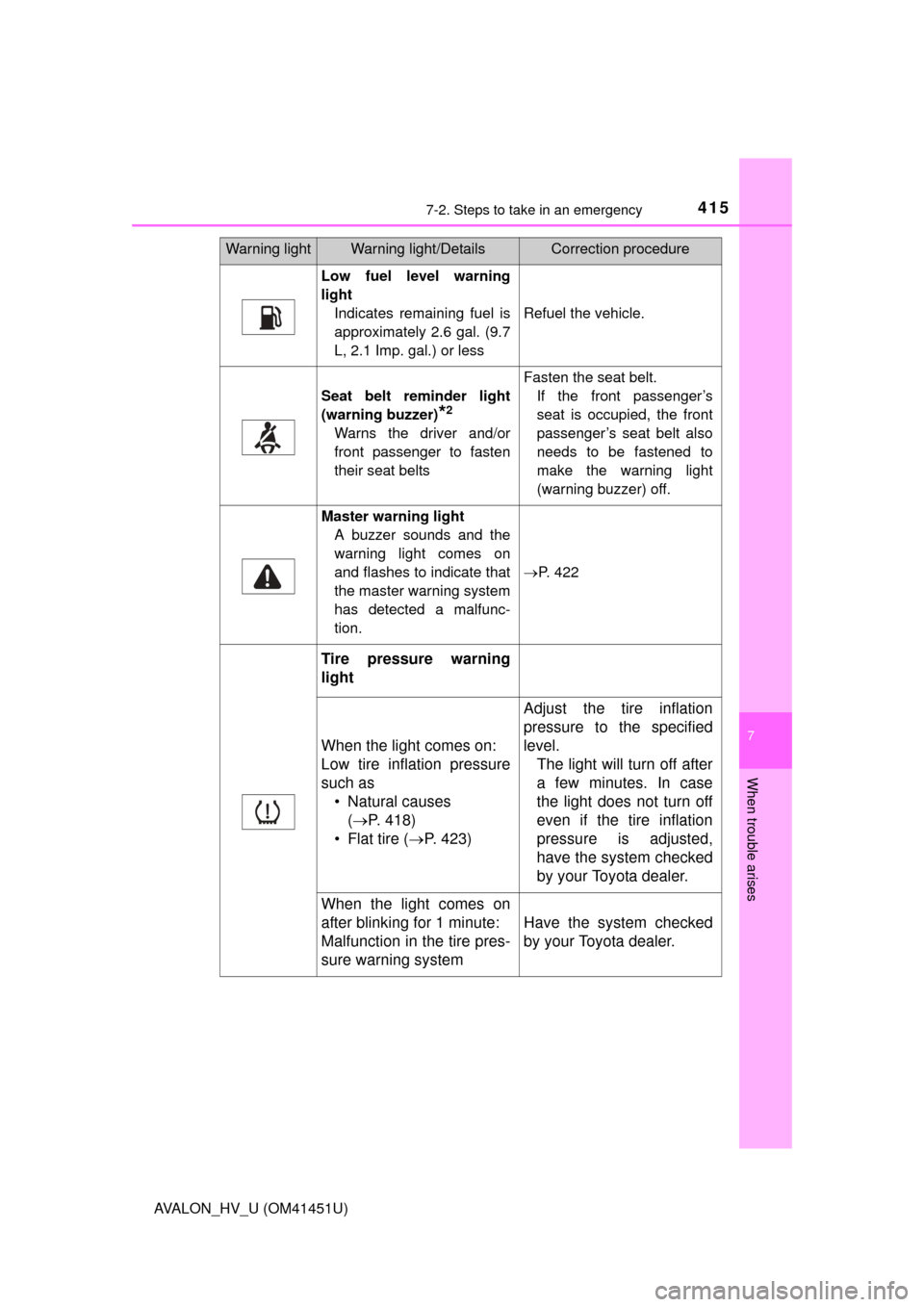

Low fuel level warning
lightIndicates remaining fuel is
approximately 2.6 gal. (9.7
L, 2.1 Imp. gal.) or less
Refuel the vehicle.
Seat belt reminder light
(warning buzzer)
*2
Warns the driver and/or
front passenger to fasten
their seat belts
Fasten the seat belt.If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.
Master warning lightA buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.
 P. 422
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes ( P. 418)
• Flat tire ( P. 423)
Adjust the tire inflation
pressure to the specified
level.
The light will turn off after
a few minutes. In case
the light does not turn off
even if the tire inflation
pressure is adjusted,
have the system checked
by your Toyota dealer.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
Have the system checked
by your Toyota dealer.
Warning lightWarning light/DetailsCorrection procedure

4167-2. Steps to take in an emergency
AVALON_HV_U (OM41451U)
*1: Open door warning buzzer:A buzzer will sound if the vehicle reaches a speed of 3 mph (5 km/h) or
more with any door open.
*2: Driver’s seat belt buzzer:The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the power switch is turned to ON mode, the
buzzer sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20
km/h), the buzzer sounds once. If the seat belt is still unfastened after 30
seconds, the buzzer will sound intermittently for 10 seconds. Then, if the
seat belt is still unfastened, the buzzer will sound in a different tone for 20
more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds once if the\
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfas-
tened after 30 seconds, the buzzer will sound intermittently for 10 seconds.
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 20 more seconds.
